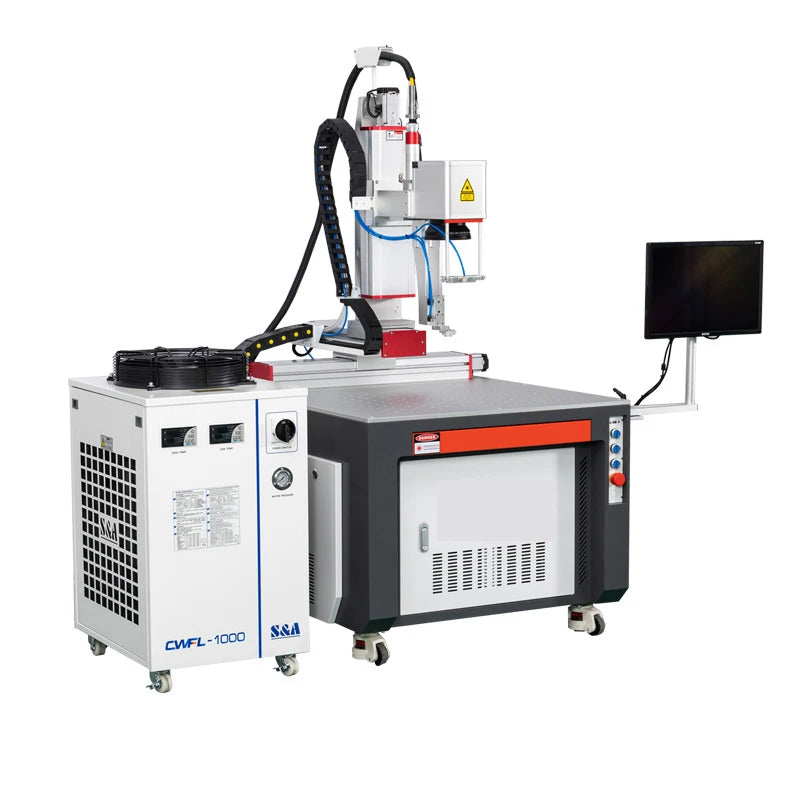

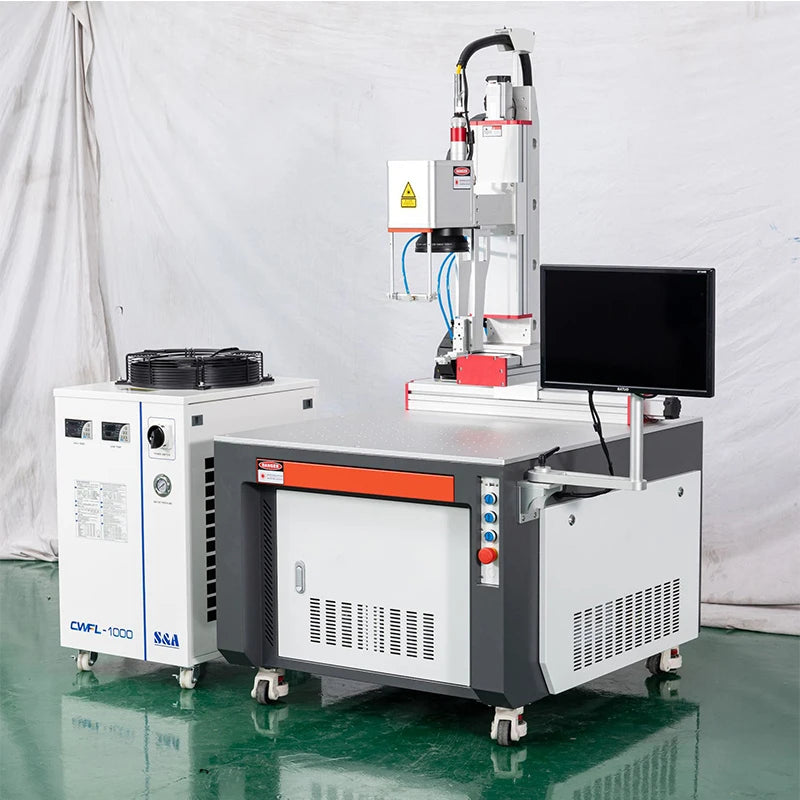

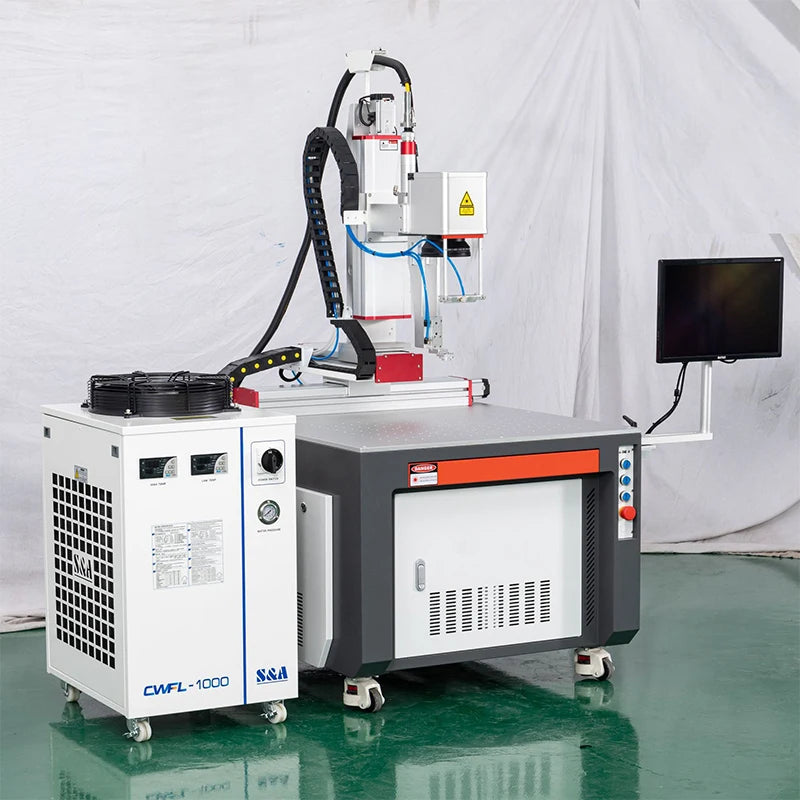

Stainless Steel Aluminum Copper Lithium Battery Welding Machine Fiber Fully Automatic Laser Welding Machine
1000 W
$1,200.00 USD
Skip to product information
Stainless Steel Aluminum Copper Lithium Battery Welding Machine Fiber Fully Automatic Laser Welding Machine
$1,200.00 USD
Shipping calculated at checkout.
SPECIFICATIONS
Cooling mode: Water cooling
Equipment model: HMLASER-1000/1500/2000/3000
Key Selling Points: Easy To Operate
Laser Working Area: 200*200*300mm
Monitoring system: CCD camera
Optical fiber output interface: QBH
Output Power: 3000W
Power requirements: AC380V 50HZ/60HZ
Usage: repairing mould toolings etc
Wavelength: 1064mm
Weight: 360 KG
brand name: HM
condition: New
focal spot diameter: 0.2mm-1.5mm
laser head brand: WSX
laser source brand: Raycus
place of origin: HUB
pulse width: 0.5-10ms
warranty: 2 Years
| Equipment model | HMLASER-1000/1500/2000/3000 | |||||
| Laser wavelength | 1080NM | Laser Power | 1000-3000W | |||
| Modulation frequency | 1-10KHZ | Beam quality | <1.3 | |||
| Power stability | ≤3 | Work repetition positioning accuracy | 0.05mm | |||
| Red light positioning | Yes | Welding mode | Spot welding / continuous | |||
| Optical fiber output interface | QBH | Power regulation range | 0-100% | |||
| Cooling mode | Water cooling | Power requirements | AC380V 50HZ/60HZ | |||
| Power consumption of the whole machine | ≤14KW | Operating system | Galvanometer welding control system | |||
| Working ambient temperature | 10-40℃,Humidity: 10%-90% without condensation | |||||
| machine overall size | Customizable | Machine weight | Customizable | |||
FAQ
Q:The reasons for choosing us?
A:1. Safe trading with Alibaba golden member.
2.Extremely particular about products quality.
3.1 year warranty, with lifetime online support.
4.Availability of a wide range of products to suit almost every need about UV flatbed printer.
Q:How to buy?
A:Simply contact our sales expert and request for a proforma invoice.The order will be shipped after the invoice get paid.
Q:Do you ship internationally?
A:Yes.We ship internationally. With powerful backup of our regular forwarder, we ship to almost every places in the world by sea, air, train, truck and multimodal transport.Destination can be a port or a specific address.Contact us to get quote for shipping.
Q:How to pay?
A:Recommended payment method is bank transfer which usually has not much limitation in most countries.For small amount, there are some other options: Western Union.
Q:How is your warranty?
A:12 months trouble-free warranty.During warranty period, electric parts are covered with warranty.Users send back defective parts and we send the new one for replacement.
Q:How is your technical support?
A:Our English-speaking technician is available online via email and whatsapp.Also, we can remote control your PC via TeamViewer to solve some software issue.
