SPECIFICATIONS

Brand Name: diymore

Certification: CE

Choice: yes

Current Type: DC

High-concerned chemical: None

Input Voltage: 6.0~36V

Model Number: DC Buck Boost Converter

Origin: Mainland China

Output Current: 0~6.000A

Phase: Single-phase

Type: Relay

Use: SVC

is_customized: Yes

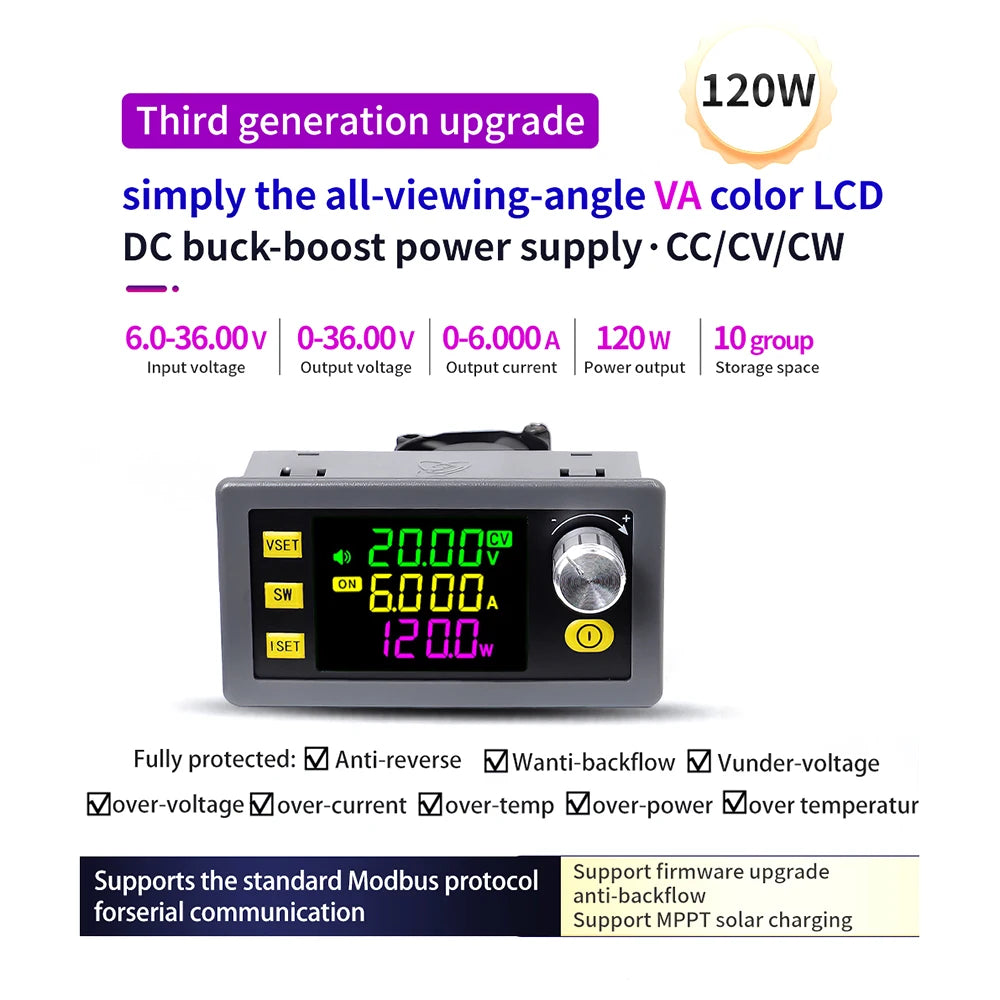

Features:

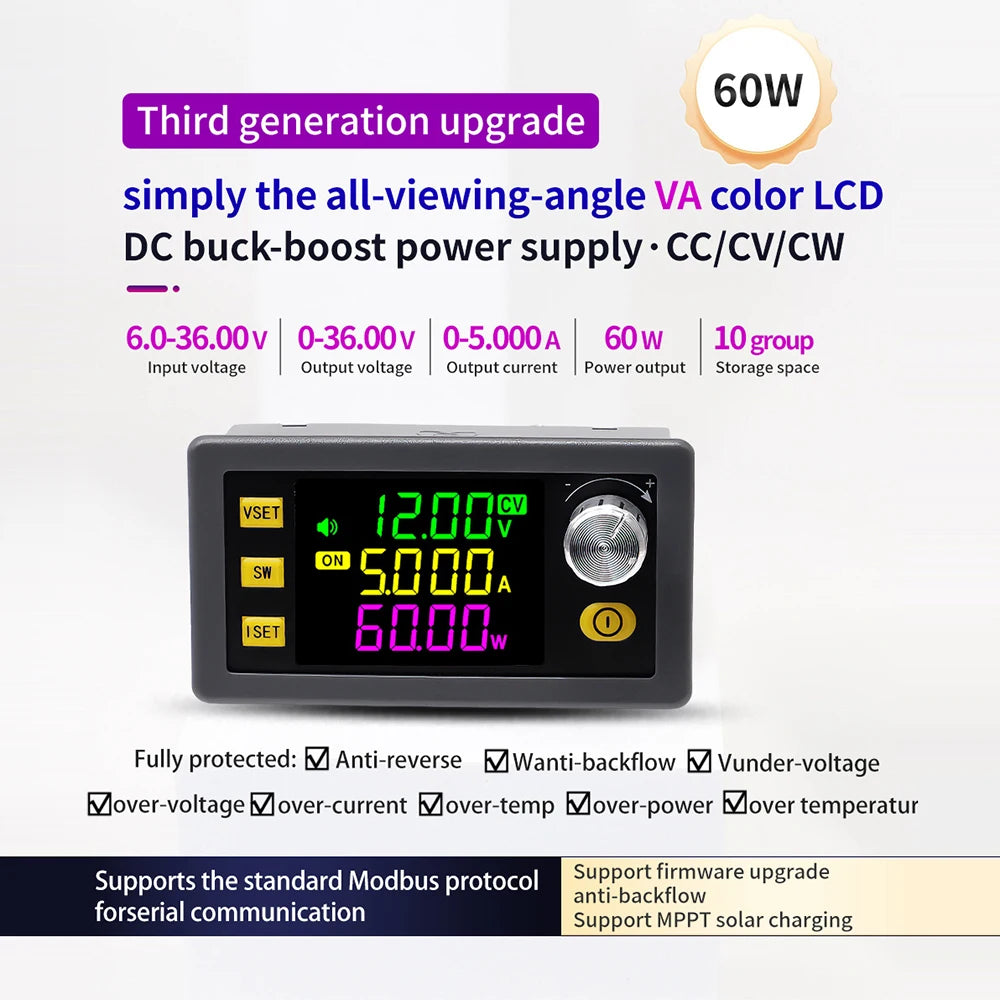

1. Adopt high quality PCB material, quality is guaranteed, which greatly improves the service life of the product

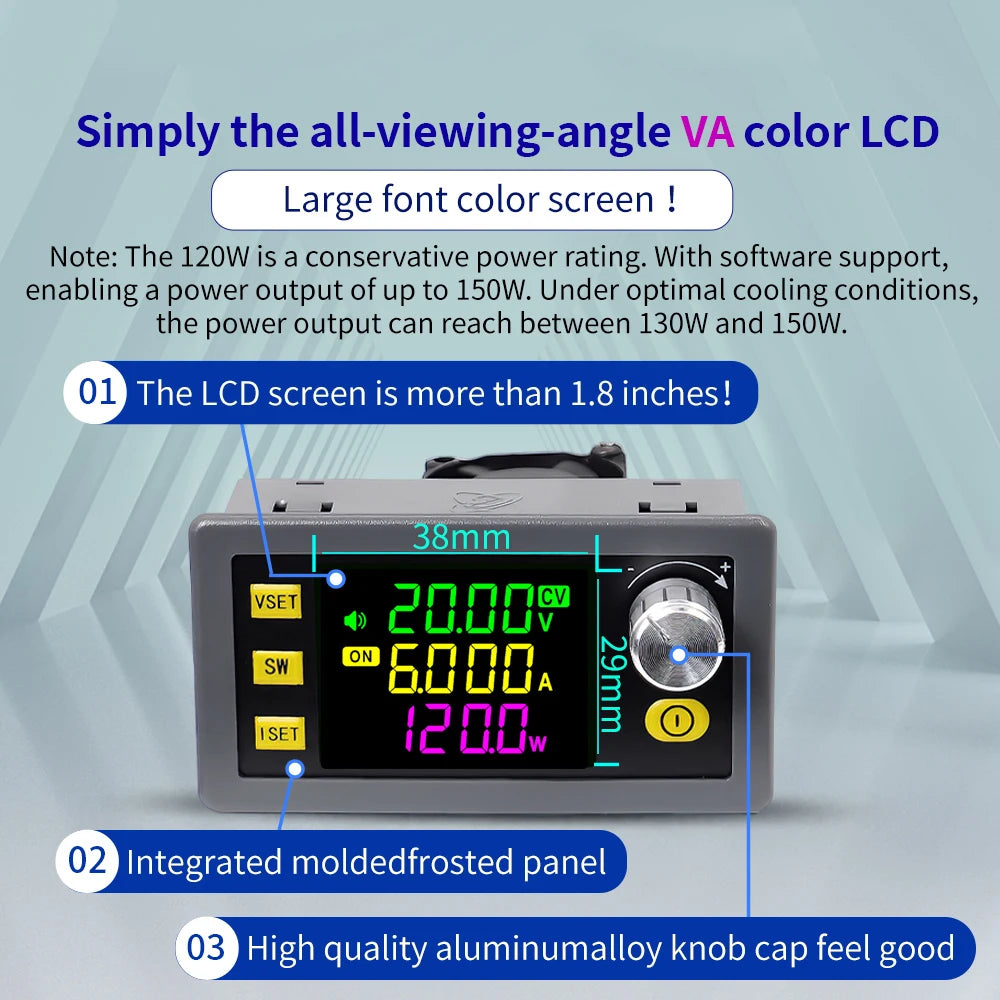

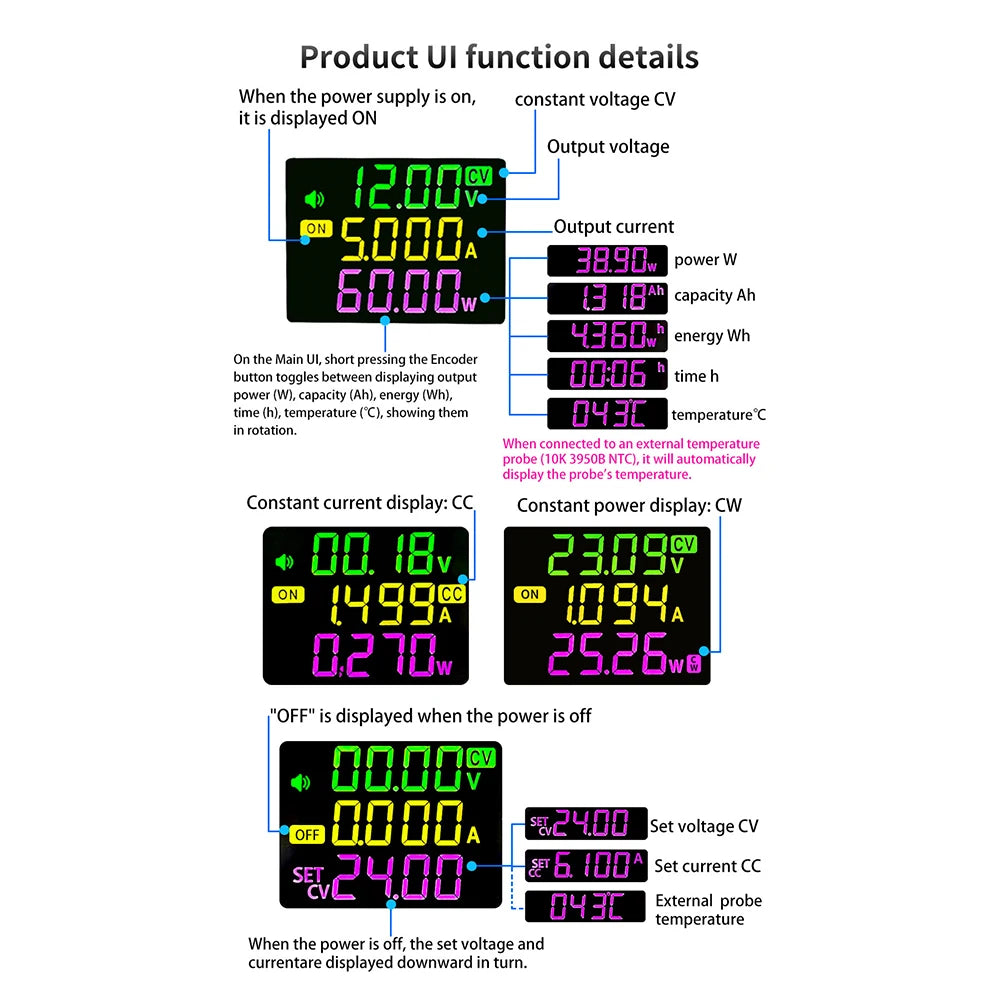

2. LCD screen layout is reasonable, the font is large and full of rounded, professional power supply LCD screen, you want the function it has!
3. Built-in buzzer, key prompts, alarm prompts, safer and more secure use.

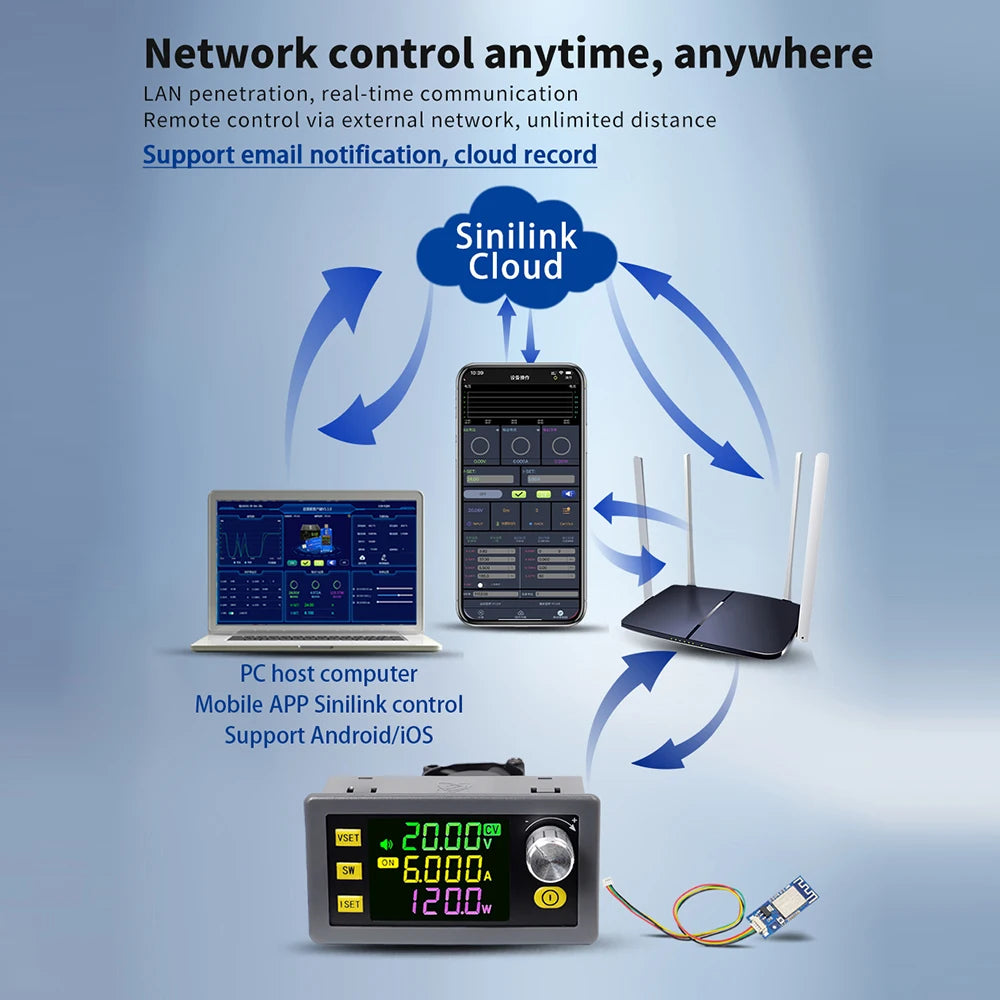

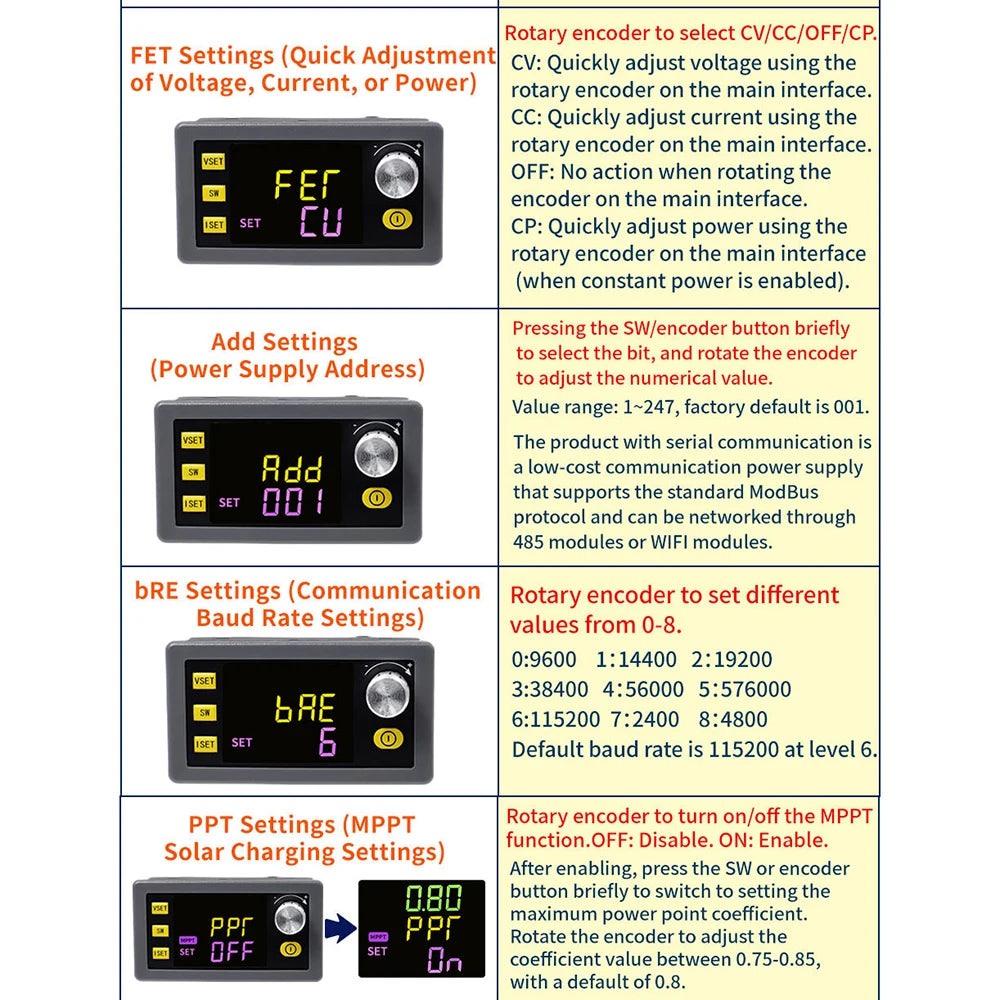

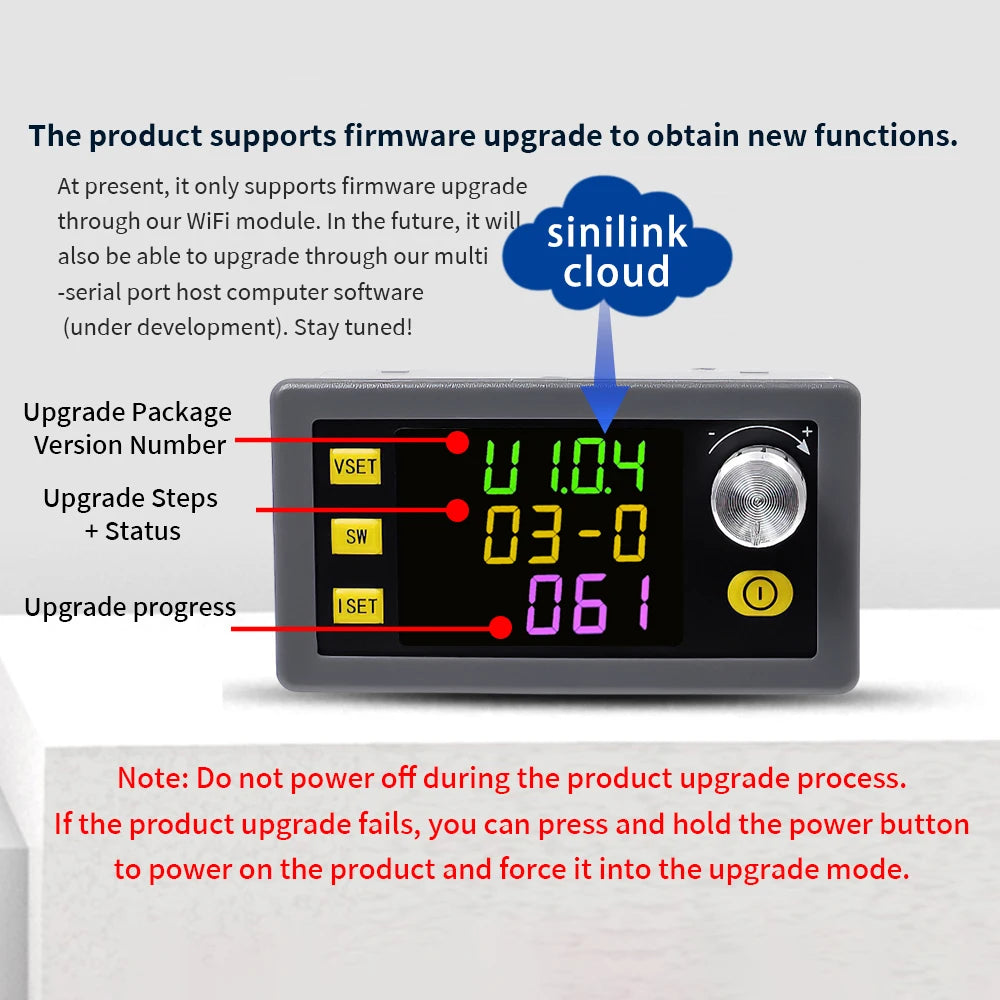

4. The product supports serial communication standard Modbus protocol, support for firmware upgrade, support for MPPT solar charging, comprehensive functions.

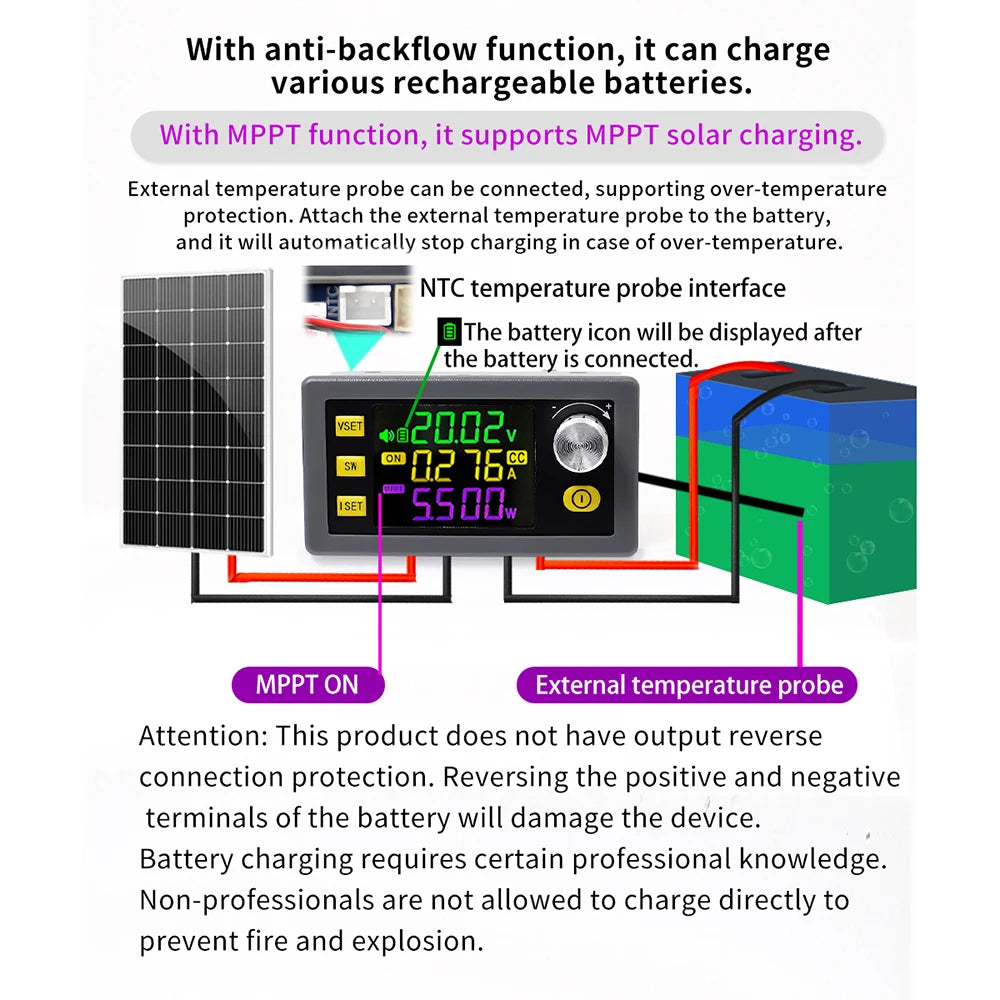

5. The product has a wide range of applications, there is a backflow prevention function can be charged to a variety of rechargeable batteries, and with MPPT function to support MPPT solar charging, can be connected to the external temperature probe to support over-temperature protection and so on!

Parameter:

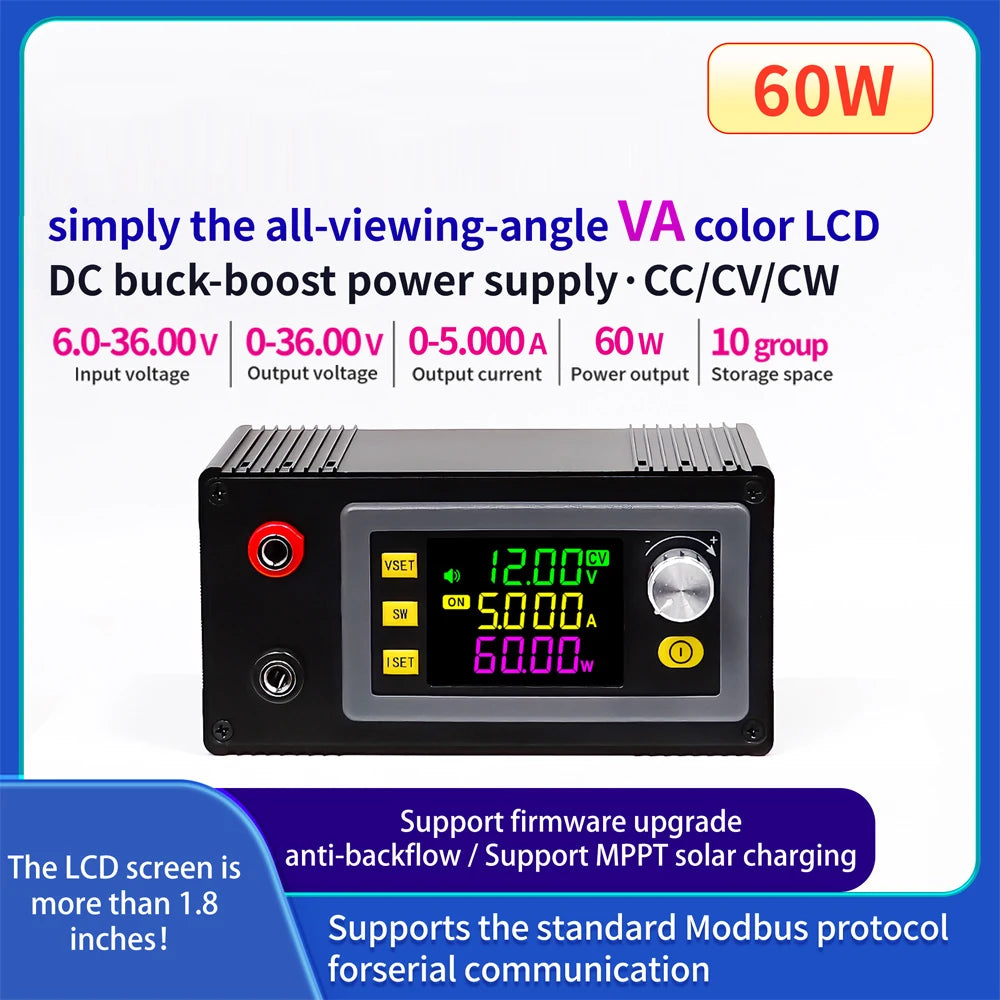

SK60:
Input voltage: 6.0~36V
Output current: 0~5.000A
Output power: 60W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Output Voltage: 0~36V
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.01A

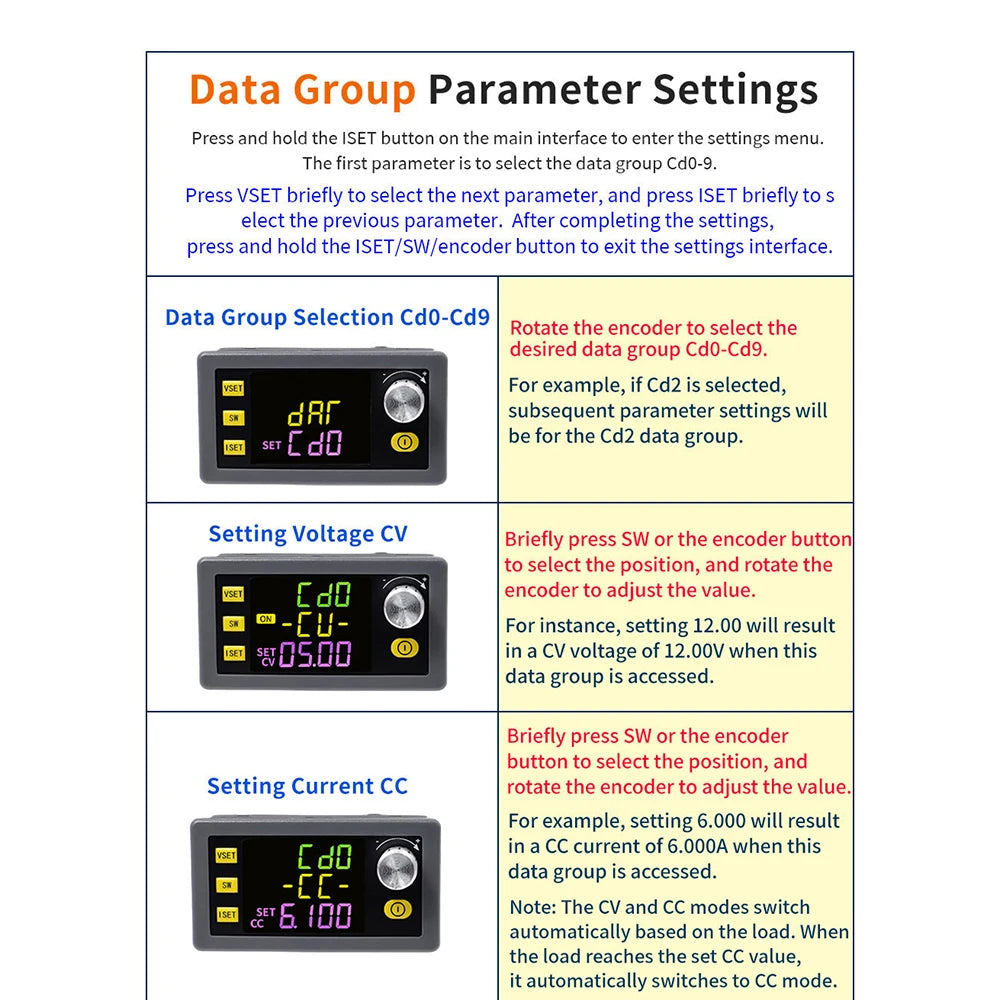

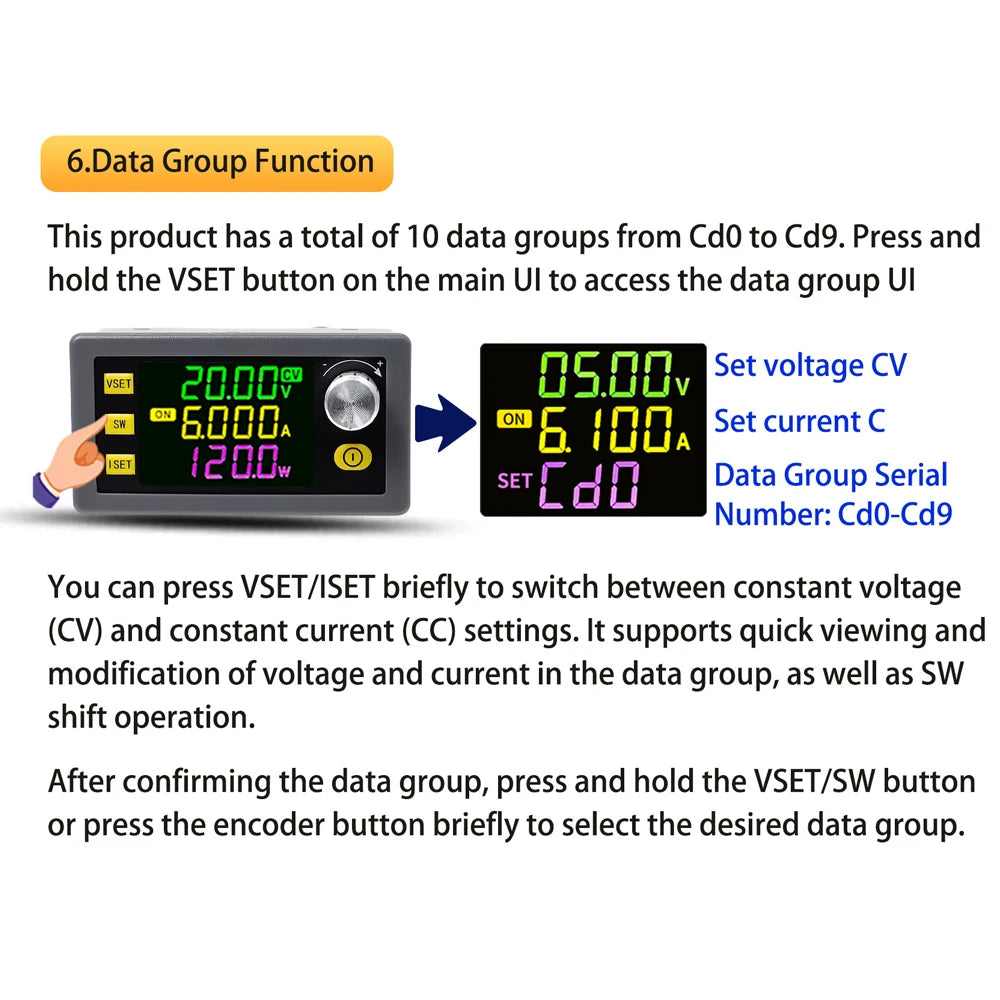

Storage data group: 10 groups
MPPT function: support MPPT solar charging
Buzzer: Yes
Soft start: Yes

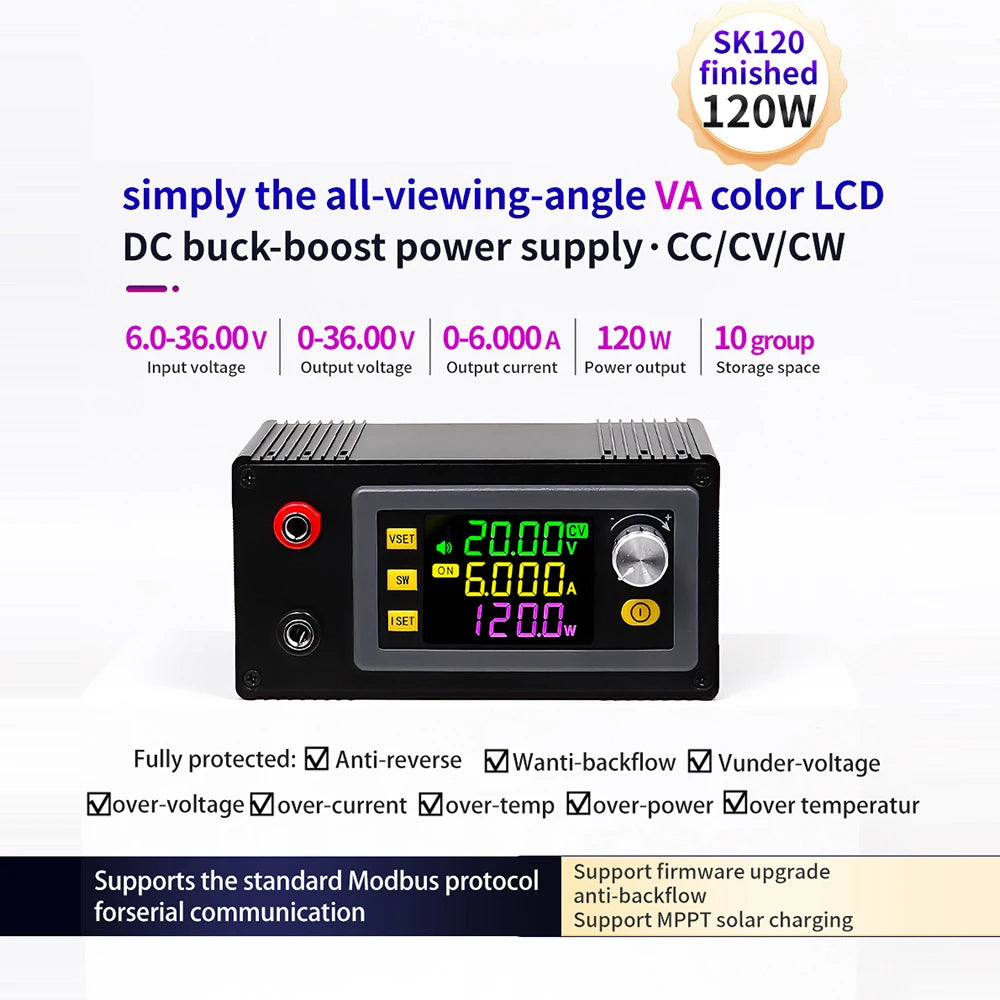

SK120:
Input Voltage: 6.0~36V
Output Current: 0~6.000A
Output power: 120W
Voltage Resolution: 0.01V
Conversion efficiency: 88% or so
Output Voltage: 0~36V
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: support MPPT solar charging
Buzzer: Yes
Soft start: Yes

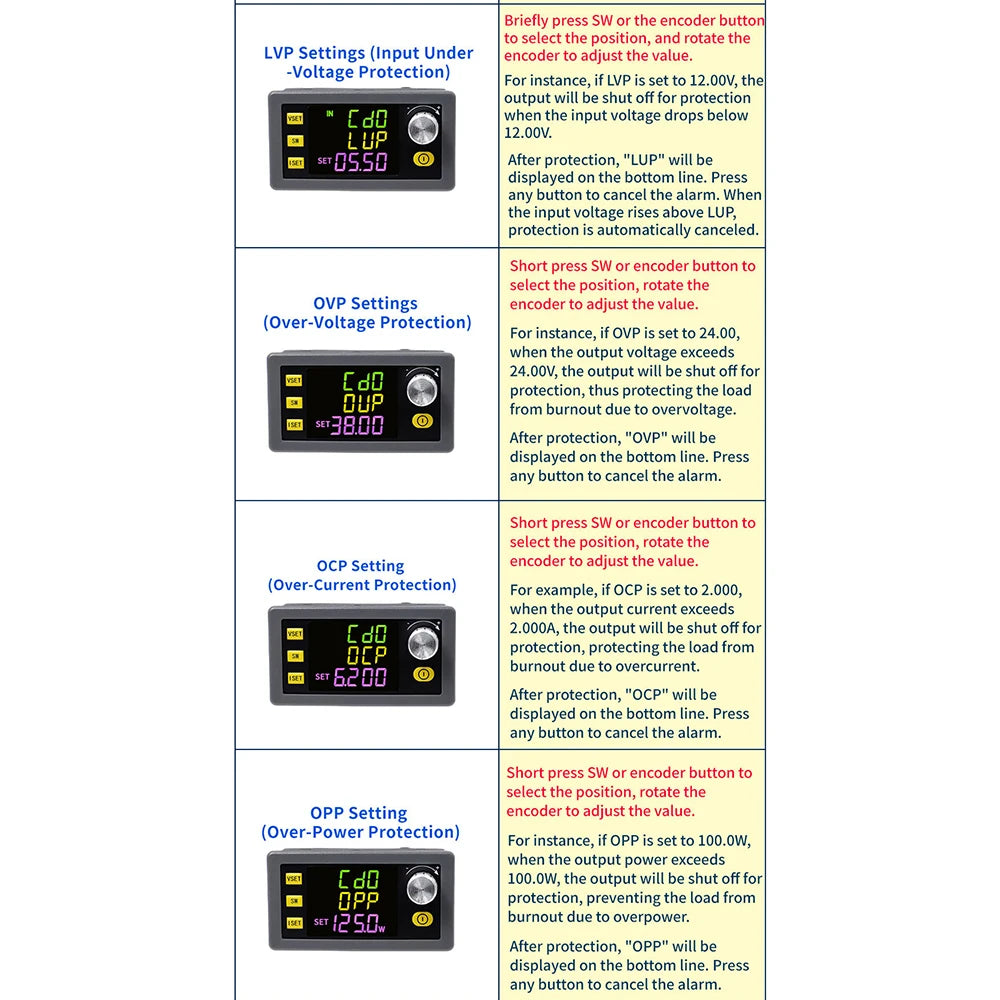

Protection mechanism:
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection: 5.5-36V adjustable, default 5.5V
Output over-voltage protection: 0-38V adjustable, default 38V
Output overcurrent protection:
SK60: 0-5.2A adjustable, default 5.2A
SK120: 0-6.2A adjustable, default 6.2A
Output over power protection:
SK60: 0-80W adjustable, default 65W
SK120: 0-150W adjustable, default 125W

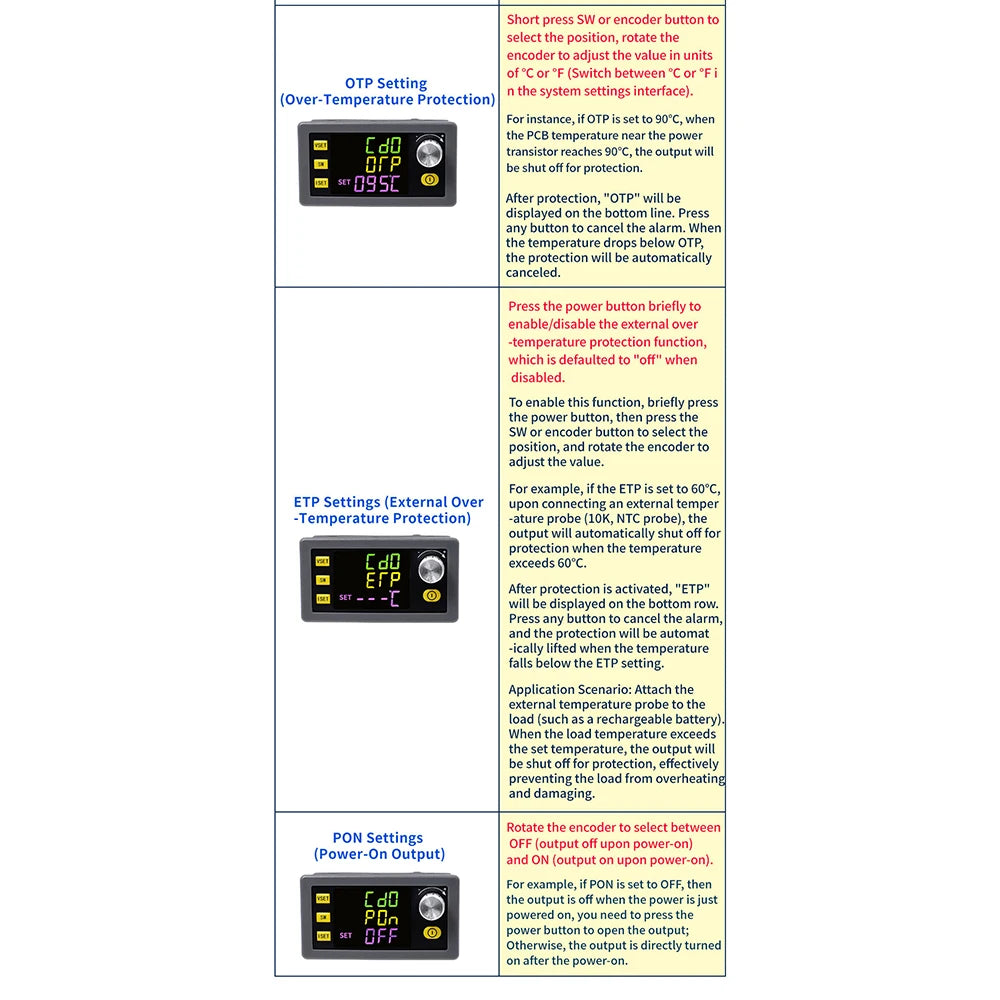

Over-temperature protection: 0-110°C adjustable, default 95°C

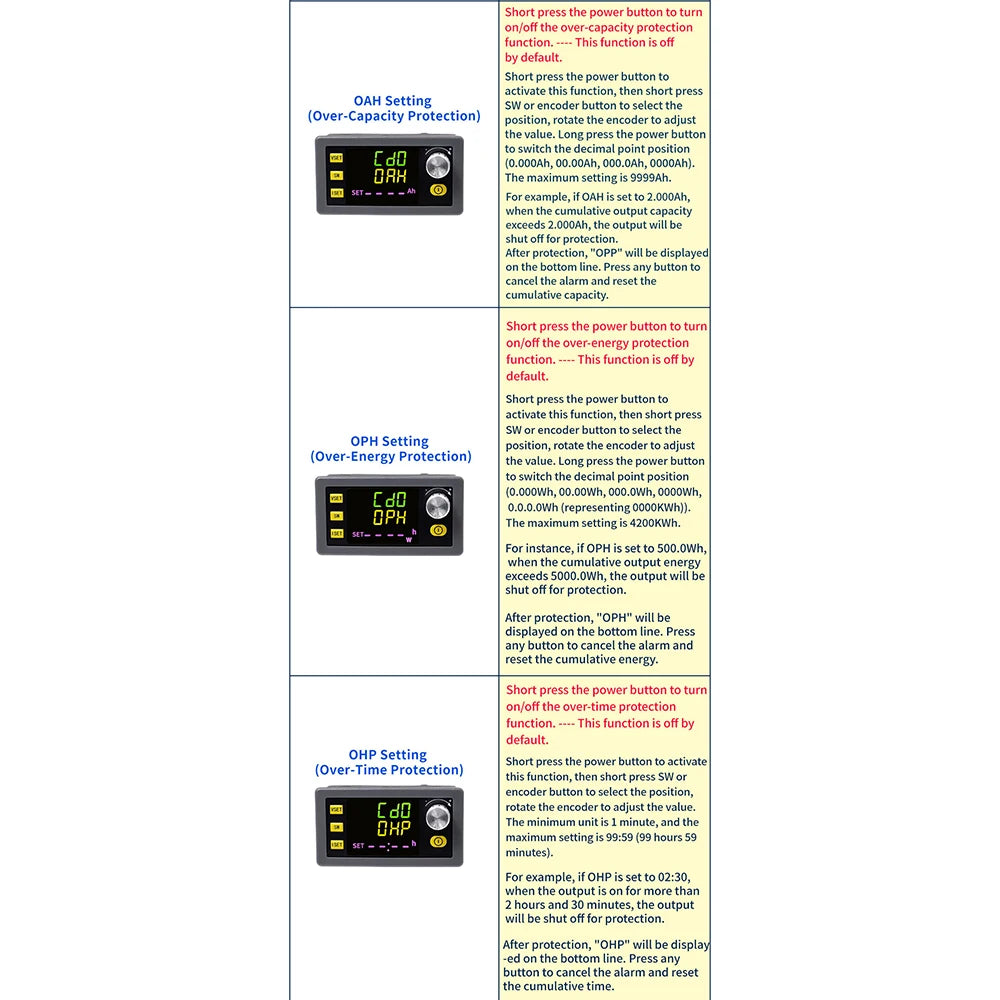

Timeout protection: 0 -100H adjustable, default off
Over capacity protection: 0~9999AH adjustable, default off
Super energy protection: 0~4200KWH adjustable, default off

Package include:
With interface shell lift module *1 (style of your choice)
