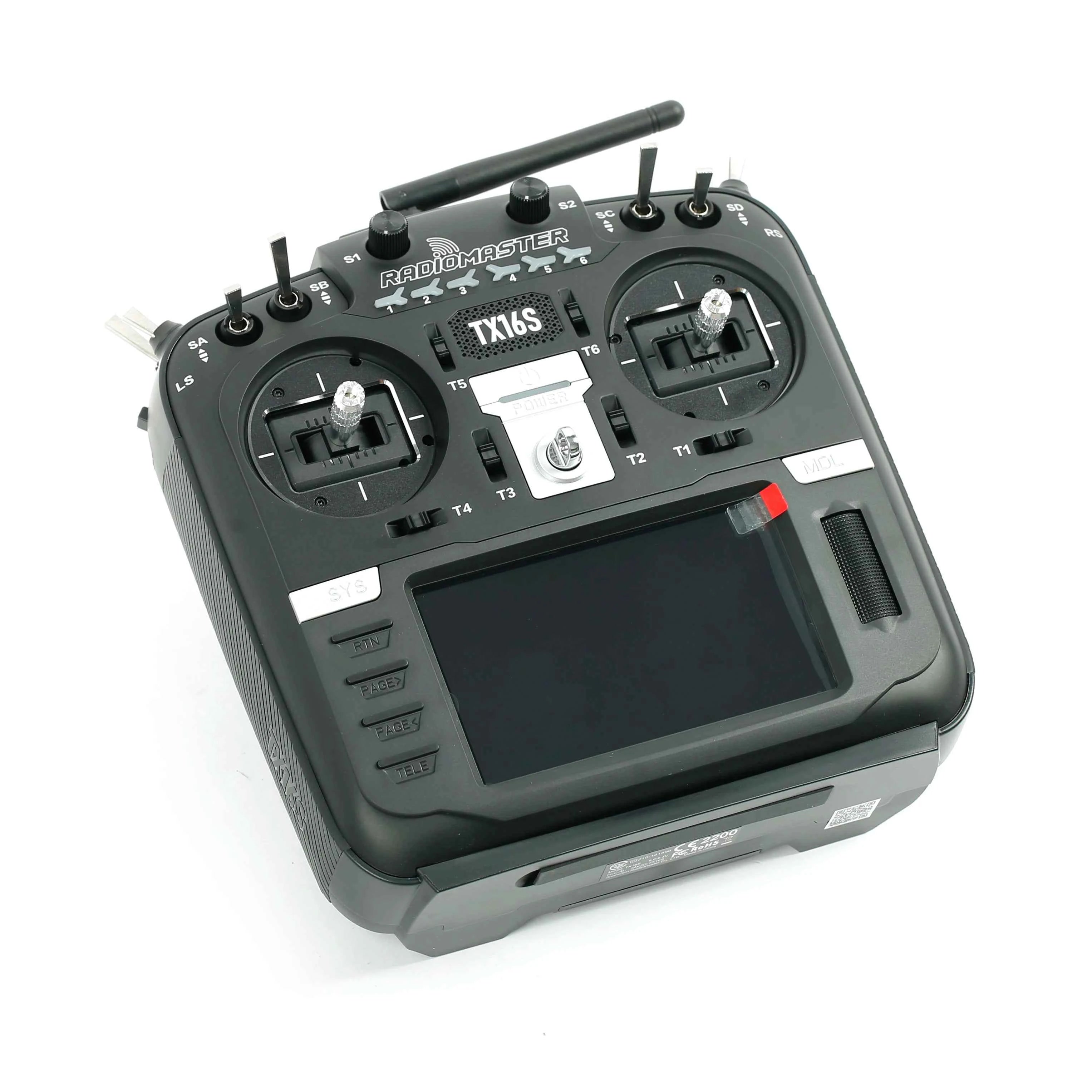

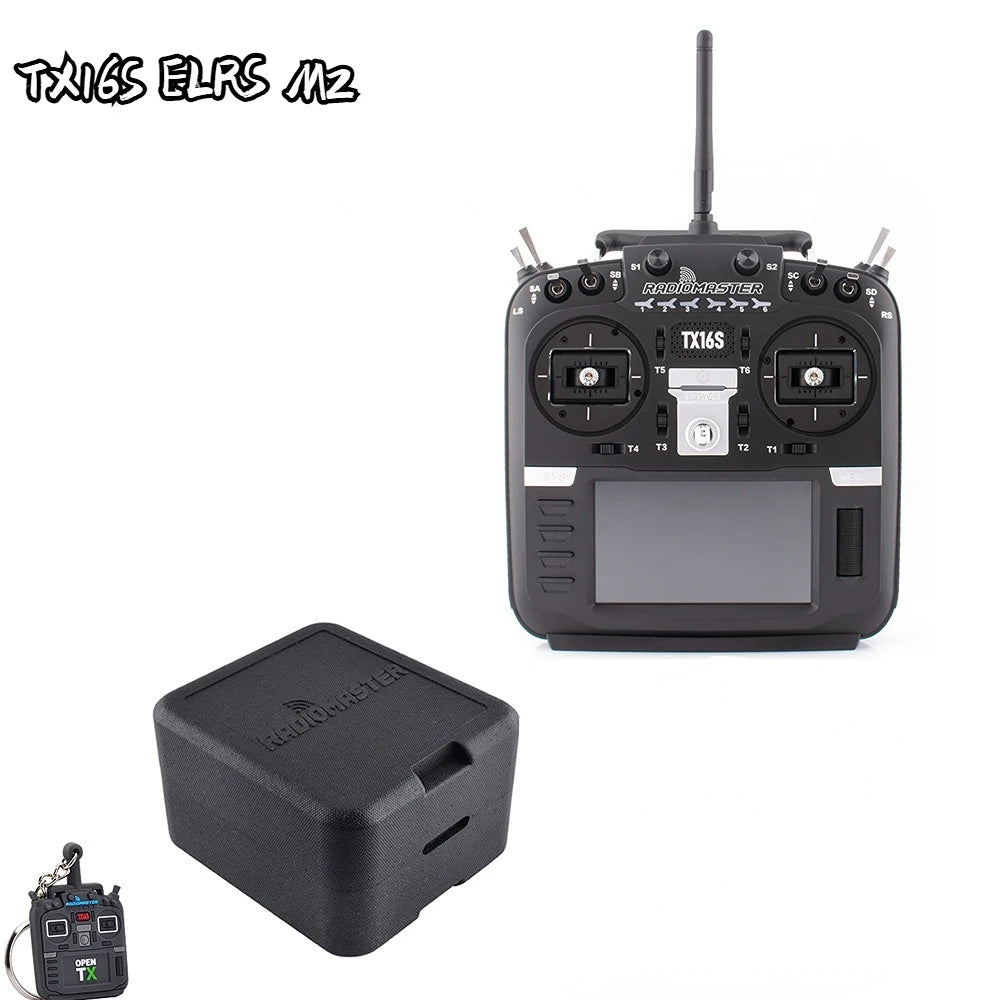

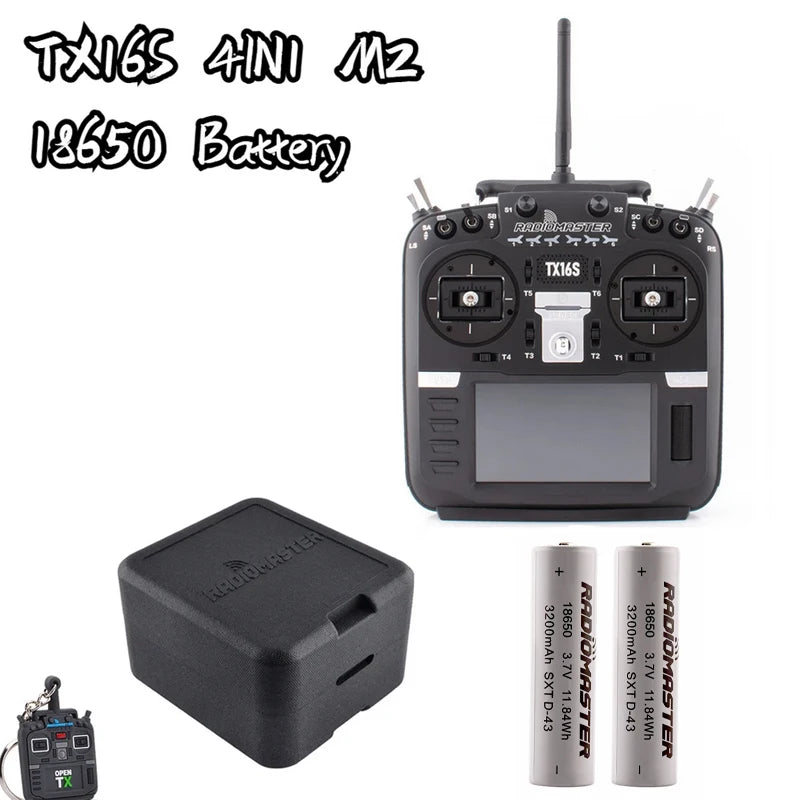

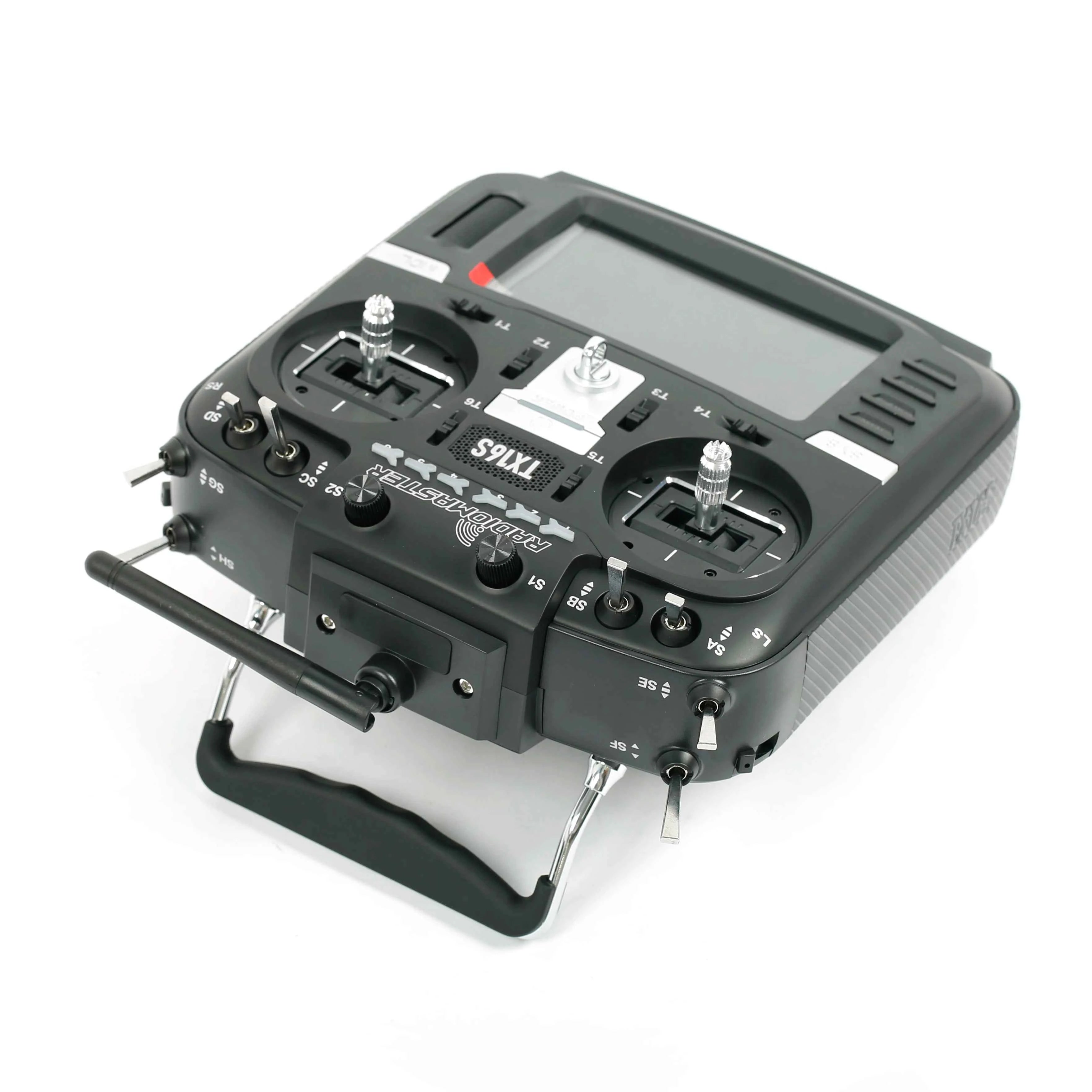

RadioMaster TX16S MKII Radio Controller HALL V4.0 Same Circuity as AG01 ELRS Version for FPV Drone Transmitter with Edge/OpenTX
TX16S MKII-ELRS-M2
$270.89
Skip to product information
RadioMaster TX16S MKII Radio Controller HALL V4.0 Same Circuity as AG01 ELRS Version for FPV Drone Transmitter with Edge/OpenTX
$270.89
Shipping calculated at checkout.
SPECIFICATIONS
Brand Name: RADIOMASTER
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: RadioMaster TX16S
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Transmitters
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Technical parameters: Value 10
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Adapter
Use: Vehicles & Remote Control Toys
Wheelbase: Bottom Plate
Specifications:
Features:
Improved internal circuitry and optimized power supply.
New charge circuitry with integrated reverse-polarity protection.
Optimized charge IC now allows up to 2.2A internal USB-C charge current.

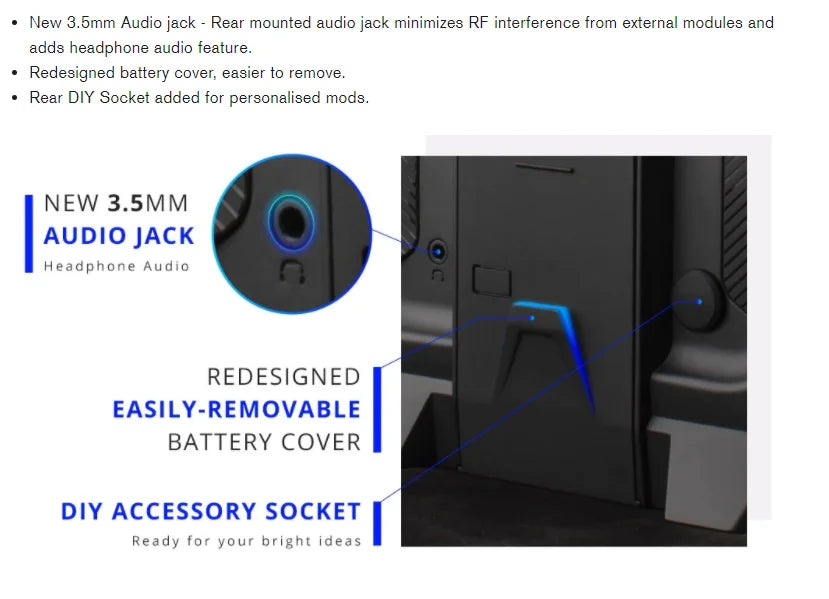

Rear-mounted audio jack provided headphone output.

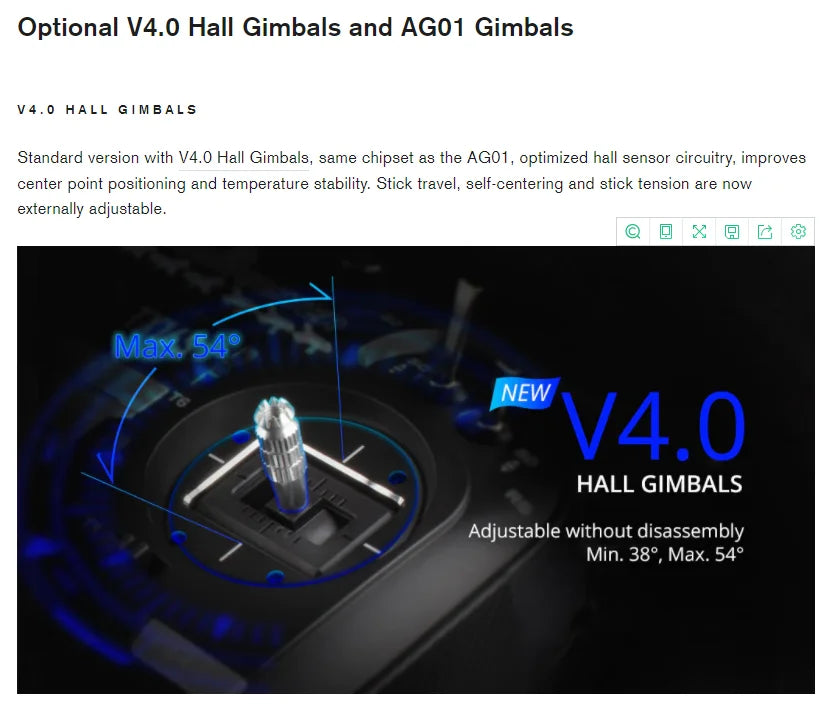

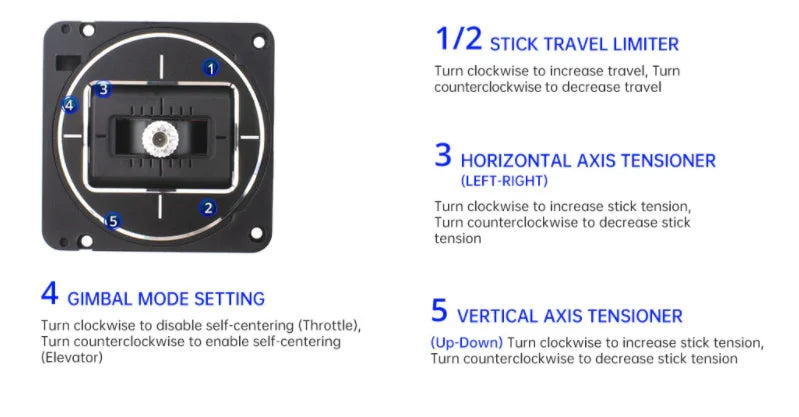

V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).

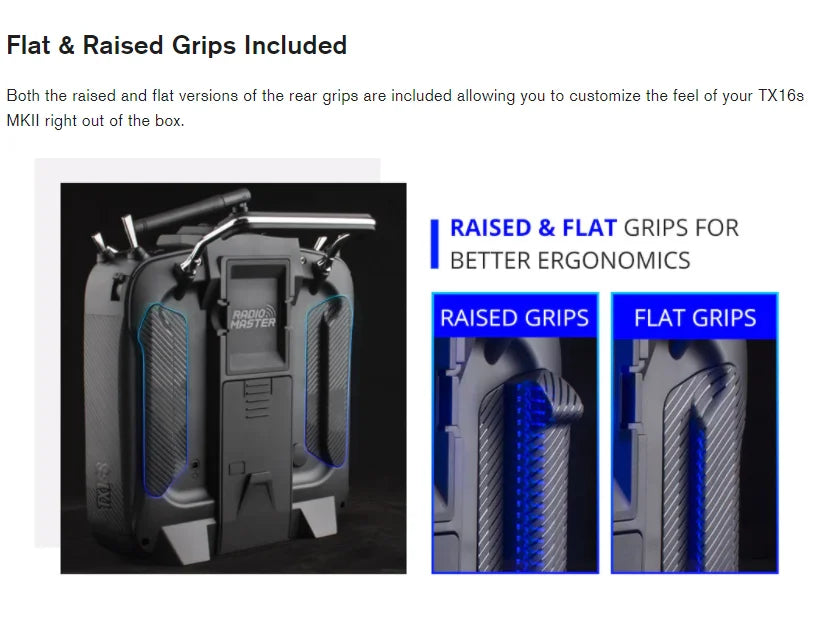

Optional high/low rear grips are included for improved ergonomics.

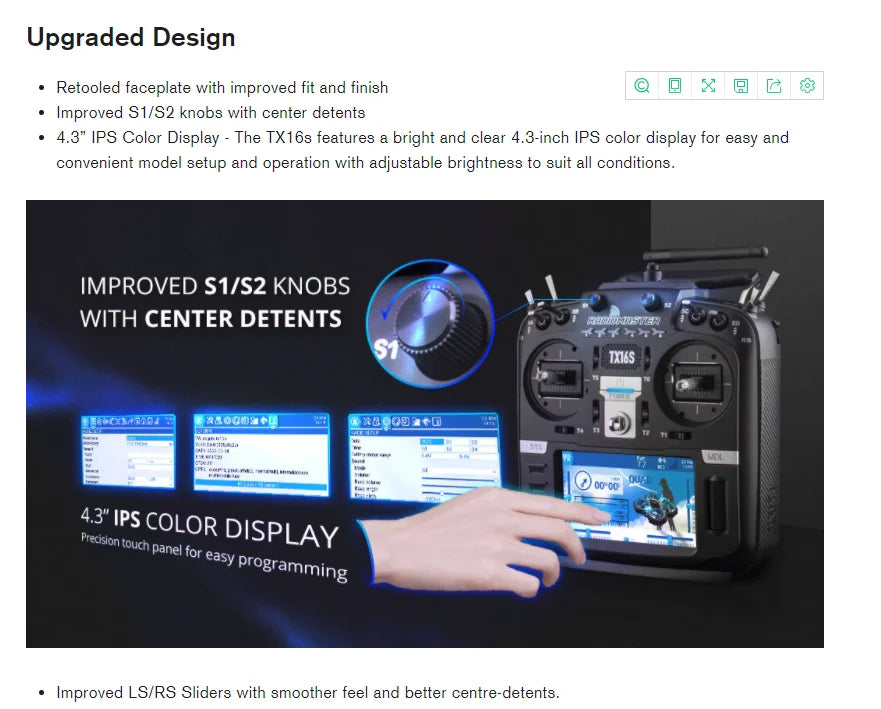

Improved S1/S2 knobs with clear centre-detents.

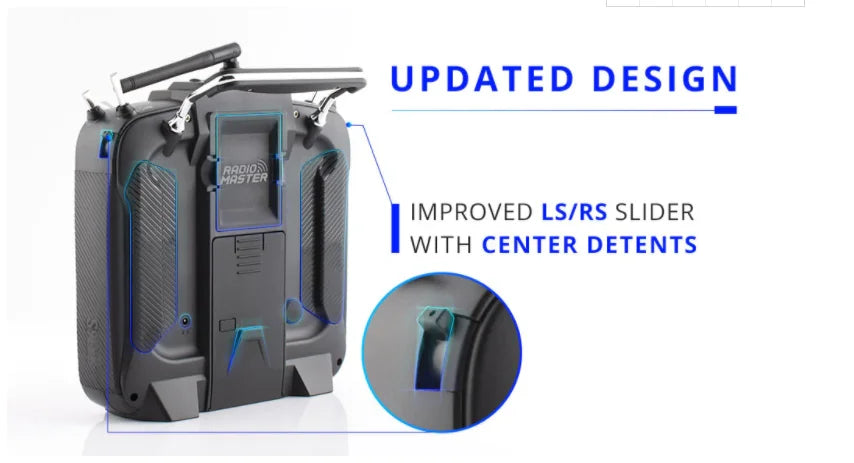

Improved LS/RS Sliders with smoother feel and better centre-detents.

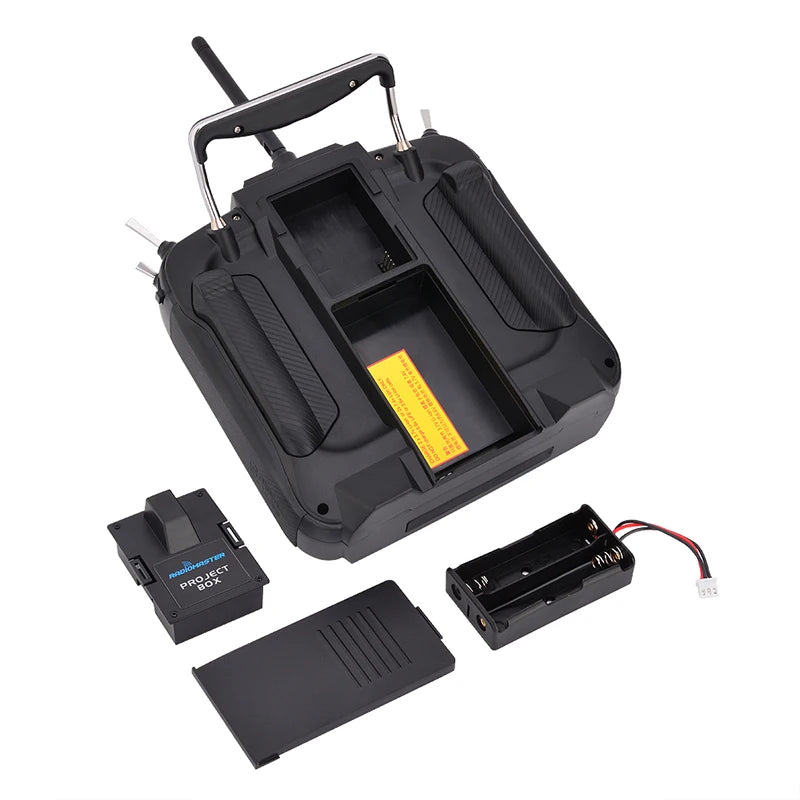

Redesigned battery cover for improved battery access.
Retooled body shell with improved fit and finish.

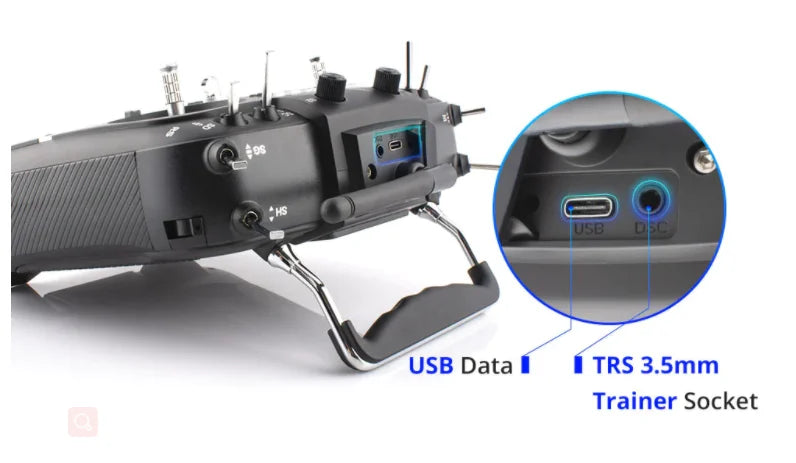

Trainer socket changed to standard TRS 3.5mm socket.
Rear DIY Socket added for personalized mods.
Improved internal plastics for better longevity.

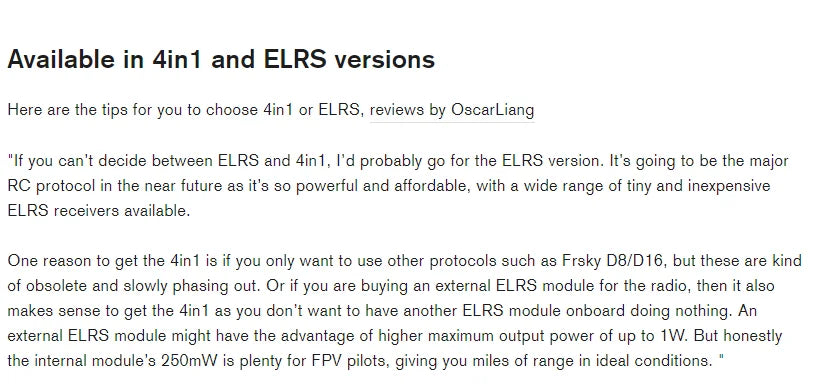

Available ELRS and 4in1 versions.
Specification
Item: TX16S Mark II
Size: 287x129x184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401); Option 2: Internal ELRS (SX1280)
Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent); Internal ELRS : Max 250mw (transmitting power is adjustable)
SD card: 256MB by default, 8GB maximum
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor

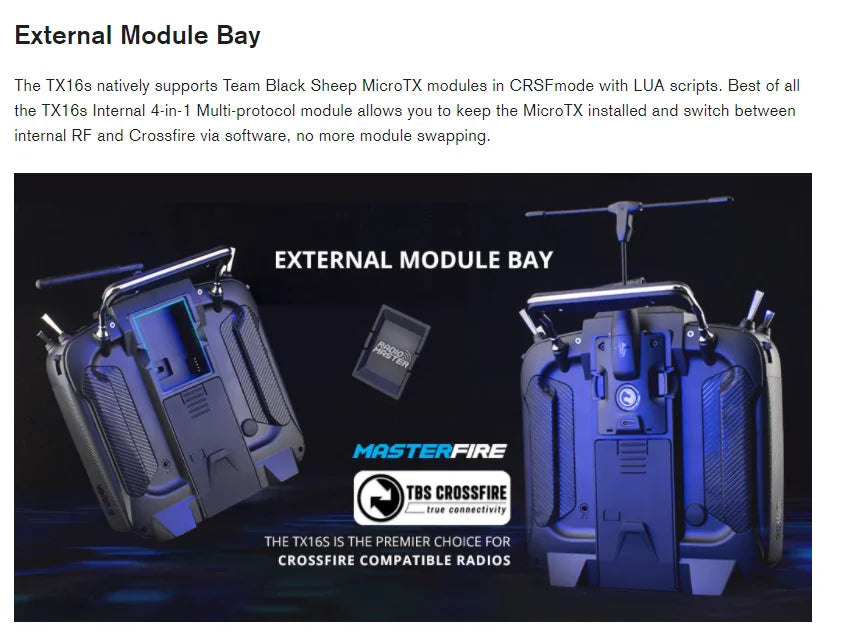

Module Bay: JR compatible module bay

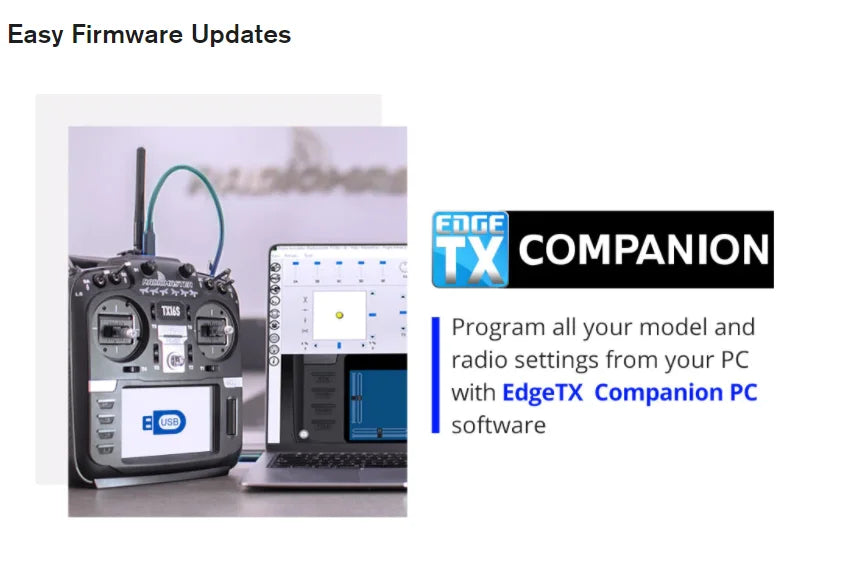

Upgrade method: Supports USB-C online / SD card offline upgrade
Support EdgeTX and OpenTX
EdgeTX is installed by default (Touch screen enabled).
* Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later.
