SPECIFICATIONS

64-bit support: Yes

application: Desktop

brand name: AMD

chip process: 9 nanometers

cpu frequency: 4.3G Hz

l2 cache: 16MB

place of origin: Guangdong, China

private mold: Yes

processor brand: AMD

processor type: Ryzen 9

products status: New

socket type: AM5

type: 16-core

virtualization technology support: Yes

Product Highlights

Zen 5 Architecture & 4nm Process-13% IPC uplift over Zen 4; 4nm CPU cores + 6nm I/O die deliver faster single-threaded performance (up to 5.7GHz) with lower power consumption and heat, ensuring cooler, quieter operation

2nd-Gen 3D V-Cache for Elite Gaming-9950X3D/9900X3D models boast up to 144MB total cache, reducing latency by 20% and boosting AAA game frame rates by 8-10% for smooth 4K/1440p high-refresh gameplay.

Unrivaled Multi-Core Performance - Up to 16 cores/32 threads crush video rendering, 3D modeling, and code compilation 15-20% faster than Zen 4; fully unlocked for overclocking via Ryzen Master.

Future-Proof AM5 Platform - Compatible with X870E/X870/B850/B650/A620 motherboards; supports DDR5-5600 (192GB max) and PCIe 5.0 for high-speed SSDs/GPUs, enabling long-term upgrades.

Integrated AI Acceleration - XDNA NPU delivers 50 TOPS AI power for video upscaling, image generation, and voice transcription; pairs with Radeon RX 7000 GPUs for enhanced AI workflows.

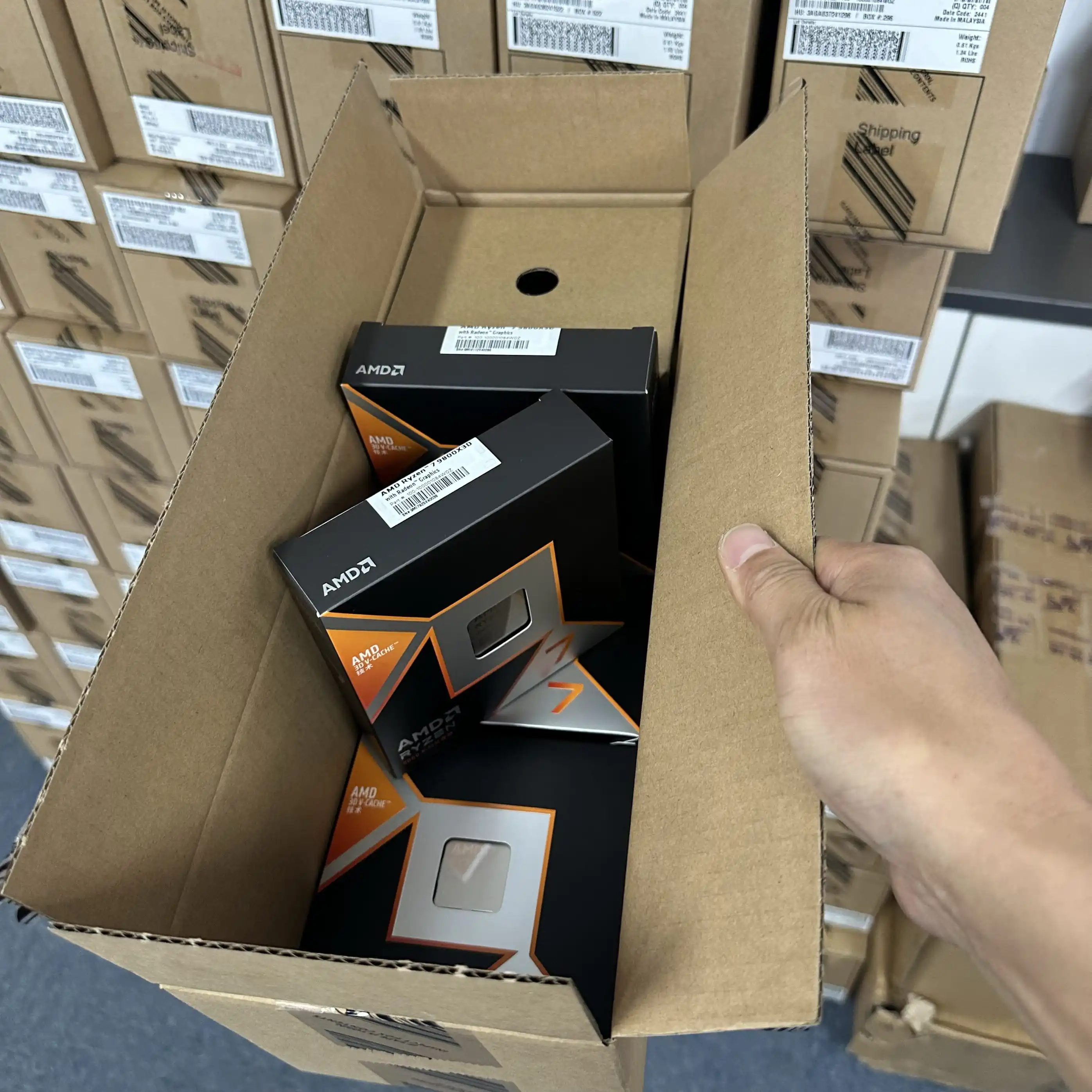

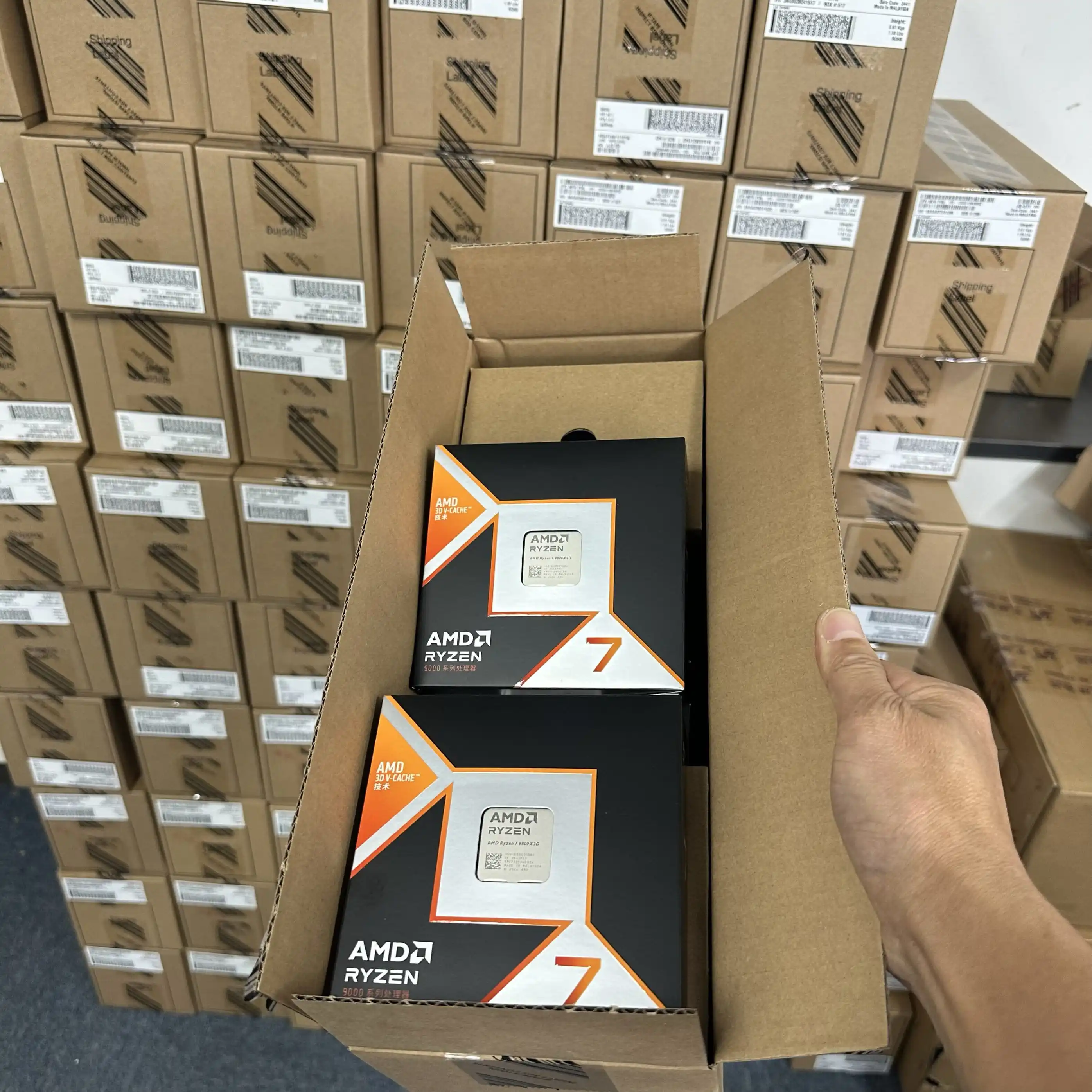

Packaging & shipping specifications

FAQs

Q: What socket and motherboards work with these CPUs?

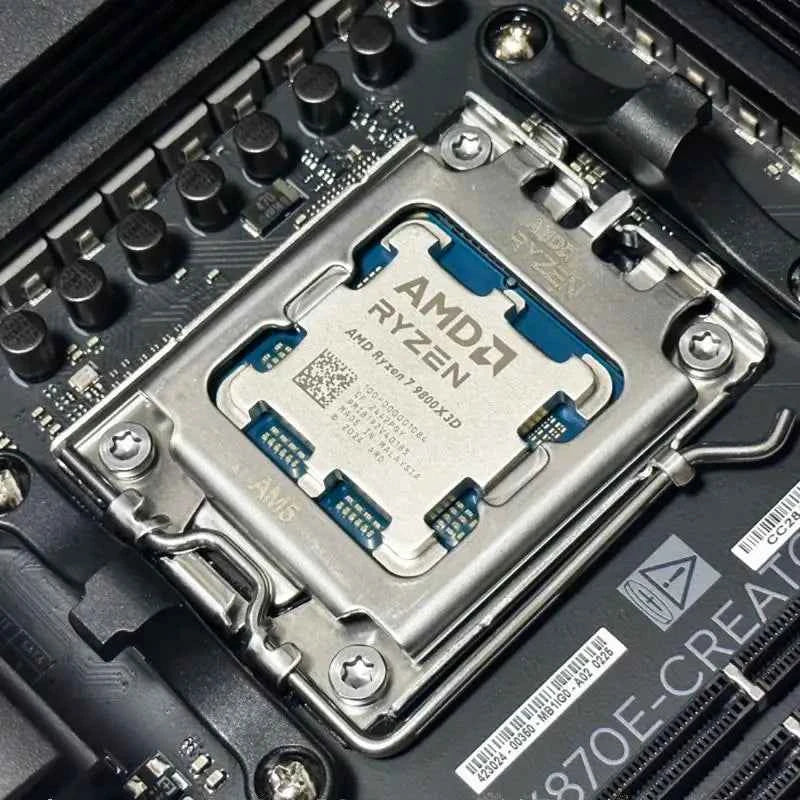

A: All use the AM5 (LGA 1718) socket, compatible with X870E/X870/B850/B840/X670E/X670/B650E/B650/A620 chipsets. Ensure motherboards have a BIOS update for Zen 5 support; most new AM5 boards ship with compatible BIOS.

Q: Do these CPUs have integrated graphics?

A: Non-3D V-Cache models (9950X, 9900X) include Radeon Graphics for basic video output without a discrete GPU. 3D V-Cache models (9950X3D, 9900X3D) lack integrated graphics-require a dedicated GPU for display.

Q: Are they unlocked for overclocking?

A: Yes, all Ryzen 9 9000 Series CPUs are unlocked. Use AMD Ryzen Master or Precision Boost Overdrive for CPU overclocking; AMD EXPO simplifies memory overclocking with one-touch profiles.

Q: What is the advantage of 3D V-Cache models?

A: 3D V-Cache adds extra L3 cache (e.g., 144MB on 9950X3D), reducing memory latency by ~20% and boosting AAA gaming performance by 8-10% vs. non-3D counterparts, ideal for high-refresh 4K/1440p gaming

Q: What is the TDP and power efficiency?

A: TDP options: 120W (9900X/X3D) and 170W (9950X/X3D). The 4nm process (CPU cores)+6nm I/O die delivers better efficiency than Zen 4, reducing power costs and thermal stress during long workloads.

Q: Do they support AI acceleration?

A: Yes, integrated AMD AI (XDNA NPU) delivers up to 50 TOPS for AI tasks like video upscaling, image generation, and voice transcription. Pair with Radeon RX 7000 GPUs for enhanced AI capabilities, future-proofing for AI-driven workflows

Q: What are the main models and core/thread specs of the Ryzen 9 9000 Series?

A: Ryzen 9 9950X: 16 cores, 32 threads, up to 5.7GHz max boost, 170W TDP, 80MB total cache.
Ryzen 9 9950X3D: 16 cores, 32 threads, up to 5.7GHz max boost, 170W TDP, 144MB total cache (with 3D V-Cache).
Ryzen 9 9900X: 12 cores, 24 threads, up to 5.6GHz max boost, 120W TDP, 76MB total cache.
Ryzen 9 9900X3D: 12 cores, 24 threads, up to 5.5GHz max boost, 120W TDP, 140MB total cache (with 3D V-Cache).

Q: What memory and PCIe features do they support?

A: Memory: Dual-channel DDR5-5600 MT/s (up to 192GB total) with AMD EXPO for easy overclocking.
PCIe: PCIe 5.0 (28 total lanes, 24 usable) for high-speed SSDs and GPUs, eliminating data bottlenecks.
