Marine Electronics Maritime Navigation Communication Model Furuno 1945 CCS 6kw 64nm 10.4'' Display Ship Boat X Band Marine radar
M1945
$6,240.00 USD
Skip to product information
Marine Electronics Maritime Navigation Communication Model Furuno 1945 CCS 6kw 64nm 10.4'' Display Ship Boat X Band Marine radar
$6,240.00 USD
Shipping calculated at checkout.
SPECIFICATIONS
ANTENNA: 1200 mm Open (4.0')
Brand Name: FURUNO
DISPLAY: 10.4''
ORIGINAL NEW: YES
POWER: 6KW
Part: MARINE RADAR
Place of Origin: China
SCALE RANGE: 0.0625-64 nm
TYPE APPROVAL: CCS
Please contact me before purchasing for the shipment and price and detailed configuraiton.
If you want to make bulk purchase or be our agent, please contact with us.

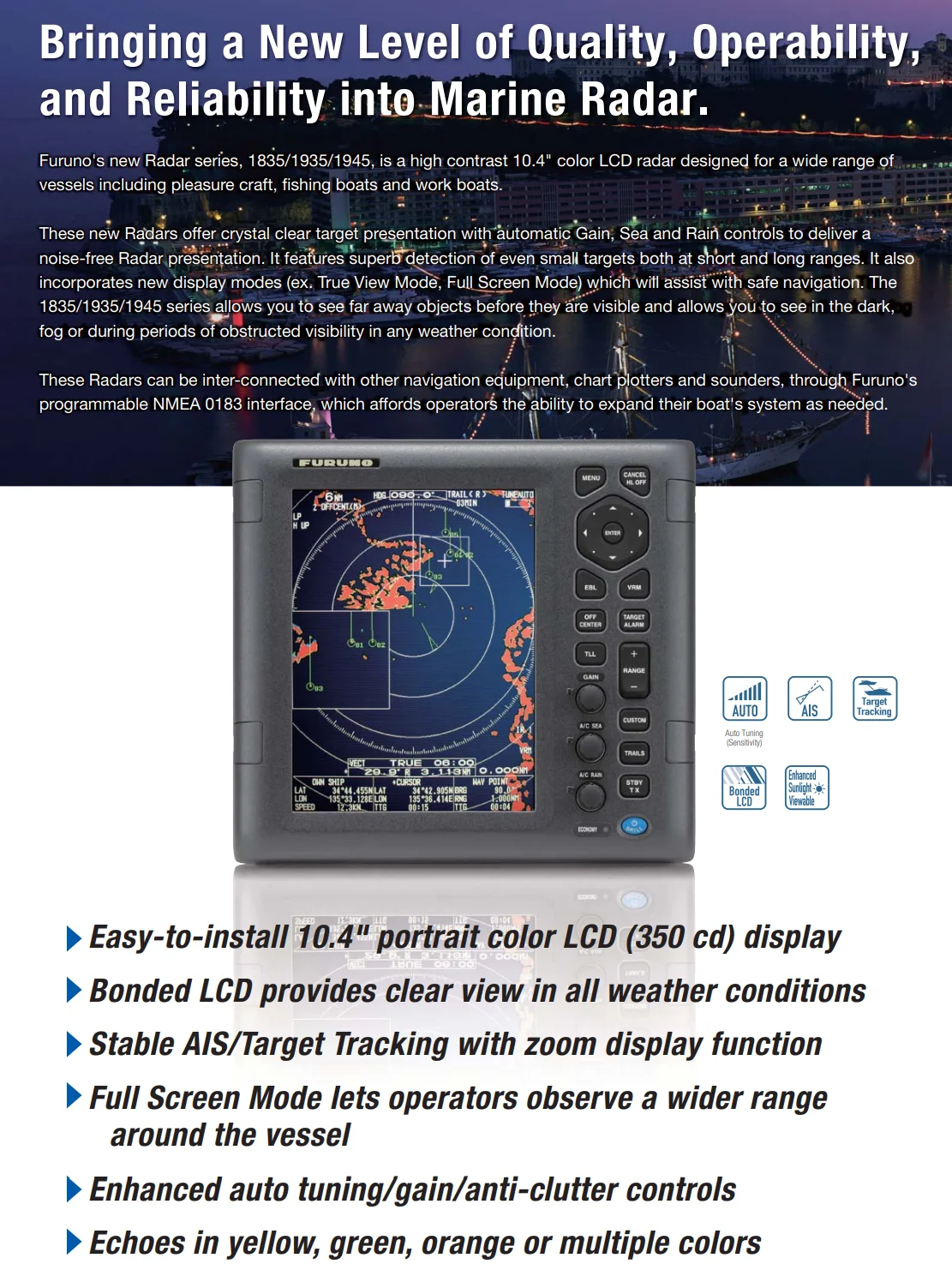

Bringing a new level of quality, operability and reliability into marine radars

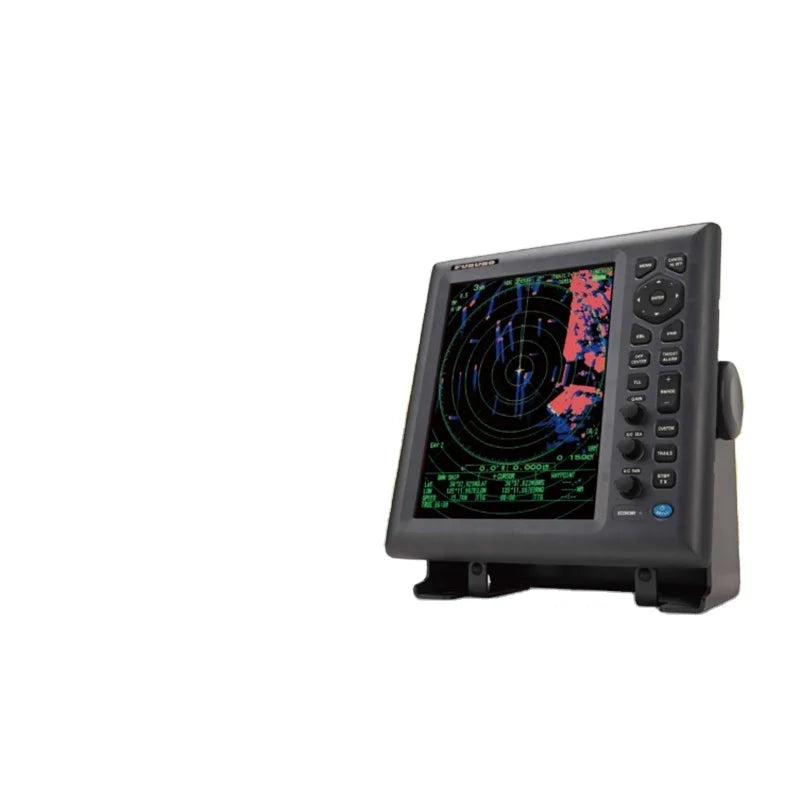

The MODEL1945 Radar is a high contrast 10.4" color LCD radar designed for a wide range of vessels including pleasure craft, fishing boats and work boats.
This new radar offers crystal clear target presentation with automatic Gain/Sea/Rain controls to deliver noise-free radar presentation.
It features superb detection of even small targets both at short and long range.
It also boasts all-new display modes which will assist you with navigating safely on all waters.
Features
Easy-to-install 10.4" portrait color LCD (350 cd) display
Bonded LCD provides clear view in all weather conditions
Stable AIS/TT target-tracking with zoom display function
Full Screen Mode lets operators observe a wider range around the vessel
Enhanced auto tuning/gain/anti-clutter controls
Echoes in yellow, green, orange or multiple colors

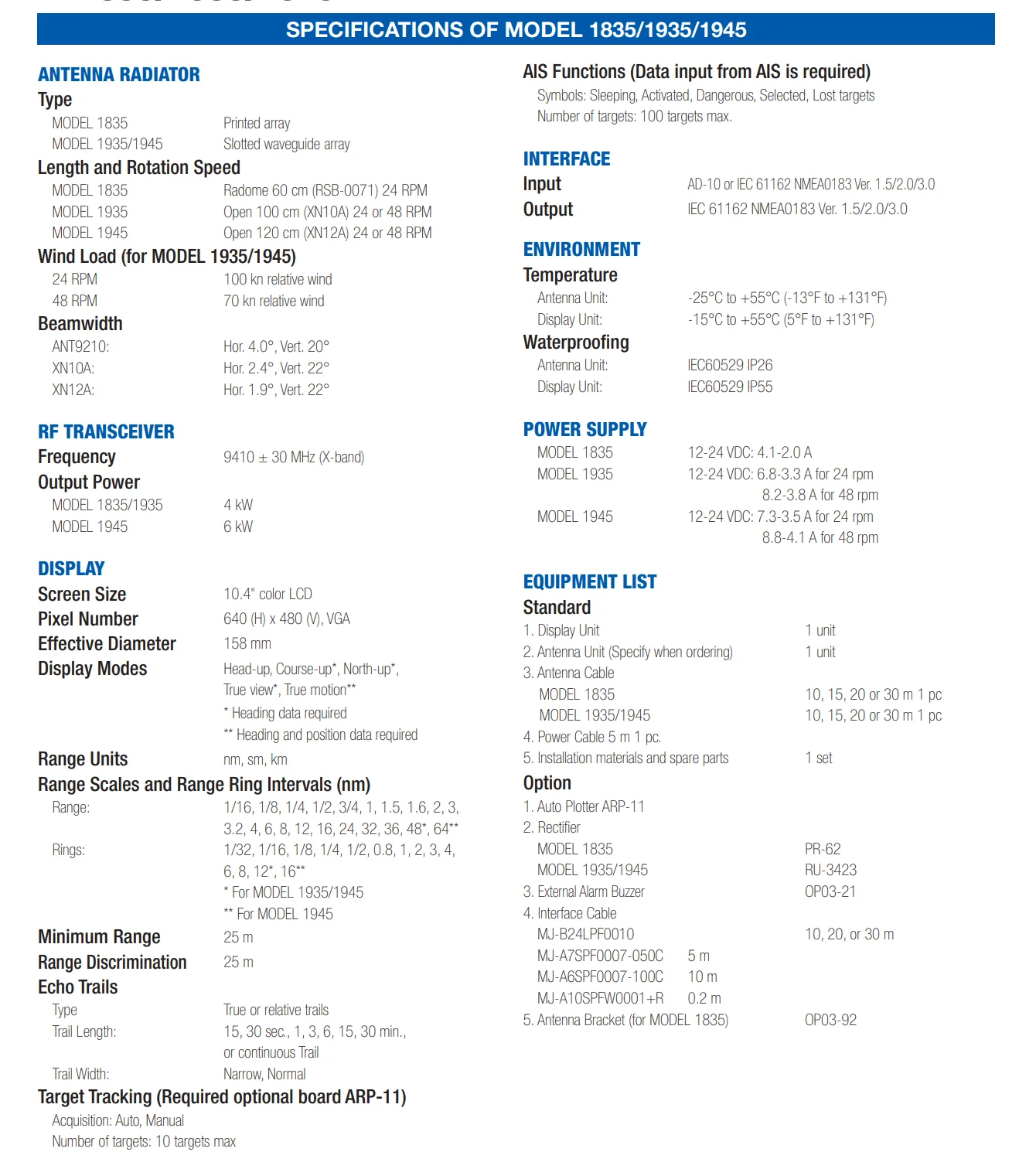

Specifications
ANTENNA
- Peak Output Power: 6 kW
- Type: 1200 mm Open (4.0')
- Frequency: 9410±30 MHz (X-band)
- Beam Width (Horizontal): 1.9°
- Beam Width (Vertical): 22°
- Range Scales: 0.0625-64 nm
- Minimum Range: 25 m
- Antenna Rotation Speed: 24 rpm 48 rpm (option)
- Weight: 25 kg
DISPLAY
- Display Unit
- 10.4'' color LCD (640 x 480, VGA)
- Display Mode
- Head-up, Course-up*, North-up*, True view*, True motion**
* Heading data required
** Heading and position data required - Other Mode / Functions
- ARP/AIS display*1, Target tracking*2, User programmable keys, Echo trails
*1 Requires AIS transponder/receiver installed
*2 Requires heading and speed data - Weight
- 5.4 kg
ENVIRONMENT
- Temperature
- Display unit : -15°C to +55°C
Antenna unit : -25°C to +55°C - Waterproofing
- Display unit : IP55
Antenna unit : IP26
POWER SUPPLY
- Power Supply / Consumption Current
- 12-24 VDC: 7.3-3.5 A (24 rpm)
8.8-4.1 A (48 rpm)

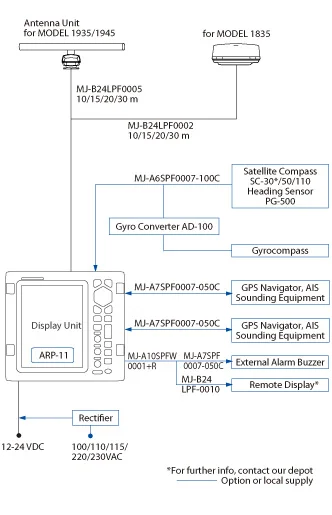

Equipment List
Standard
- DISPLAY UNIT RDP-152-E1 UNIT
-
ANTENNA RADIATOR XN12A
(4 FT)1 UNIT -
ANTENNA DRIVE UNIT RSB-0070-064 (24 PPM) or
RSB-0073-064 (48 RPM, optional)1 UNIT - INSTALLATION MATERIALS including Antenna Cable and SPARE PARTS1 SET
Option
- AUTO PLOTTERARP-11
- CABLE ASSEMBLY
-
SIGNAL CABLE ASSEMBLY5 M
10 M -
SIGNAL CABLE ASSEMBLYMJ-A6SPF0003-050C (5 M)
MJ-A6SPF0007-100C/MJ-A6SPF0009-100C (10 M)
MJ-A6SPF0012-050C/100C -
SIGNAL CABLE ASSEMBLY10 M (for Sub)
20 M (for Sub)
30 M (for Sub) - EXTERNAL ALARM BUZZER
-
RECTIFIER (CHINA)RU-3423
(100/220 VAC)
