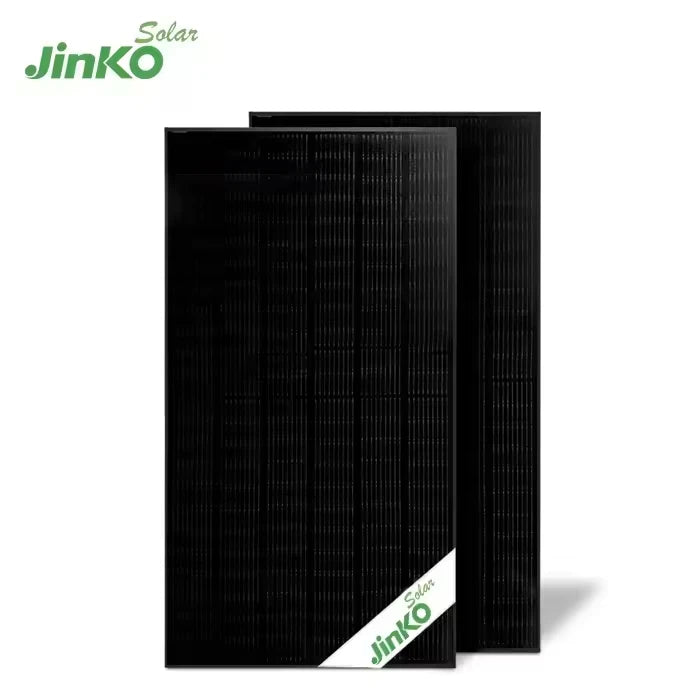

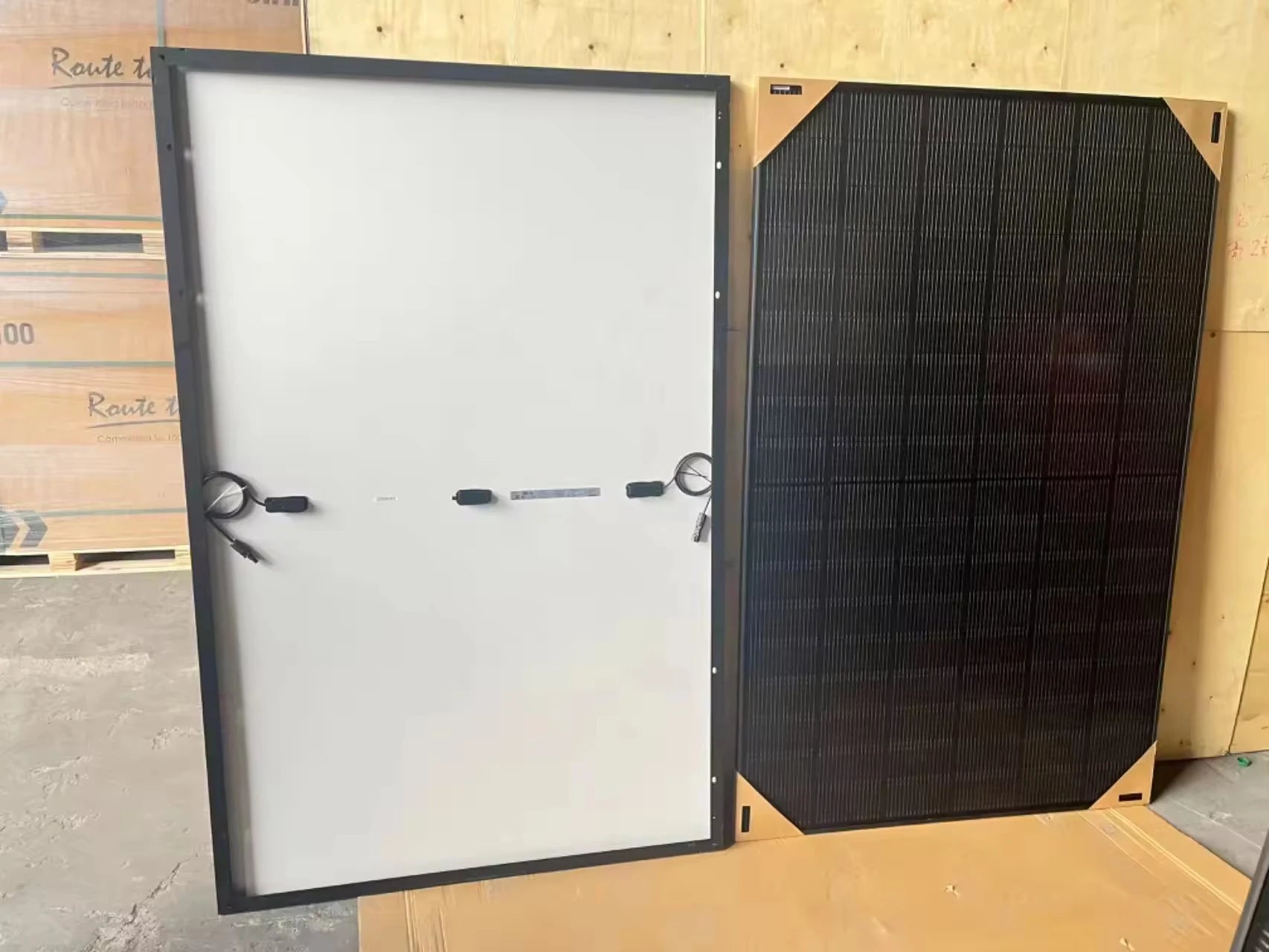

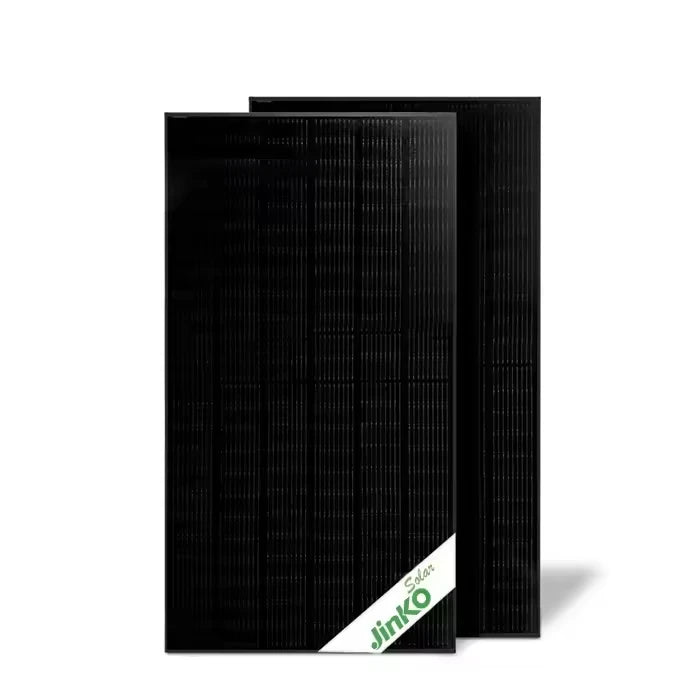

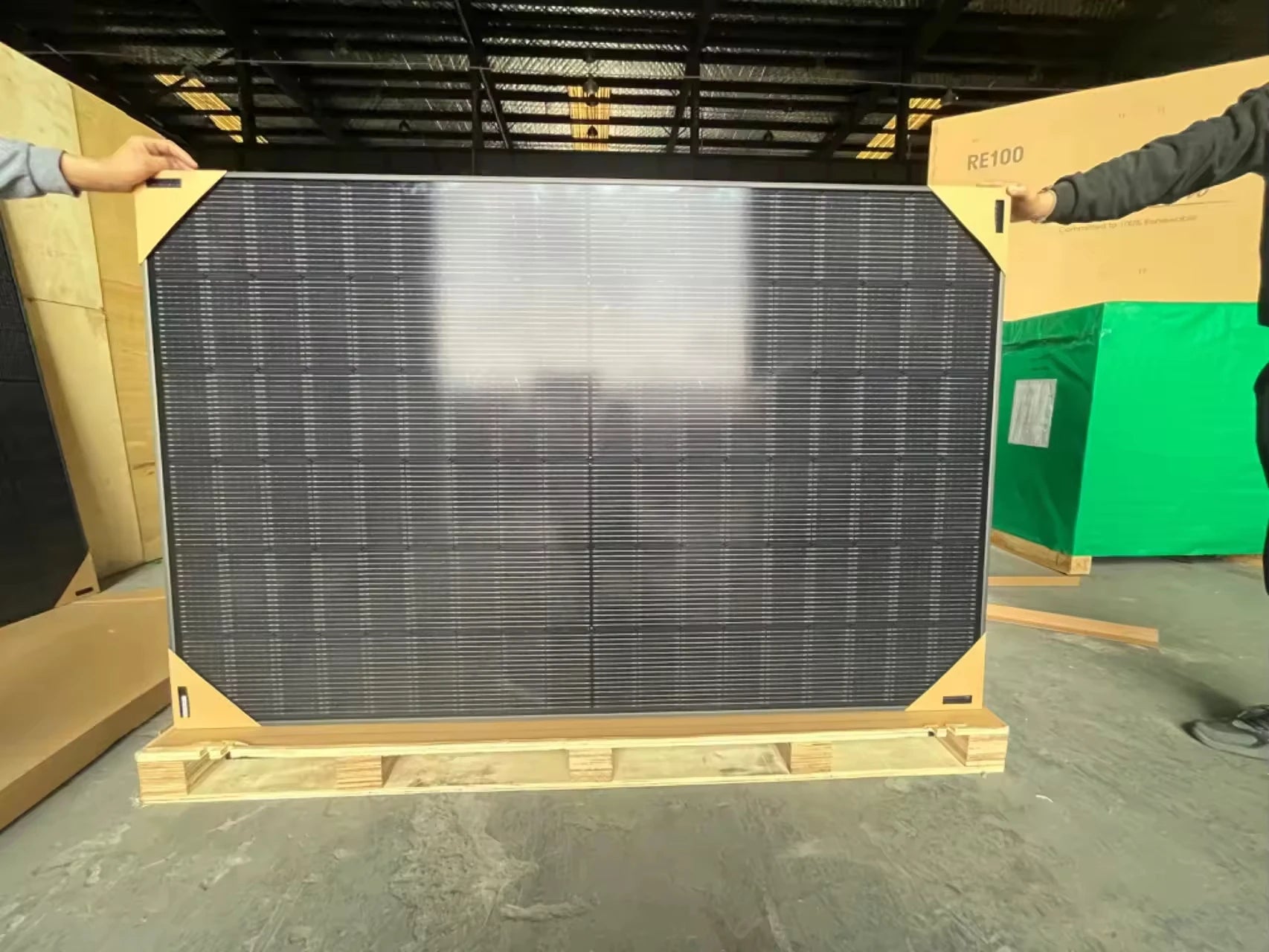

SPECIFICATIONS

Brand Name: Jinko

Cell Type: Mono Crystalline

Cell size: 182mm*182mm

Frame: Anodized Aluminium Alloy

Glass: Single Glass, 3.2mm coated tempered glass

Junction Box: IP68 Rated

Model Number: JKM420-440N-54HL4R,JKM420-440N-54HL4R

No.of cells: 108(6*18)

Panel Dimensions: 1762*1134*30mm

Panel Efficiency: 22.02%,22.02%

Place of Origin: Anhui, China,Anhui-China

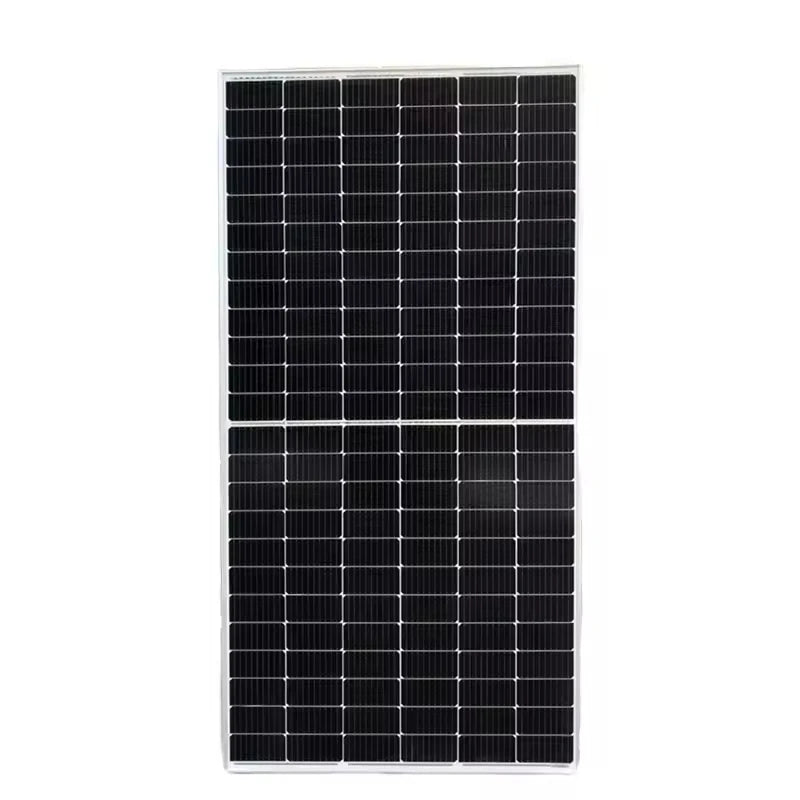

Solar cell: Half Cut Cell

Type: Half Cell,Bifacial,All Black,MWT,N-TYPE

Warranty: 25Years

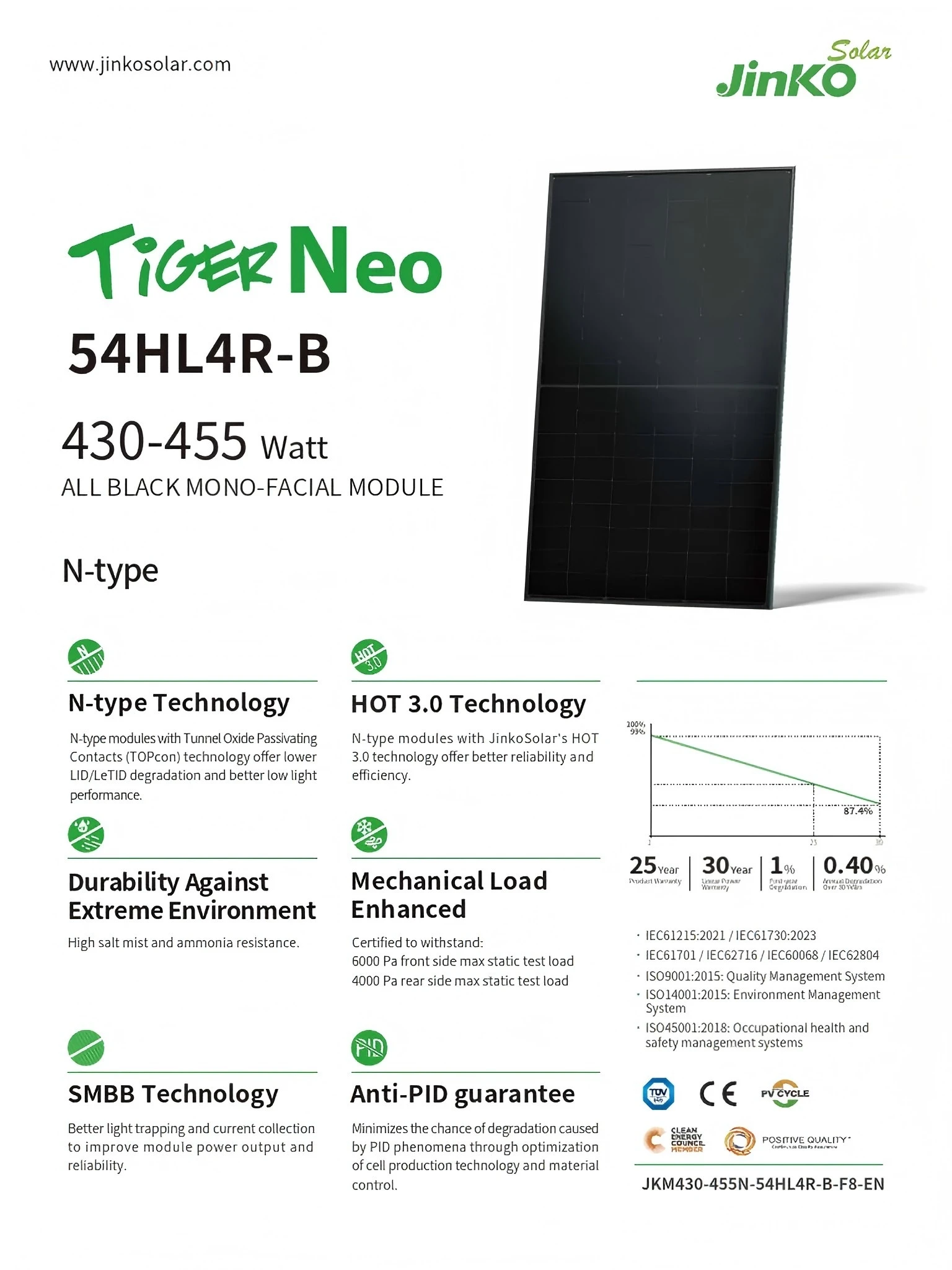

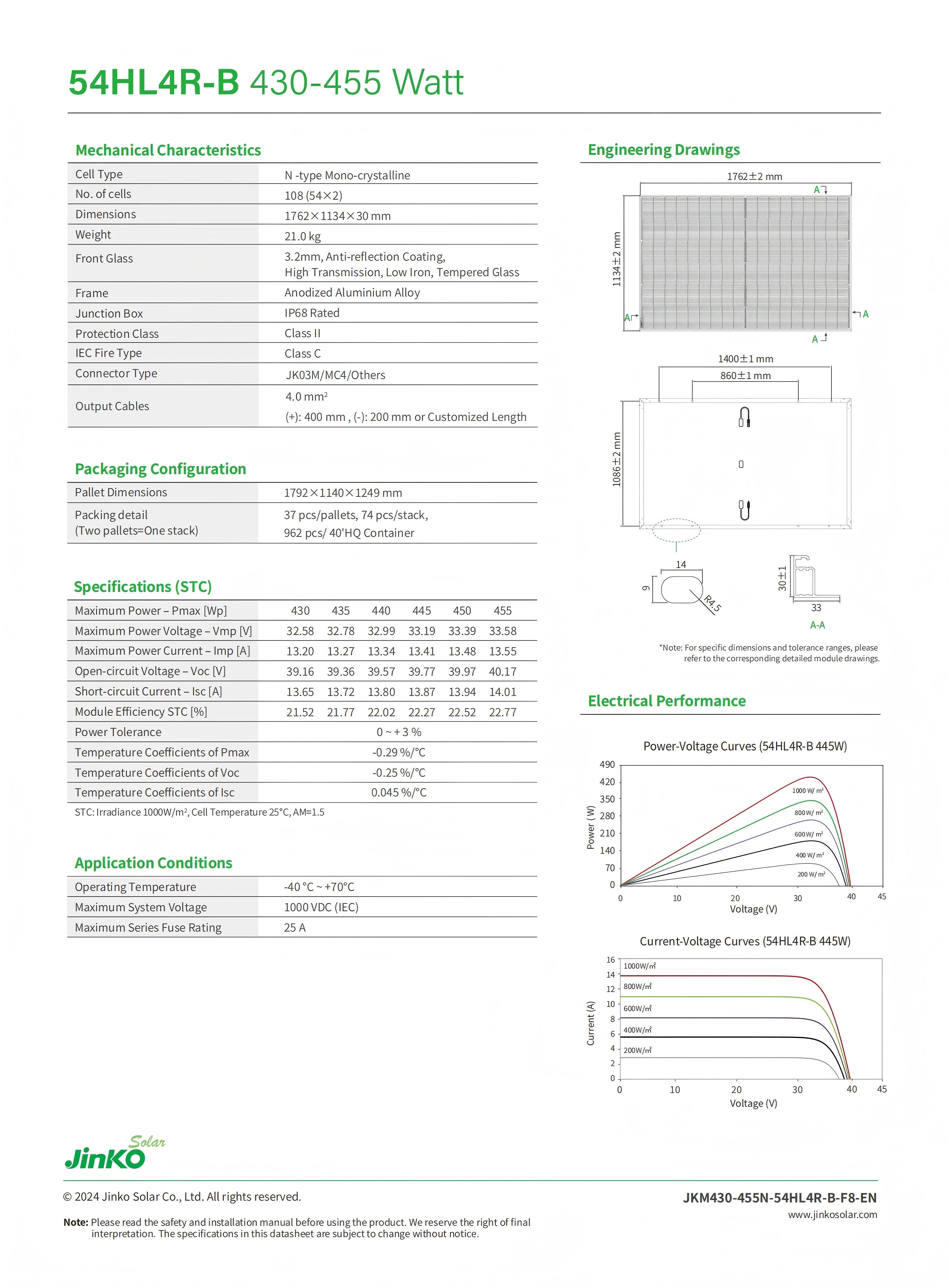

Module Type	JKM440N-54HL4R-B						JKM430-455N-54HL4R-B	JKM430-455N-54HL4R-B
Maximum Power (Pmax)	440W
Maximum Power Voltage (Vmp)	32.99
Maximum Power Current (Imp)	13.34
Open-circuit Voltage (Voc)	39.57
Short-circuit Current (Isc)	13.80
Module Efficiency STC (%)	22.02
Operating Temperature(ȭ)	-40℃~+70℃
Maximum system voltage	DC1000V (IEC/UL)
Maximum series fuse rating	25A
Power tolerance	0~+3%
Temperature coefficients of Pmax	-0.29%/℃
Temperature coefficients of Voc	-0.25%/℃
Temperature coefficients of Isc	0.045%/℃
Nominal operating cell temperature (NOCT)	43±2℃

Half Cut Technology Under the same shadow condition, power loss of half-cell solar panel is less than that of full cell solar panel. Multi Busbar Technology MBB technology improves efficiency of modules, offers a better aesthetic appearance. PERC Technology The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

100% Cells Sorting

Ensure Color and Power Difference.
Ensure high yields,consistent performance and durability.

100% EL Testing

Before and Following Lamination
Ensure "Zero" micro crack monitoring before final Inspection, Continuous line monitoring and video/photo record for each cell and
panel.

100% module Inspection

Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
