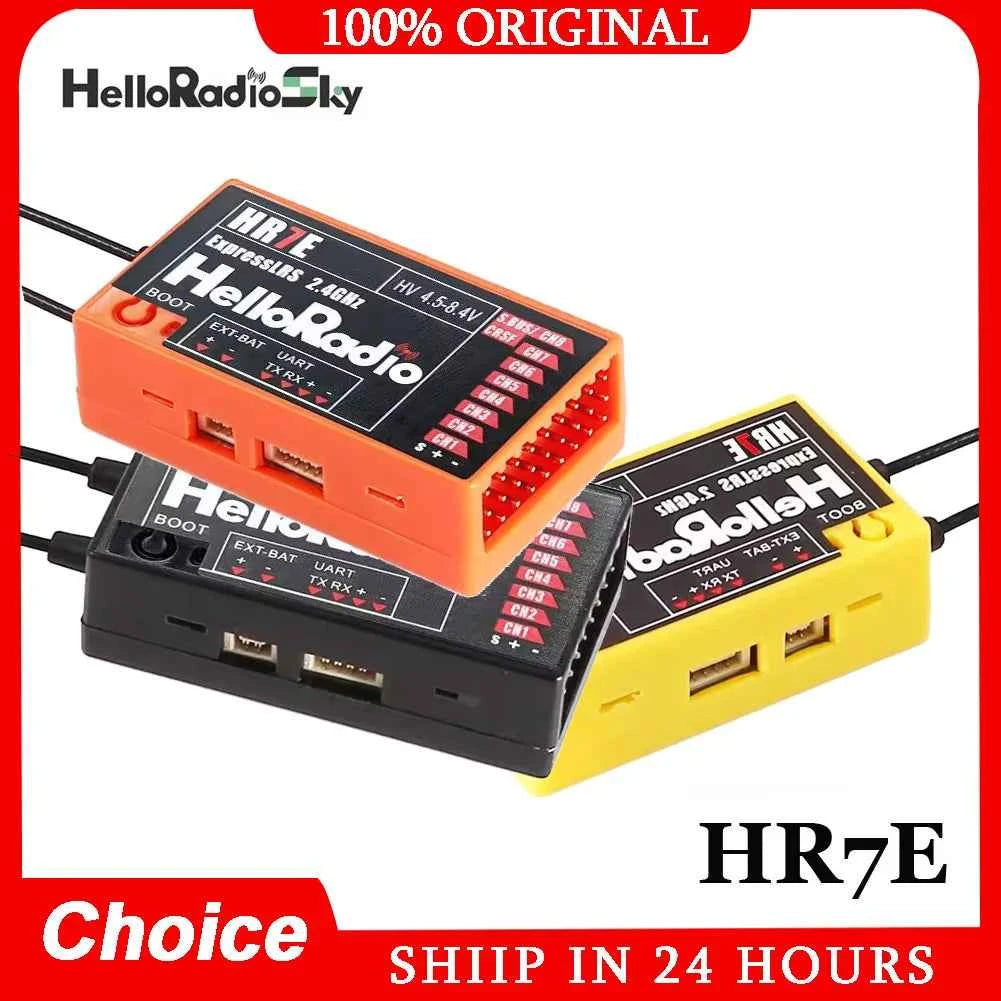

HelloRadio HR7E ELRS PWM 7CH Receiver - 2.4G for Fixed Wing Aircraft, Remote Control Drones and Model Airplanes
Red
$21.25
Skip to product information
Specification Parameters

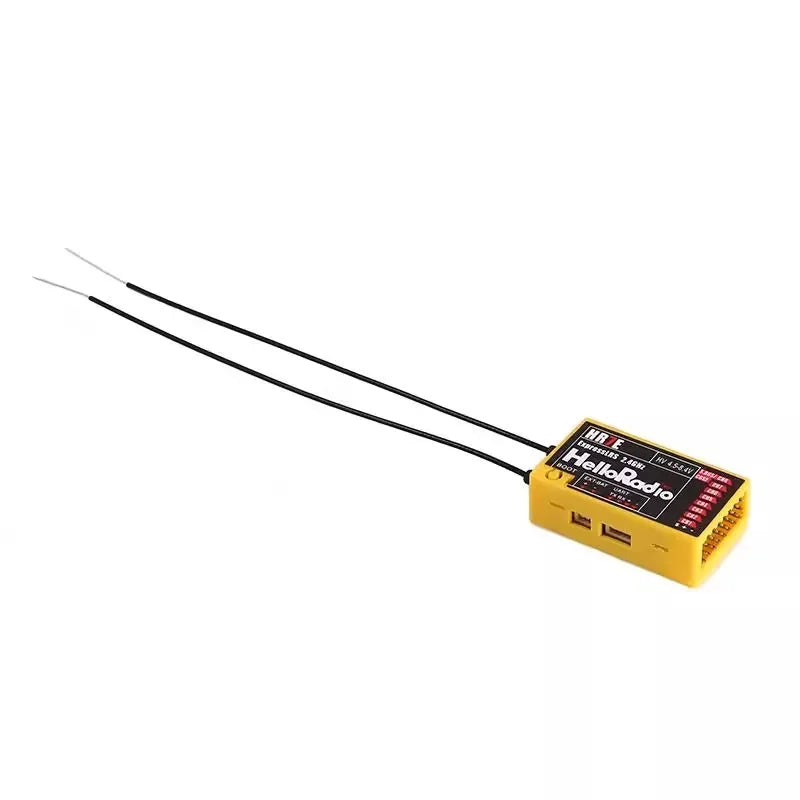

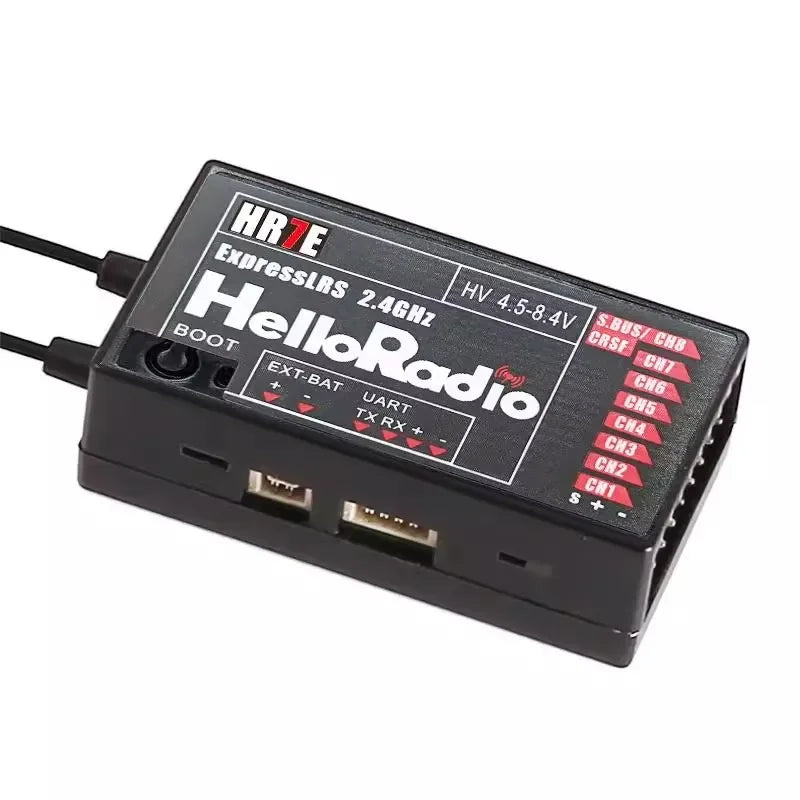

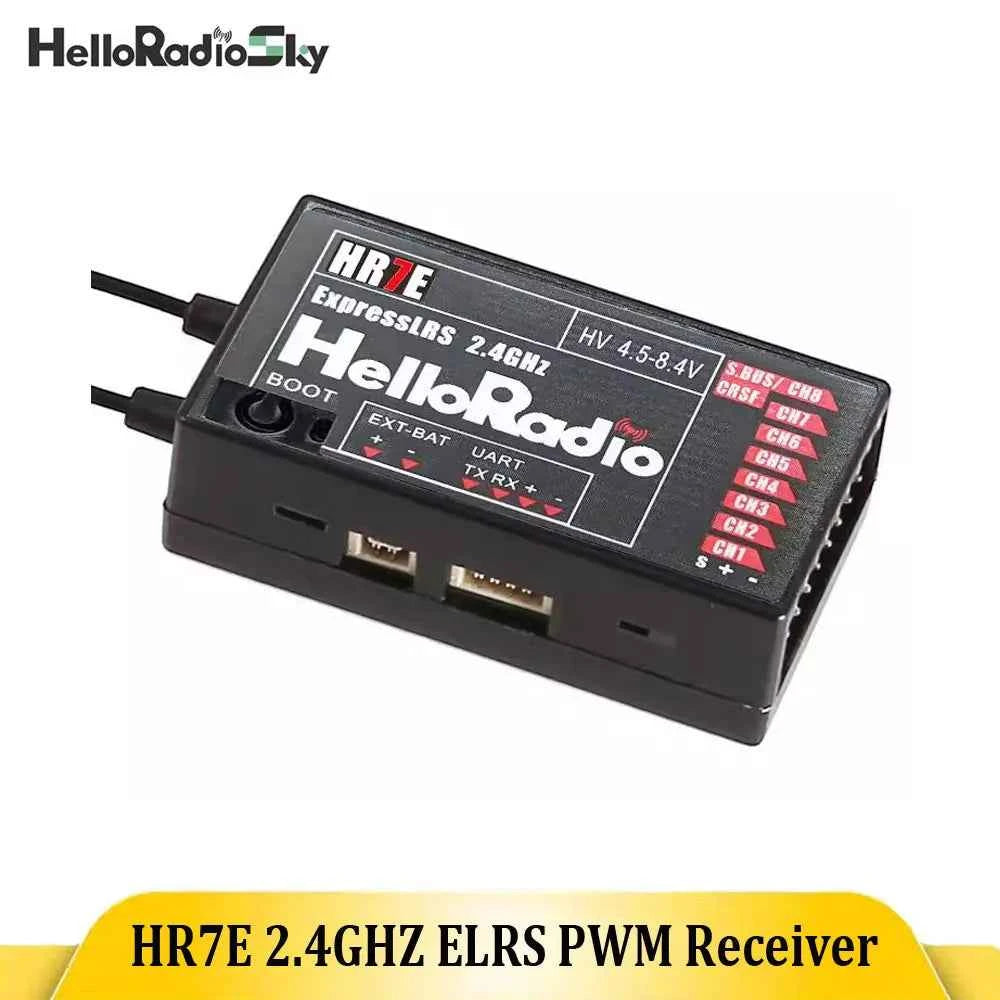

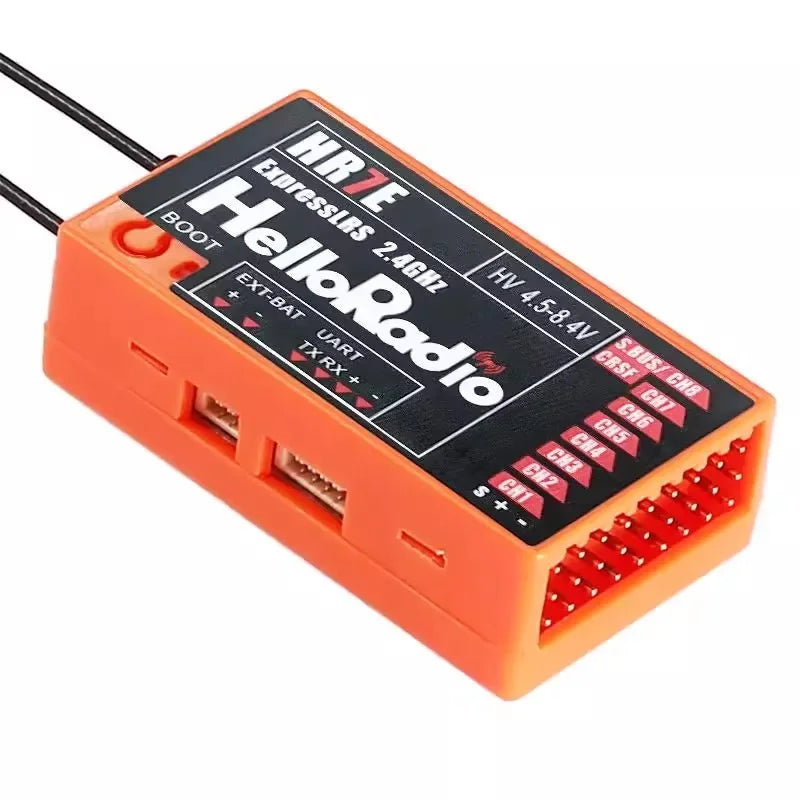

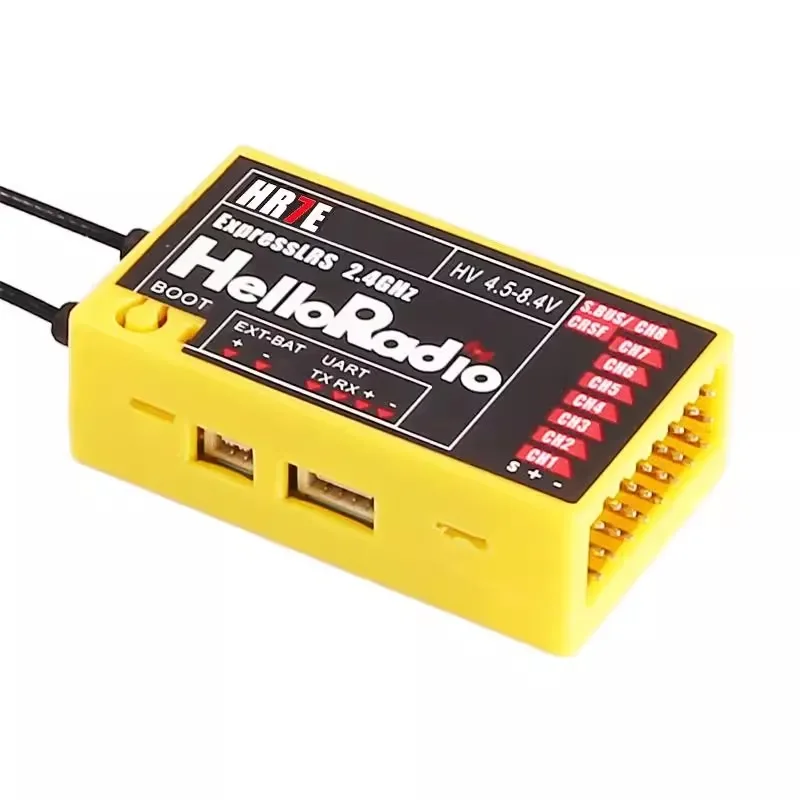

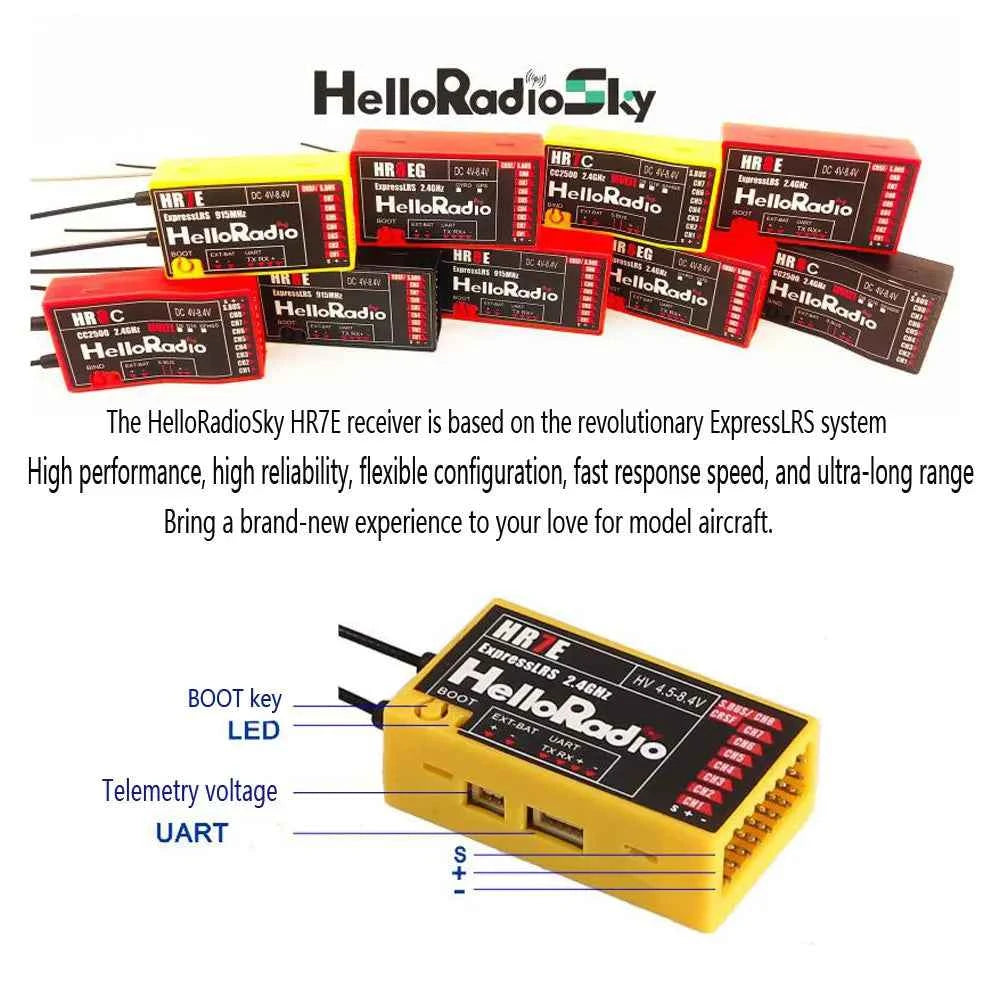

The HelloRadioSky HR7E receiver is specially designed for fixed-wing users.

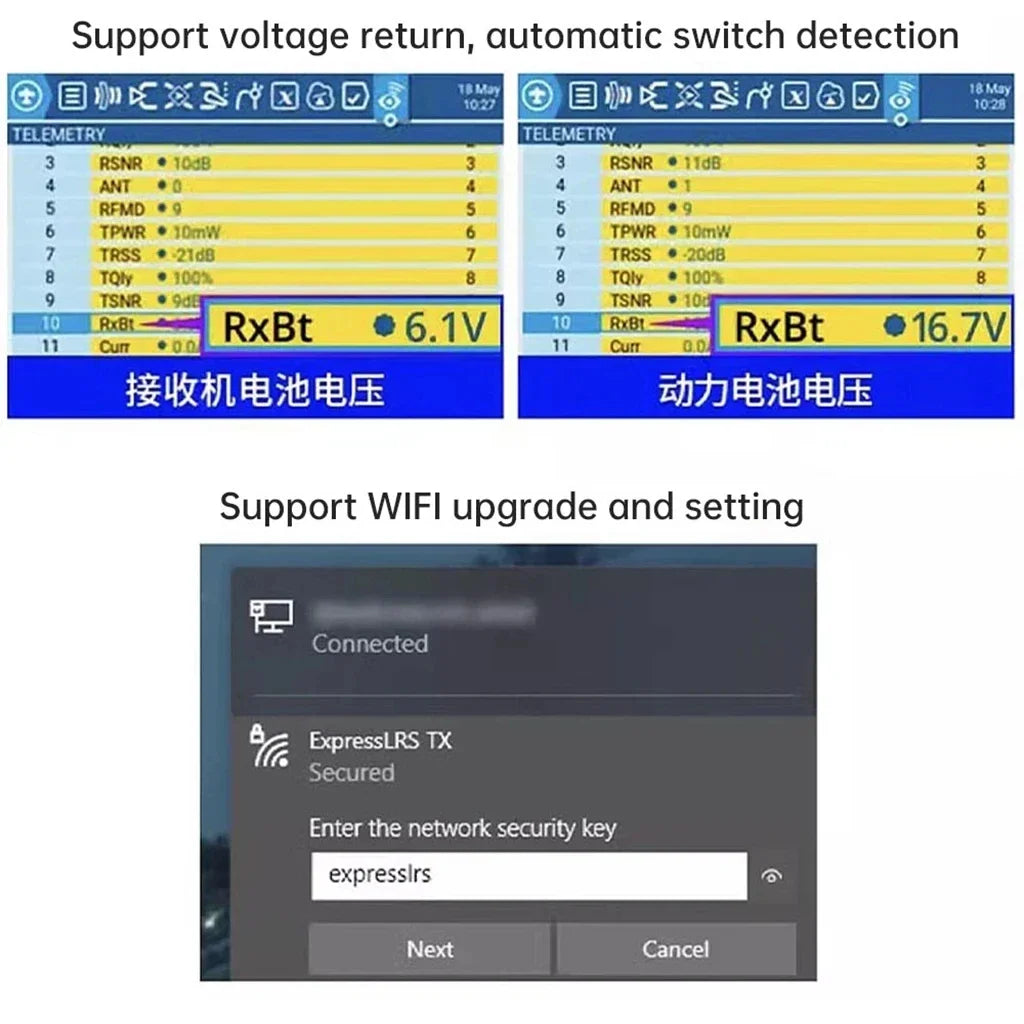

It can drive up to 7 servos at most and has built-in receiver voltage return and aircraft battery voltage
The return function can automatically detect the voltage input to be used. A 4-wire CRSF interface is provided.
To facilitate the expansion of sensors in the future. The HR7E is equipped with dual antennas and has a return transmission power as high as 100mw.
Product :HR7E 2.4ghz ELRS PWM receiver
Power supply :DC4.5-8.4V

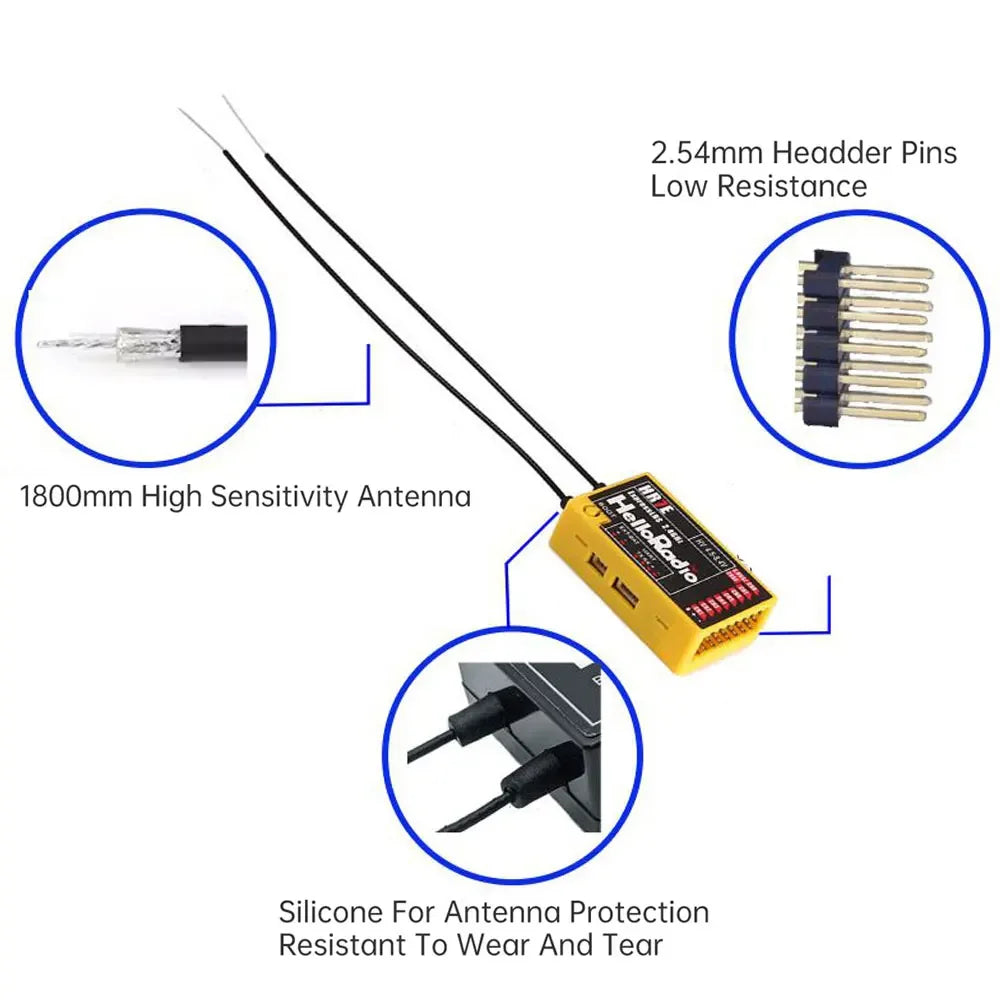

Antenna type :18cm high-sensitivity dual antennas
Wireless protocol: Pre-installed ExpressLRS 3.3.0

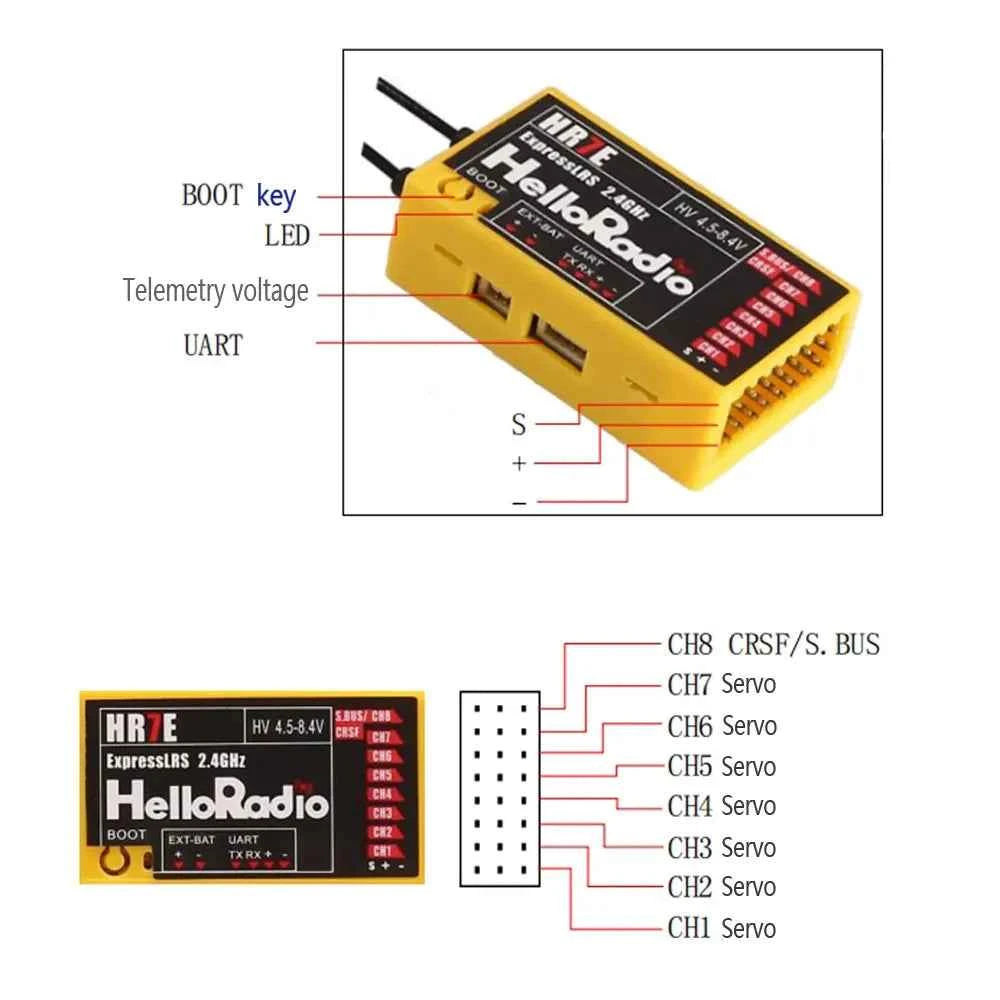

Output channel :8CHPWM
Return power: Up to 100mw(adjustable in LUA)
Return battery voltage detection range :DC4.0-35V
Bus interface :CRSF
Weight :10 grams
Dimensions :48*25*15mm
Frequency alignment method
Traditional way:
When the receiver is powered on, the LED light will turn on and then the power will be cut off.
Repeat the above steps twice.
3. When the receiver is powered on for the third time, the LED light flashes twice, indicating that it has entered the frequency synchronization mode.
4. Select the BIND operation on the remote control.
Package Includes:
1Pc HR7E 2.4GHZ ELRS PWM Receiver
HelloRadio HR7E ELRS PWM 7CH Receiver - 2.4G for Fixed Wing Aircraft, Remote Control Drones and Model Airplanes
$21.25
Shipping calculated at checkout.
SPECIFICATIONS
Brand Name: HawkSpeed
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: HelloRadio HR7E ELRS PWM 7CH Receiver
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Receiver
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Size: NA
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Receiver
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
semi_Choice: yes
Specification Parameters
The HelloRadioSky HR7E receiver is specially designed for fixed-wing users.
It can drive up to 7 servos at most and has built-in receiver voltage return and aircraft battery voltage
The return function can automatically detect the voltage input to be used. A 4-wire CRSF interface is provided.
To facilitate the expansion of sensors in the future. The HR7E is equipped with dual antennas and has a return transmission power as high as 100mw.
Product :HR7E 2.4ghz ELRS PWM receiver
Power supply :DC4.5-8.4V
Antenna type :18cm high-sensitivity dual antennas
Wireless protocol: Pre-installed ExpressLRS 3.3.0
Output channel :8CHPWM
Return power: Up to 100mw(adjustable in LUA)
Return battery voltage detection range :DC4.0-35V
Bus interface :CRSF
Weight :10 grams
Dimensions :48*25*15mm
Frequency alignment method
Traditional way:
When the receiver is powered on, the LED light will turn on and then the power will be cut off.
Repeat the above steps twice.
3. When the receiver is powered on for the third time, the LED light flashes twice, indicating that it has entered the frequency synchronization mode.
4. Select the BIND operation on the remote control.
Package Includes:
1Pc HR7E 2.4GHZ ELRS PWM Receiver
