Happymodel Mobula8 Drone/Frame KIT 1-2S 85mm Micro FPV Whoop Quadcopter Drone 2.4G ELRS Receiver X12 AIO Brushless Motor New

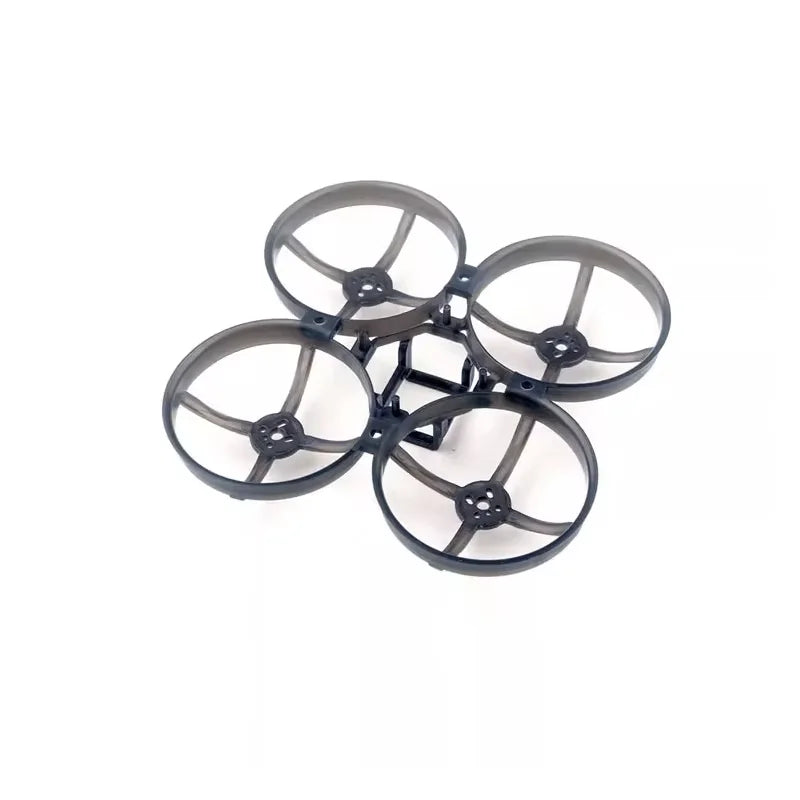

Only Frame

$7.42

Happymodel Mobula8 Drone/Frame KIT 1-2S 85mm Micro FPV Whoop Quadcopter Drone 2.4G ELRS Receiver X12 AIO Brushless Motor New

$7.42

Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: XDRC

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: Mobula8

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Drone

Recommend Age: 14+y

Remote Control Peripherals/Devices: Drone

Size: 120mm*120mm*50mm

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

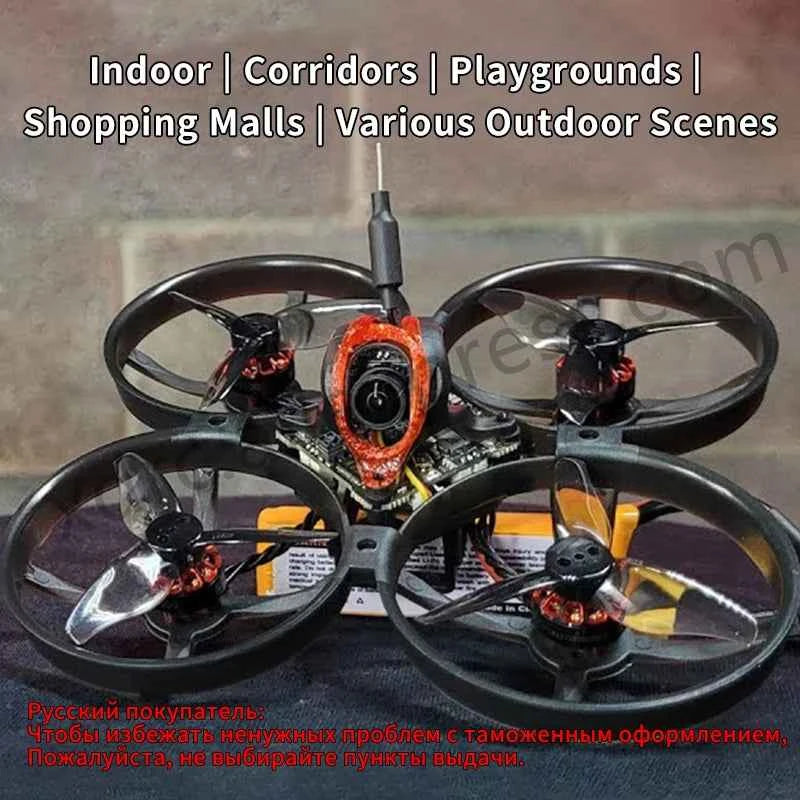

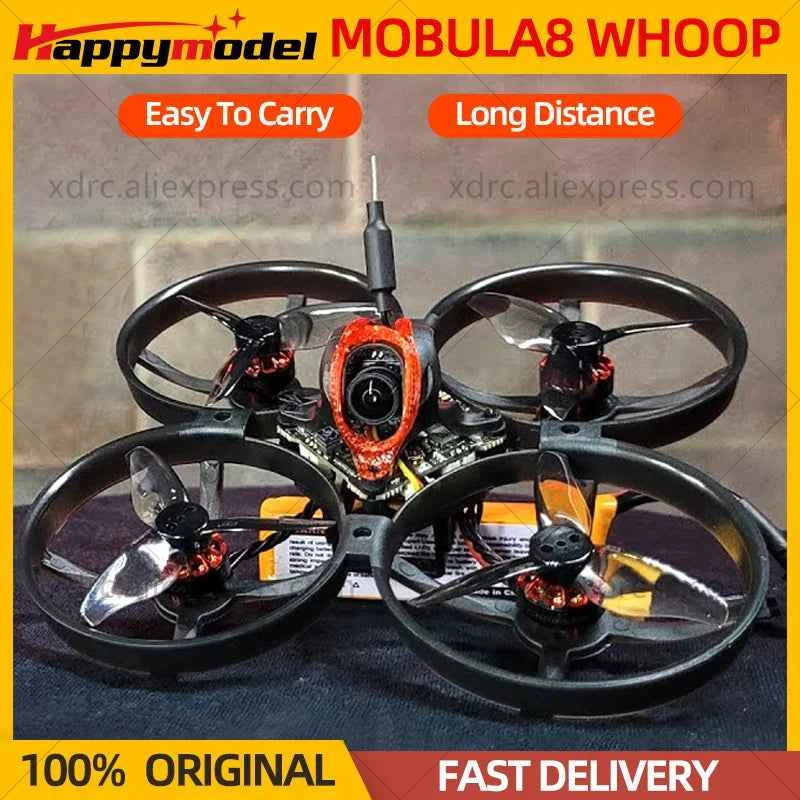

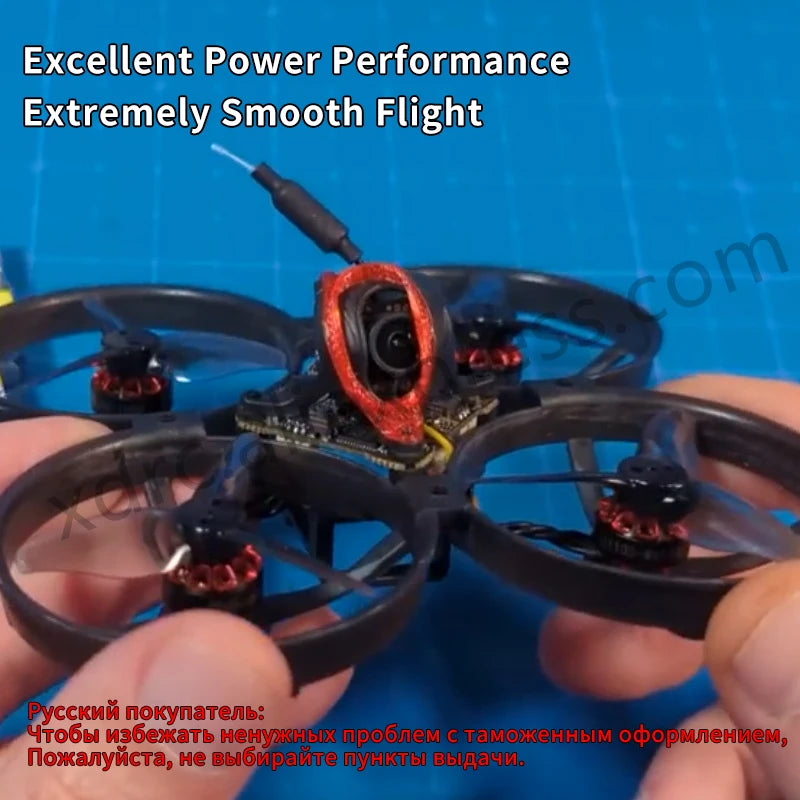

Are you tired of the power performance of the 1S whoop you own? Do you want more power to ripping and roaring in your backyard? Yes, here comes Mobula8, which is Happymodel's first attempt on 85mm frame. It comes with X12 series flight controller, EX1103 KV11000 motor and Gemfan Hurricane 2023 tri-blade propeller, which has excellent power performance and extremely smooth flight.

Features:

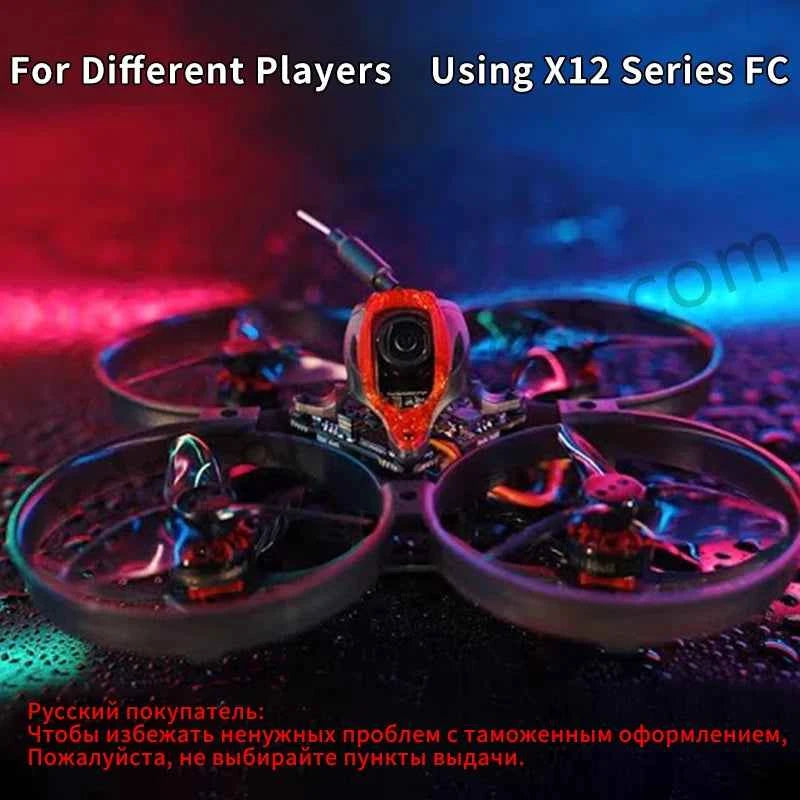

X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and OPENVTX
VTX Power up to 400mw
ELRS V2.0 (Default), provide firmware to support ELRS V3.0
EX1103 KV11000 motors
CaddxFPV Ant FPV camera
Smooth and powerful
Compatible for 1S-2S Lipo/LIHV battery
Recommend 2S 450mah/550mah/650mah battery (Not include)

Specifications:
Brand Name: Happymodel

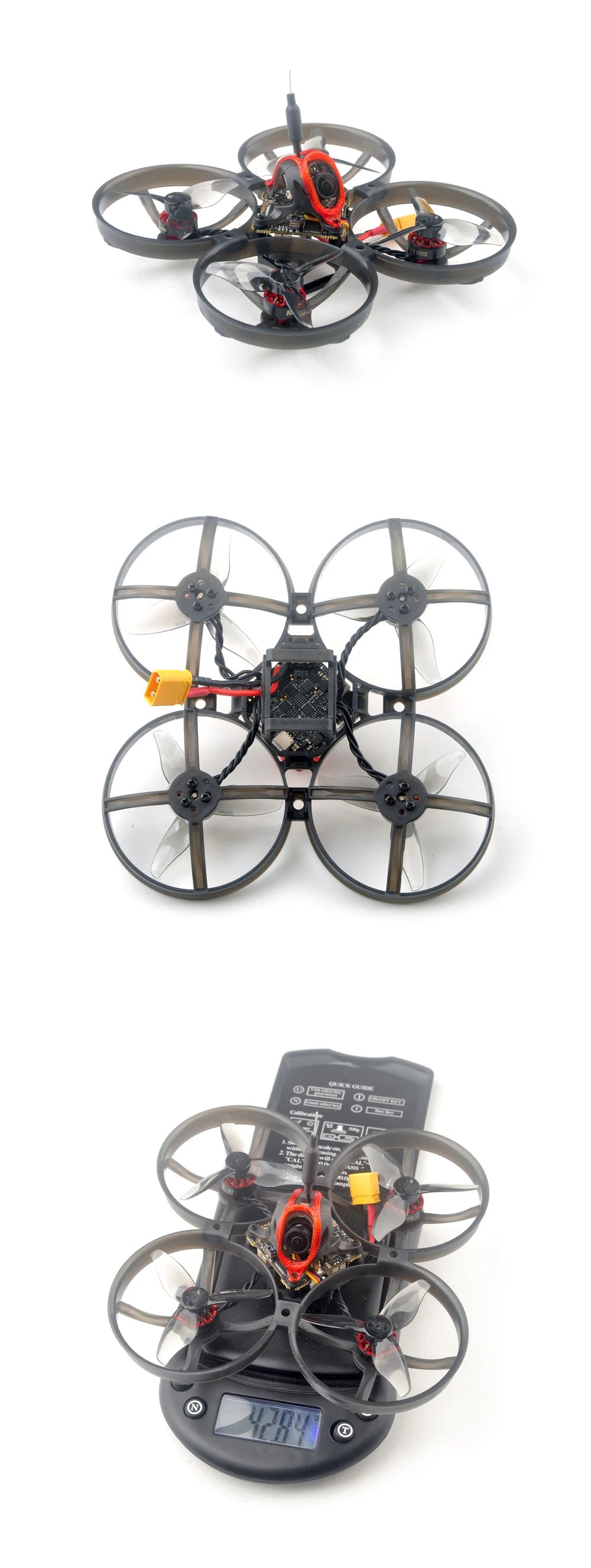

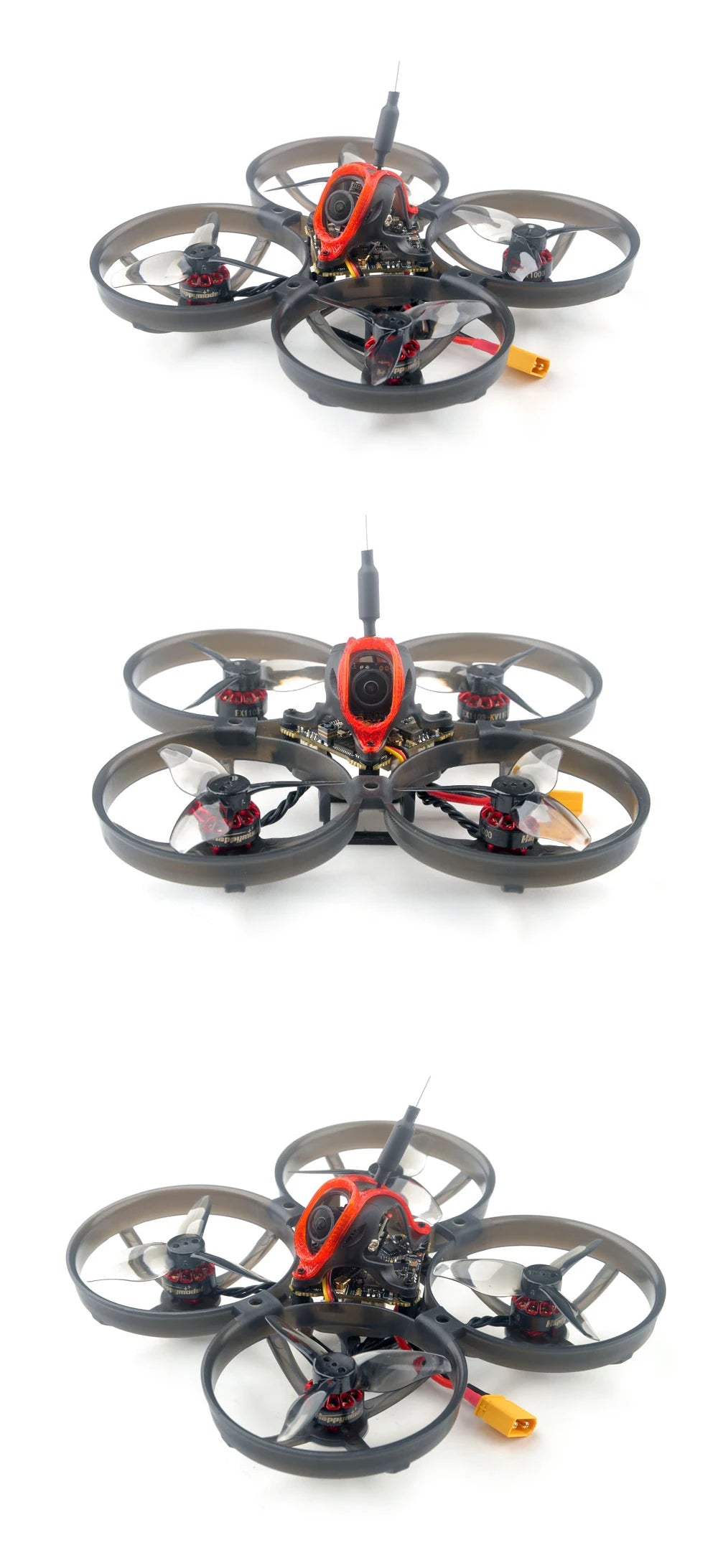

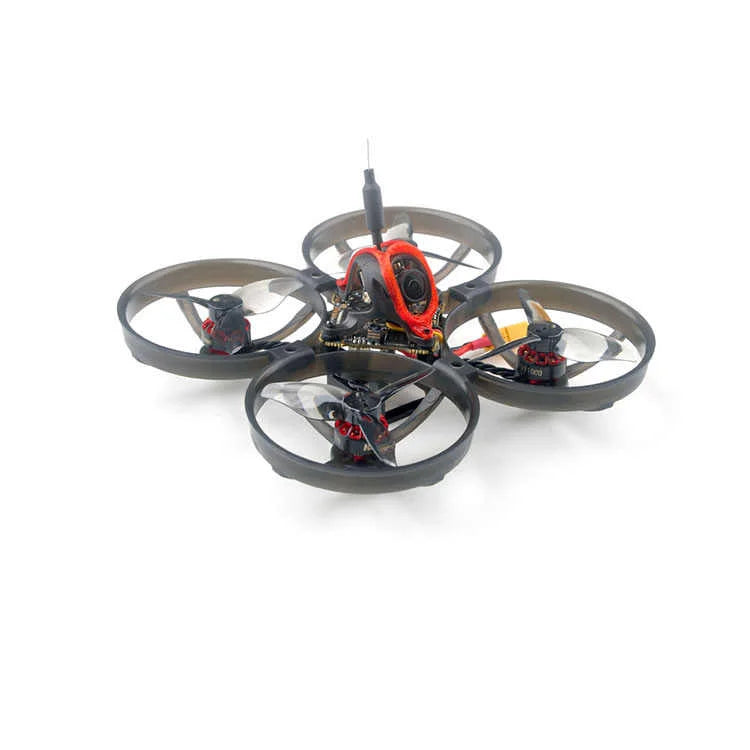

Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone

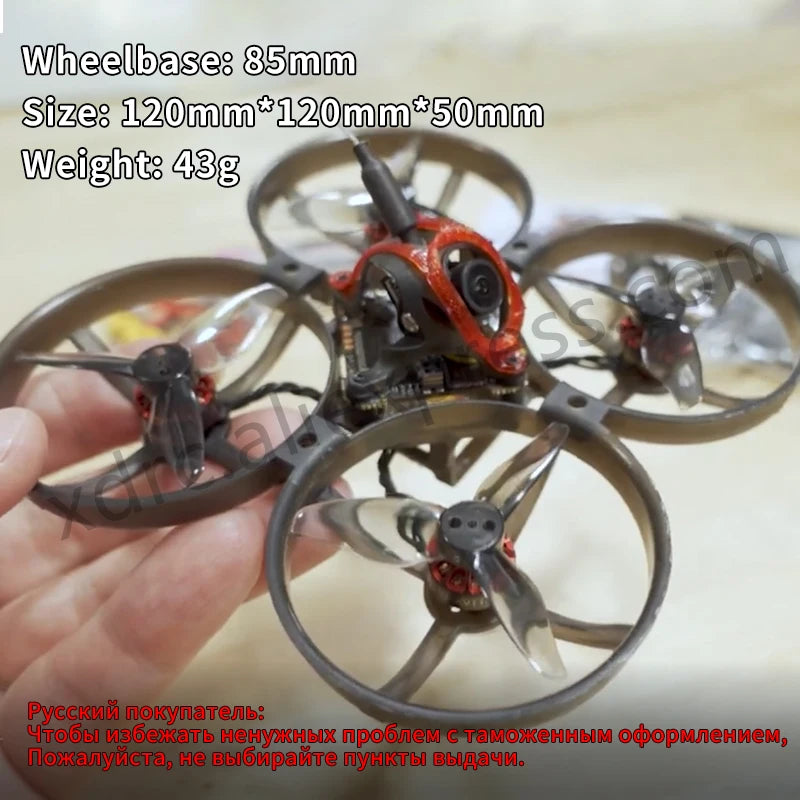

Wheelbase: 85mm
Size: 120mm*120mm*50mm
Weight: 43g

Receiver option:
2.4G ELRS SPI(Support ELRS v2.0, provide firmware could compatible with elrs v3.0)
SPI Frsky D8/D16 not compatible with EMAX E6 radio
SPI Flysky AFHDS2A
PNP (without onboard receiver)
TBS version(with external TBS CRSF NANO RX)

Package includes:

Item Name	Qty
Mobula8 Frame	1
Option1: X12 ELRS V2.1 flight controller built-in SPI ELRS 2.4G receiver	1
Option2: X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver
Option3: X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver
Option4: X12 PNP V1.1 flight controller without onboard receiver
Option5: X12 PNP V1.1 flight controller with TBS CRSF NANO RX
EX1103 KV11000 brushless motor	4

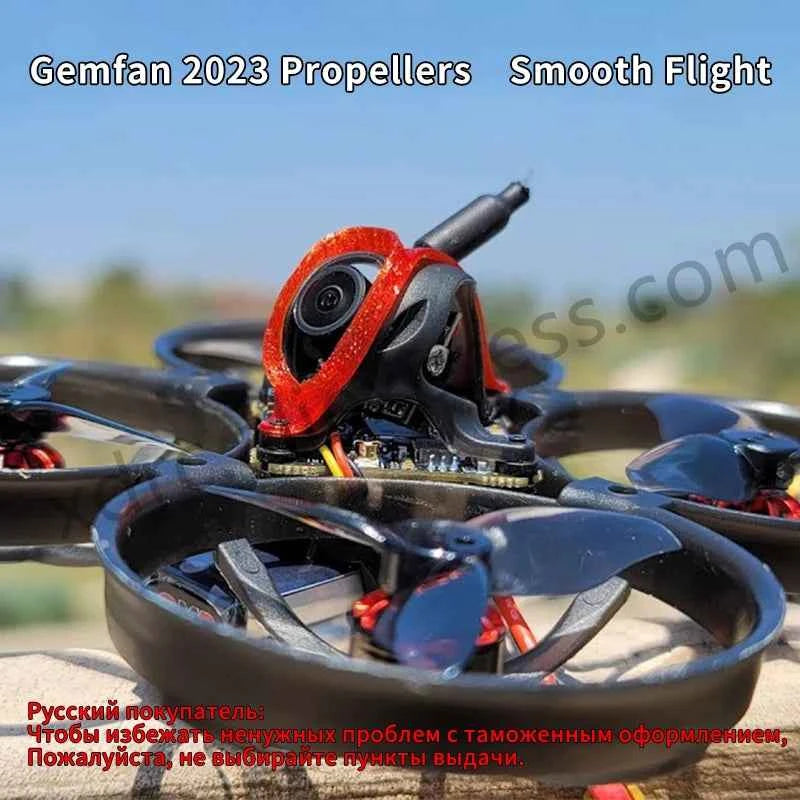

Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)	1
Caddx ANT 1200TVL Camera	1
Onboard 5.8G Openvtx 0mw~400mw VTX	1
Canopy for 14mmx14mm camera	1
Screw driver	1

Spare parts specifications:

Motor	Mode: EX1103 KV11000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.Len):Φ13.5mm15.5mm Weight(g):3.8g No.of Cells(Lipo):1-2S
Propellers	Weight:0.88g Material: PC Pitch:2.3inch Props Dia:52.17mm Center Thickness:5mm Center Hole Dia:1.5mm
Flight controller	X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280 X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS X12 PNP V1.1 flight controller without onboard receiver Target: CRAZYBEEF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: ICM20689 or ICM42688P(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A Built-in voltage detection Built-in current sensor
Onboard 4in1 ESC	Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Firmware target: Z_H_30 Default protocol: DSHOT300 Support Bluejay firmware
Onboard SPI ExpressLRS 2.4GHz Receiver	Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn't flash separately ExpressLRS firmware Could flash FC firmware to support ExpressLRS v3.0 TX module
Onboard SPI Frsky D8/D16 receiver Version	SPI BUS receiver Frsky D8/D16 compatible Compatible Non EU transmitter D8/D16 modelChannels: 8ch/16ch No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support
Onboard SPI Flysky receiver Version	SPI BUS receiver Protocol: AFHDS-2A Channels: 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 200meter Failsafe support
PNP Version (without onboard receiver)	Full UART1 for external Receiver Support CRSF/GHOST/SBUS/IBUS/DSMX protocol IR1 pad(invert RX1) used for SBUS input
External TBS CRSF Nano receiver version	Original TBS CROSSFIRE Receiver ,CRSF Protocol , Official TBS transmitter compatible
Onboard 5.8g OPENVTX	Firmware version: OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw)
Caddx ANT 1200tvl camera	Image Sensor: 1/3″ CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES WDR: Global WDR DNR: 3D DNR Dimensions: 1414mm(with bracket to 1919mm) Wide Power Input: DC 3.7-18V Weight: 2g (N.W.)
