HamGeek 1MHz-6GHz HackRF One R10 V2.0.x + Portapack H2M with Metal Shell + 5 Antennas + USB Cable + LNA
Black / 94631
$201.60 USD
Skip to product information
HamGeek 1MHz-6GHz HackRF One R10 V2.0.x + Portapack H2M with Metal Shell + 5 Antennas + USB Cable + LNA
$201.60 USD
Shipping calculated at checkout.
SPECIFICATIONS
MOQ: 1pcs
PAYMENT: 1.Paypal 2.Western Union 3.T/T
Packing: Standard Packing
Product name: HamGeek SDR Radio (HackRF One + Portapack H2M)
Quality: Excellent
Warranty: 12 Monthes
brand name: HamGeek
place of origin: Guangdong, China
Product Description
Product Name |
HamGeek 1MHz-6GHz HackRF One R10 V2.0.x + Portapack H2M w/ Metal Shell + 5 Antennas + USB Cable + LNA |
Attention:
1. The latest firmware is supported, and the current firmware is Mayhem firmware V2.0.2 by default.
2. For certain functionality, like the world map, GPS simulator, and others, you need to prepare a PortaPack H2M and a FAT32
formatted MicroSD card over 1G.
HackRF One R10 Description:
- HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
- Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware
platform that can be used as a USB peripheral or programmed for stand-alone operation.
HackRF One Specifications:
- 1 MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- For GNU Radio, SDR#, and the like
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open source hardware
- HackRF One 1 MHz to 6 GHz SDR platform software defined radio development board
Description:
The official firmware created for the PortaPack includes several decoders and transmitters, but the third-party "Havoc" firmware
is what you'll really want to use, as it offers many more decoders and transmission options.
Progress of Work:
1. The program validation prototype has been completed.
2. The latest documents, from May 2017, are based on improvements.
Catching and Replay:
- One of the best things about the PortaPack is that it makes capturing and replaying wireless signals, such as those from ISM
band remote controls, extremely easy.
- To catch a signal, simply enter the "Catching" menu, set the frequency of the remote key, press the red 'R' record button, and
then press the key on the remote.
- After that, stop the recording to save it to the SD card.
- Now, you can go into the Replay menu, select the file you just recorded, and hit play. The exact same signal will be transmitted
over the air, effectively replacing your remote key.
Microphone TX:
- By using the 3.5mm audio jack, the Portapack can also function as a standard push-to-talk or voice-activated walkie-talkie
radio. With a microphone connected to the audio jack, simply hold down the right button to activate push-to-talk.
- If needed, you can also enable multiple CTCSS tone options, as well as tones that appear to enable transmission to wireless
headphones.
Other Transmitters:
- There are generic OOK transmitters that can be programmed with custom data. This mode might be useful for experimenting with
simple key fobs or devices like home automation switches.
- Numerous transmit modes are implemented that are questionable in most countries and could result in serious legal consequences.
These transmitters are intended solely for internal testing within a Faraday cage!
Receivers:
By connecting speakers to the Portapack's 3.5mm audio jack, you can easily listen to standard NFM and WFM audio signals. ADS-B
reception can be enabled on the PortaPack by selecting the inductor and lightning symbol in the top-right corner. With the bias
tee enabled, it can receive aircraft signals.

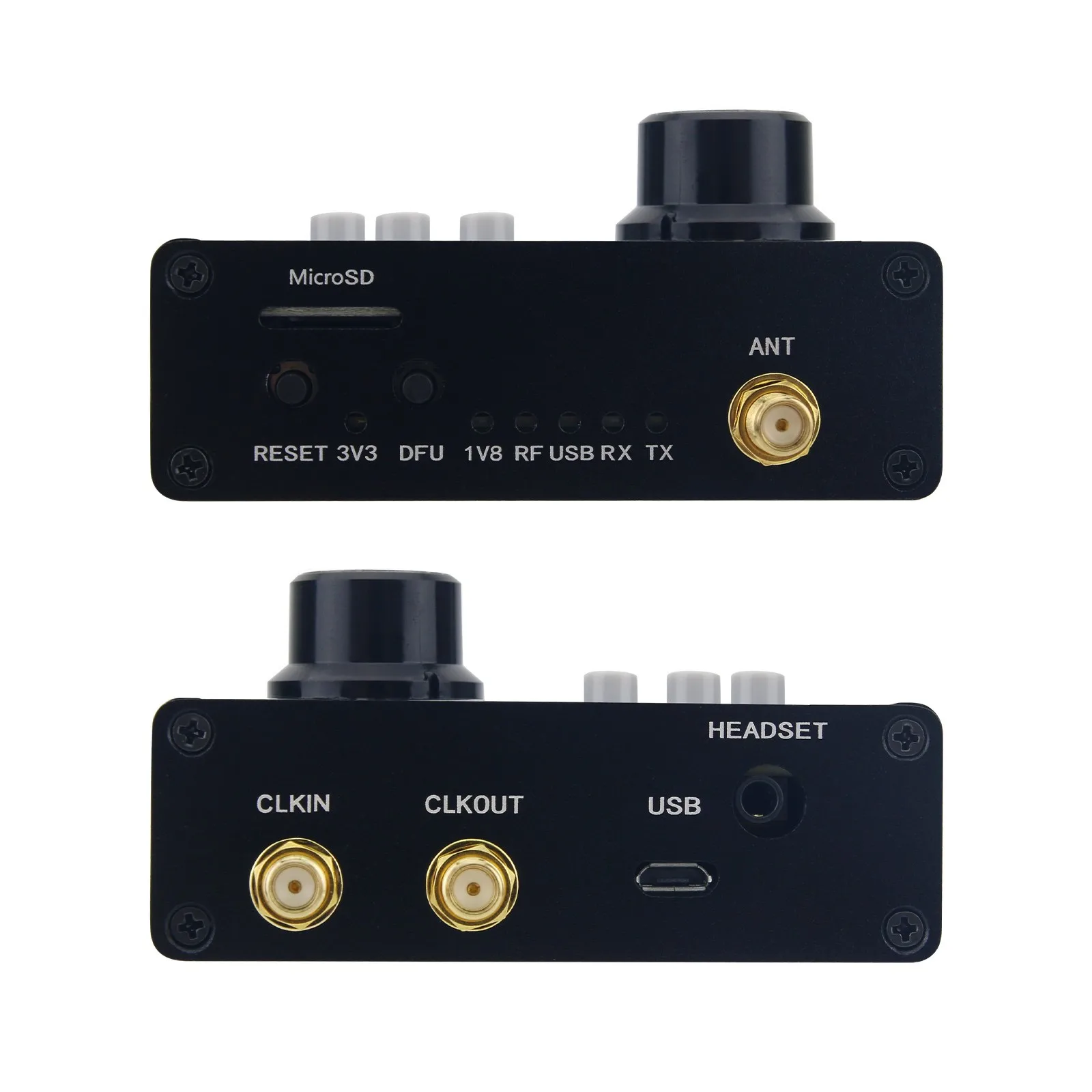

Hardware Configuration:
- 3.2-inch 240x320 TFT screen
- Navigation switch
- Audio output
- Microphone input
- DC 2.1 interface
- 4-layer gold plating
- ROHS compliance (for export to Europe and America)
The latest version was updated in May 2017, with the most recent documentation.
Add a PortaPack to your HackRF One software-defined radio and leave your laptop behind! The PortaPack attaches to your HackRF and
adds a touchscreen LCD, navigation controls, a headphone jack, a real-time clock, and a micro SD card slot.
Simply add a USB battery, and you're ready to explore the radio spectrum wherever you are. The PortaPack firmware runs on the fast
processors (for ARM) in your HackRF. No computer is necessary (except for firmware updates).
HAVOC Features Include:
- IQ file replay
- Microphone FM transmit with CTCSS
- CTCSS decoder
- Frequency manager (save & load from SD card, with categories and notes)
- File manager
- "Soundboard" wave file player (place 8-bit mono files in the SD card /wav directory)
- ADS-B receiver with map view
- SSTV transmitter
- Fully configurable transmit signals
- POCSAG transmitter
- POCSAG receiver/decoder
- Morse transmitter (FM tone and CW)
- OOK transmitter for common remote encoders (PT2262, doorbells, remote outlets, some garage doors, etc.)
- RDS (Radio Data System) PSN, RadioText, and Time group transmitter
- Meteorological radiosonde receiver for M10 and M2K2
- AFSK receiver
- AFSK transmitter (Bell 202, etc.)
- Nuoptix DTMF sync transmitter
- TouchTunes jukebox universal remote
- LCR (Langage de Commande Routier) message generator
- Street lighting control transmitter (CCIR tones)
- "Play Dead" for emergency situations
- Fully configurable RF signal generator
- RSSI audio output as pitch (for direction finding)
Features:
- 3.2-inch, 240 x 320 RGB LCD with a resistive touch panel.
- Four-way arrow keys, rotary jog wheel, and select button.
- Coin battery for preserving settings and date/time.
- Micro SD card slot for data and code storage.
Some features demonstrated in the February 22, 2016 firmware video:
- SSB, AM, narrowband FM, wideband FM audio reception, with spectrum waterfall.
- Wideband (18MHz) spectrum analysis and waterfall.
- Monitoring of boat (AIS), automobile (TPMS), and utility meter transponders (ITRON ERT).
- HackRF mode runs HackRF firmware for use with host computer SDR software.
- PM calibration for more accurate tuning.
- Sleep mode saves power by turning off just the display.
- You may also find the Furrtek HAVOC firmware very interesting!
Your HackRF will continue to function with computer-based SDR software when you put the PortaPack into "HackRF Mode.
The PortaPack is compatible only with the HackRF One and is not compatible with the earlier HackRF Jawbreaker design. If your
HackRF has an RF shield installed, the PortaPack should fit without issues. Compatibility with the HackRF Blue is experimental.
One Blue owner has reported good results, with minor mechanical interference between the PortaPack audio capacitors and the
baseband header. If your HackRF Blue does not have a baseband header installed, you should not encounter any mechanical problems.
The PortaPack requires an external battery. While any USB-connected battery should work, their quality varies significantly, and
poorly designed batteries may introduce voltage regulator noise into the radio.
The PortaPack and HackRF One are not designed to replace a handheld ham radio receiver. Although receiving sensitivity varies
across bands, they will not perform as well as a dedicated ham radio receiver.
PortaPack H2M:
Features:
- PortaPack H2M is an official co-branded licensed version and is sold by HAMGEEK.
- PortaPack H2M adds a 10.00MHZ TCXO FOX 5070 crystal oscillator to the original 2nd generation H2
- Support GPS simulation
- Support the latest official firmware upgrade
Description:
- The screen has been upgraded to a 3.2-inch wide-angle display, fully supporting touch control.
- It features a maximum 3W speaker amplifier and supports switching between speakers and headphones. It can be equipped with
external speakers to enable loudspeaker functionality. The pure hardware logic implementation ensures compatibility with future
firmware upgrades. The original version does not support external speakers.
- The battery socket has been upgraded and now supports a more suitable battery standard (the built-in lithium battery is
2000mAh). It fits perfectly into the HackRF. It also supports USB charging, a charging status LED display, and button-controlled
power on/off functionality, which is essential for offline use. The original version could only be powered by plugging in and
lacked the ability to turn on or off independently.
- The upgraded crystal oscillator is a 10.00 MHz TCXO FOX 5070, a high-precision active crystal oscillator with enhanced
anti-interference capabilities. Additionally, it supports GPS simulation without the need to connect to computer software.
- Based on feedback regarding the first generation's key feel issues, the buttons have been upgraded for a better tactile
experience and now come with keycaps, making them easier to match with custom-designed shells. Additionally, the first-generation
illuminated knobs have been upgraded to a black finish, complementing the matte black PCB.

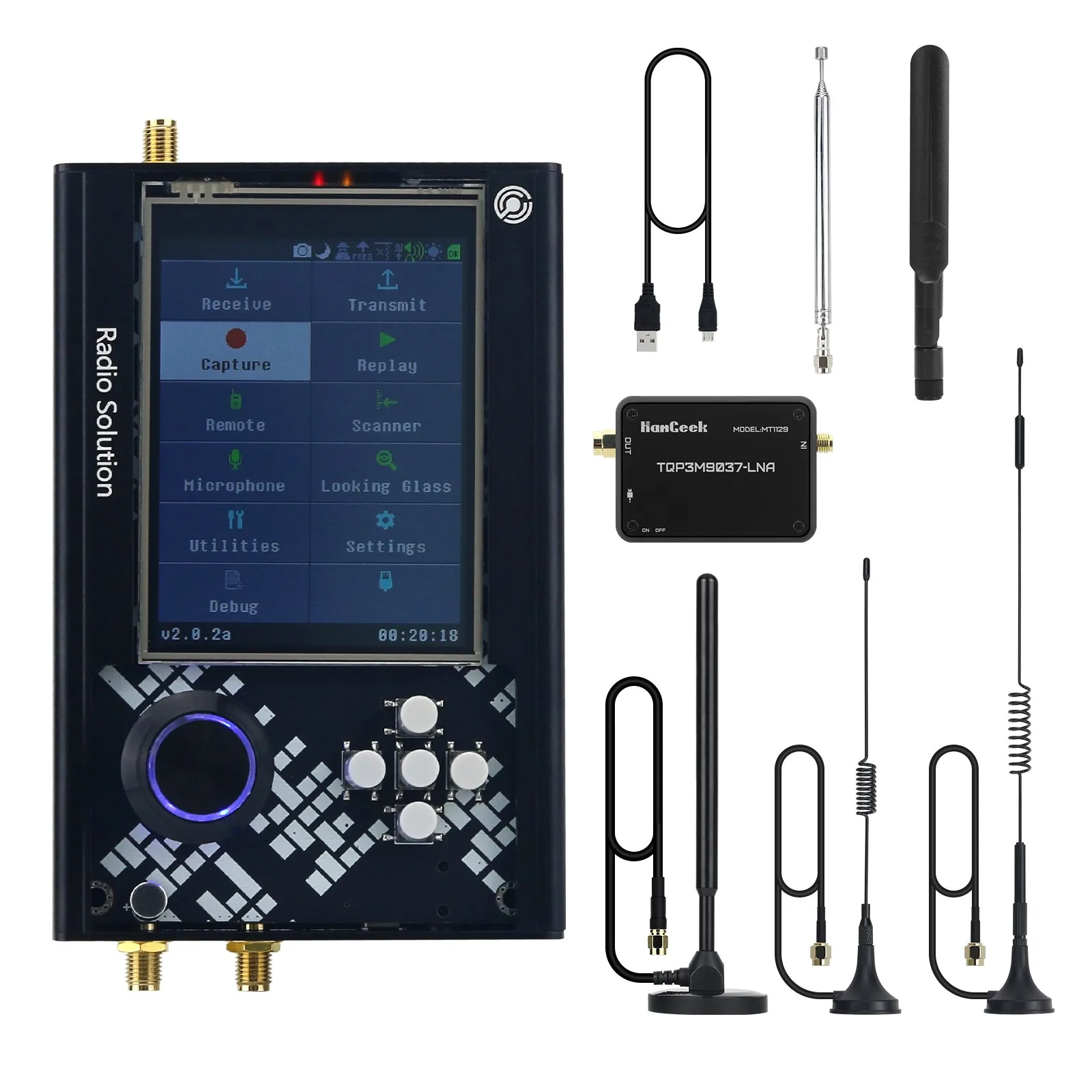

Package Included:
- 1 x HamGeek SDR Radio (HackRF One + Portapack H2M)
- 1 x 2.4/5/5.8GHz Antenna
- 1 x 35DBi GSM/3G/4G Antenna
- 1 x 40MHz-6GHz Telescopic Antenna
- 1 x 40MHz-860GHz Antenna
- 1 x 700MHz-2700MHz Antenna
-1 x USB Cable
- 1 x 20DB 50MHz-6GHz LNA
Packaging Details:
- Weight: 1KG
Note:
- The product is assembled.
- Battery is included.
1. The latest firmware is supported, and the current firmware is Mayhem firmware V2.0.2 by default.
2. For certain functionality, like the world map, GPS simulator, and others, you need to prepare a PortaPack H2M and a FAT32
formatted MicroSD card over 1G.
HackRF One R10 Description:
- HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
- Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware
platform that can be used as a USB peripheral or programmed for stand-alone operation.
HackRF One Specifications:
- 1 MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- For GNU Radio, SDR#, and the like
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open source hardware
- HackRF One 1 MHz to 6 GHz SDR platform software defined radio development board
Description:
The official firmware created for the PortaPack includes several decoders and transmitters, but the third-party "Havoc" firmware
is what you'll really want to use, as it offers many more decoders and transmission options.
Progress of Work:
1. The program validation prototype has been completed.
2. The latest documents, from May 2017, are based on improvements.
Catching and Replay:
- One of the best things about the PortaPack is that it makes capturing and replaying wireless signals, such as those from ISM
band remote controls, extremely easy.
- To catch a signal, simply enter the "Catching" menu, set the frequency of the remote key, press the red 'R' record button, and
then press the key on the remote.
- After that, stop the recording to save it to the SD card.
- Now, you can go into the Replay menu, select the file you just recorded, and hit play. The exact same signal will be transmitted
over the air, effectively replacing your remote key.
Microphone TX:
- By using the 3.5mm audio jack, the Portapack can also function as a standard push-to-talk or voice-activated walkie-talkie
radio. With a microphone connected to the audio jack, simply hold down the right button to activate push-to-talk.
- If needed, you can also enable multiple CTCSS tone options, as well as tones that appear to enable transmission to wireless
headphones.
Other Transmitters:
- There are generic OOK transmitters that can be programmed with custom data. This mode might be useful for experimenting with
simple key fobs or devices like home automation switches.
- Numerous transmit modes are implemented that are questionable in most countries and could result in serious legal consequences.
These transmitters are intended solely for internal testing within a Faraday cage!
Receivers:
By connecting speakers to the Portapack's 3.5mm audio jack, you can easily listen to standard NFM and WFM audio signals. ADS-B
reception can be enabled on the PortaPack by selecting the inductor and lightning symbol in the top-right corner. With the bias
tee enabled, it can receive aircraft signals.
Hardware Configuration:
- 3.2-inch 240x320 TFT screen
- Navigation switch
- Audio output
- Microphone input
- DC 2.1 interface
- 4-layer gold plating
- ROHS compliance (for export to Europe and America)
The latest version was updated in May 2017, with the most recent documentation.
Add a PortaPack to your HackRF One software-defined radio and leave your laptop behind! The PortaPack attaches to your HackRF and
adds a touchscreen LCD, navigation controls, a headphone jack, a real-time clock, and a micro SD card slot.
Simply add a USB battery, and you're ready to explore the radio spectrum wherever you are. The PortaPack firmware runs on the fast
processors (for ARM) in your HackRF. No computer is necessary (except for firmware updates).
HAVOC Features Include:
- IQ file replay
- Microphone FM transmit with CTCSS
- CTCSS decoder
- Frequency manager (save & load from SD card, with categories and notes)
- File manager
- "Soundboard" wave file player (place 8-bit mono files in the SD card /wav directory)
- ADS-B receiver with map view
- SSTV transmitter
- Fully configurable transmit signals
- POCSAG transmitter
- POCSAG receiver/decoder
- Morse transmitter (FM tone and CW)
- OOK transmitter for common remote encoders (PT2262, doorbells, remote outlets, some garage doors, etc.)
- RDS (Radio Data System) PSN, RadioText, and Time group transmitter
- Meteorological radiosonde receiver for M10 and M2K2
- AFSK receiver
- AFSK transmitter (Bell 202, etc.)
- Nuoptix DTMF sync transmitter
- TouchTunes jukebox universal remote
- LCR (Langage de Commande Routier) message generator
- Street lighting control transmitter (CCIR tones)
- "Play Dead" for emergency situations
- Fully configurable RF signal generator
- RSSI audio output as pitch (for direction finding)
Features:

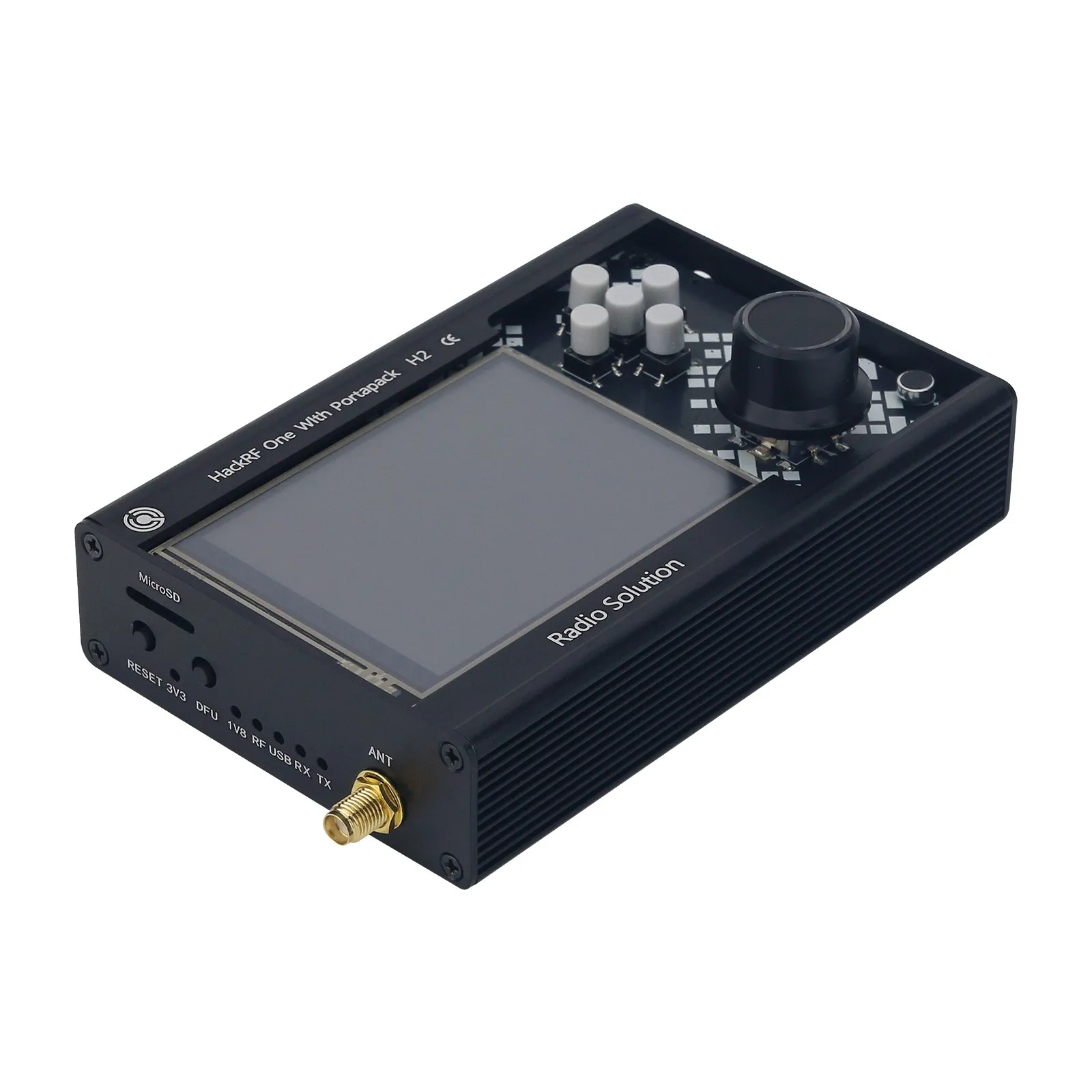

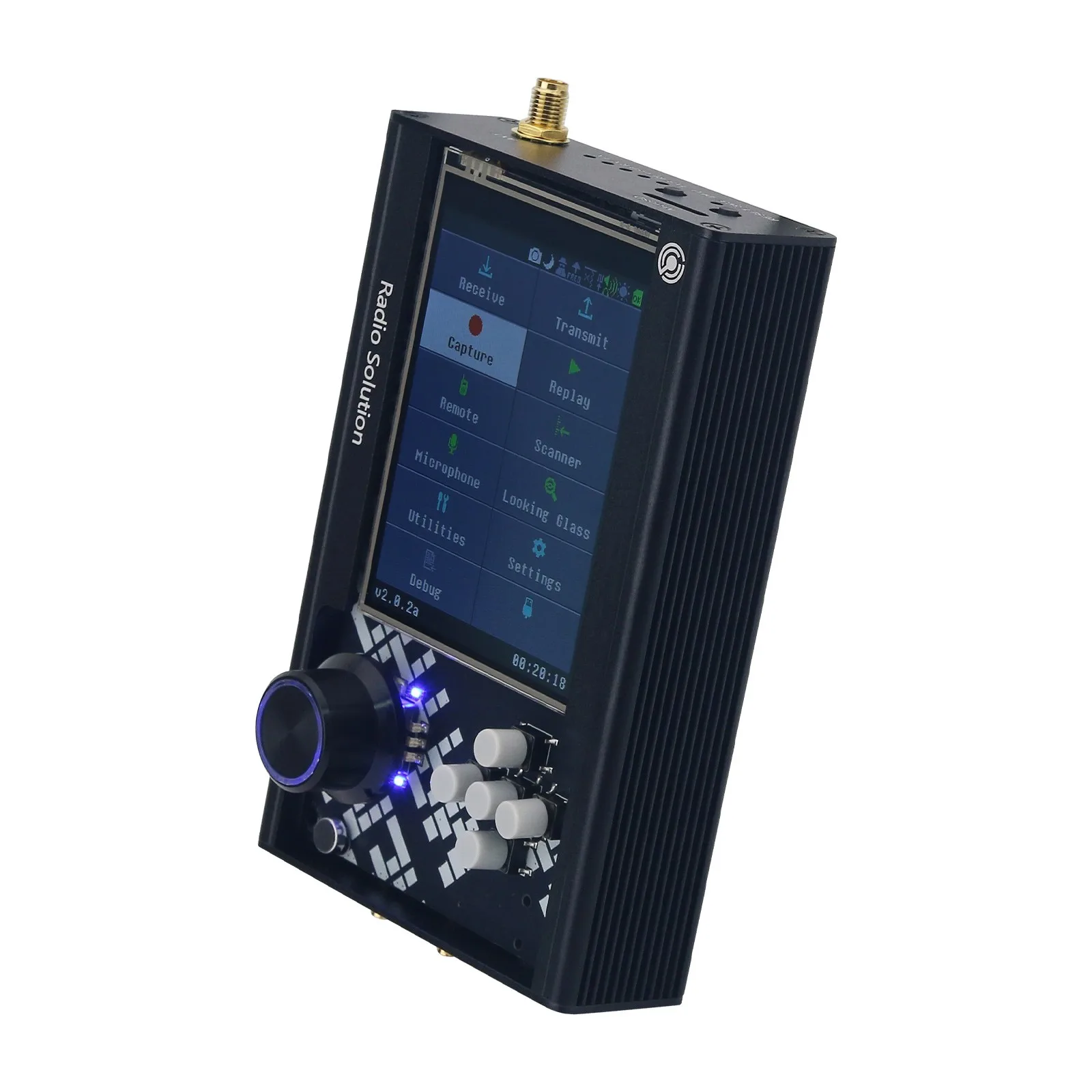

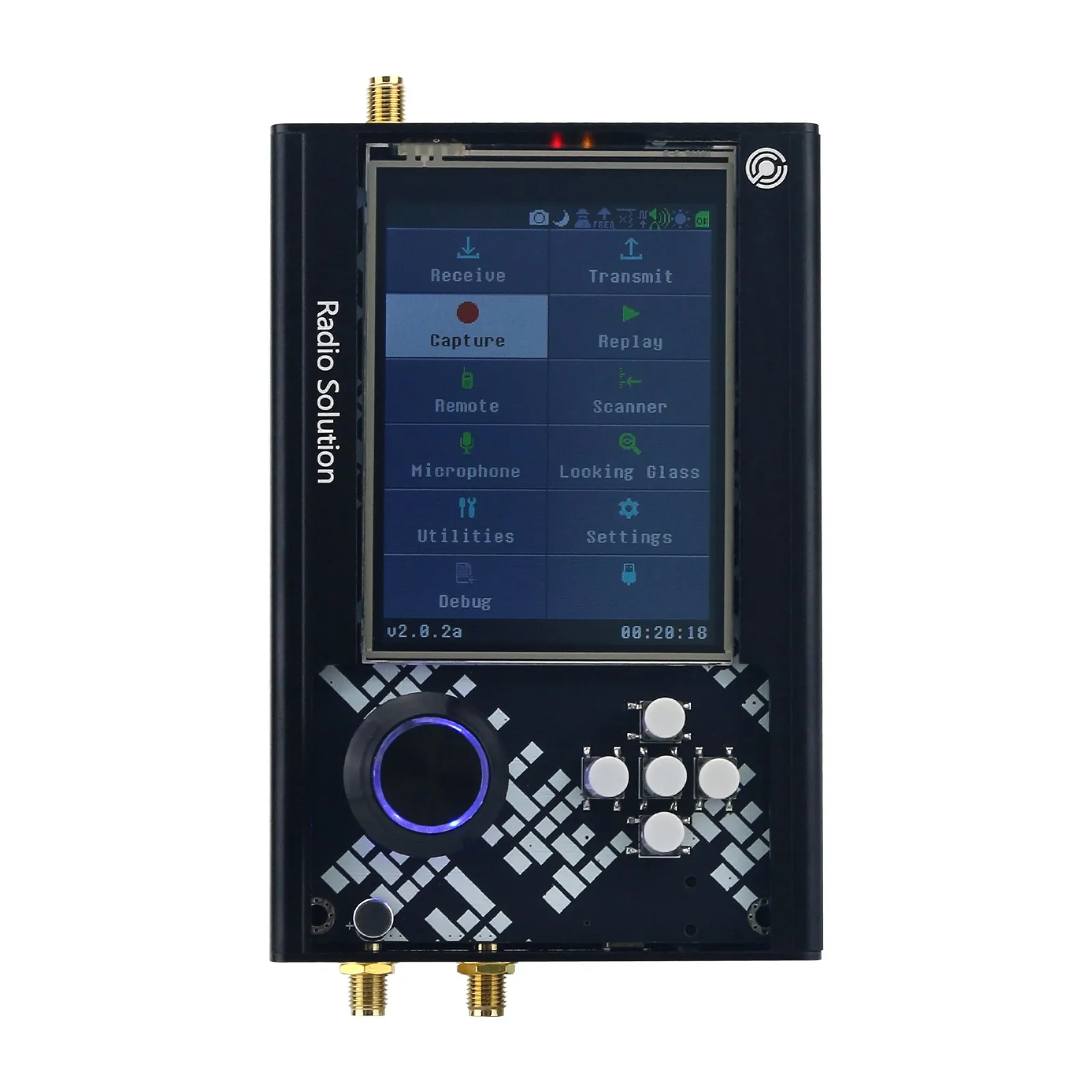

- 3.2-inch, 240 x 320 RGB LCD with a resistive touch panel.
- Four-way arrow keys, rotary jog wheel, and select button.
- Coin battery for preserving settings and date/time.
- Micro SD card slot for data and code storage.
Some features demonstrated in the February 22, 2016 firmware video:
- SSB, AM, narrowband FM, wideband FM audio reception, with spectrum waterfall.
- Wideband (18MHz) spectrum analysis and waterfall.
- Monitoring of boat (AIS), automobile (TPMS), and utility meter transponders (ITRON ERT).
- HackRF mode runs HackRF firmware for use with host computer SDR software.
- PM calibration for more accurate tuning.
- Sleep mode saves power by turning off just the display.
- You may also find the Furrtek HAVOC firmware very interesting!
Your HackRF will continue to function with computer-based SDR software when you put the PortaPack into "HackRF Mode.
The PortaPack is compatible only with the HackRF One and is not compatible with the earlier HackRF Jawbreaker design. If your
HackRF has an RF shield installed, the PortaPack should fit without issues. Compatibility with the HackRF Blue is experimental.
One Blue owner has reported good results, with minor mechanical interference between the PortaPack audio capacitors and the
baseband header. If your HackRF Blue does not have a baseband header installed, you should not encounter any mechanical problems.
The PortaPack requires an external battery. While any USB-connected battery should work, their quality varies significantly, and
poorly designed batteries may introduce voltage regulator noise into the radio.
The PortaPack and HackRF One are not designed to replace a handheld ham radio receiver. Although receiving sensitivity varies
across bands, they will not perform as well as a dedicated ham radio receiver.
PortaPack H2M:
Features:
- PortaPack H2M is an official co-branded licensed version and is sold by HAMGEEK.
- PortaPack H2M adds a 10.00MHZ TCXO FOX 5070 crystal oscillator to the original 2nd generation H2
- Support GPS simulation
- Support the latest official firmware upgrade
Description:
- The screen has been upgraded to a 3.2-inch wide-angle display, fully supporting touch control.
- It features a maximum 3W speaker amplifier and supports switching between speakers and headphones. It can be equipped with
external speakers to enable loudspeaker functionality. The pure hardware logic implementation ensures compatibility with future
firmware upgrades. The original version does not support external speakers.
- The battery socket has been upgraded and now supports a more suitable battery standard (the built-in lithium battery is
2000mAh). It fits perfectly into the HackRF. It also supports USB charging, a charging status LED display, and button-controlled
power on/off functionality, which is essential for offline use. The original version could only be powered by plugging in and
lacked the ability to turn on or off independently.
- The upgraded crystal oscillator is a 10.00 MHz TCXO FOX 5070, a high-precision active crystal oscillator with enhanced
anti-interference capabilities. Additionally, it supports GPS simulation without the need to connect to computer software.
- Based on feedback regarding the first generation's key feel issues, the buttons have been upgraded for a better tactile
experience and now come with keycaps, making them easier to match with custom-designed shells. Additionally, the first-generation
illuminated knobs have been upgraded to a black finish, complementing the matte black PCB.
Package Included:
- 1 x HamGeek SDR Radio (HackRF One + Portapack H2M)
- 1 x 2.4/5/5.8GHz Antenna
- 1 x 35DBi GSM/3G/4G Antenna
- 1 x 40MHz-6GHz Telescopic Antenna
- 1 x 40MHz-860GHz Antenna
- 1 x 700MHz-2700MHz Antenna
-1 x USB Cable
- 1 x 20DB 50MHz-6GHz LNA
Packaging Details:
- Weight: 1KG
Note:
- The product is assembled.
- Battery is included.
Related Products
Packing&Shipping
Package: Normally we use the standard paper package to export worldwide.
Company Introduction
Shenzhen Pinsai Technology Co., Ltd.
is located in Shenzhen City, Guangdong Province, China.
has been specializing in Electronics & Communication Equipment , Industrial Machinery,Instruments & Apparatus and Hobbies & Toys
supplies since from 2016.
supplies since from 2016.
We are committed to providing customers with quality products, easy and pleasant purchase process and perfect after-sales service. Our Advantages: - Favorable prices and high quality products. - Optimize the order process to help
customers operate easily. - Perfect after-sales service system to help customers solve problems. - Shortest order processing time and fastest delivery speed.
Welcome to contact us!
customers operate easily. - Perfect after-sales service system to help customers solve problems. - Shortest order processing time and fastest delivery speed.
Welcome to contact us!
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
Details
This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.
Shipping & Returns
We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.
We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.
Shop The Full Collection
