$768.00 USD
Shipping calculated at checkout.
SPECIFICATIONS
Capacity (T): 30.
Central Hole Diameter (mm): 33.3
Closed Height (mm): 330
Material: Alloy Steel
Max Height: 485mm
Min Height: 330
Model No: SOV-RCH-306
Oil Capacity(cm3): 722
Outside Diameter (mm): 114
Power source: Hydraulic
Product Name: Single Acting Hollow Plunger Hydraulic Cylinder
Stroke (mm): 155
Weight (kg): 21.8
Working Pressure (Bar): 700
brand name: SOV
capacity (load): 21-30T
customized support: OEM,ODM,OBM
model number: RCH-306
place of origin: Shanghai, China
type: Hydraulic Jack
warranty: 1 year

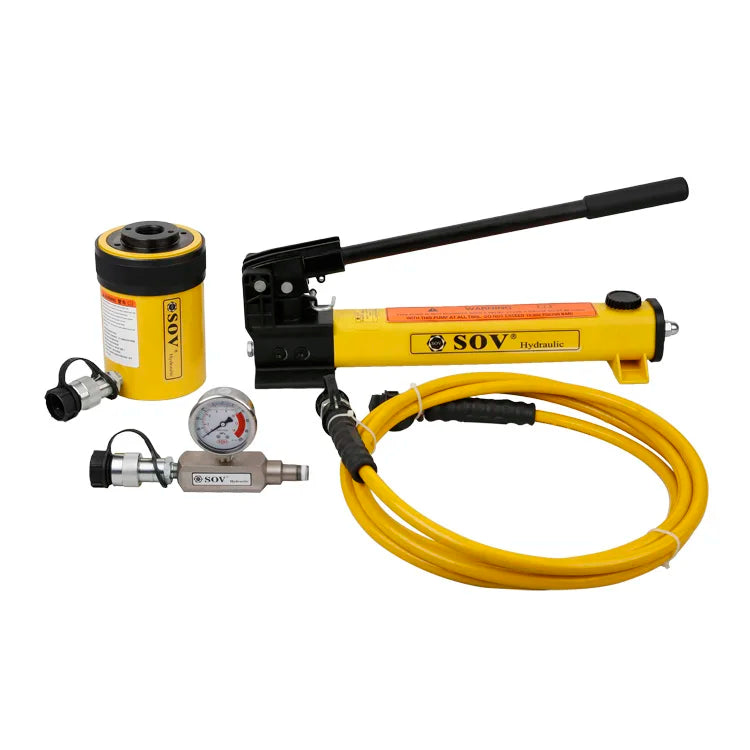

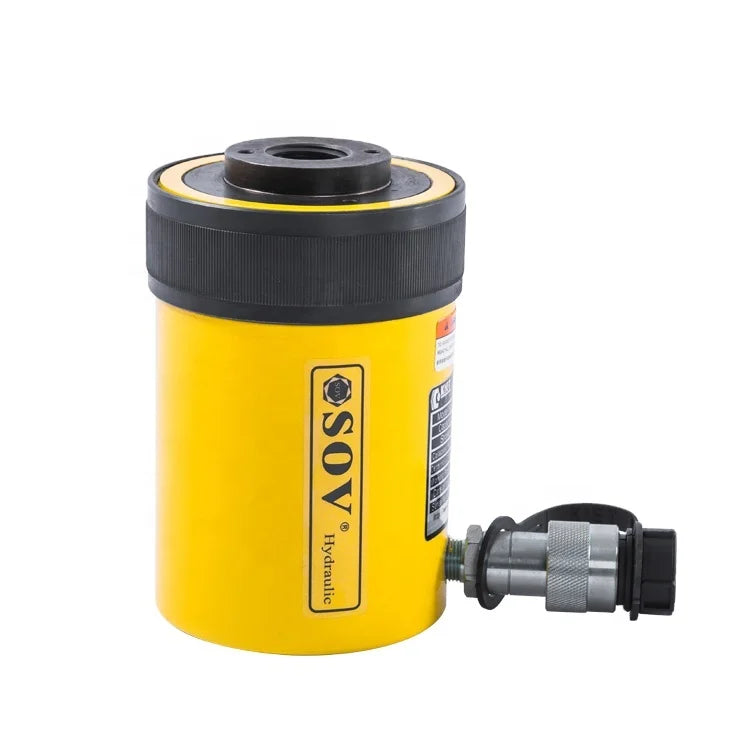

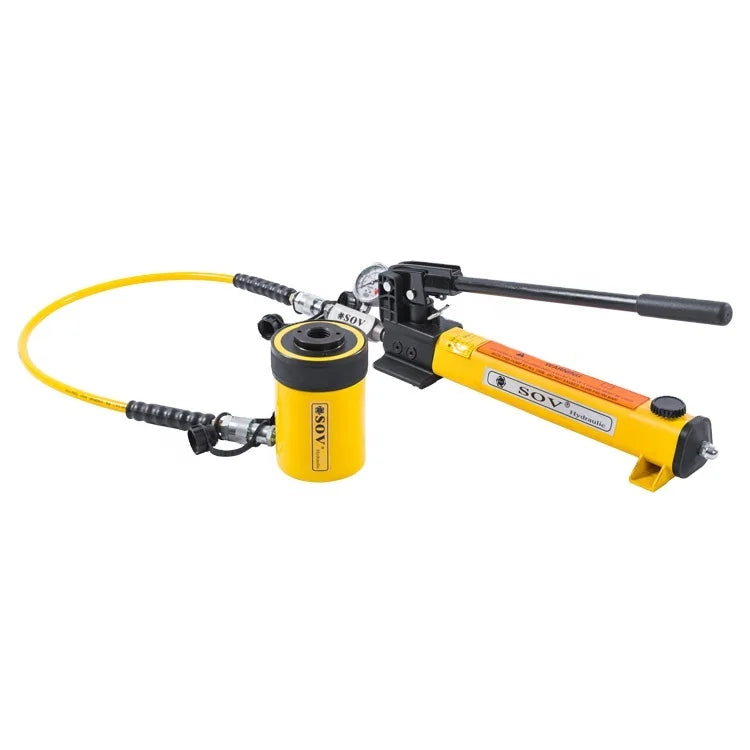

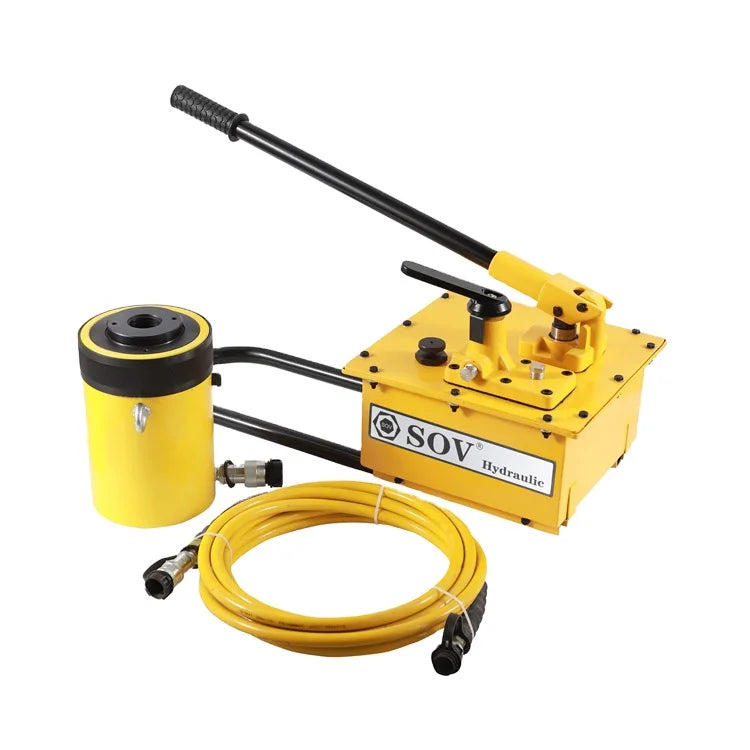

Single Acting Hollow Plunger Hydraulic Cylinder
Single acting hollow plunger hydraulic cylinder applys to processing, maintenance and traction work. The special design of the hollow piston rod makes the tow bar or cable can pass through the hydraulic cylinder to conduct lifting or jacking operation, commonly used in the work of backward traction and forward extrusion. Equipped with interchangeable steel reinforced piston base, can also be used for regular lifting operation.
Features
* Baked enamel finish for increased corrosion resistance.
* Hollow plunger design allows for both pull and push forces.
* Collar threads for easy fixturing.
* Built-in scraper seal reduces contamination, extending cylinder life.
* 3/8 "- 18NPT coupler and dust cap included on all models.
|
|
Max. Working Pressure
(MPa)
|
|
|
Center Hole Diameter
Y
(mm)
|
|
SOV-RCH-306 |
|
|
|
|
|
|
SOV Hydraulic Technoloy (Shanghai) Co., Ltd. is a professional manufacturing in hydraulic tools and products, we have been in the industry for more than 20 years. Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively. Our Products have been widely used in petrochemical, cement, shipbuilding, steel plant and heavy constructions areas, etc.
We produce and supply Hydraulic tools, such as:

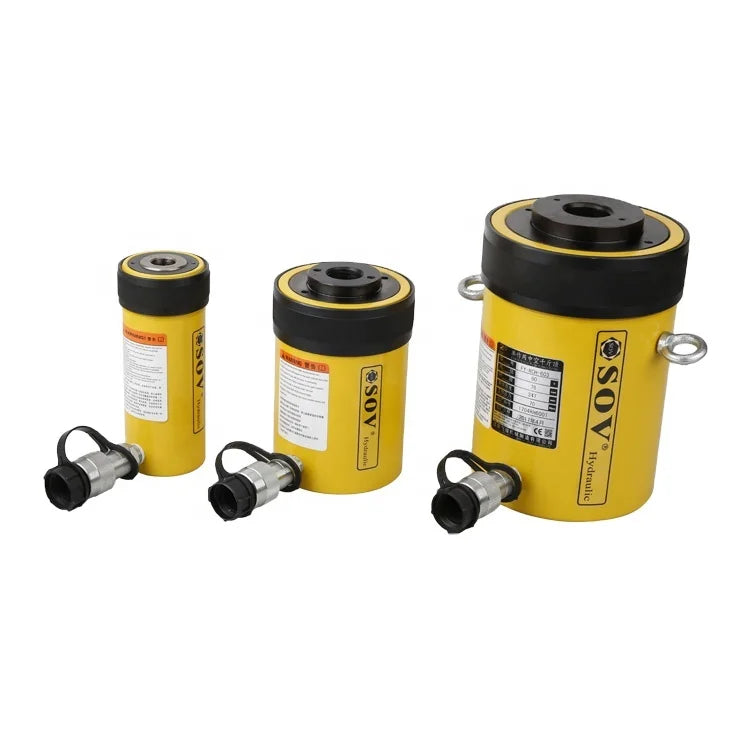

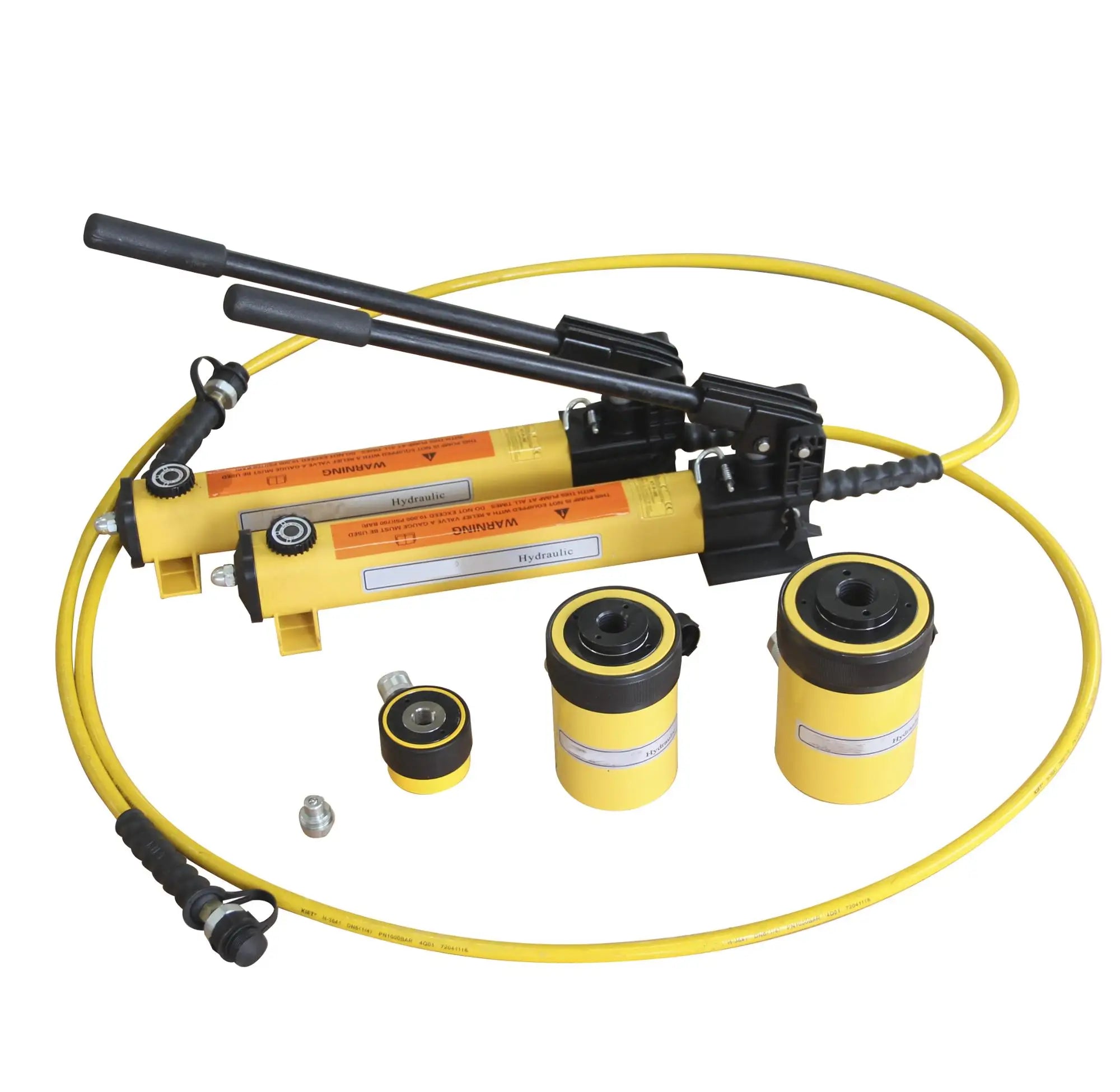

* Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
* Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
* Hydraulic bolt tensioner (100-11486NM);
* Hydraulic pumps, manual and electric type (max up to 3000bar);
* Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
* Hydraulic nut and couplings. (M50-Tr1000)https://sov-china.en.alibaba.com/
