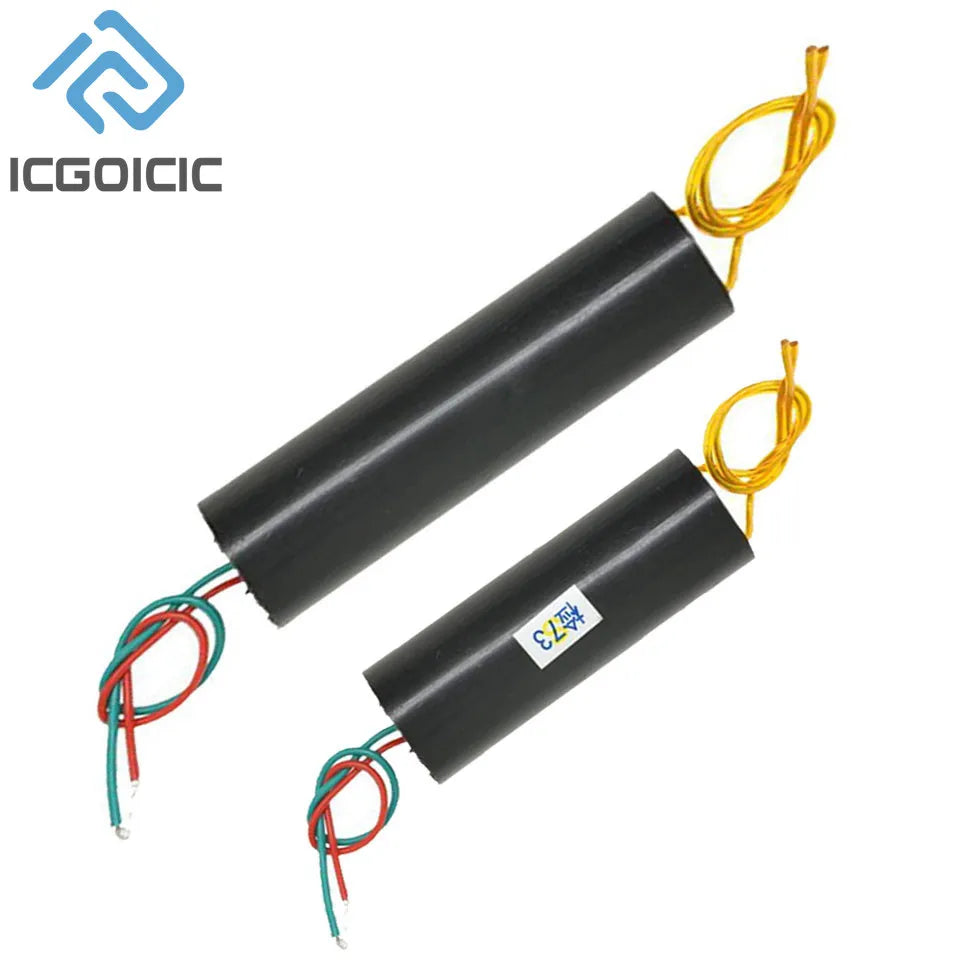

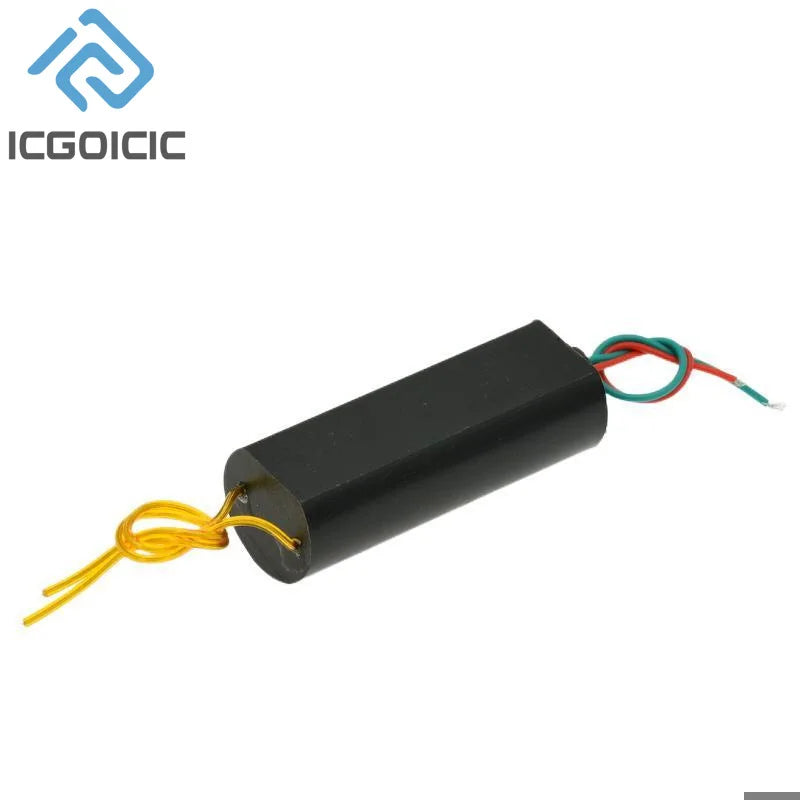

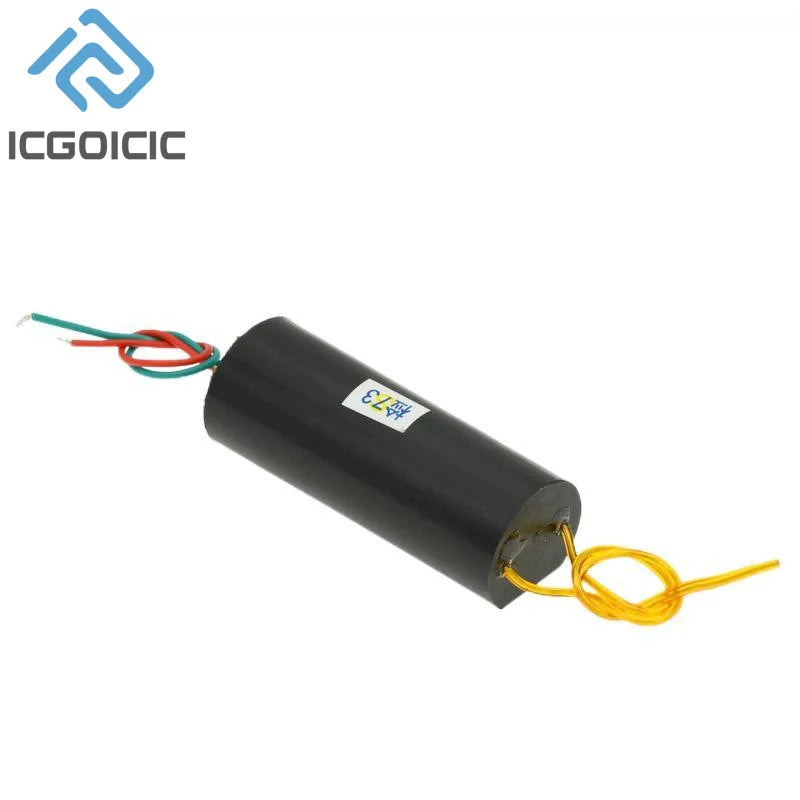

High voltage generator 3-6V 400KV

Authentic high voltage generator, small size, powerful, sound shock, simple operation, large quantity and excellent price

Module model: LG-103

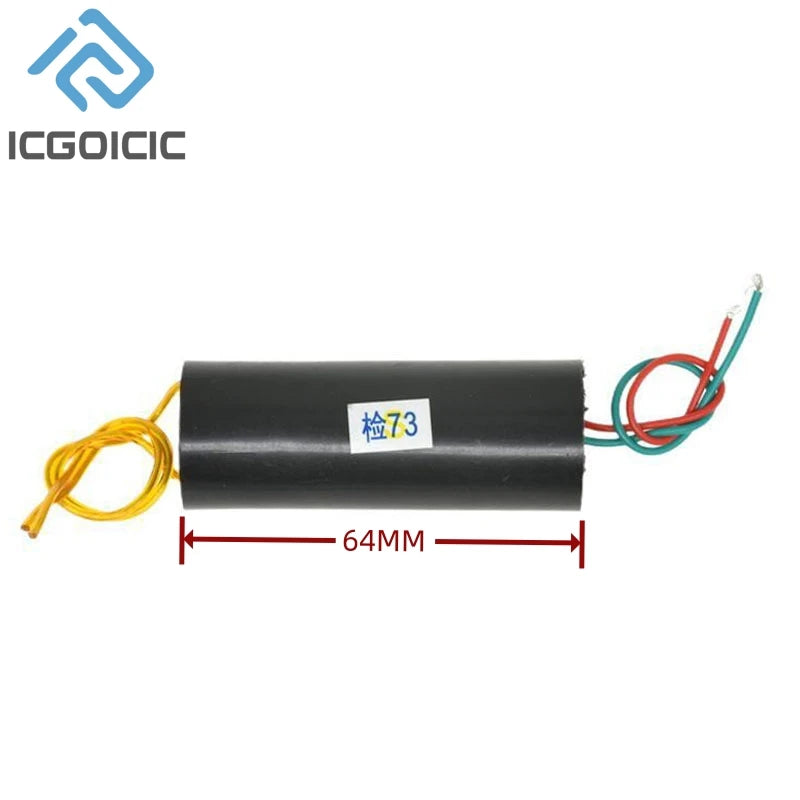

Physical volume: Length 56* Diameter 24* Section diameter 21mm (measured with precise vernier caliper)

Input parameters: 3.7-6V 4A Input line length: about 10cm

Output parameter: 400KV 0.005A line length: about 8 cm

High voltage bipolar discharge distance: about 1 cm

About the input power supply: a single 3.7V lithium battery or two parallel, such as 18650 battery, or nickel-cadmium/nickel-metal hydride battery pack, 4V or 6V lead-acid battery

Product usage: The module is divided into the input end and the output end, the red green (white) line is the input end, the red positive green (white) negative, two thick color of the same high voltage wire is the input end, fixed the output end of the appropriate arc distance, the input end of the battery can produce high voltage or high temperature arc.

Notes on module use:

1. the high voltage module should avoid the use of high voltage no-load power, before power must adjust the high voltage line end of the appropriate distance, the high voltage line arc distance is proportional to the use of battery voltage and capacity.

2.The arc distance should be tested from short to long, and it is strictly prohibited to exceed the longest arc distance when energized, because the high voltage energy can not be released, it is easy to damage the module.

3, the power of the module is large, the internal heat dissipation is not suitable, so it can not work for a long time.

4. The way to determine whether the battery capacity can drive the maximum power output is to measure the battery voltage when the arc is pulled. If it is around 6V, it can output the maximum power.

5. the small-capacity lithium battery two sections in series is 7.2V (series is not recommended), in the arc state measurement voltage has fallen to about 4V, the smaller the capacity of the voltage pull lower. Therefore, it is recommended to use more than 2000MA lithium battery, and it is best to match 4000MA battery.

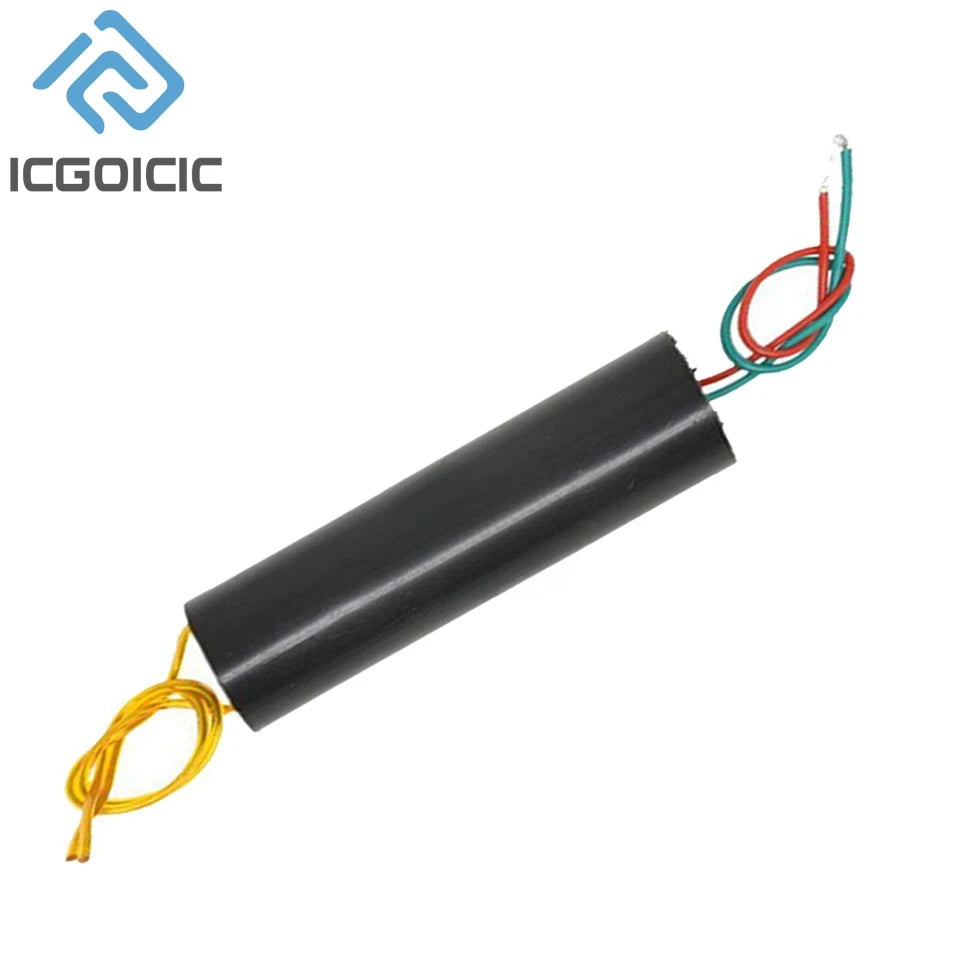

High voltage generator 3.7-7.4V 1000KV

This module is the finished module of high voltage inverter, transformer/booster for scientific small production

Input terminal Input :DC3.7V-7.4V

After the voltage can be obtained at the output end of tens of thousands of volts of DC high voltage

It can be used for middle school popular science experiments, electronic instruments, negative ion generators, and scientific small production

Voltage source use

The module is made of Tesla coil principle, output current, small size,

High efficiency

The circuit is simple (just connect the switch, the battery can be) and the discharge intensity is fierce. Pay attention to this style

Not high temperature arc, can not light smoke point paper oh ~

Module model :MC-901.

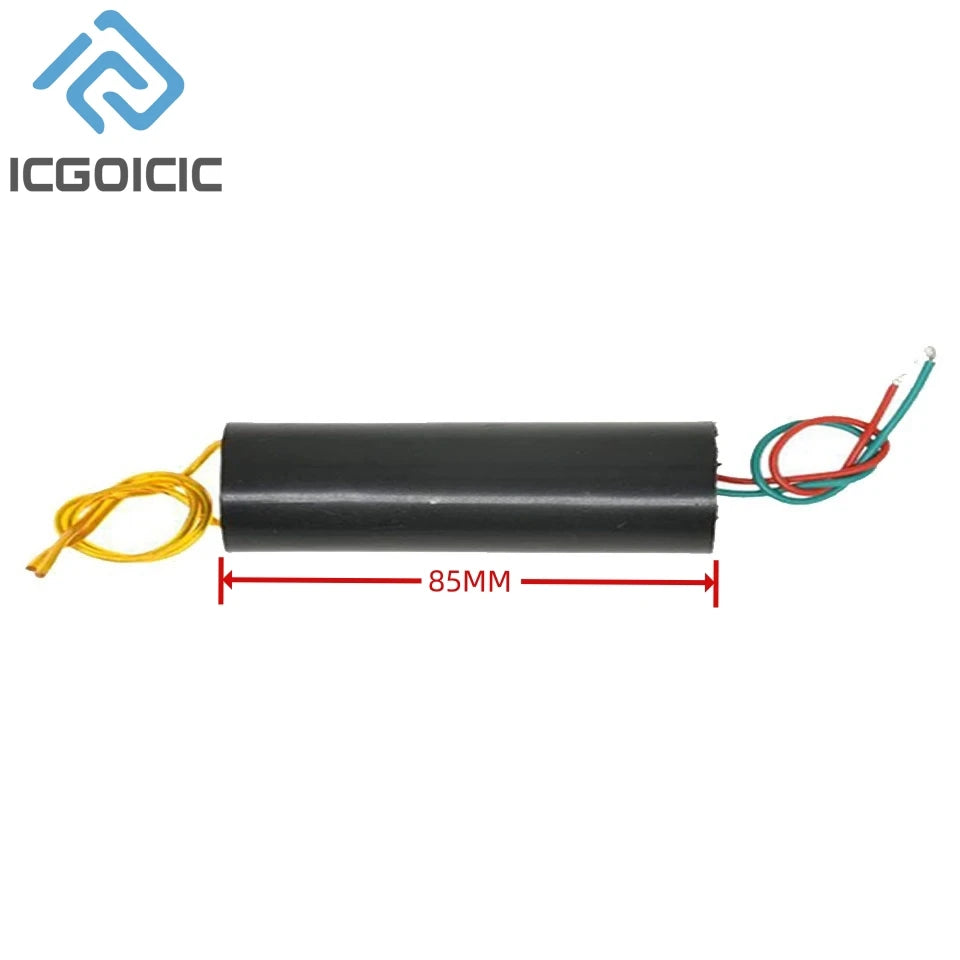

Input voltage :3.7V-7.4V, input current :0.5A-1A, input line length: 9cm left

Right, high voltage type: pulse DC type

Output voltage :800KV-1000KV(please pay attention to safety when using)

Output current :0.5A-1A

Output line length: about 16 cm

High voltage electrode discharge distance: 1.5cm - 2cm

Power discharge time :10 seconds

Product usage: The module is divided into input end and output end, red and green line is the input end, red positive green

Negative, the output end is two high-voltage lines of the same color, and the input end can be connected to the battery to produce high

Pressure arc.

Please strictly follow the use method and precautions to operate the module, otherwise it is easy to damage the module!

About the input power supply: you can use a single 3.7V lithium battery or two in series, such as 18650 electricity

Pool, idle mobile phone battery (to remove the protection board, the recommended capacity is more than 2000mAh)

Or nickel-cadmium/nickel-metal hydride battery pack, 4V or 6V lead-acid battery, etc. (6V battery can achieve the best effect)

Notes on module use:

1, the high voltage module should avoid the use of high voltage no-load power, power must be adjusted before the high voltage cable

End suitable distance, the high-voltage line arc distance is proportional to the battery voltage and capacity used.

2, test arc distance from short to long experiment, power is strictly prohibited beyond the longest pull arc distance

Because the high pressure energy can not be released, it is easy to damage the module.

3, the power of the module is large, the internal heat dissipation is not suitable, so it can not work for a long time, generally 10 seconds

Inside is fine.

4. The way to determine whether the battery capacity can drive the maximum power output is to measure the electricity when the arc is pulled

The pool voltage. If it is around 6V, it can output the maximum power. 5, small capacity lithium two

The section series is 7.2V, and the measured voltage in the arc pulling state has fallen to about 4V, and the capacity is smaller

The lower the voltage is pulled. Therefore, it is recommended to use more than 2000MA lithium, and the conditions are best

Batteries above 4000MA.
