Automatic MetalMaquina Formadora De Acero Tipo C Modelo Ajustable c Channel Making Machine
20 M/Min / 7.5 kw / as request
$7,200.00 USD
Skip to product information
Automatic MetalMaquina Formadora De Acero Tipo C Modelo Ajustable c Channel Making Machine
$7,200.00 USD
Shipping calculated at checkout.
SPECIFICATIONS
After Warranty Service: Video technical support
Brand Name: DIXIN
Color: Client's Request
Control box language: Add Customer Request Language
Control system: PLC(imported Brand)
Core Components: Pressure Vessel,Motor,Bearing,Gear,Pump,Gearbox,Engine,PLC
Dimension(L*W*H): 6500X1500X1500
Feeding width: Other
Function: Ceiling Channel
Key Selling Points: High Safety Level
Keywords: Keel Frame Profile Roll Forming Machine
Machinery Test Report: Not Available
Place of Origin: China
Product name: Light Steel Keel Roll Forming Machine
Raw material: Galvanized Sheet
Rolling thinckness: 0.3-0.8mm
Shaft material: 45# Steel Outer Diameter: 70mm
Tile Type: Steel
Type: Tile Forming Machine
Usage: Steel Construction
Use: ROOF
Video outgoing-inspection: Provided
Voltage: 380V
Warranty: 2 Years
Weight: 3500 kg
C U double machine integrated keel forming machine Ceilings and partition light steel keels roll forming machine
One machine can produce two versions, both cost saving and high efficiency in advance, is your best choice
Light steel keel is made of high quality continuous hot galvanized sheet as raw material, which is rolled by cold bending process.
It is used for decoration of non-bearing wall and roof of buildings with light board such as plasterboard and decorative plasterboard as decorative surface.
It is suitable for the modeling and decoration of the roof of various buildings, the internal and external walls of buildings and the basic materials of the scaffold ceiling.
Light steel keel according to the use of ceiling keel and partition keel, according to the form of section V, C, T, L, U type keel.
Main Parameters
| No. | ||
| 1 | Suitable material | color steel sheet, galvanized steel sheet, aluminium sheet |
| 2 | Material width | 125mm or as your required |
| 3 | Material thickness | 0.3-0.8 or as your required |
| 4 | Working speed | 20/min, can be 20-25m/min |
| 5 | Main motor power | 5.5kw with cycloidal with reducer |
| 6 | Hydraulic pump power | 4kw |
| 7 | Electrical control system | PLC control system with inverter |
| 8 | Shaft diameter | 75mm |
| 9 | Roller station | 15 rows, depend on your panel profile drawing |
| 10 | Roller | high grade 45# steel, hard chrome plating |
| 11 | Working time | 24 hours |
| 12 | workers | 1-2 only |
| 13 | Cutting head material | Cr 12 mould steel with quenched treatment |
| 14 | Voltage | 380V 3Phase 50Hz or as your required |
| 15 | Weight | 3.5T |
| 16 | The machine size | 7000mm*1500mm*1500mm |

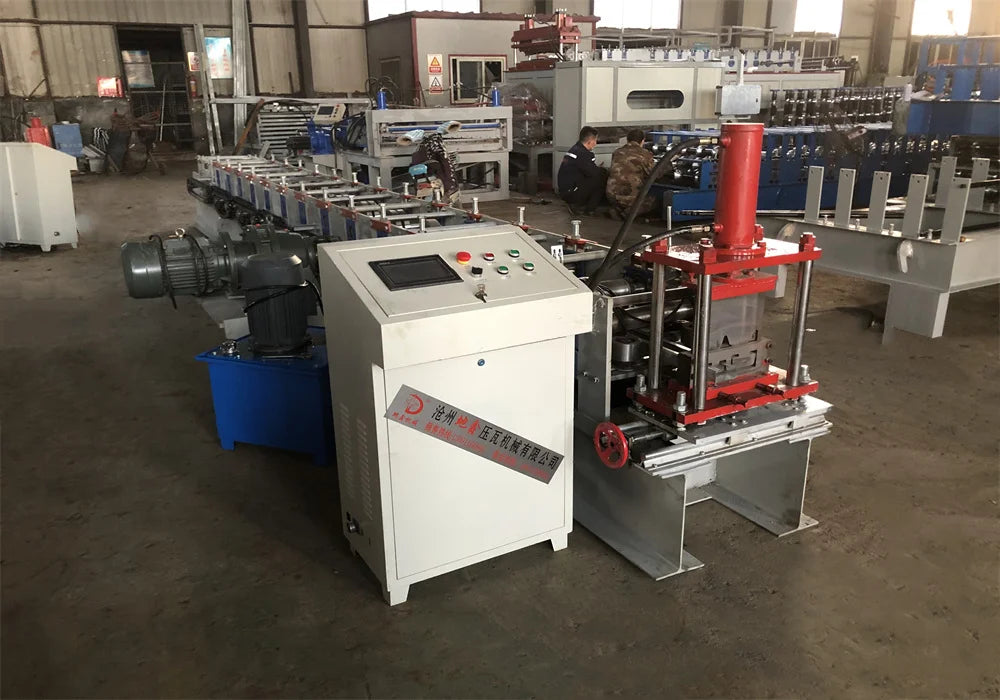

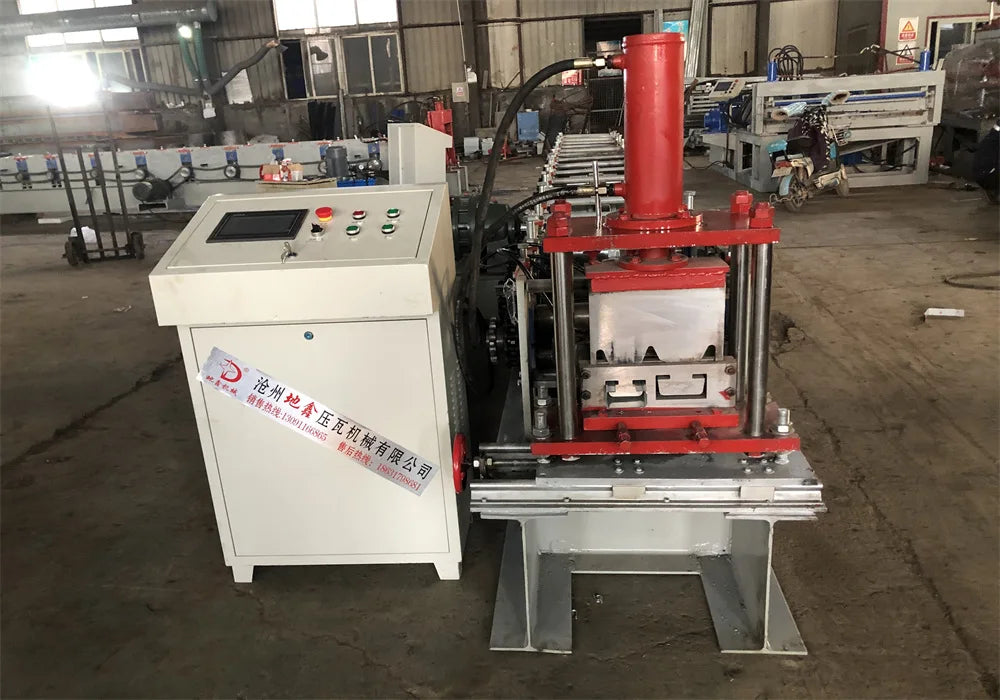

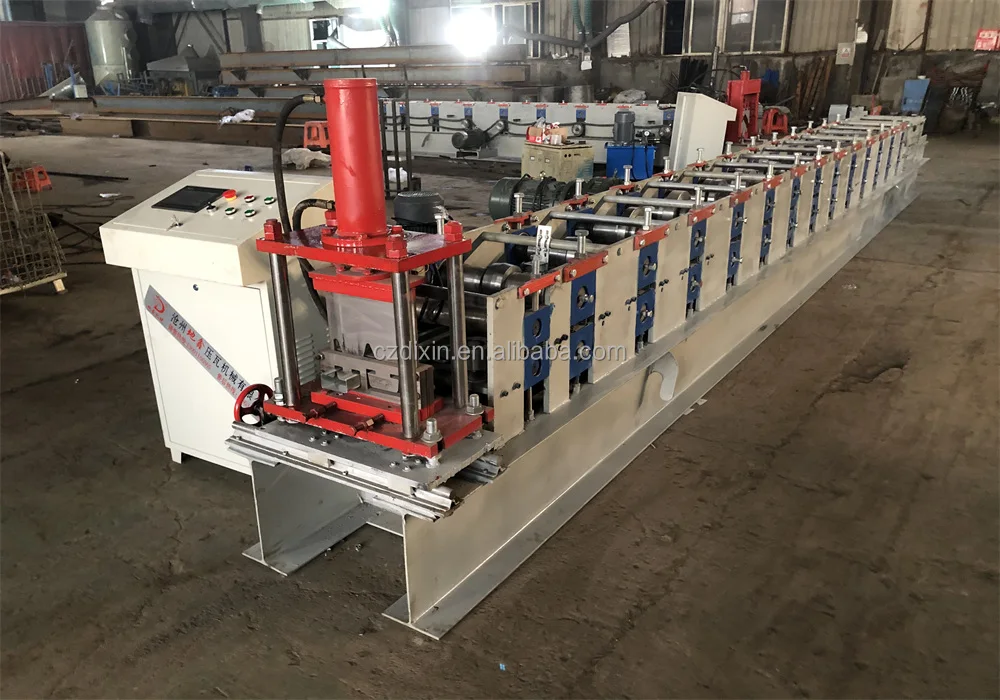

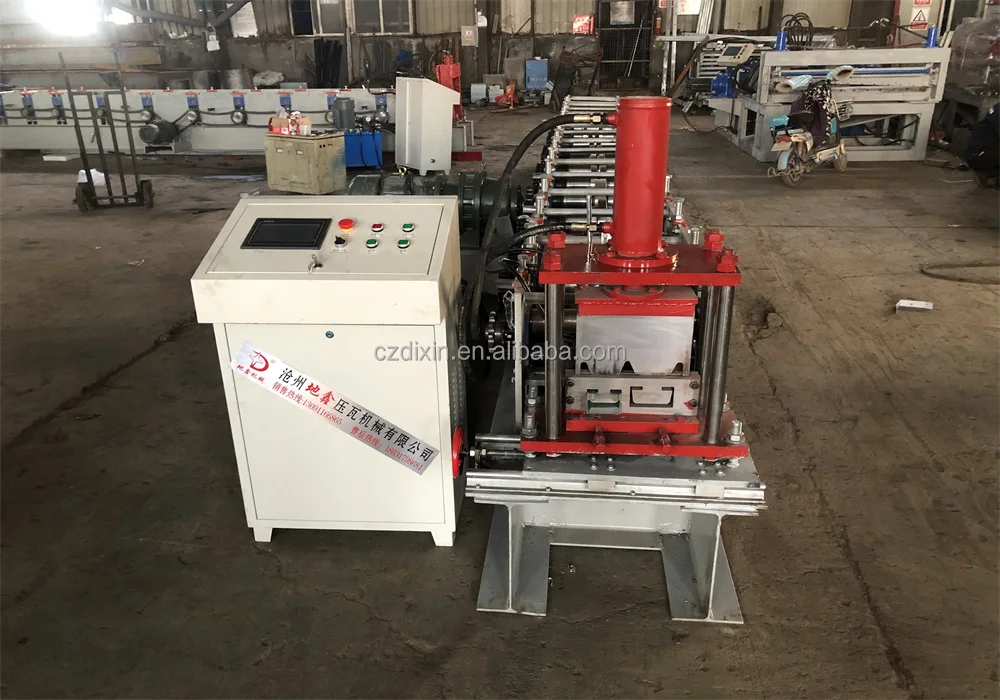

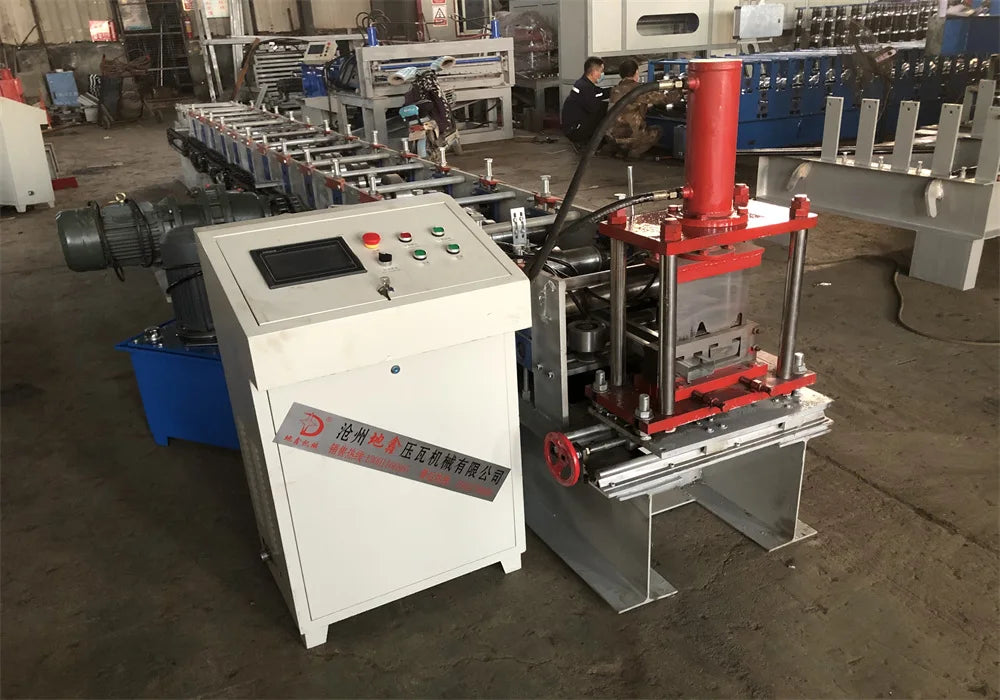

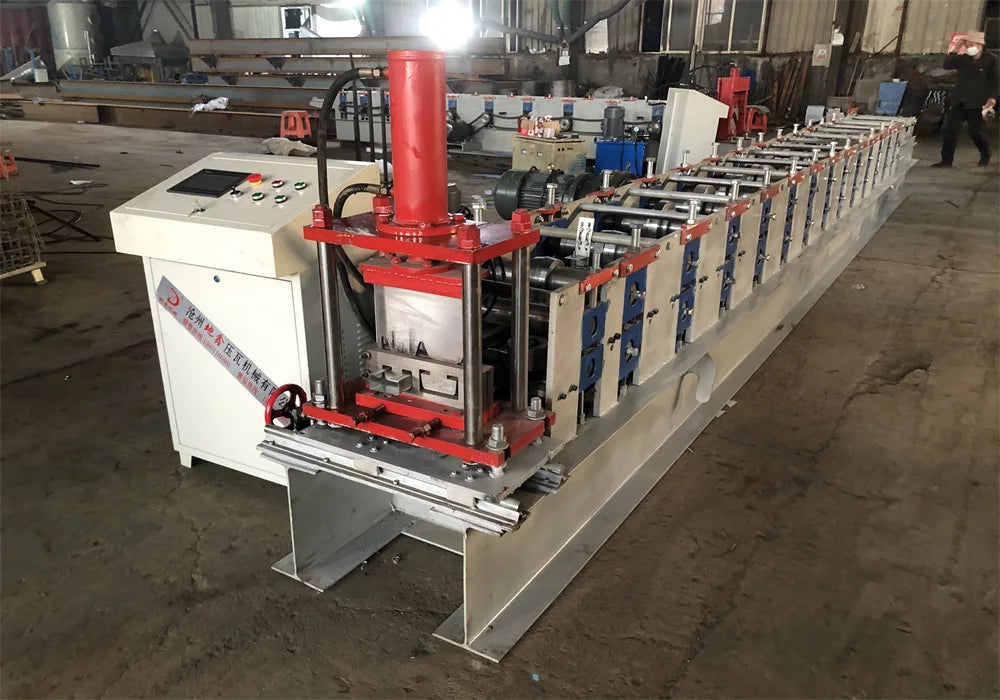

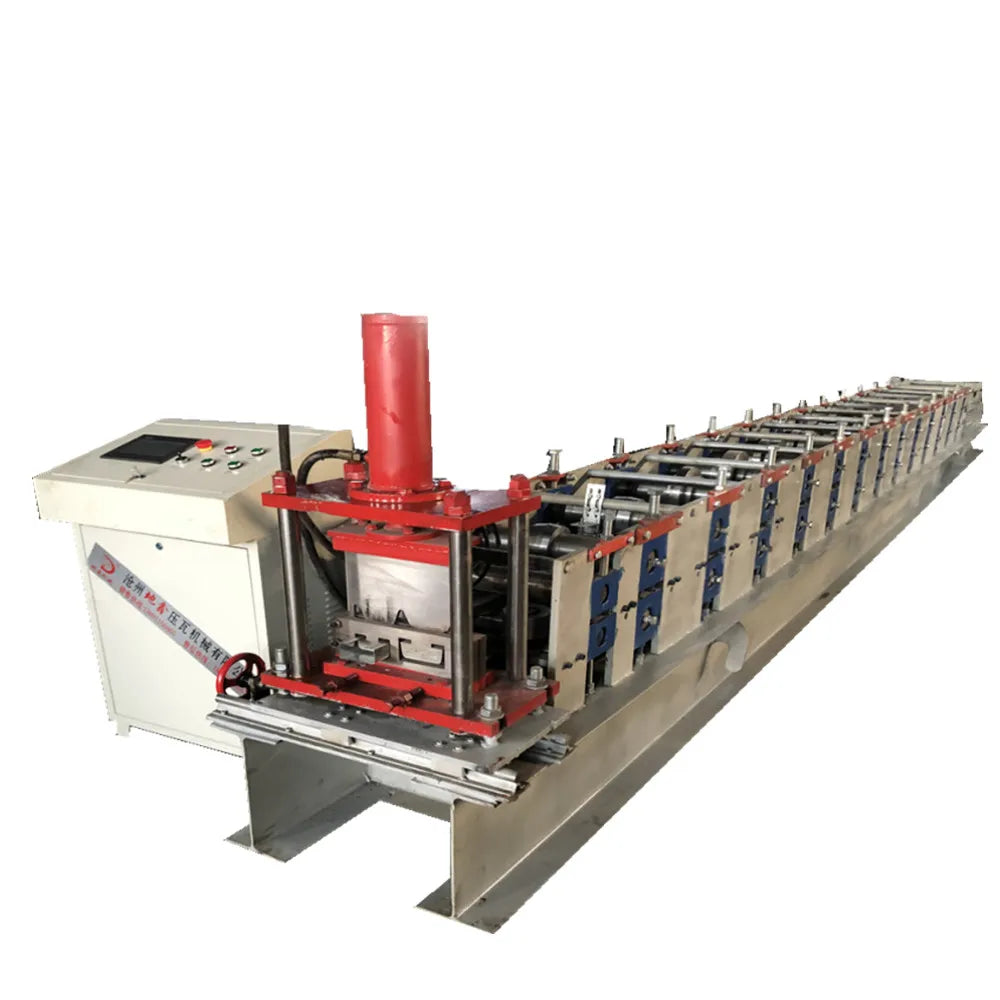

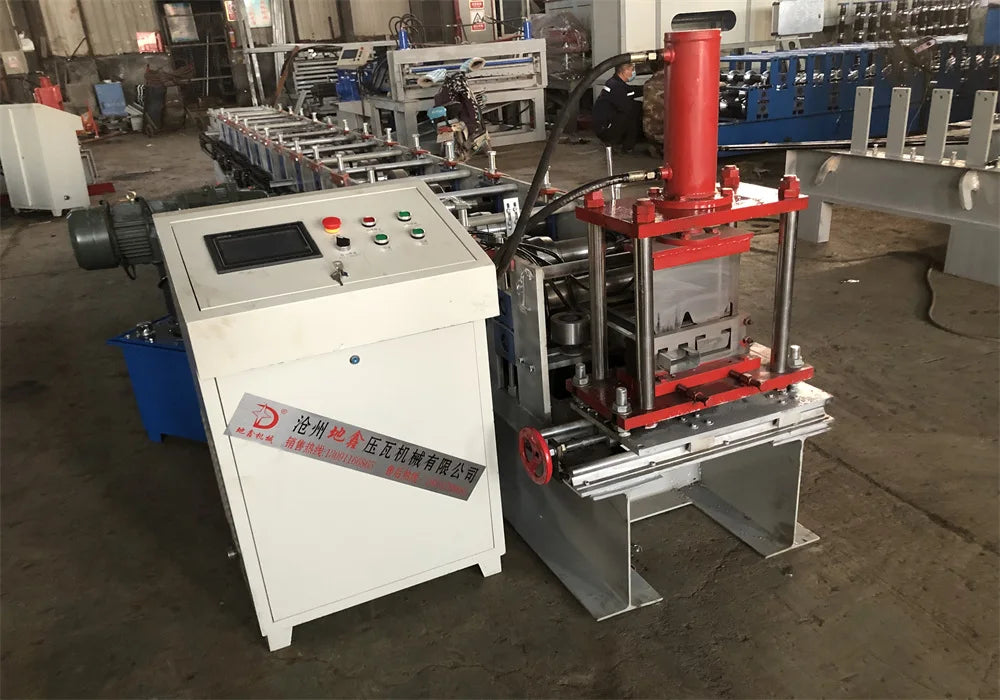

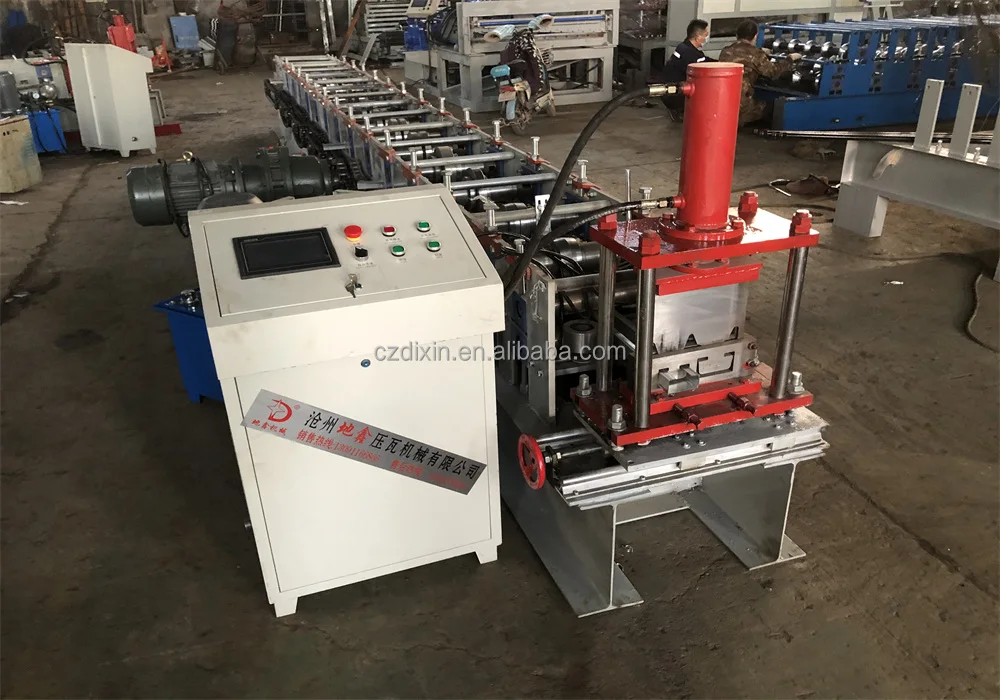

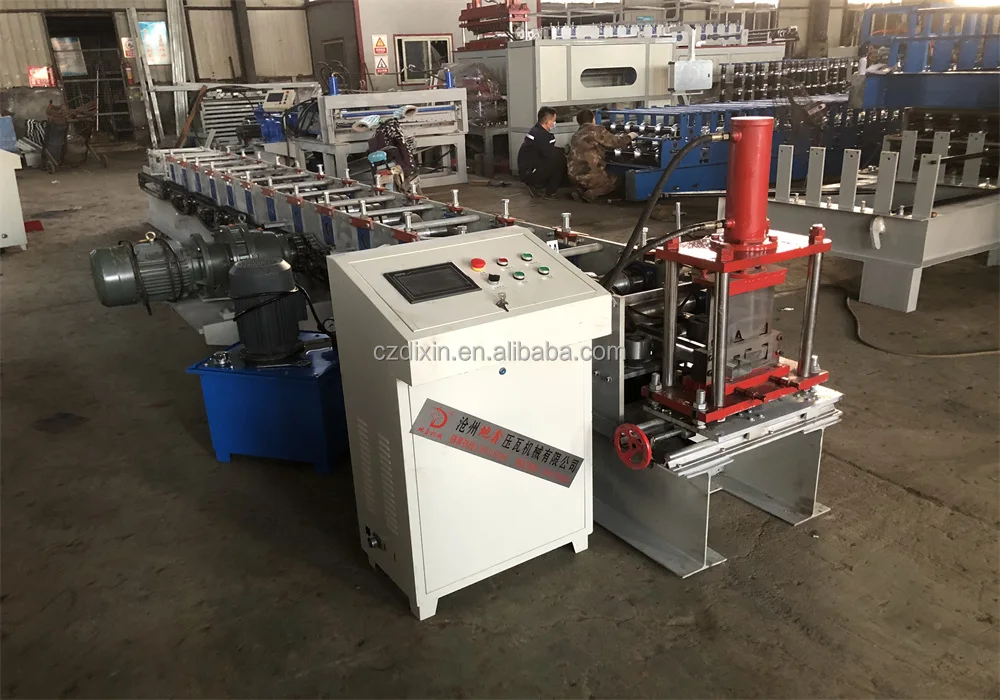

Product Pictures
Sample House
We can customize various plate-type machines according to your requirements, welcome your inquiry, and welcome to visit our factory
client feedback
Our Services
1. We provide 1 year warranty for our customers.
2. Any parts damaged because of quality problem will be changed for free within the first year.
3. Technical support is provided for free in the whole life of the machine.
FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What's your service ?
A: 1. We provide 1 year warranty for our customers.
2. Any parts damaged because of quality problem will be changed for free within the first year.
3. Technical support is provided for free in the whole life of the machine.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Tianjin airport: By high speed train From Tianjin Xi or Tianjin Nan to Cangzhou Xi (0.5 hour),then we can pick up you.
