Important notice: this product is not suitable for use on the first floor. if your antenna cannot be installed on the outside of a window or balcony, or if your tv was manufactured before 2020 and doesn't have local signal reception, it will not work. please do not purchase if this applies to you

The antenna needs to be installed outside or next to the window, vertically or facing outdoors. avoid pointing it towards the inside of the house. if you're on the first floor, we advise against purchasing, as you might not get a signal. antennas are directional, so you may need to adjust the angle to get a good signal. remember, make sure there's a signal in your area before you buy. also, your tv needs to be a digital tv that can receive local signals; otherwise, it won't work.

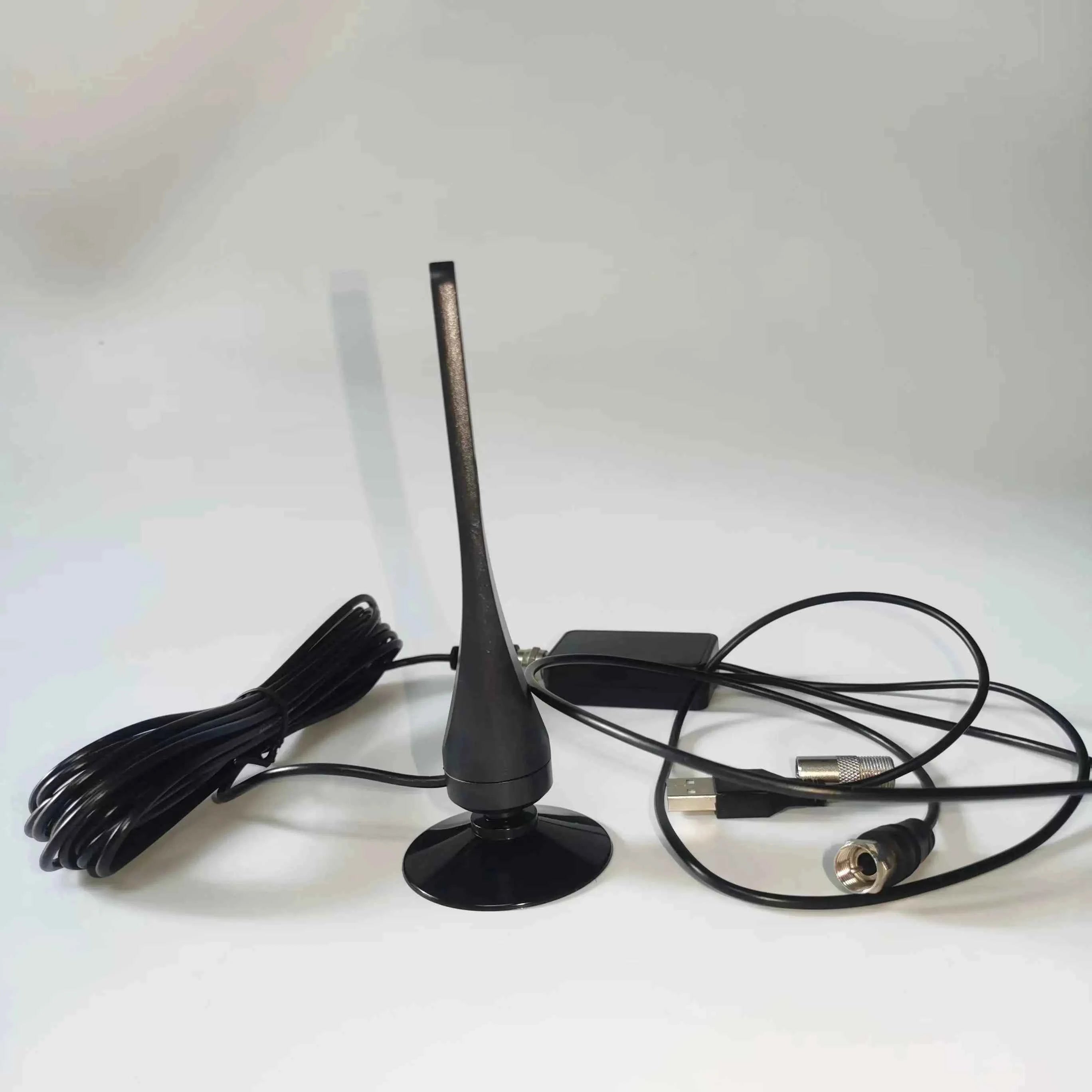

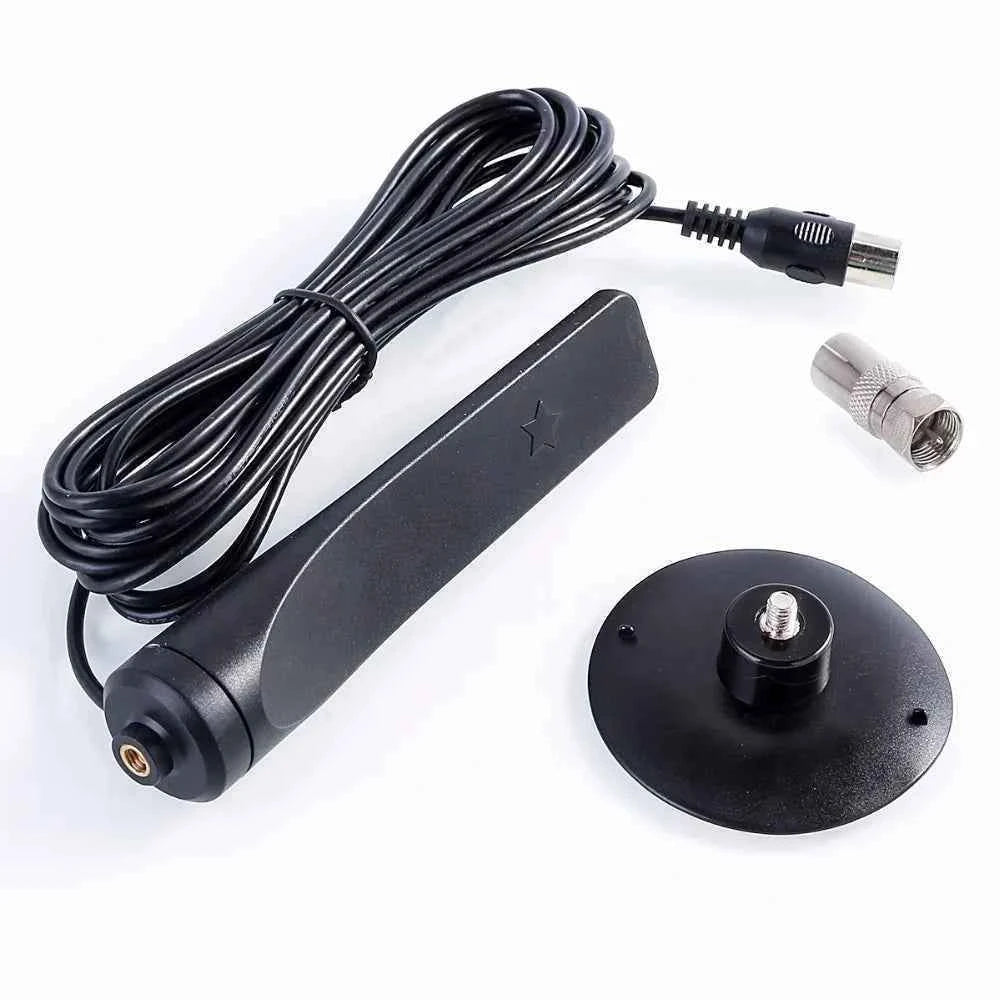

4k new digital tv antenna receiver indoor/outdoor hd digital terrestrial hdtv tv antenna

Hdtv with all digital terrestrial signal compatible: (dvb-t/t2, isdb-t, dmb-t/h, atsc) and dab/fm radio

The antenna doesn't automatically pick up channels as soon as you plug it in. you need to scan for channels. please remember this!

Receive the device when all three conditions are met:

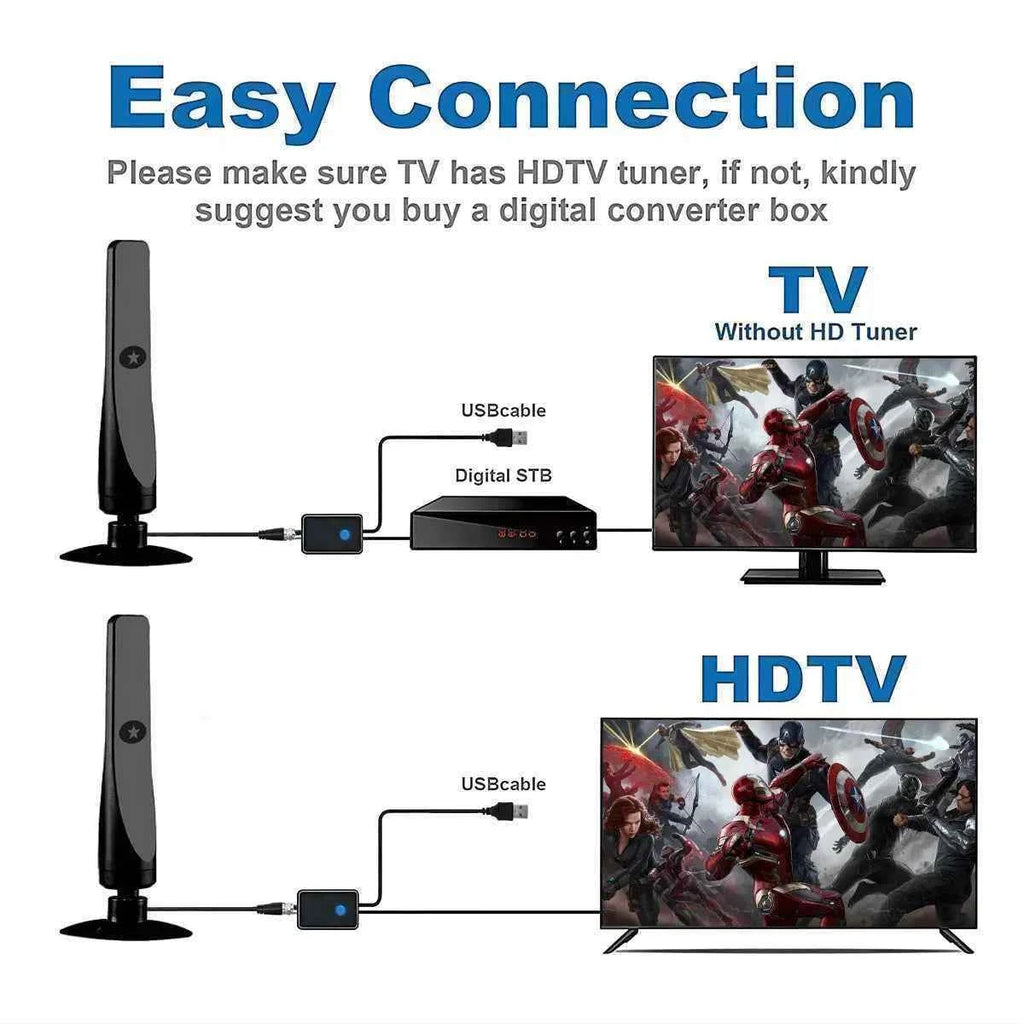

1. digital tv (if not, you can buy a ground wave digital set-top box) (you need to use a recent digital tv, the old digital tv may not be able to receive it)

2. antenna placement: ideally, place the antenna on the second floor or higher, in a location with a good view (e.g., a window, balcony, or rooftop). the higher, the better! in rural areas, the rooftop is recommended. [avoid placing it on the ground floor or near the tv.] the installation location is crucial and can be adjusted multiple times to find the optimal position. remember to rescan for channels each time you adjust the antenna.

3. local ground wave transmission station available.

The number of units received is determined by the number of transmitters opened (the upper limit is determined)

Urban and rural areas should be no more than 30 kilometers from the county seat.

General operating steps. please note that the specific procedures may vary depending on the tv model. however, the underlying principles remain the same. please refer to your tv's user manual for detailed instructions.

Step a:

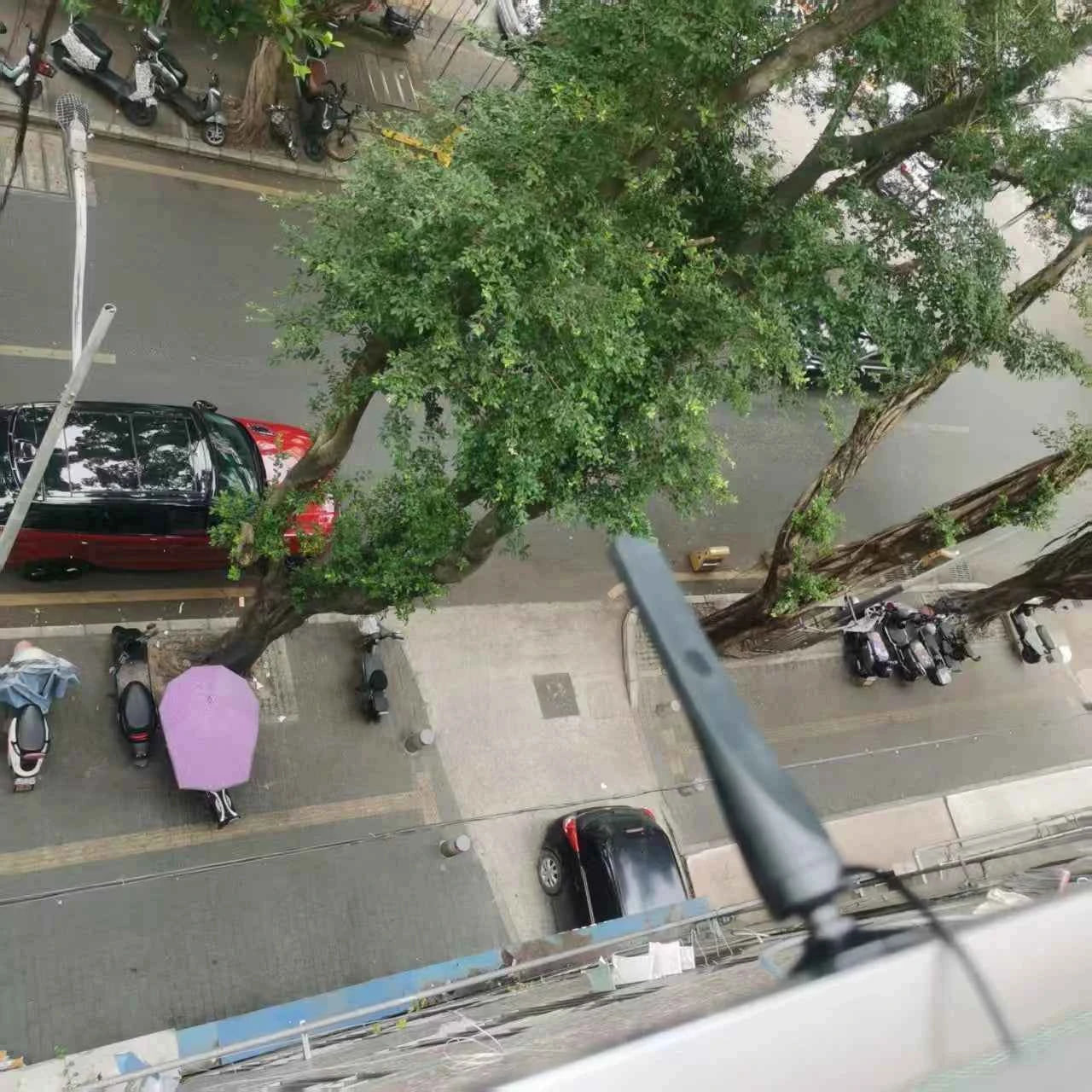

1. plug the antenna into the tv, and place the receiver on a high balcony or window on the second floor or above outdoors. in rural areas, install it on the roof (remember not to place it next to the tv or on the first floor).

2. use the tv remote control to click "signal source" or "signal source" and select "digital tv or dtmb or ground digital or ground reception, live tv or the signal source of the digital signal of the corresponding country" smart tv (new arrival) select "tv or tv" and confirm.

(after selection, the screen shows that there is no signal normally, continue to the next step)

3. use the tv remote control to search for channels (click "menu" - "channel" - "auto search" on the remote). some menu lists will also have a "search channels" option directly available.

Parameters:

Product specifications

Antenna 3.0m net weight: 85g

( 1 ) support 1080 p hd mode

( 2 )50 miles range

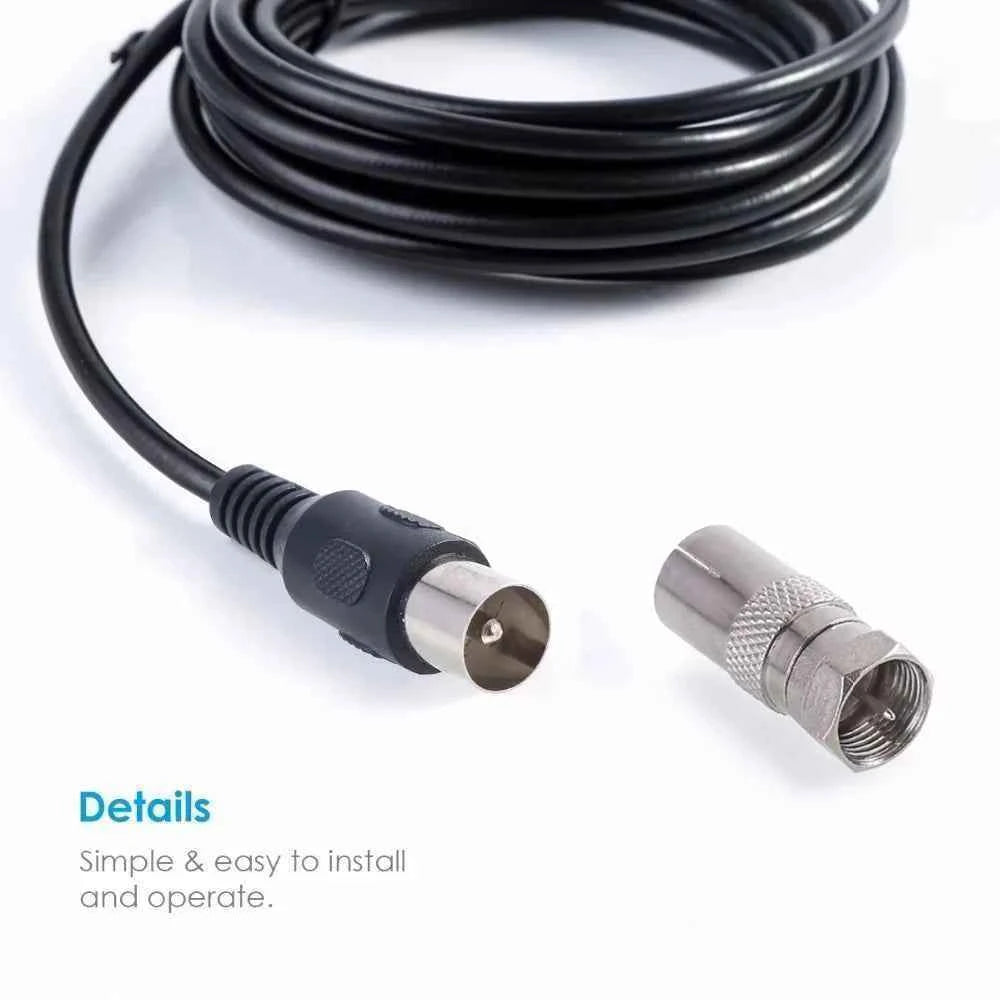

(3) coaxial cable: 3.0m length
Add booster 0.65cm

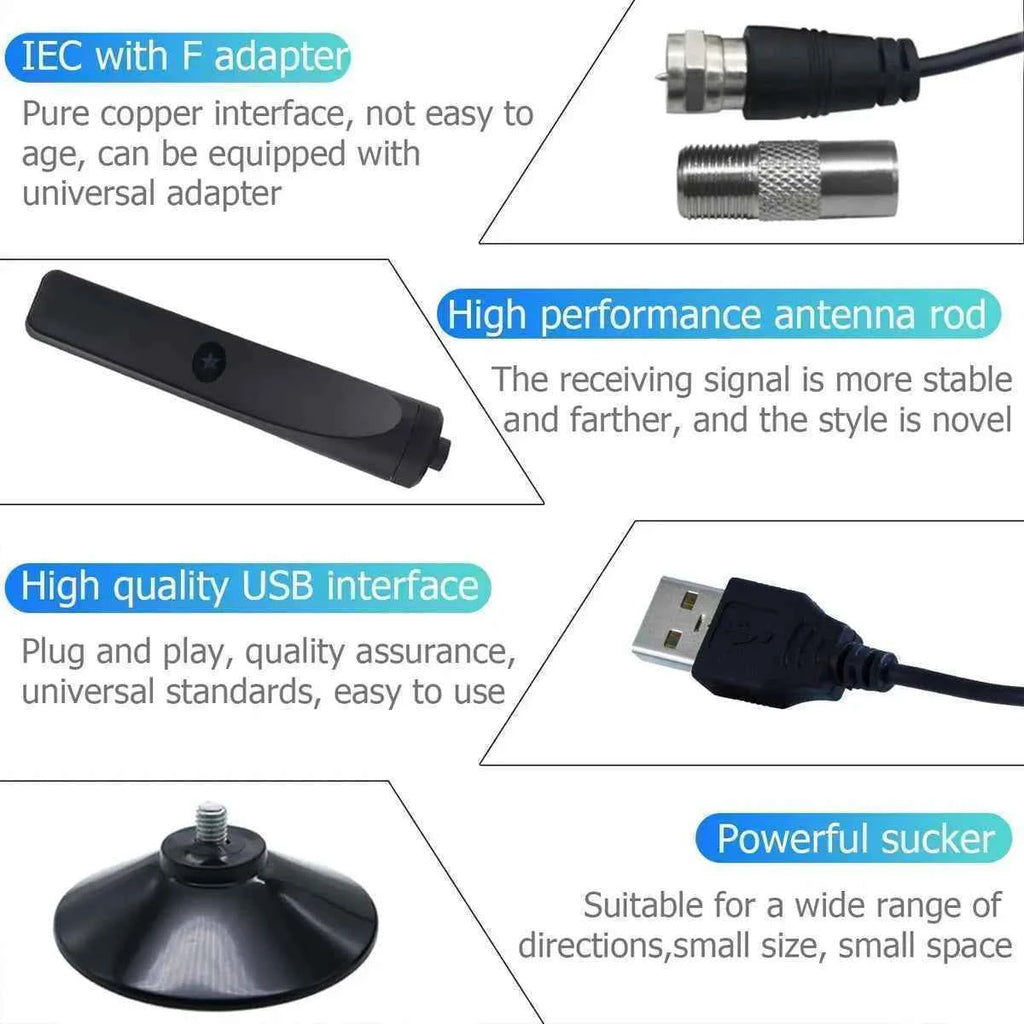

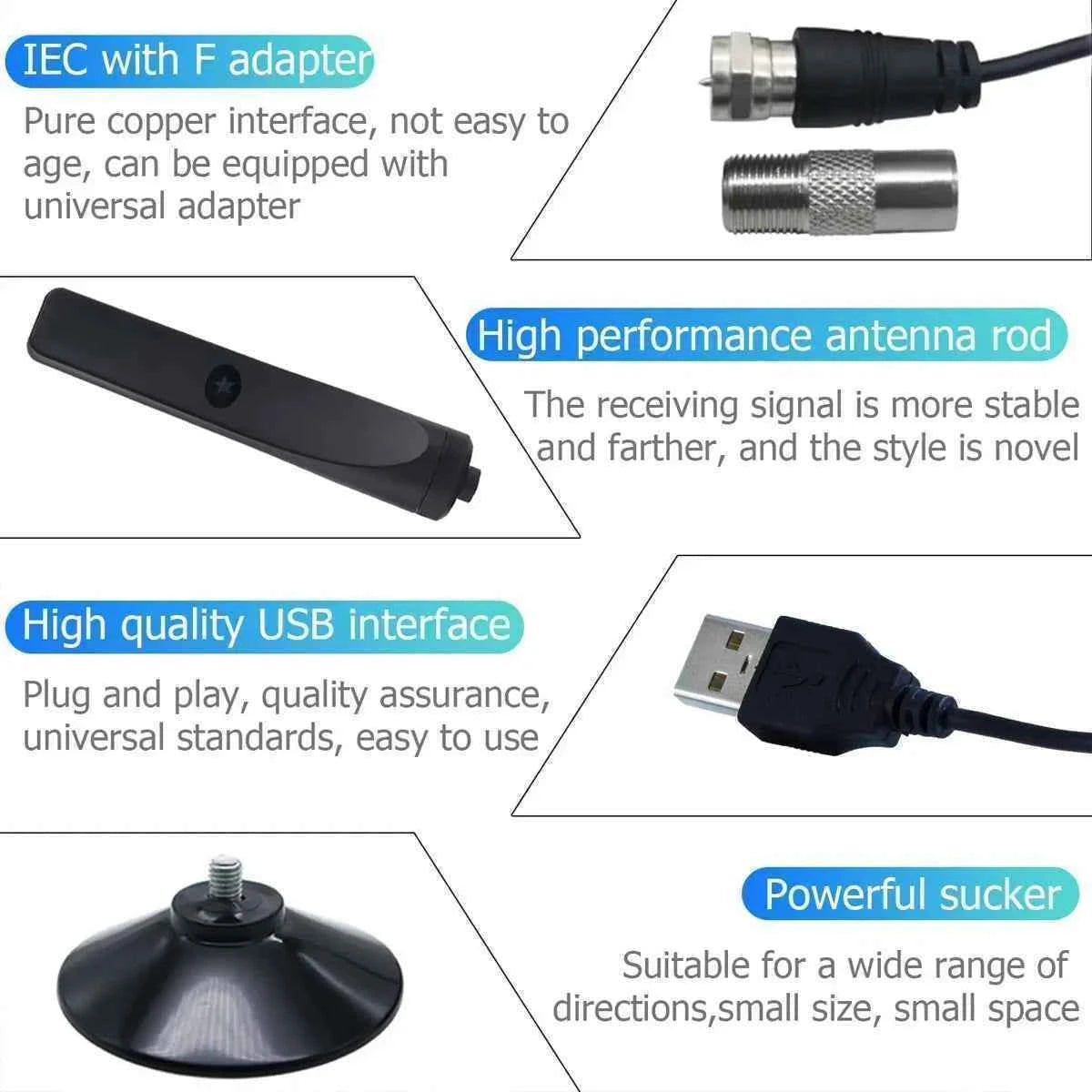

(4) connector type: tv head with f adapter.

(5) v.s.w.r.: < = 1.5, max: 1

(6) impedance: 75 ohms

( 7 ) multi-directional ability

(8) all “free” channels can be received

( 9 ) gain : 25dbi

(10) the color of conventional antenna boards is divided into black

(12) working frequency: 174~240mhz, 470~862mhz

(13) product size (mm): 60*150mm

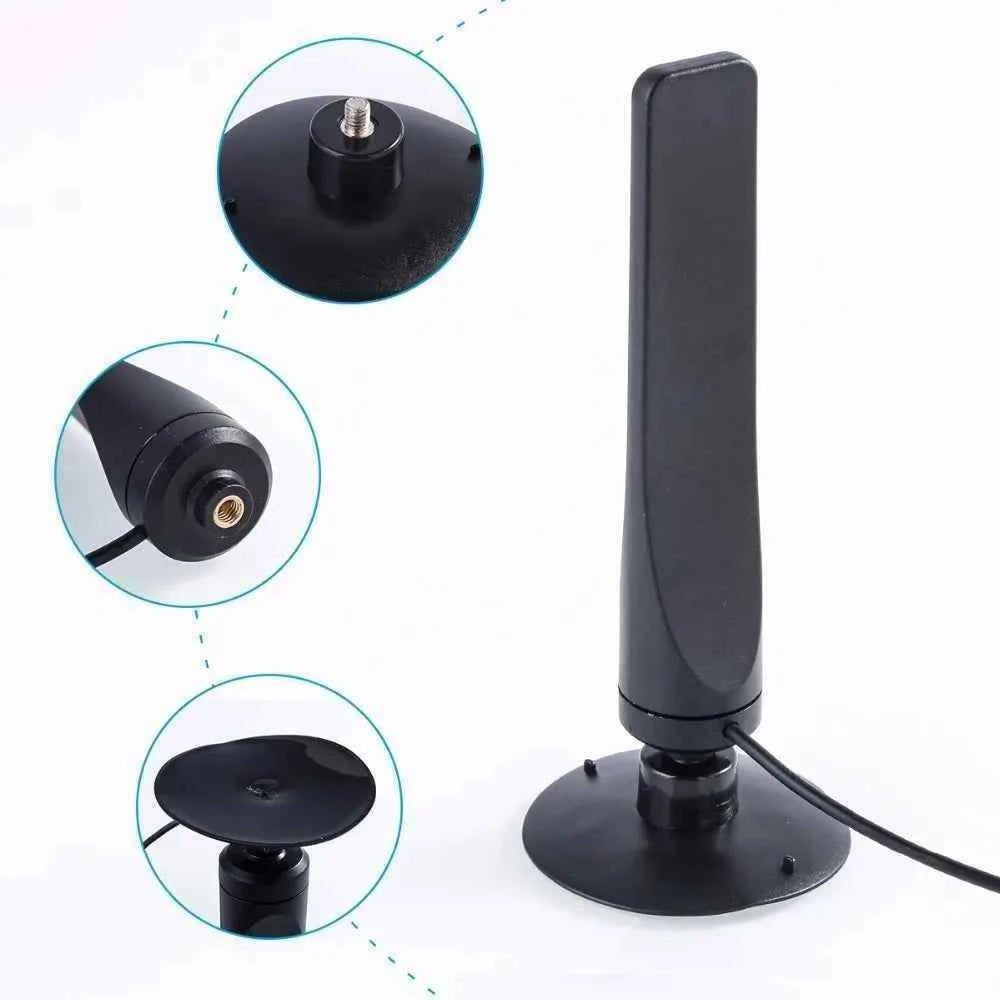

(14) suction cup silicone

(15) antenna cover color black

(16) operating temperature: -45 ~ 85℃

( 17)。 Storage temperature: -45~85 ℃
