SPECIFICATIONS

After-sale Service: Online Technical Support

Application: Office Building

Arm Direction: Pull Arm or Push Arm are available

Brand Name: Chisung

Design Style: Modern

Door width: Min.660mm/Max.1300mm

Environment Temperature: -20°C~+50°C

Feature: Easy Operation

Hold Open Time: 1-30s Adjustable

Input Voltage: AC110V-AC240V

Main Material: Aluminum / Alloy

Max gate weight: 120KGS

Max open angle: 105°

Model Number: CSSDO-A3

Place of Origin: Guangdong, China

Power: 50W

Power Supply: AC110V-220V±10%,50/60Hz ,

Product Dimension: 518*95*80mm

Product name: Swing door opener

Project Solution Capability: N/A

Warranty: 1 Year

motor: dc brushless motor

Product Description

Brand Name	chisung
Model Number	CSSDO-A3
Type	Swing door opener CSSDO-A3
Product name	Swing door opener
Power Supply	AC110V-220V±10%,50/60Hz ,
Door width	Min.660mm/Max.1300mm
Power	50W
Hold Open Time	1-30s Adjustable

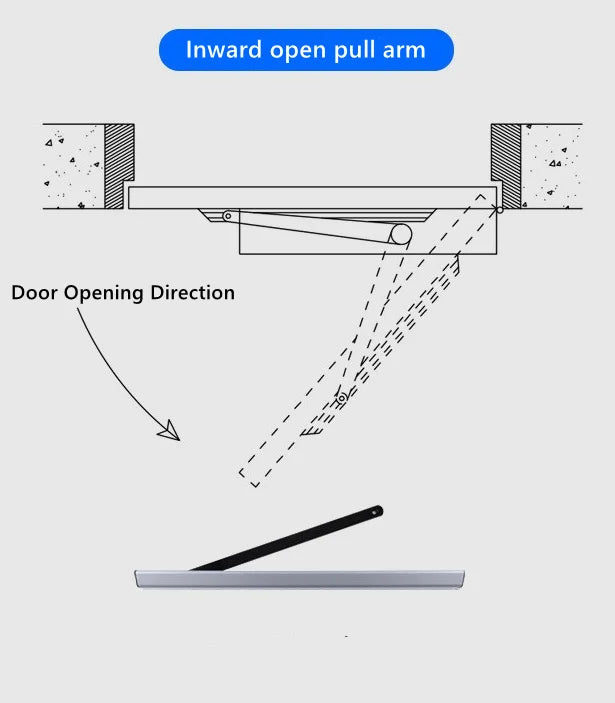

Arm Direction	Pull Arm or Push Arm are available
Max open angle	105°
Max gate weight	120KGS
Environment Temperature	-20°C~+50°C
Product Dimension	518*95*80mm

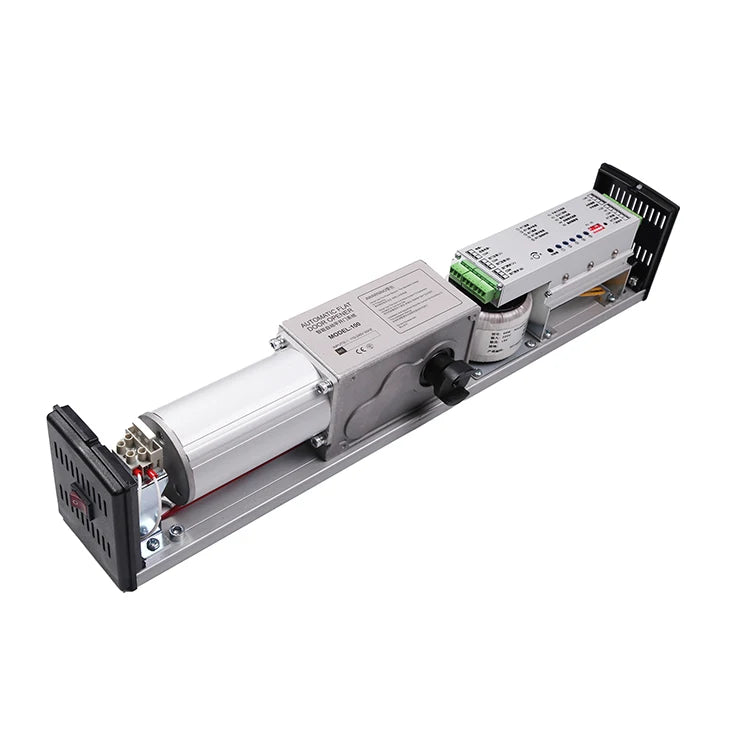

Product Display

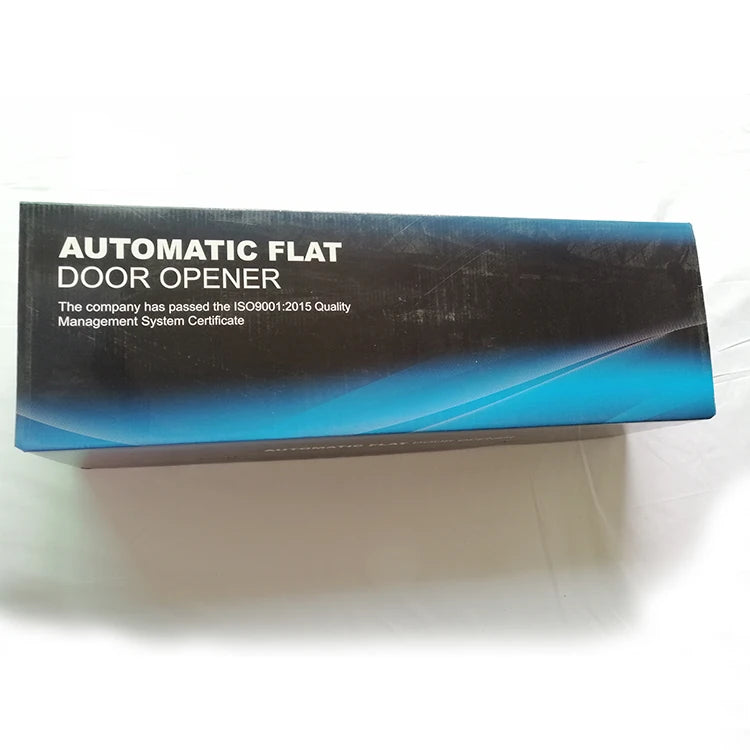

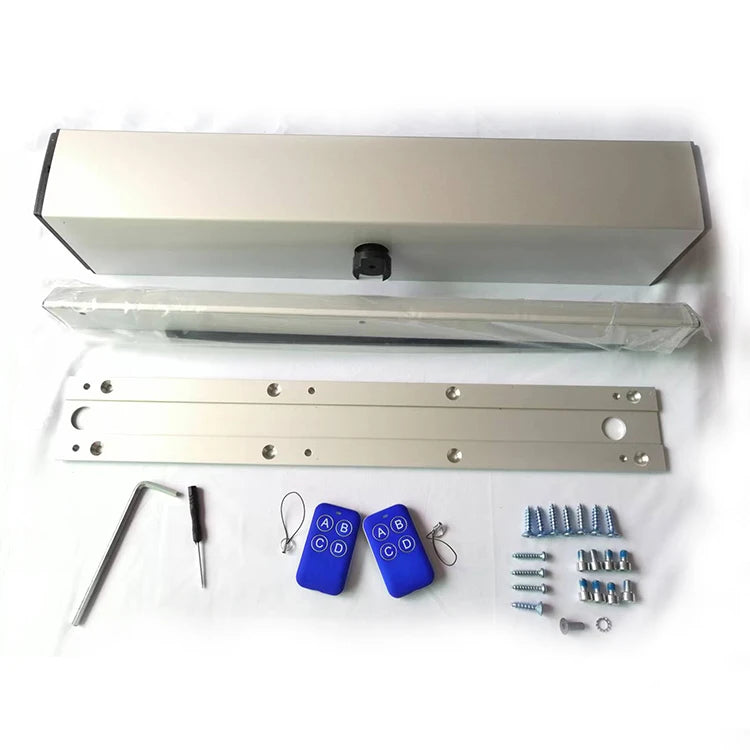

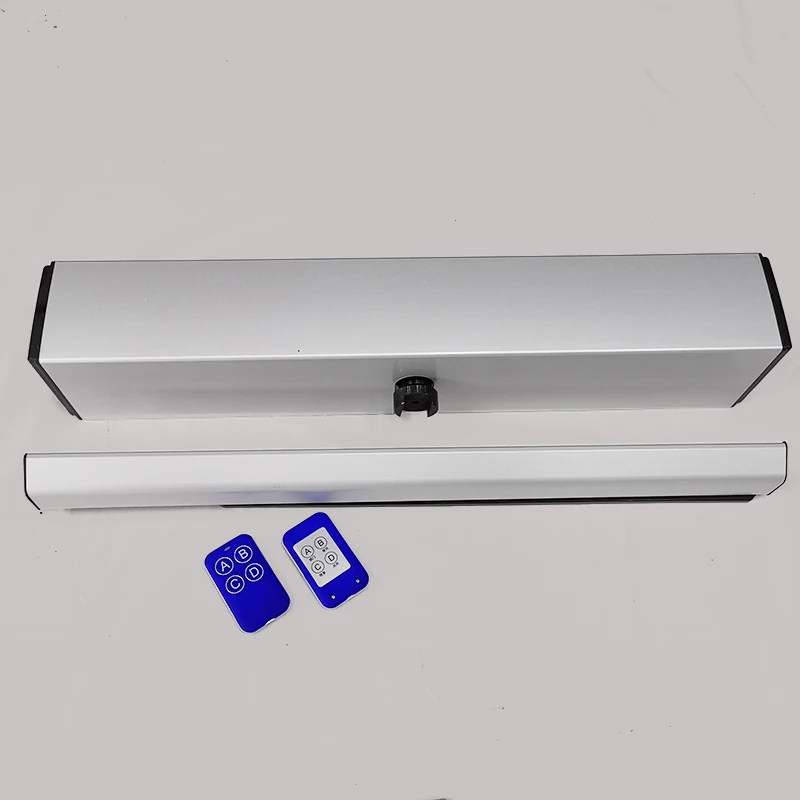

Packing list :

1 Set Swing door motor ;
2 pcs remote keys .
1 pc L manual Keys ;
Other installation Part

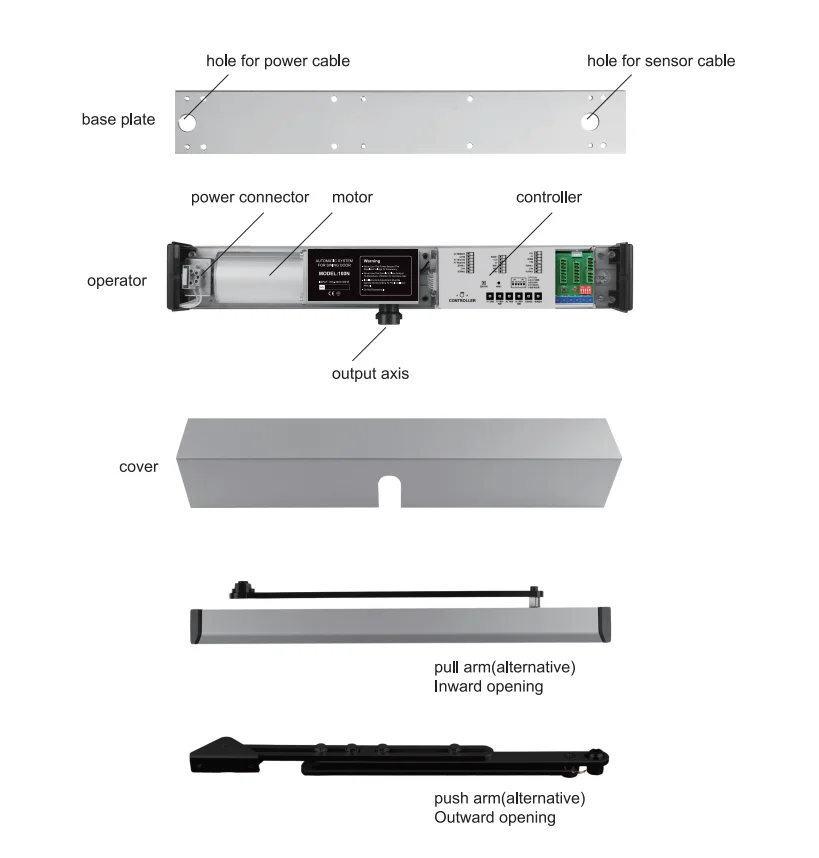

Features&Functions

Features&Functions

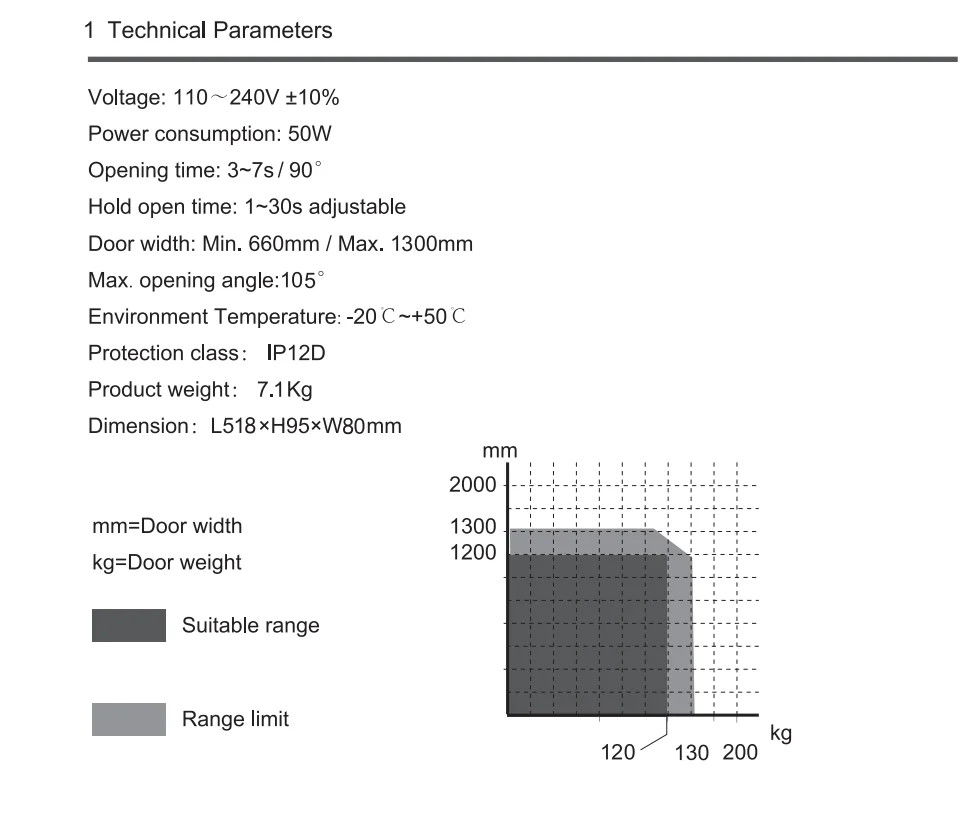

.Specifications

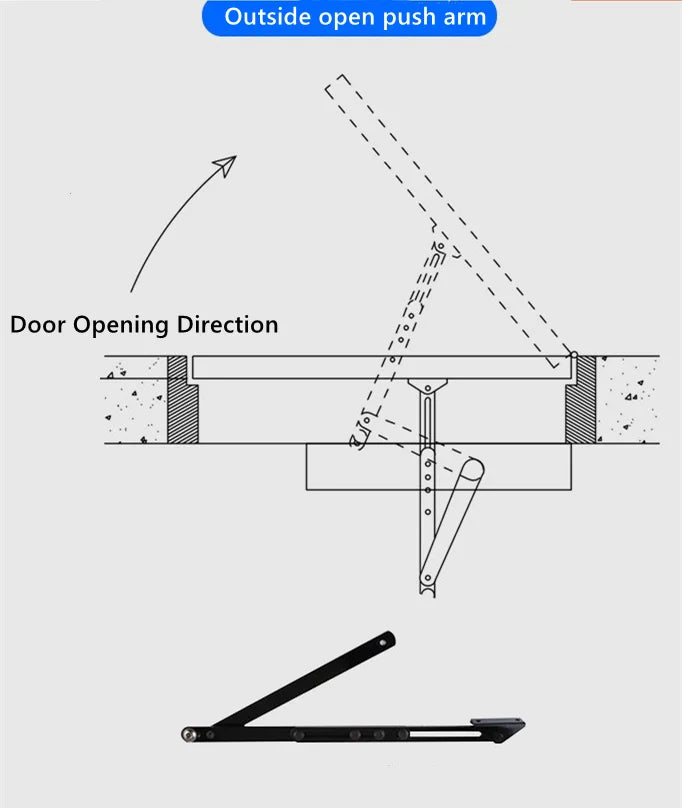

1. We have Push type or Pull type ; •Installation and maintenance are very easy. •Due to the strong gearbox, A3 has high
reliability and stable operation specially designed to drive arm.

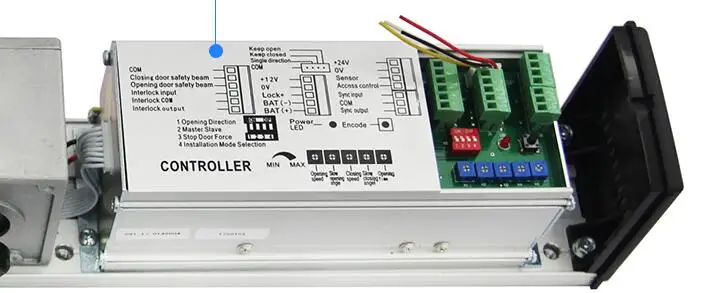

•Built-in limit switch ,self-learning ability ,quick and easy installation react immediately to any obstacle also can sense wind
pressure.

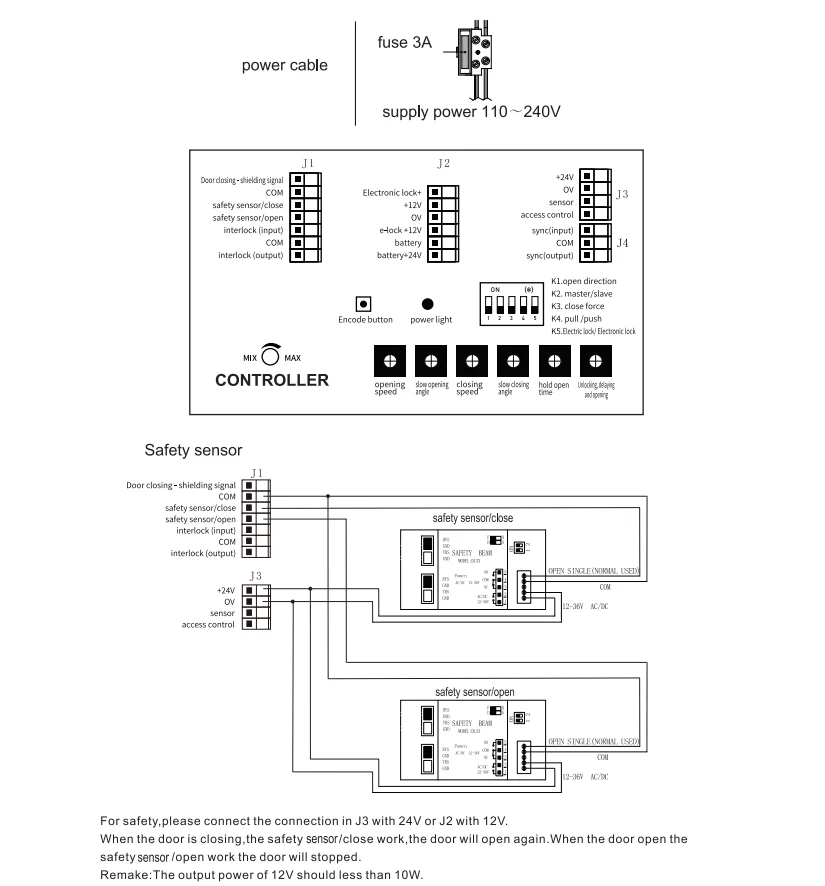

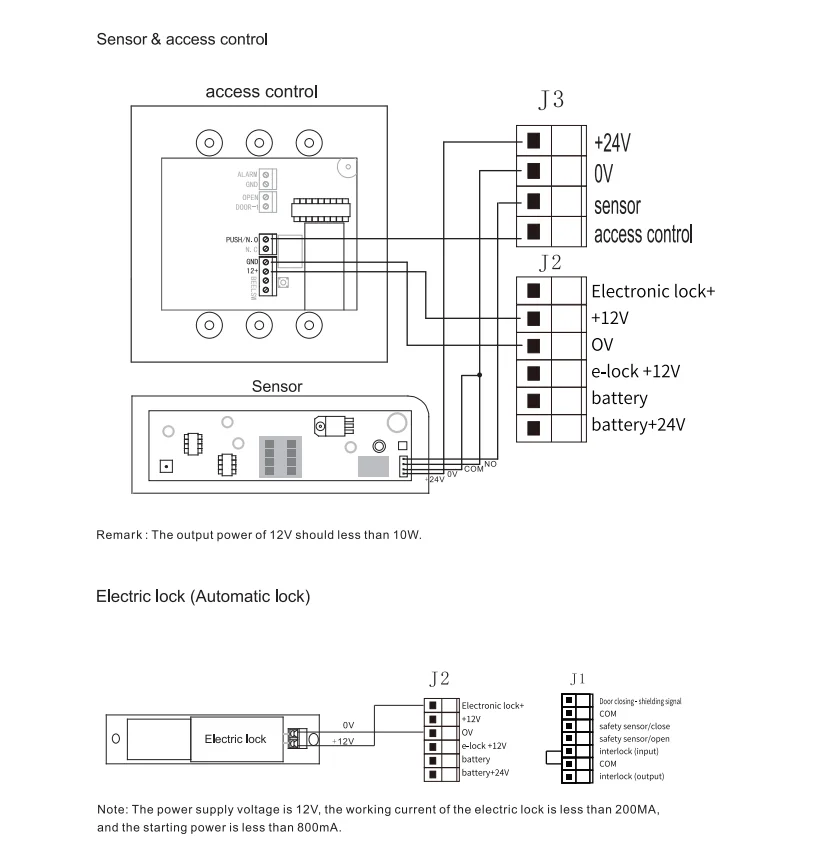

Installation Instructions

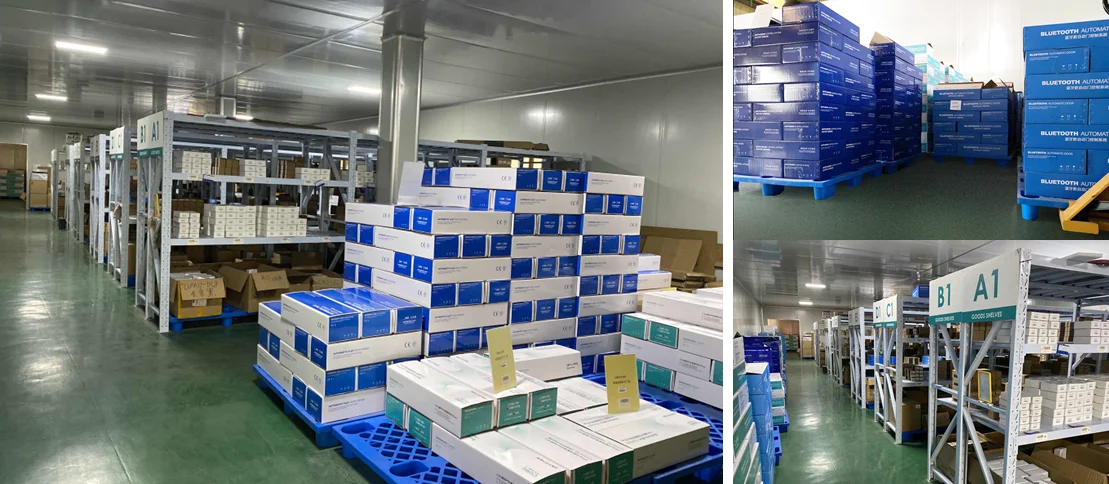

Company Profile
