SPECIFICATIONS

Accessory Type: Driver

After Warranty Service: Online support

Application: Cutting, Engraving, CNC etc.

Certificate: CE ROHS

File Format: PLT, HPG, AI, DXF, DST, SPL, NC, CNC, PLY, BMP...

Input Power Supply: DC24V 3A

Model Number: Ruida RDC6442G

Product name: Laser Controller

Software: RDWorks V8

Wavelength: 1064 nm

brand name: Ruida

condition: New

key selling points: Long Service Life

place of origin: Jiangsu, China

spare parts type: Laser Parts

warranty: 1 Year

weight (kg): 1.5

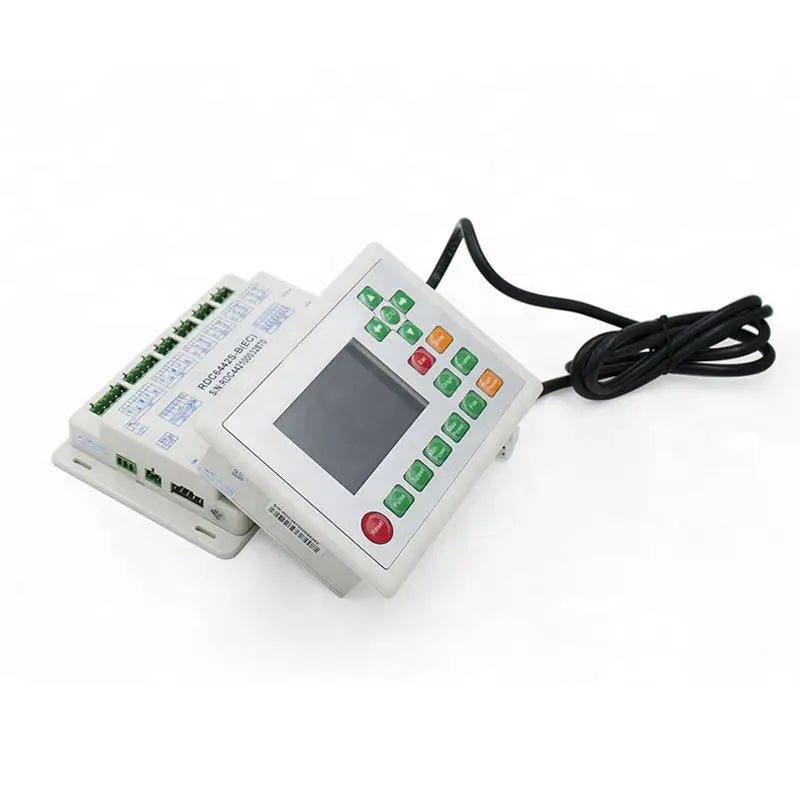

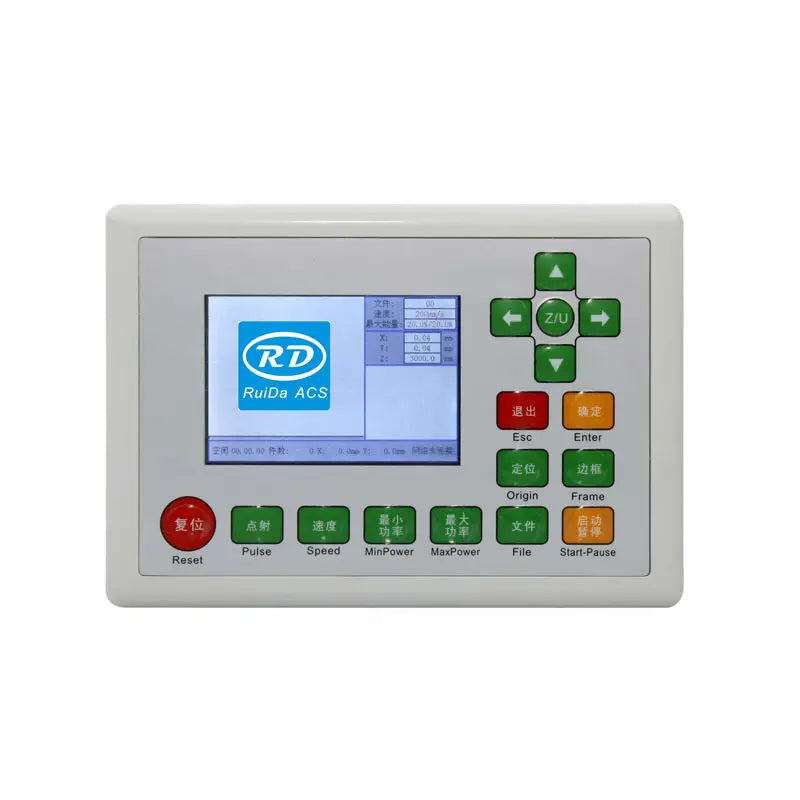

Ruida RDC6442S RDC6442G Co2 Laser Controller for Laser Engraving and Cutting MachineRD Control System

Product Description

*Ruida RDC6445S is New Version upgrade from RDC6445G

RDC6445S vs RDC6445G
1. Ruida RDC6445S and RDC6445G are combined into a unified model: RDC6445G which supports Double-Head Linkage Function.
2. The function of RDC6445G/S has combined the RDC6442G and RDC6442S function.

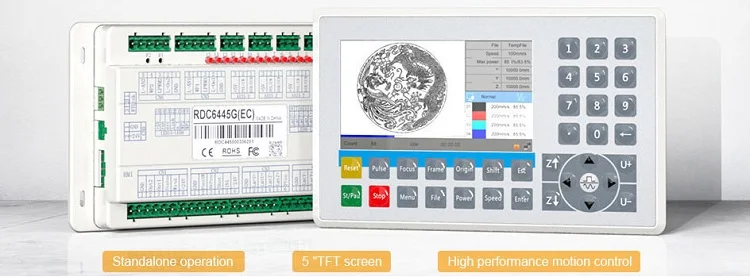

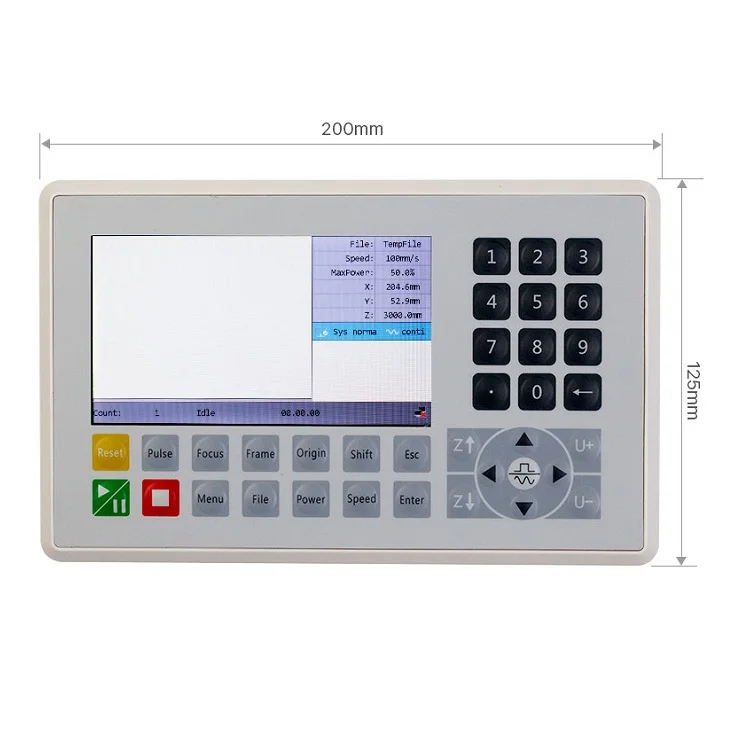

Ruida laser controller RDC6445G/S CNC system is a new generation of laser engraving and cutting control system. In addition to high hardware stability, high voltage or electrostatic suppression, and a friendly 5” TFT human-machine display. The system has more powerful software features, including perfect four-axis motion control function, large-capacity file storage, two adjustable digital laser power control interface, stronger compatibility USB driver, multiple universal / dedicated IO control, as well as, this system can communicate with PC via USB2.0 or Ethernet, the communication method is automatically detected by the system

Technical Parameters

Model Number	Ruida RDC6445G/S
Application	Co2 Laser Engraver and Cutter Control Board
Support Language	English, Italiano, French, Russia, Portuguese, Turkrish,German, Spanish, Vietnamese, Korean, Japanese, Chinese
Laser Application Software	LaserCut6.1/RDWorksV8/AutoCAD/CorelDraw and Al plug-in
Support File format	plt, hgp, ai, dxf, dst, spl, nc, cnc, ply, bmp etc
Software Environment	Windows 2000 / xp / vista / 7 / 8 / 8 / 10 (32 and 64 bit)
Power	DC24V 2A
Package Size	25cm x 15cm x 15cm (9.84in x 5.91in x 5.91in)
Package Weight	1.8kg (3.97lb.)
TTL level output	50 mA, Drive Capability
PWM frequency	2K-50K for adjustable
PWM duty ratio	1% ~ 99%, adjustable
PWM value	Up to 5.0 V
Power Supply	DC 24V 2A
Drive Capability	20 mA
Motor control pulse frequency	Max.500KHZ
Package list	1pcs 6445G/S Mainboard, 1pcs 6445G/S Panel, 1pcs HMI Cable, 1pcs U-Disc Cable I, 1pcs U-Disc Cable II , Adapter & Screws, 1pcs Network Cable II , 1pcs Network Cable I ,1pcs USB Cable

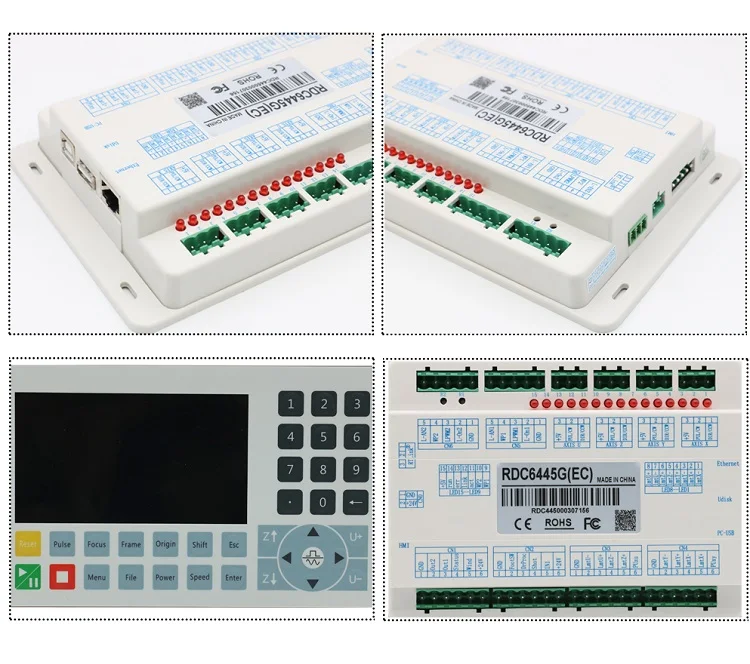

Product Details

RUIDA RDC6445G RDC6445S LASER CONTROLLER MAIN FEATURES
Working standalone, 128M memory on board Support USB/Ethernet communication and U disk.

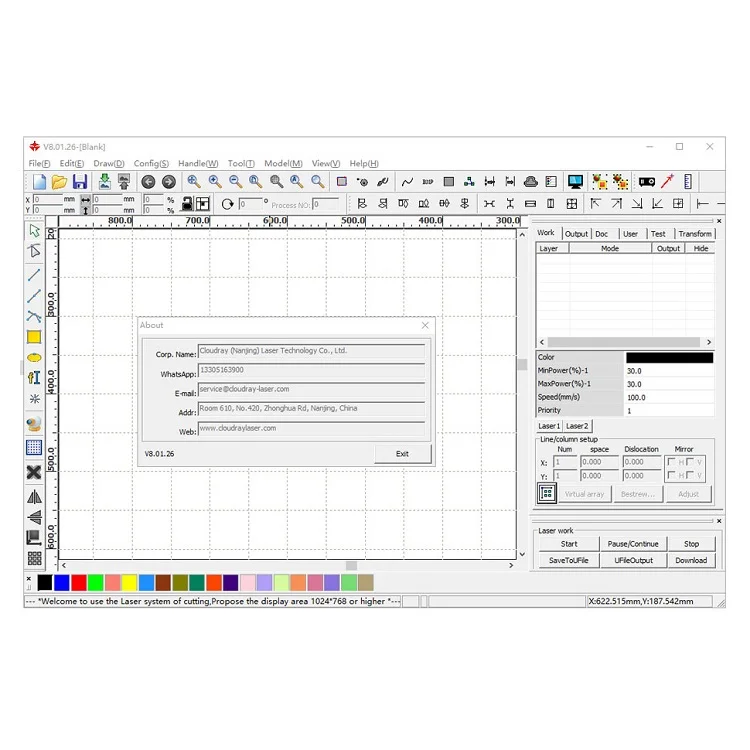

Application software: RDWorksV8.AutoCAD, CorelDraw and Al plug-in software
Support 4 axes motion control and 2 channels laser control
Support panel to modify manufacturer/user parameters.
Support manual point/continuous switch. automatic focus and docking point setting functions.
Yaxis and U axis feeding synchronously
Support fixed single and double-head cutting, Double-head shift processing and over-breadth cutting processing

Ruida RDC6445G system is a 2019 generation system for 4-Axis control of laser engraving and cutting.
Digital Laser Control Signals: (1) TTL level output, 50 mA, Drive Capability
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V
One-Way 24V Power Supply, >2A
Motor Control Signal: Common-anode Output, Drive Capability 20 mA. Motor control pulse frequency: Max.500KHZ 10/100M Ethernet +USB 2.0 Control.
Interpolation: Linear/circular arc/B spline, accuracy + / - 0.5 pulse
Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).
Input: 4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level

If you need the Manuals and Software, please leave us your email address. We will send them to you.

4-axis Laser Engraving Cutting 10/100M Ethernet USB2.0 Control
Multi-language(En Ru Es Pt)
Support Ruida laser controller DRC6445,
up to 4 servo/stepper motor control, or Co2 laser engraving and cutting machine
Support 4-way OC gate output, can directly drive 5V/24 relay
Support double-head electric shift control and over-width slitting processing
Support large format vision, mark point vision cutting and projection cutting
Support double-head asynchronous processing, support cell phone APP
Support Language:English, Italiano, French, Russia, Portuguese, Turkrish,German, Spanish, Vietnamese, Korean, Japanese, Chinese

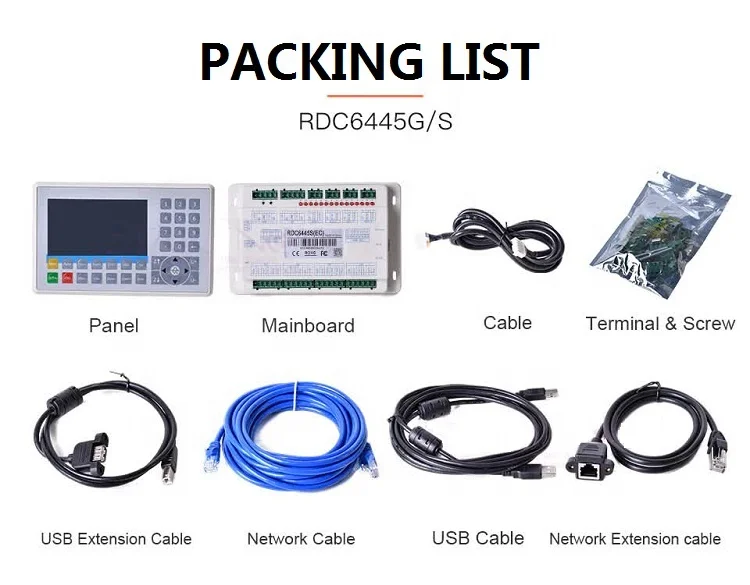

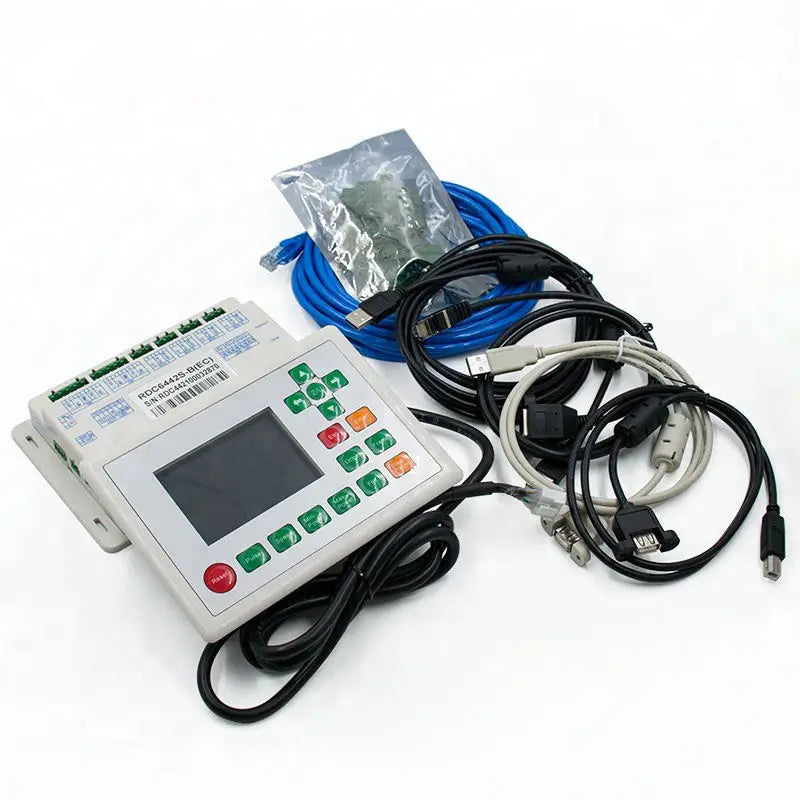

Package list:
1pcs 6445G Mainboard,1pcs 6445G Panel,
1pcs HMI Cable,
1pcs U-Disc Cable I,
1pcs U-Disc Cable II ,
Adapter & Screws,
1pcs Network Cable II ,
1pcs Network Cable I ,
1pcs USB Cable
