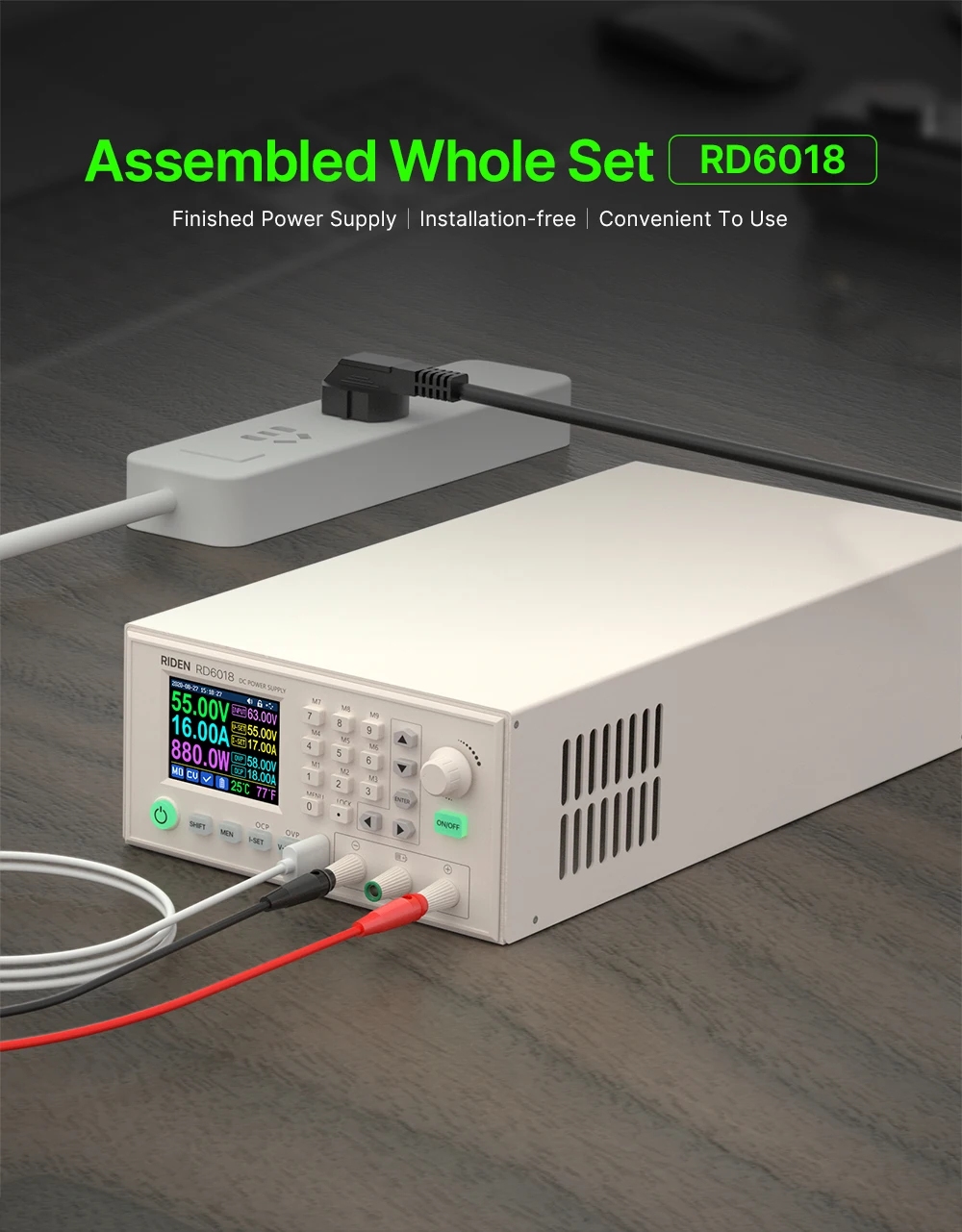

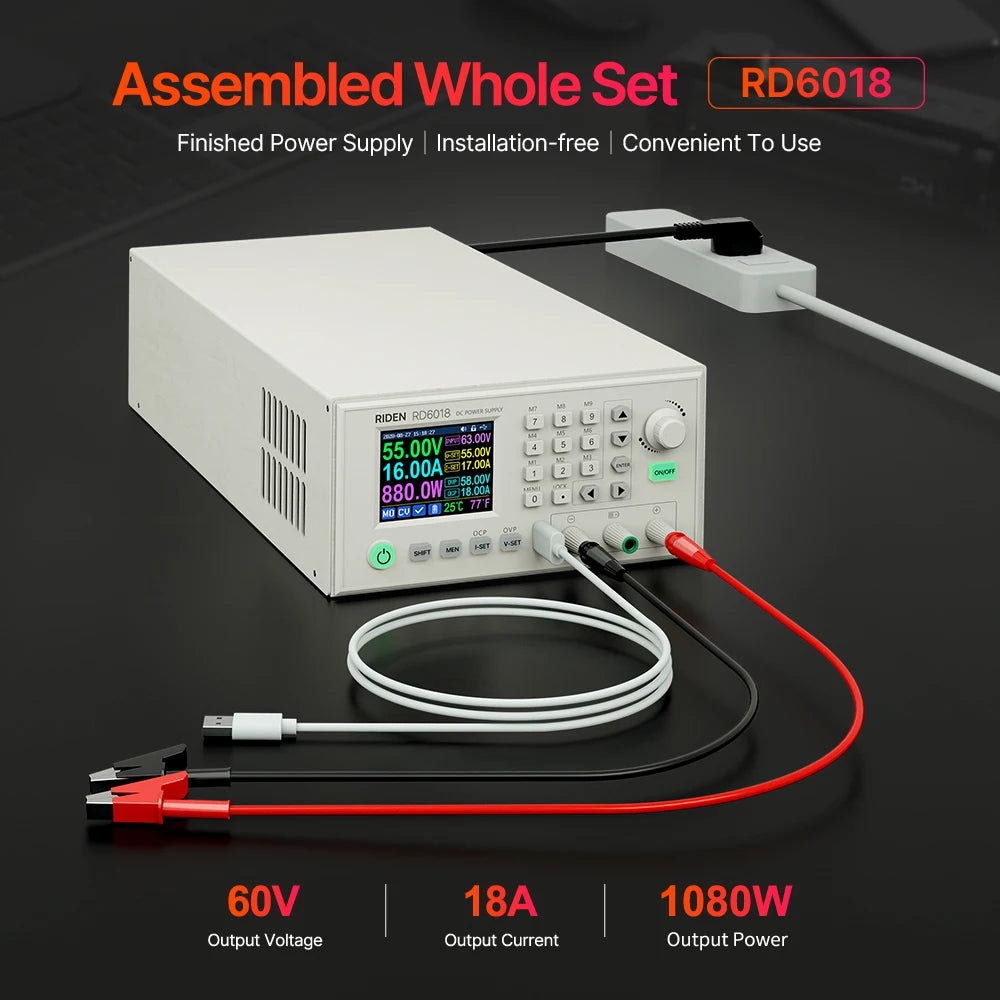

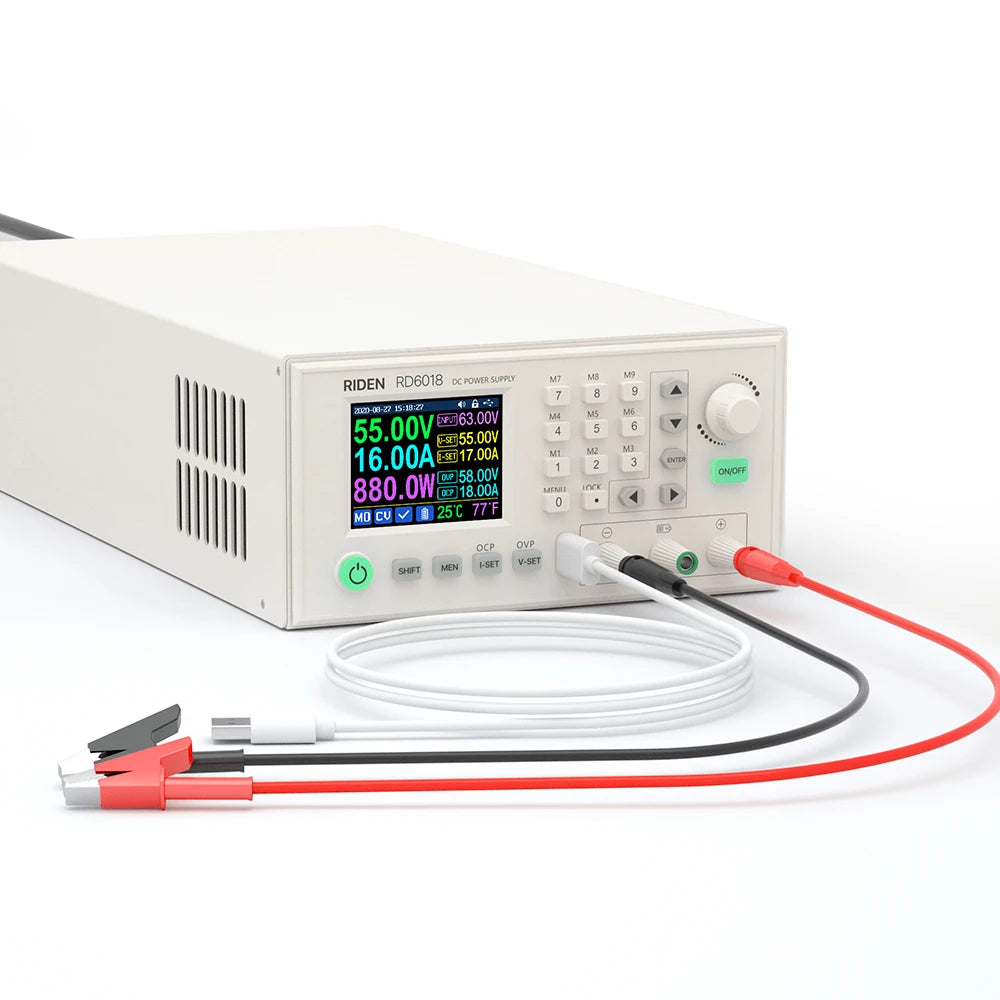

RD RD6018 Assembled Set 60V 18A AC to DC Digital Control Battery Charging Adjustable Lab Bench Power Supply Regulator 1080W
(AC220V)0-1080W; (AC110V)0-950W / 230V EU plug 1080W
$175.20 USD
Passer aux informations sur le produit
Output voltage range: 0-60.00V
Output current range: 0-18.00A
Output power range: (AC220V)0-1080W / (AC110V)0-950W
Input voltage measurement resolution: 0.01V
Output voltagesetting measurement resolution: 0.01V
Output current setting measurement resolution: 0.01A
Battery voltage measurement resolution: 0.01V
Input voltage measurement accuracy: ±(1%+5 digits)
Output voltage accuracybetween setting and measurement: ±(0.3%+3 digits)
Output currentaccuracybetween setting and measurement:±(0.5%+5 digits)
Battery voltage measurement accuracy: ±(0.5%+3 digits)
Automatic cut off current valuewhen charging:100mA
Output ripple typical:250mV VPP@6A
Working temperature range: -10℃~40℃
External sensor Temperature detection range:-10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy:±3℃/±6℉
Constant voltage moderesponse time: 2ms（0.1A-5A Load）
Constant voltage mode load regulation: ±(0.1%+2 digits)
Constant current mode load regulation: ±(0.1%+3 digits)
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
Capacity and energy statistical error: ±2％
Buck working mode: Voltage drop >1V and >10%
Over temperature protection: System temperature>80℃
Screen brightness setting: 0-5(6 level in total)
Screen: 2.4inch color HD display
Cooling fan start condition：Output current>8AorSystem temperature>45℃
Cooling fan shut down condition：Output current<7.9Aand System temperature<45℃

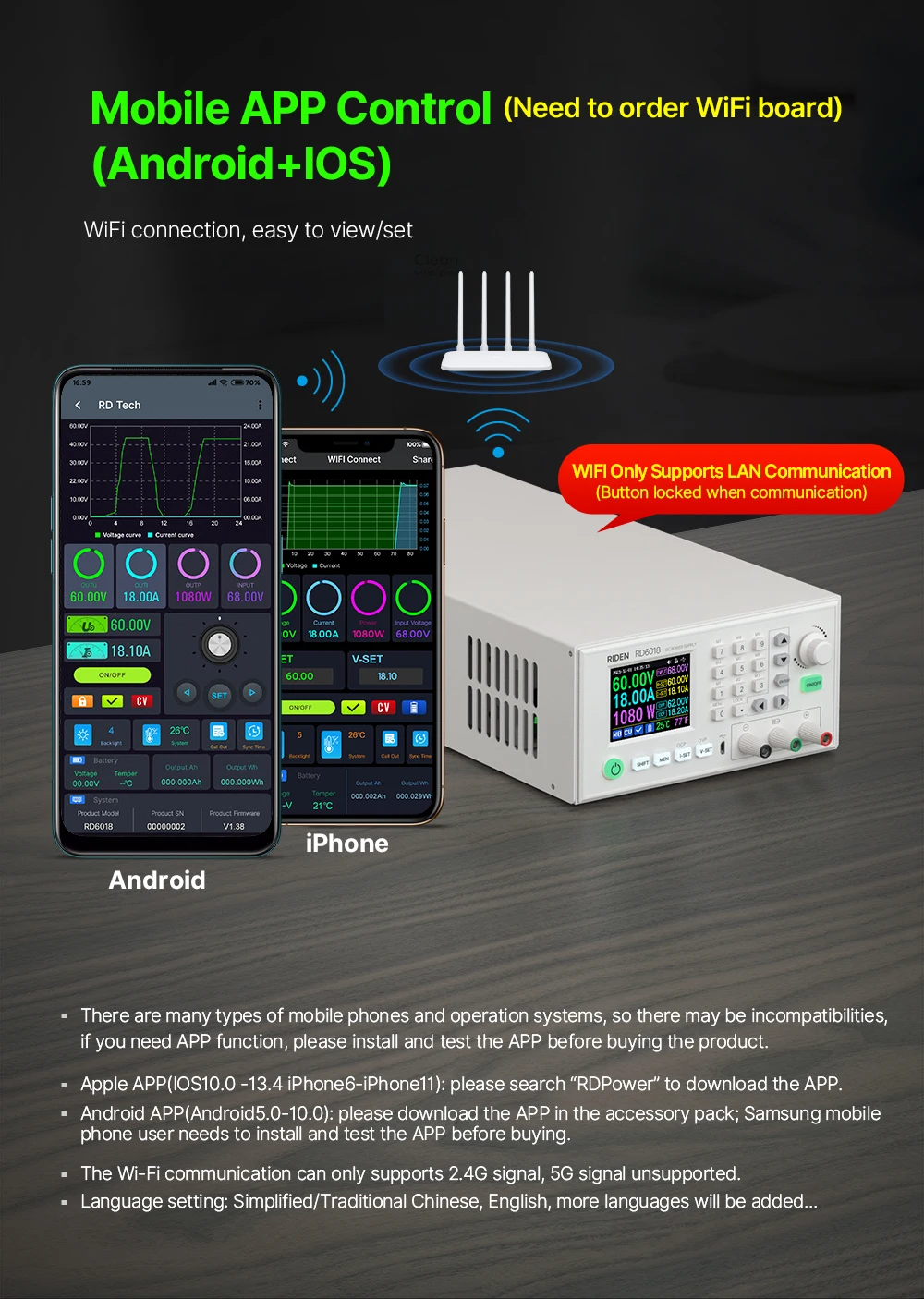

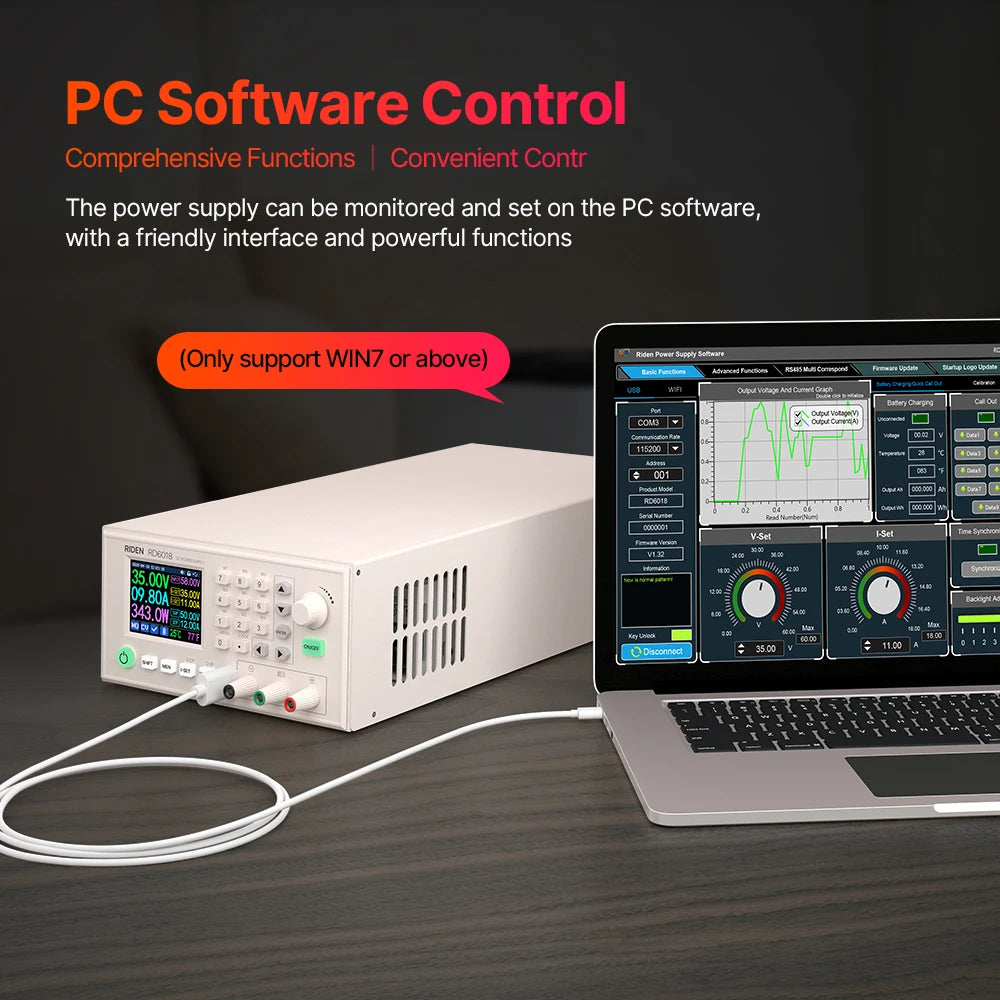

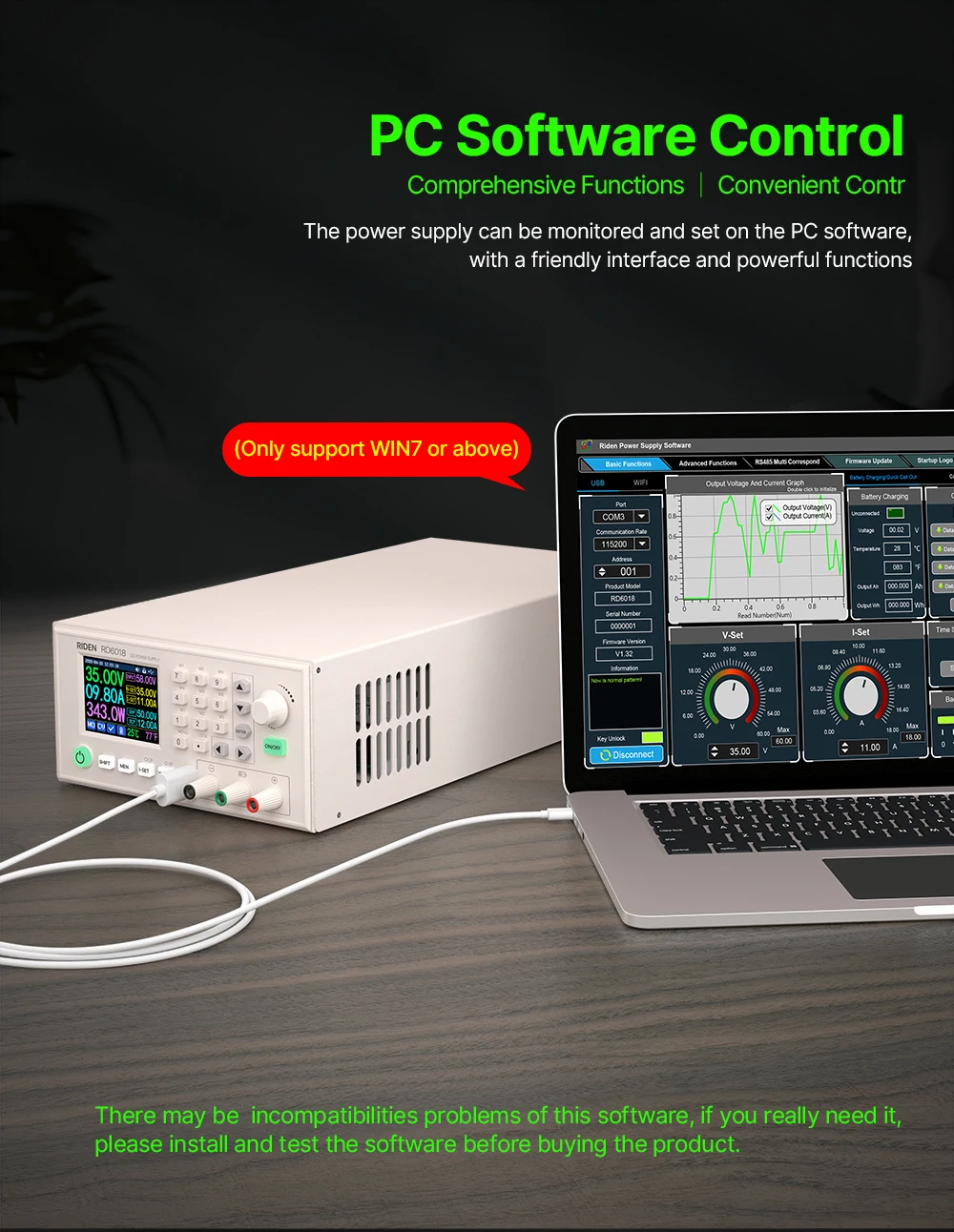

A: RD6018 assembled full set doesn't have WiFi function. It only support to use USB micro cable to connect PC software, you need to order the WiFi board separtely to connect APP if you want the WiFi function
2. Q: What can I get in this link?
A: the option title and pictures shows what you can get, please check and make the order.
3. Q: Why the product I get is a bit different with the picture?
A: We keep updating the product hardware and software to make the device better, so the internal material details may be
different, but it does not affect you to use the functions.
5. Q: the PSU I receive have some scratches?
A: There may be scratches on the surface but it doesn't affect the product performance, please do not be over picky, and if you do mind this, please do not buy this product
RD RD6018 Assembled Set 60V 18A AC to DC Digital Control Battery Charging Adjustable Lab Bench Power Supply Regulator 1080W
$175.20 USD
Expédition calculée lors du paiement.
SPECIFICATIONS

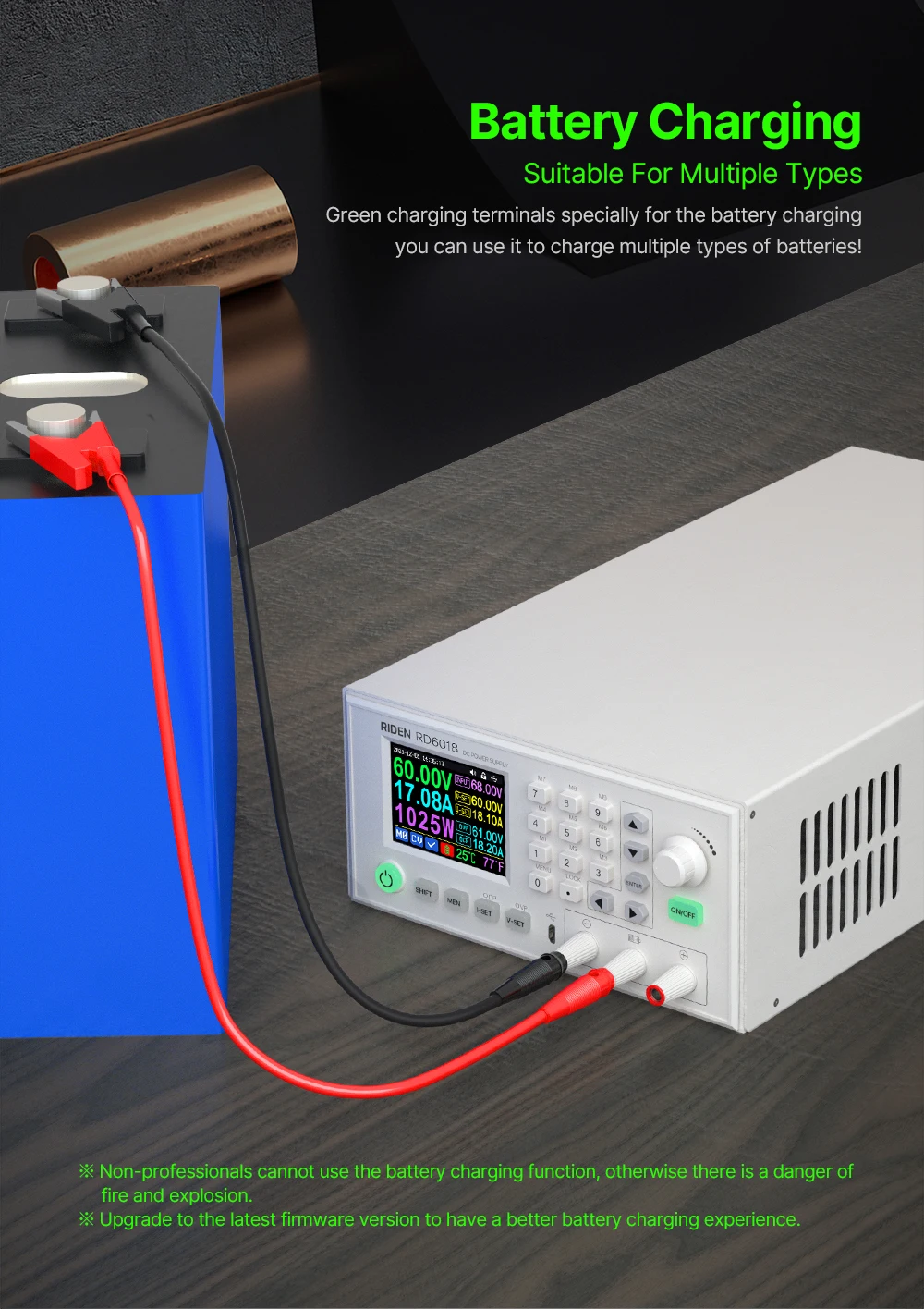

Application: Laboratory,Industry,Machines,Battery Charging
Brand Name: RD
Efficiency: 0.9
Input Plug Style: 230V AU/EU/UK and 110V US Plug Style
Input Voltage: 100-120/200-240V AC
Model Number: RD6018 assembled full set
Output Current: 0-18.00A
Output Current accuracy: ±(0.5%+5 digits)
Output Frequency: No
Output Power: 0-1080W(230V)/0-950W(110V)
Output Type: Single
Output Voltage: 0V-60.00V
Output Voltage accuracy: ±(0.3%+3 digits)
Output current resolution: 0.01A
Output voltage resolution: 0.01V
Place of Origin: Zhejiang, China

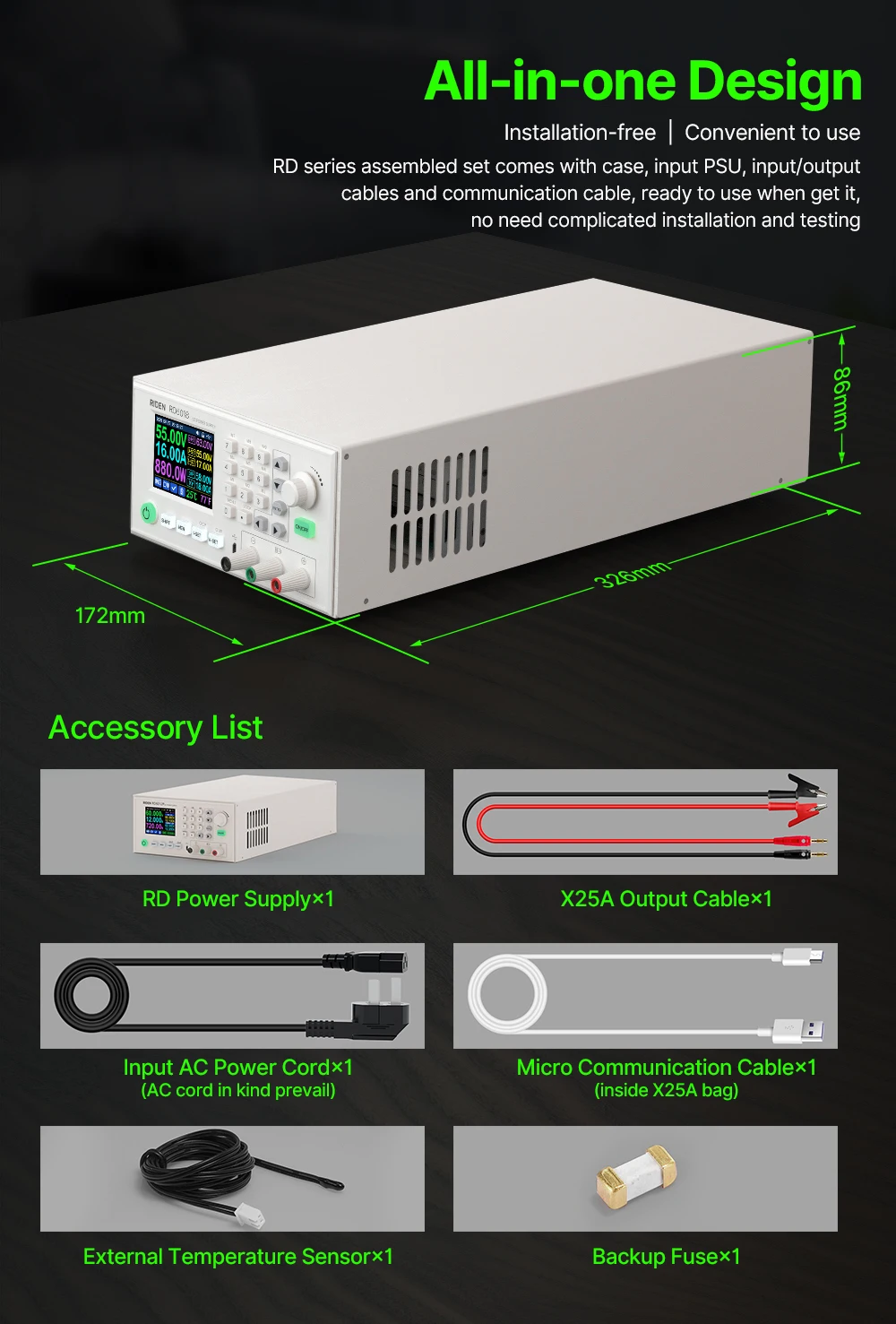

Product dimension: 173*92*336mm

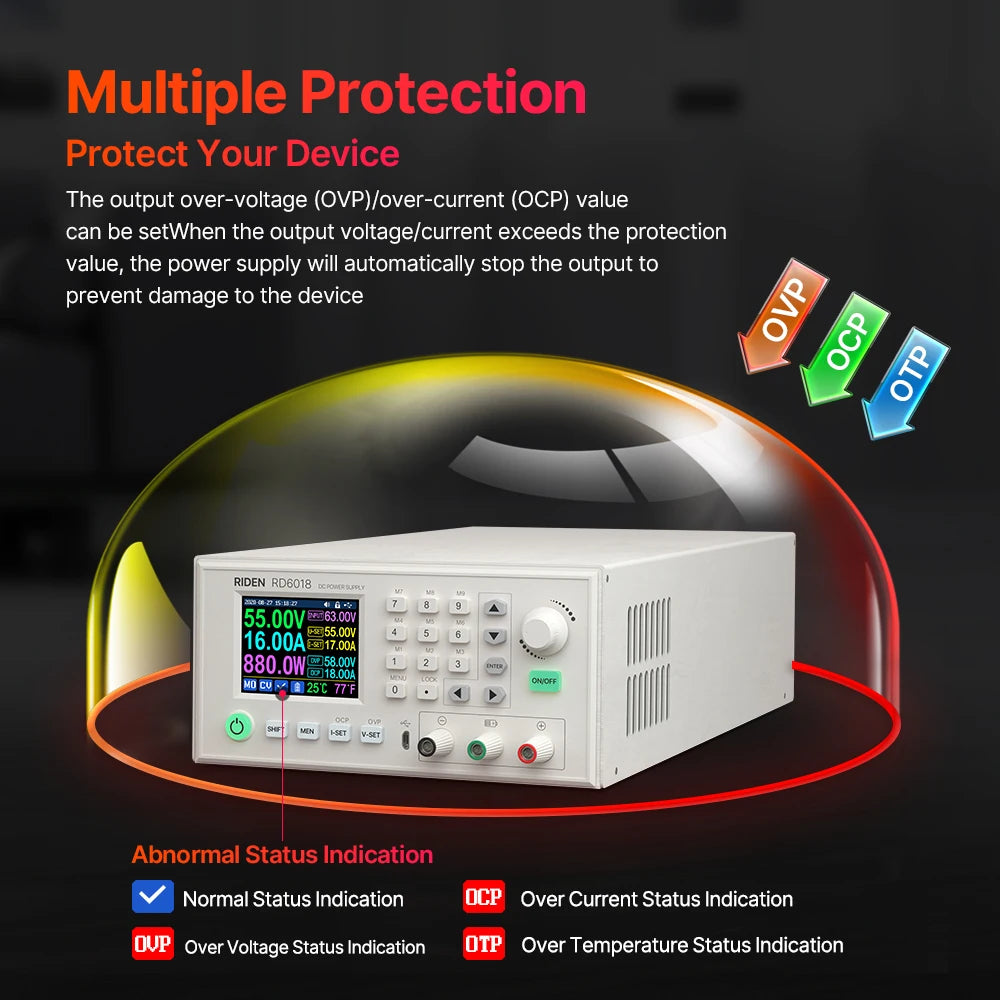

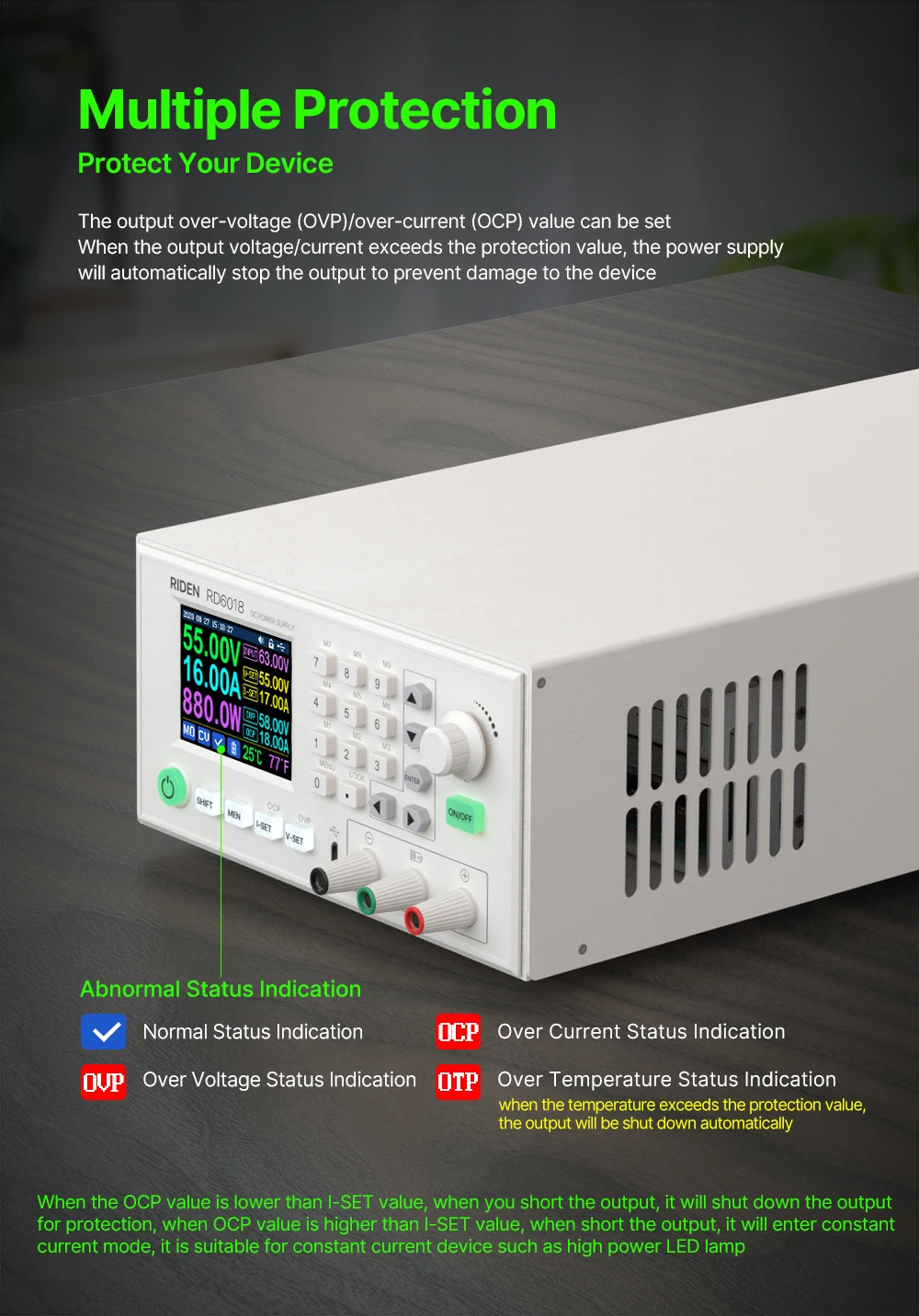

Protection: Short Circuit Protection,Overcurrent Protection,Overvoltage Protection,Over Temperature Protection
Type: AC-DC
Product Description
Note about the noise about 1200W PSU:
1. There is a high-frequency noise when the switching power supply is unloaded, Due to the large output power range of the product, in order to reduce the power consumption of the switching power supply when no-load, the PWM control chip will jump some control cycles. Assume that the original working frequency is 60KHZ. If there are more skipping cycles, the working frequency will be reduced to less than 20KHZ. This Sometimes a noise audible to human ears is produced. The size of this noise is also related to the production process of the transformer. Since the winding and paint impregnation of each transformer's coil are slightly different, the noise of each product's operation is slightly different.
2. There is a loud sound when the fan is running; when the ambient temperature is high, the fan may work even if it is unloaded.
These are normal phenomena. It is recommended to turn off the AC switch when the product is not in use! If you mind it, please do not buy it.

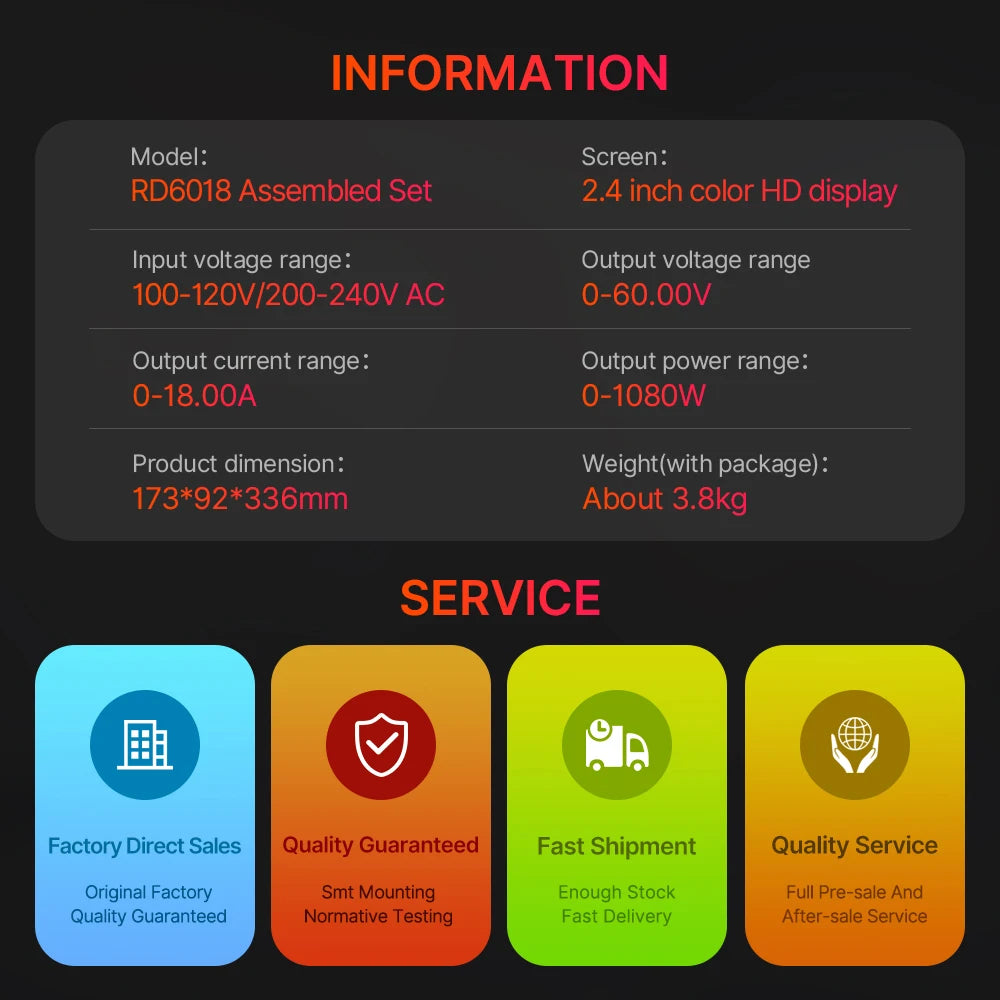

1.Technical parameters: |
Model: RD6018 assembled set
Input voltage range: 100-120V/200-240V ACOutput voltage range: 0-60.00V
Output current range: 0-18.00A
Output power range: (AC220V)0-1080W / (AC110V)0-950W
Input voltage measurement resolution: 0.01V
Output voltagesetting measurement resolution: 0.01V
Output current setting measurement resolution: 0.01A
Battery voltage measurement resolution: 0.01V
Input voltage measurement accuracy: ±(1%+5 digits)
Output voltage accuracybetween setting and measurement: ±(0.3%+3 digits)
Output currentaccuracybetween setting and measurement:±(0.5%+5 digits)
Battery voltage measurement accuracy: ±(0.5%+3 digits)
Automatic cut off current valuewhen charging:100mA
Output ripple typical:250mV VPP@6A
Working temperature range: -10℃~40℃
External sensor Temperature detection range:-10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy:±3℃/±6℉
Constant voltage moderesponse time: 2ms（0.1A-5A Load）
Constant voltage mode load regulation: ±(0.1%+2 digits)
Constant current mode load regulation: ±(0.1%+3 digits)
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
Capacity and energy statistical error: ±2％
Buck working mode: Voltage drop >1V and >10%
Over temperature protection: System temperature>80℃
Screen brightness setting: 0-5(6 level in total)
Screen: 2.4inch color HD display
Cooling fan start condition：Output current>8AorSystem temperature>45℃
Cooling fan shut down condition：Output current<7.9Aand System temperature<45℃
2.PRODUCT DESCRIBTION :

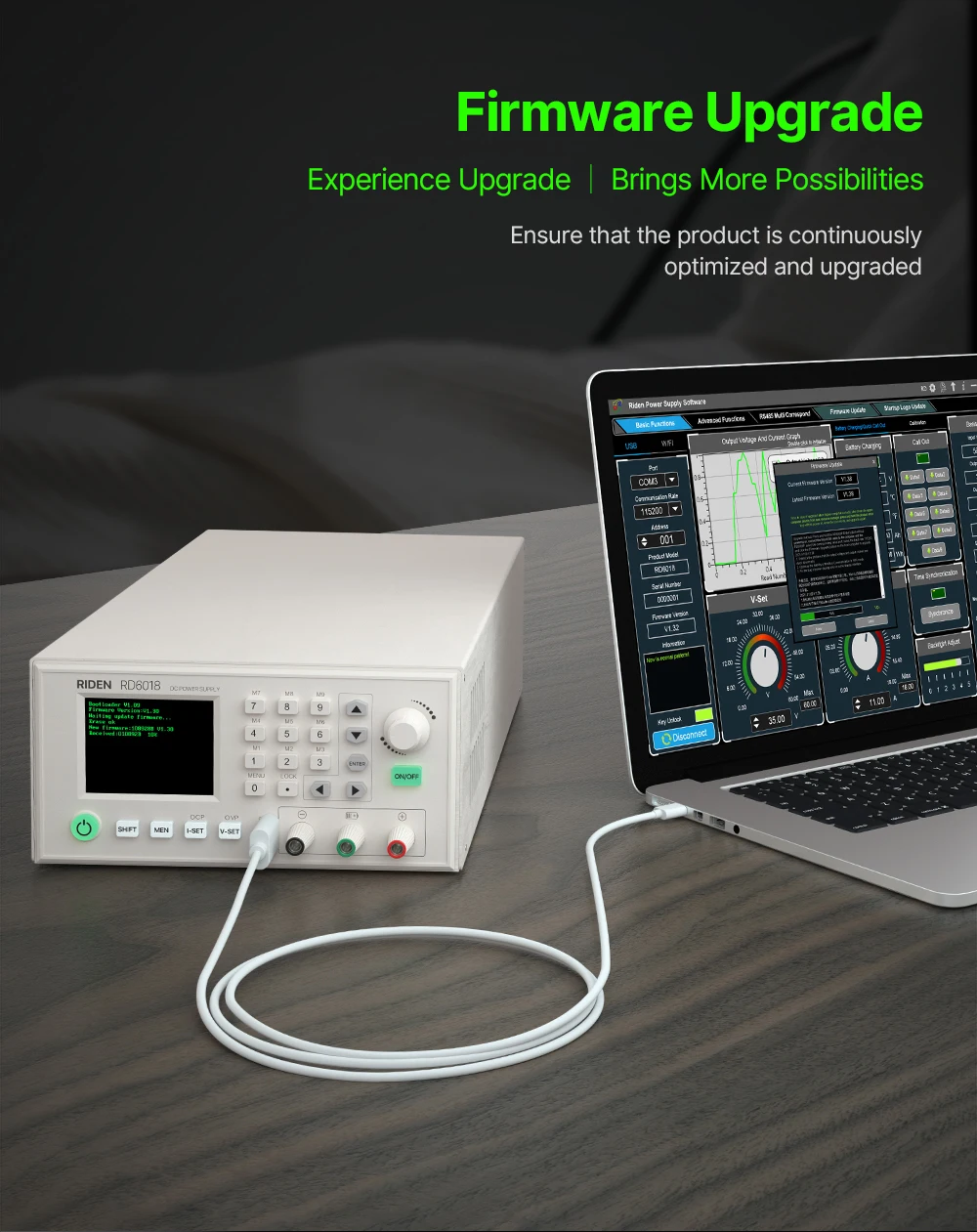

3.Detailed operating instructions, PC software zipfile, refer to the URL:
https://drive.google.com/drive/folders/1_pv3ctOA_koShQ6Qiu1CZVCluHVD47TL?usp=sharing
4.NOTE:
A: RD6018 assembled full set doesn't have WiFi function. It only support to use USB micro cable to connect PC software, you need to order the WiFi board separtely to connect APP if you want the WiFi function
2. Q: What can I get in this link?
A: the option title and pictures shows what you can get, please check and make the order.
3. Q: Why the product I get is a bit different with the picture?
A: We keep updating the product hardware and software to make the device better, so the internal material details may be
different, but it does not affect you to use the functions.
5. Q: the PSU I receive have some scratches?
A: There may be scratches on the surface but it doesn't affect the product performance, please do not be over picky, and if you do mind this, please do not buy this product
6. Q: the warranty label is broken, do I still get the warranty?
A: Due to express delivery, some power supply warranty labels may be damaged, which does not affect product warranty!
7.Q: Can I use it to power on inductive load?
A: If you connect inductive load (such as motor), the max working voltage and current is 1/3 of full range. don't exceed it.

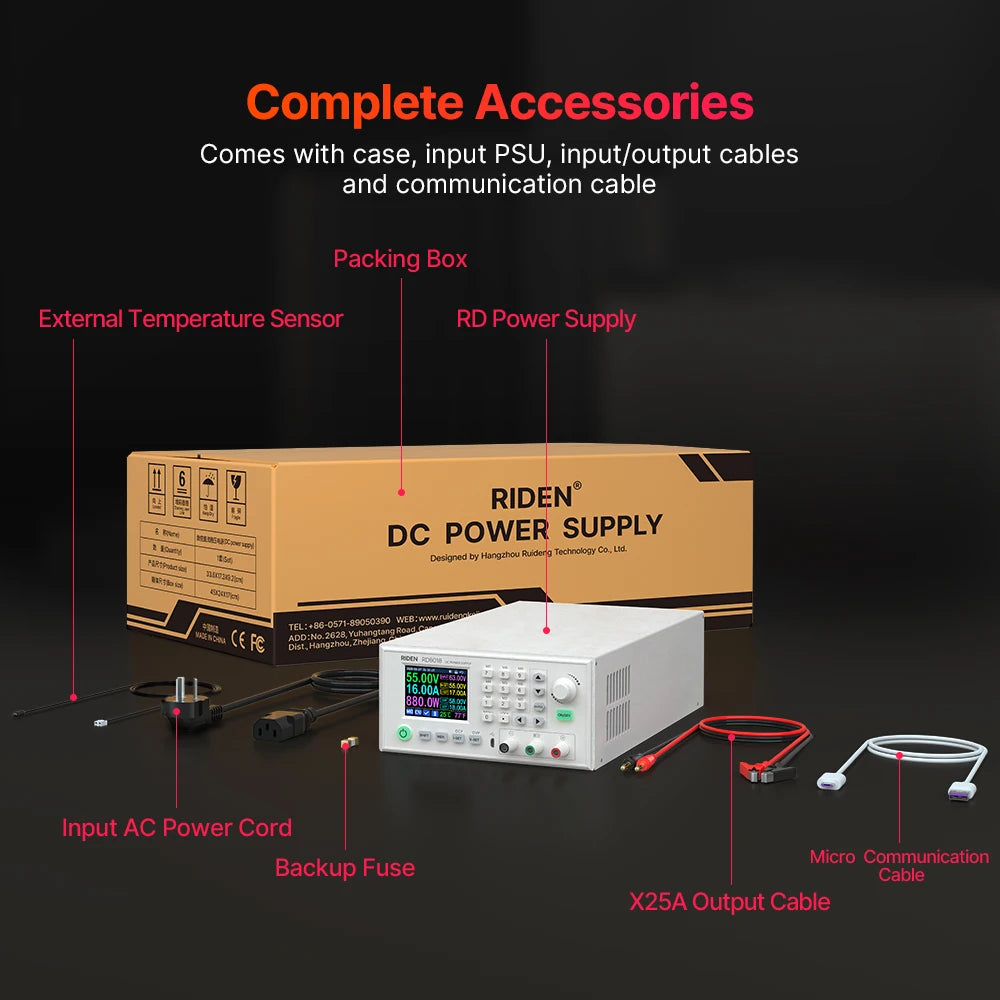

8. Q:why there is a fuse in the box? Should I install it?
A:Itis a BACKUP fuse in the, if you burn the fusewith wrong operation, you can replace the fuse in the socket with the backup fuseto fix it.
9. Q: can I remove the case of the PSU for better heat dissipation?
A: when install our PSU into the case, please follow our instruction to assemble, do not remove the shell of the PSU to use. After removing the shell of the switching power supply, the structural change of the heat dissipation system will lead to insufficient heat dissipation,and some components will be overheated and damaged, in this case we don't offer after sell service
10.Q:I see some traces on the panel, is this means damaged?
A:Affected by the injection molding process, there are slight traces at the button holes of the shell. It can hardly be found in normal use. It can be found under the light (the shell is not crafts, don't be overly picky). as shown in picture, if you care,
please don't buy this product
A: Due to express delivery, some power supply warranty labels may be damaged, which does not affect product warranty!
7.Q: Can I use it to power on inductive load?
A: If you connect inductive load (such as motor), the max working voltage and current is 1/3 of full range. don't exceed it.
8. Q:why there is a fuse in the box? Should I install it?
A:Itis a BACKUP fuse in the, if you burn the fusewith wrong operation, you can replace the fuse in the socket with the backup fuseto fix it.
9. Q: can I remove the case of the PSU for better heat dissipation?
A: when install our PSU into the case, please follow our instruction to assemble, do not remove the shell of the PSU to use. After removing the shell of the switching power supply, the structural change of the heat dissipation system will lead to insufficient heat dissipation,and some components will be overheated and damaged, in this case we don't offer after sell service
10.Q:I see some traces on the panel, is this means damaged?
A:Affected by the injection molding process, there are slight traces at the button holes of the shell. It can hardly be found in normal use. It can be found under the light (the shell is not crafts, don't be overly picky). as shown in picture, if you care,
please don't buy this product
4.RELATED PRODUCT:
There are some models recommended
Feedback
Our Youtube channel RD tech:
https://www.youtube.com/channel/UCy73jJ5-ZqhPzT7wJ6KTIaw
Operation and Test:
https://www.youtube.com/watch?v=RMRuErdv2LM
https://www.youtube.com/channel/UCy73jJ5-ZqhPzT7wJ6KTIaw
Operation and Test:
https://www.youtube.com/watch?v=RMRuErdv2LM
https://www.youtube.com/watch?v=pz0T9rD4Ij0
Assembly:
https://www.youtube.com/watch?v=HSaDy1A70IU
Assembly:
https://www.youtube.com/watch?v=HSaDy1A70IU
Packing & Delivery

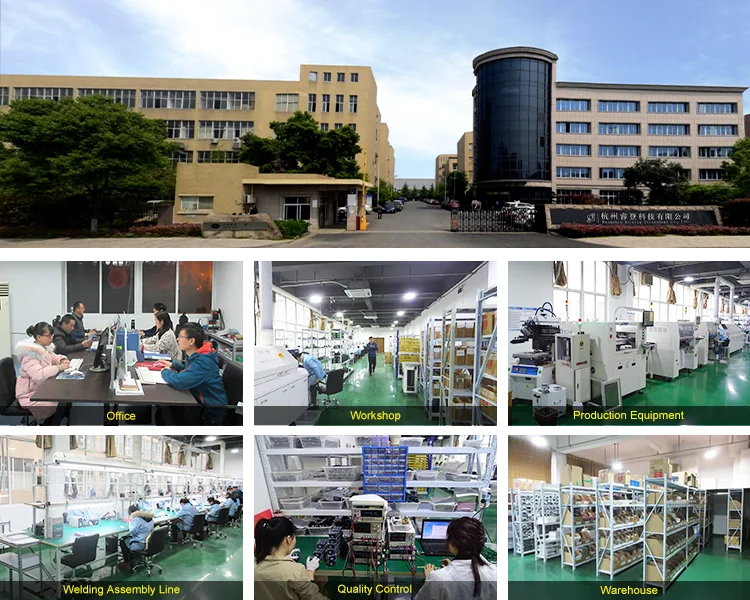

Company informaition
