PQWT-GX800 PVC Metal Pipes Underground Wireless Cable Fault Detection Equipment Pipeline Locator
Plumbing Tools / Blue
$2,536.80 USD
Passer aux informations sur le produit

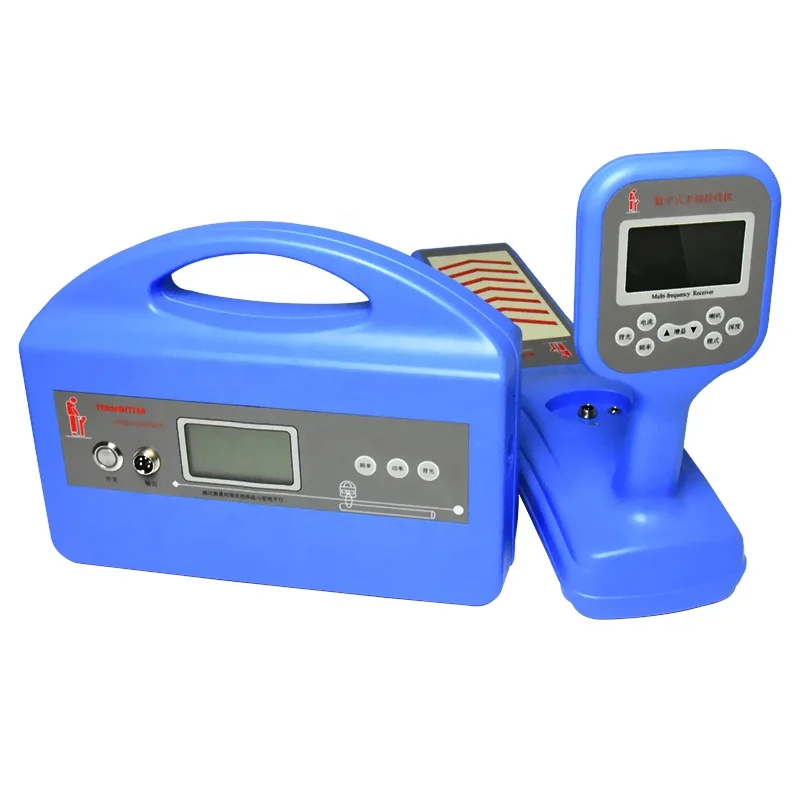

PQWT-GX800 PVC Metal Pipes Underground Wireless Cable Fault Detection Equipment Pipeline Locator
$2,536.80 USD
Expédition calculée lors du paiement.
SPECIFICATIONS
Application: For Inspection
Detection depth: 8 meters underground
Display: Backlight
Power supply: Lithium Battery
Product name: PQWT-GX800 Underground water pipe locator detector
Usage: Pipe locator, cable fault locator
Working temperature: -10℃~+50℃
brand name: PQWT
customized support: OEM,Pipeline,Cable,For Inspection,Water
grade: Industrial
model number: GX800
place of origin: Hunan, China
warranty: 1 YEAR
PQWT Buyers Feedback
Turn Water Leaks into Your Profit!
PQWT water leak detector help you locate the unseen leaks underground and behind the walls! Save the water damage!
Product Description
Locating underground pipeline & cale, Offering professional water lines system solution
PQWT-GX800 pipeline locator, especially for cable-to-ground insulation failure of fast and accurate positioning, (charged) to find the path, depth positioning.

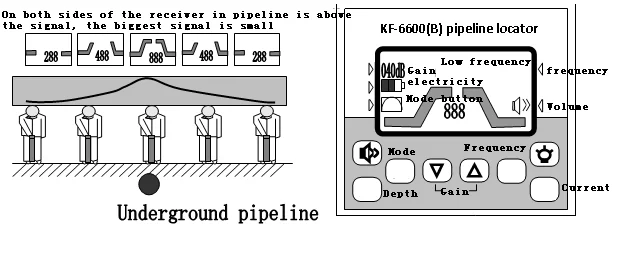

PQWT-GX800 pipe locator is based on electromagnetic induction method to the application of communication principles designed. Included in the use of more user-friendly design, through large-screen liquid crystal display signal strength, grate, arrows and voice prompts make the operator to easily determine the location and underground cable fault. One person to complete all operations.
PQWT-GX800 pipeline locator can be used to find the cable (charged or uncharged) path and can be used to find buried cable failure. Can be done in the past several sets of equipment to complete the task.
PQWT-GX800 has changed the traditional concept of cable fault location, without high-voltage test equipment, without the use of AC power, no analysis of the waveform, wiring is simple, use a school that will.
In the past we find the cable path, the power cable must be tested, and some can not run the power cable, use the PQWT-GX800 can easily solve the problem of electric cables to find the path. PQWT-GX800 50Hz can be charged directly to find the cable path.
Finding Hidden Lines with Advanced Plumbing Tools
Instrument Features:
*All-digital positioning system, and show a clear, reliable positioning
*Portable lightweight, easy to use, quick to find
*Built-in rechargeable battery, the test without electricity
*Depth with cable shows, current shows
*Large-screen LCD graphic display, without earphone test
*Built-in ohmmeter measure the resistance of the cable loop
*Cable locating and fault-finding with two functions
*You can find up-to-ground insulation failure 2MΩ
*Adapt to night-time operation with backlight
Solving Plumbing Issues with Pipe Diagnostic Technology
Advanced professional plumbing tools such as the PQWT water leak detector and digital pipe diagnostic equipment are important innovations for modern plumbers. These state-of-the-art leak locating and pipe inspection devices allow plumbers to find hidden leaks, solve complex plumbing issues, and provide quality service to customers. By utilizing the latest pipe leak detection equipment and diagnostic technology, plumbers can work smarter, avoid unnecessary property damage, and keep plumbing systems operating safely and efficiently.
Specification

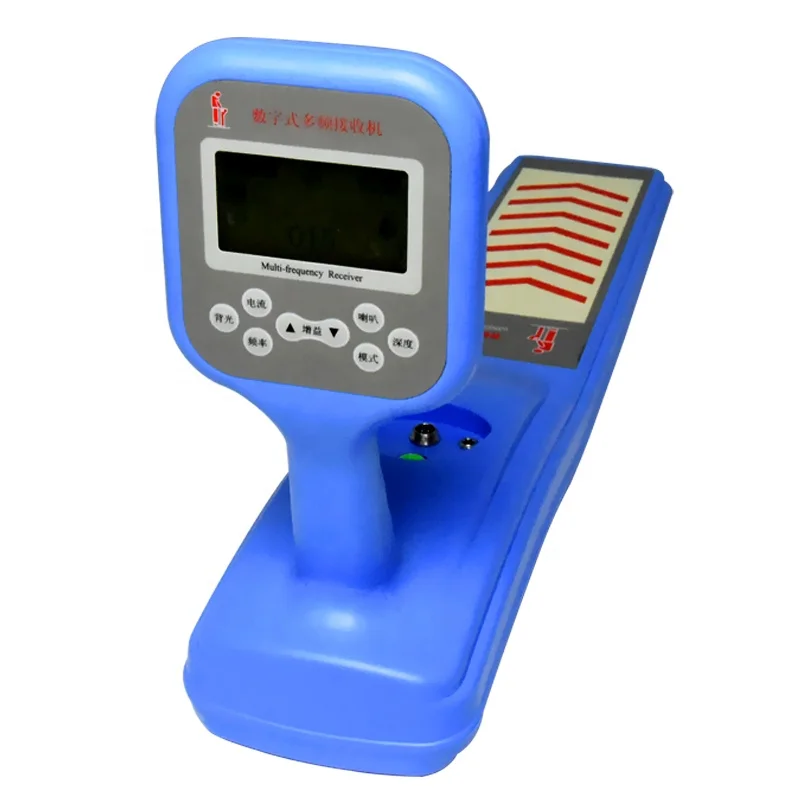

Receiver |
||
Operating frequency |
low frequency, RF |
|
Antenna pattern |
the trough method (vertical coil), the peak method (horizontal coil) |
|
Sound indication |
signal intensity changes with the FM tone |
|
Current indication |
Display the current value of the effective cable under test (unit: mA) |
|
Operating temperature |
-10 ° C ~ +55 ° C |
|
Battery Type |
7.4V lithium battery |
|
Battery indicator |
graphics |
|
Working hours |
continuous> 8 hours: stopped working> 16 hours |
|
Size |
70 × 20 × 11CM |
|
Weight |
3 kg (with battery) |
|
Signal strength |
ladder, the number range 0 - 999 |
|
Gain Control |
manually adjust the dynamic range of 100db |
|
Detection depth |
Maximum depth of not less than 6 meters |
|
Maximum detection range |
direct law insulated cable up to 15KM |
|
Accuracy * |
LF: ± (1-5)% ≤ 2 .5 M RF: ± (5-12)% ≤ 2 .5 M |
|
* Depends on the circumstances at the scene, the shape of non-concentric lines, the number of pipeline and soil near the return current. |
Long-Term Mode |
|

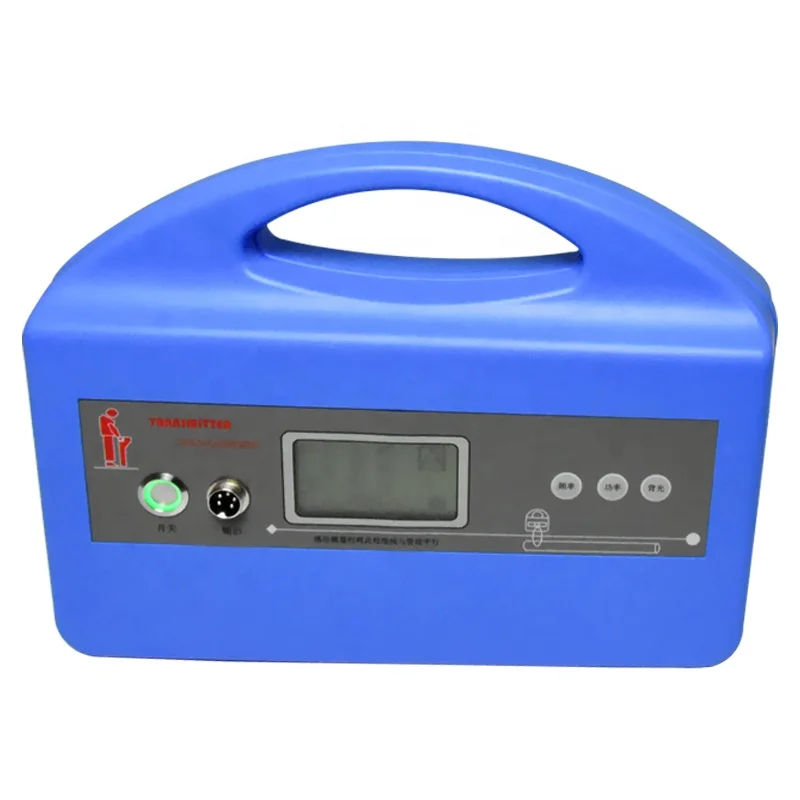

Transmitter |
||
Operating frequency |
low frequency, RF |
|
Mode |
direct method, coupling method, inductive method |
|
Matched load |
5 ohms -3000 ohms |
|
Impedance display |
five digits |
|
Thermal over-current |
automatic protection |
|
Power output |
low block, mid-range, high gear |
|
Battery Type |
7.4V lithium battery |
|
Working hours |
working 4-8 hours depending on use frequency, output power |
|
Operating temperature |
-10 ° C~55 ° C |
|
Size |
16 × 16 × 39CM |
|
Weight |
4 kg (with battery) |
|

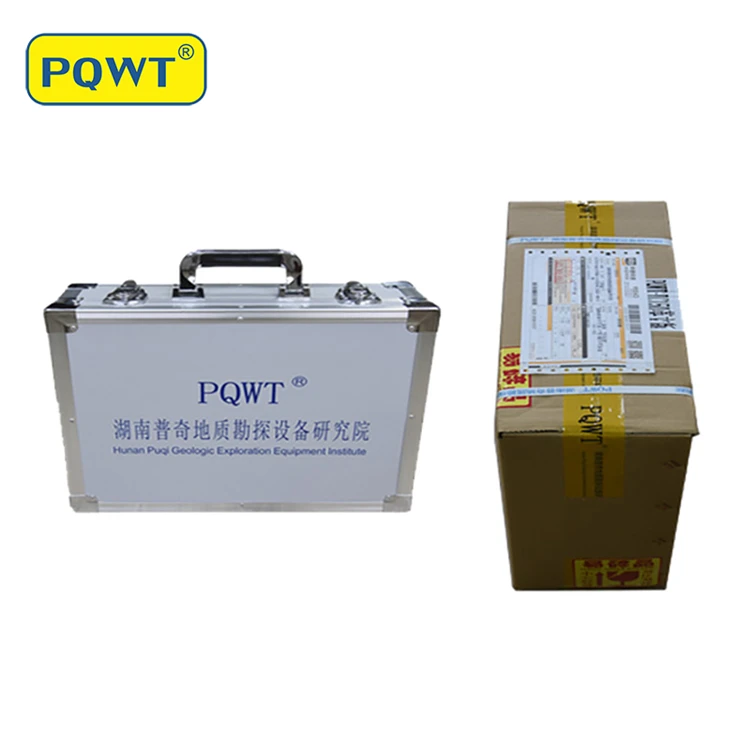

Packing & Delivery
