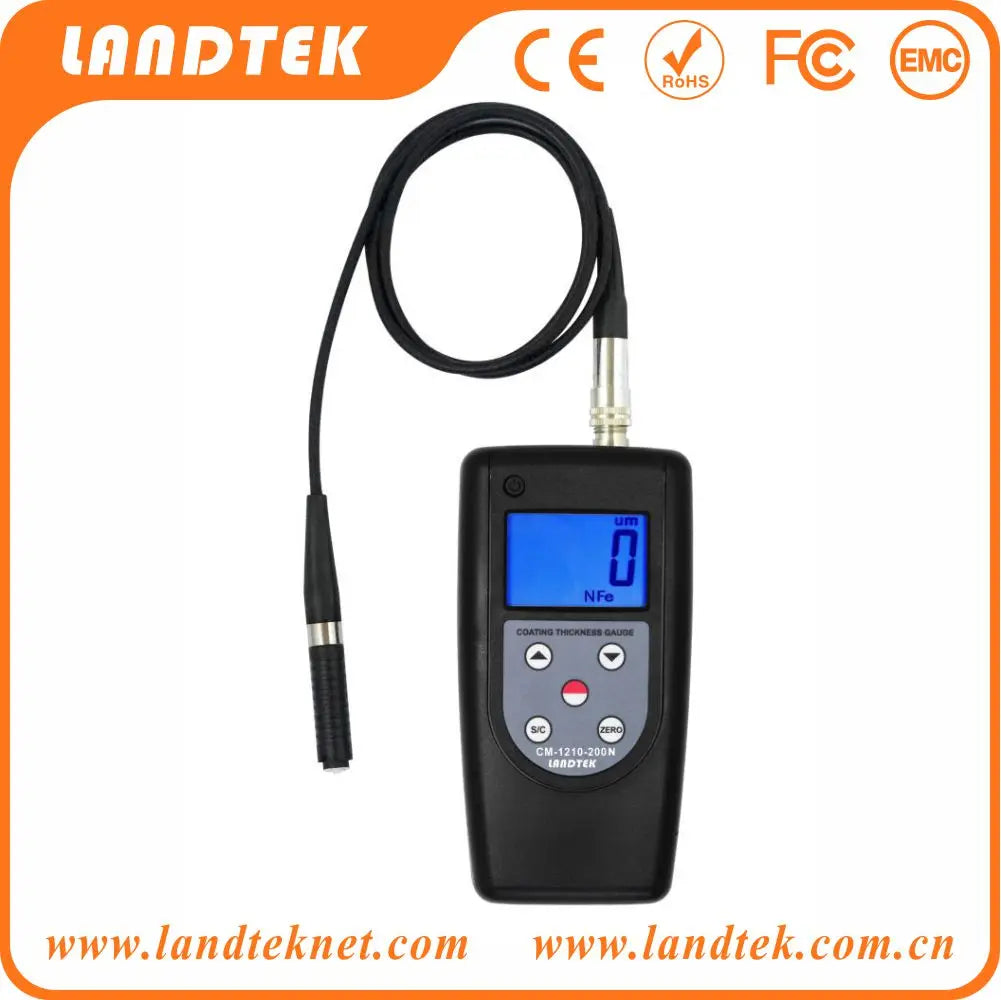

Micro Thickness Gauge for Coating on Small Workpiece Eddy Current CM--1210-200N
CM--1210-200N
$360.00 USD
Passer aux informations sur le produit
Micro Thickness Gauge for Coating on Small Workpiece Eddy Current CM--1210-200N
$360.00 USD
Expédition calculée lors du paiement.
SPECIFICATIONS
Accuracy: ± 1~3%n or ± 2.5 um
Application: Auto Testing
LCD: 4 digits LCD, backlit
Min. Measuring Area: 2 mm
Operating Principle: eddy current (N)
Protection Class: IP57
Type: Testing Machine
Voltage: 220 V,110 V
accuracy: ± 1~3%n or ± 2.5 um
application: for extremely small area measurement of coating on small workpiece
brand name: LANDTEK
customized support: OEM
measuring range: 0~200 um / 0~8 mil
place of origin: Guangdong, China
power: electronic
resolution: 0.1
warranty: 1 Year

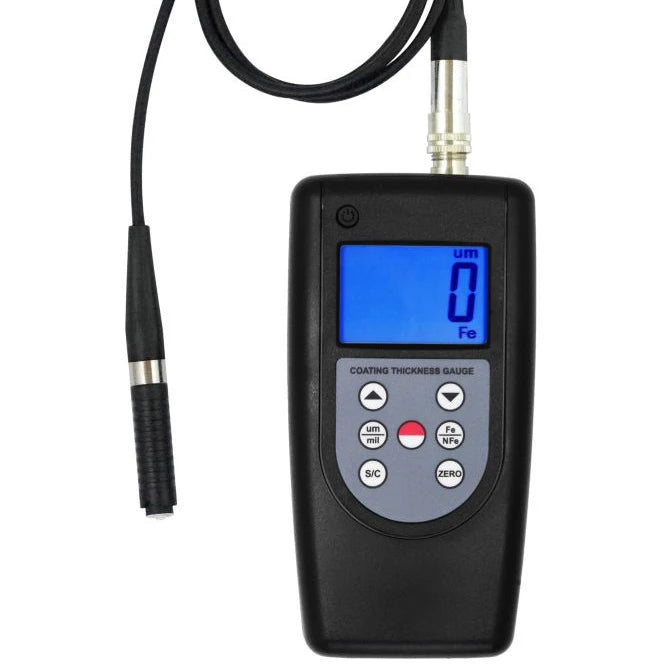

Micro Coating Thickness Meter
Model:CM-200N
Product Description
* Specially for the thickness measurement of coating on small workpiece.
* Measuring methods: eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “BT ™ data output” choice.
* Separate Type, measurements can be more flexibility.
| Operating Principle | Magnetic Induction (F) |
| Measuring Range | 0~200 um / 0~8 mil |
| Resolution | 0.1 um |
| Min. Radius Workpiece | convex 2 mm / concave 4 mm |
| Min. Measuring Area | 2 mm |
| Min. Sample Thickness | 0.1 mm |
| Accuracy | ± 1~3%n or ± 2.5 um |
| Auto Power Off | |
| Metric / Imperial | Convertible |
| Battery Indicator | Low Battery Indicator |
| Operating Conditions | Temp. 0~40 °C, Humidity: 10~90 %RH |

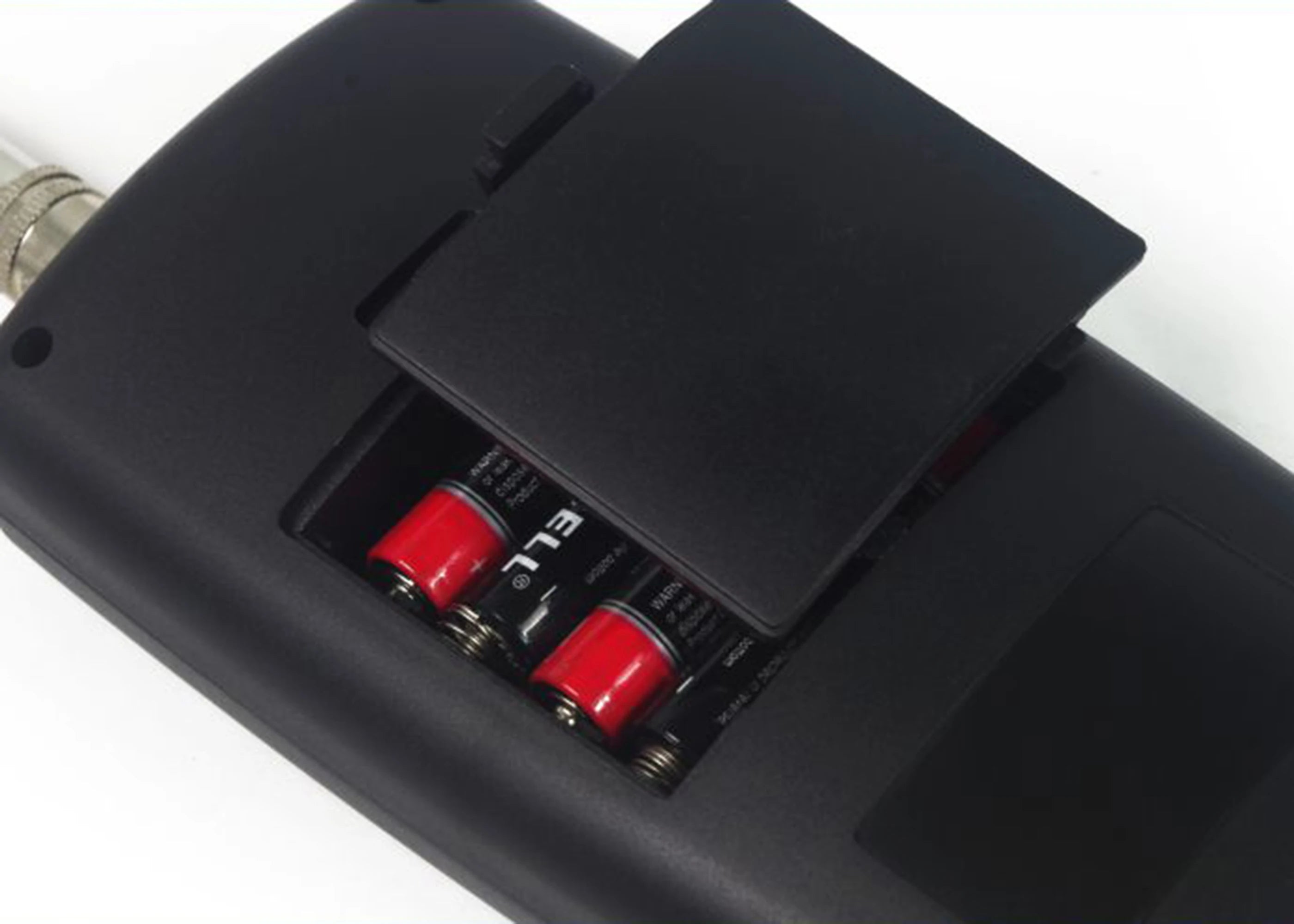

| Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch ) |
| Weight | 215 g (Not Including Batteries) |

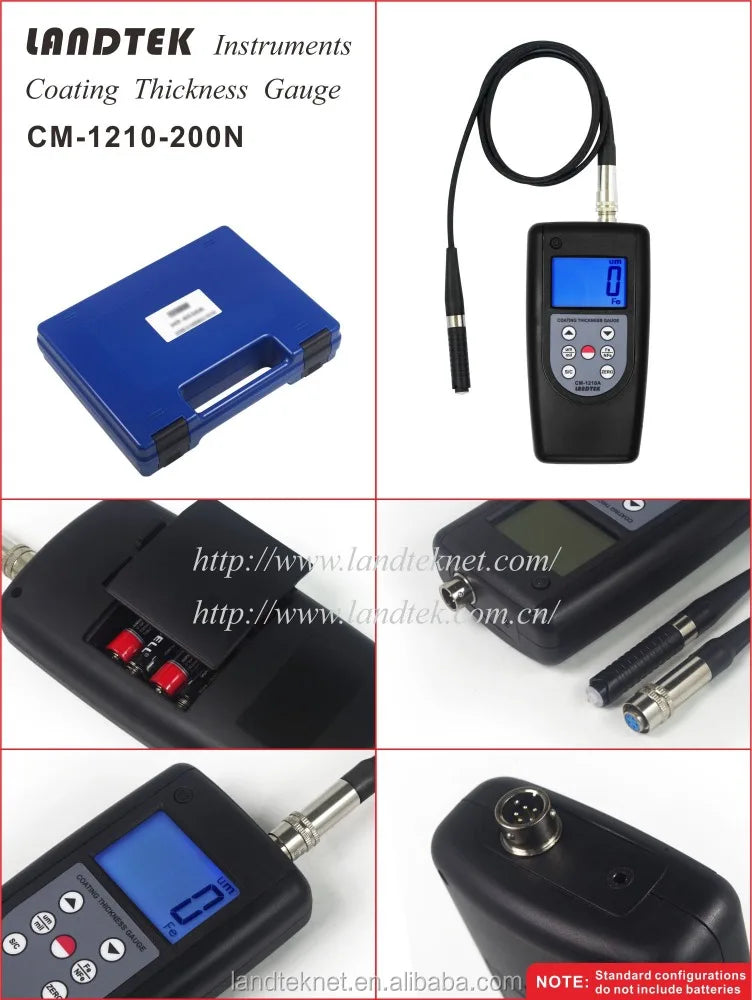

Standard Accessories:
1. Main Unit
2. Probe (F Type)
3. Calibration Base Set (F Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
1. USB, RS-232C data cable with software
2. BT data out put with software
2. BT data out put with software
Packaging & Shipping
1 unit is 1kg. carton size: 26*26*8.5cm
20pcs is 14.5kg. carton size: 45*28*57cm
Our Services
More than one Year after service, supply service forever.

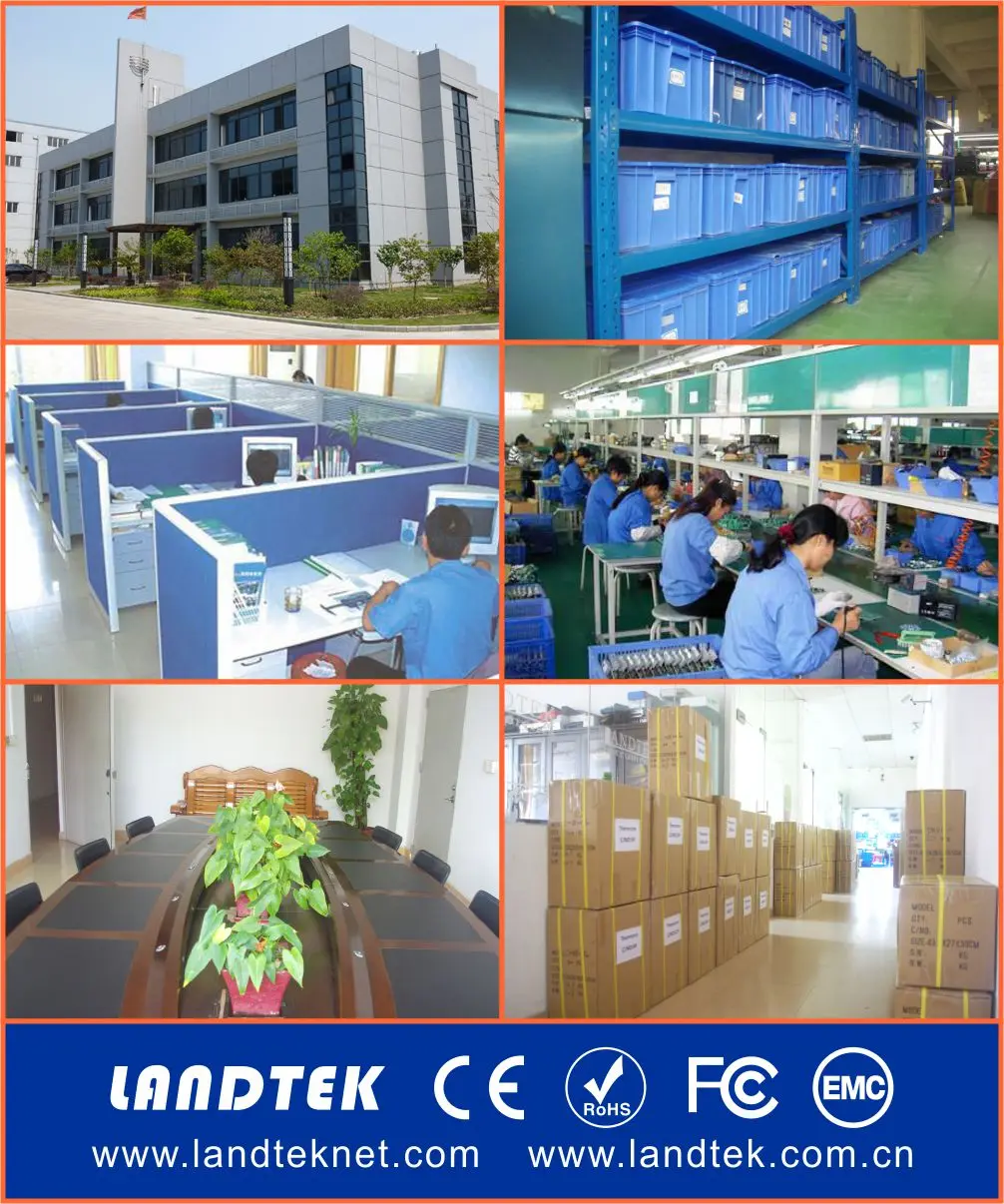

Company Information
