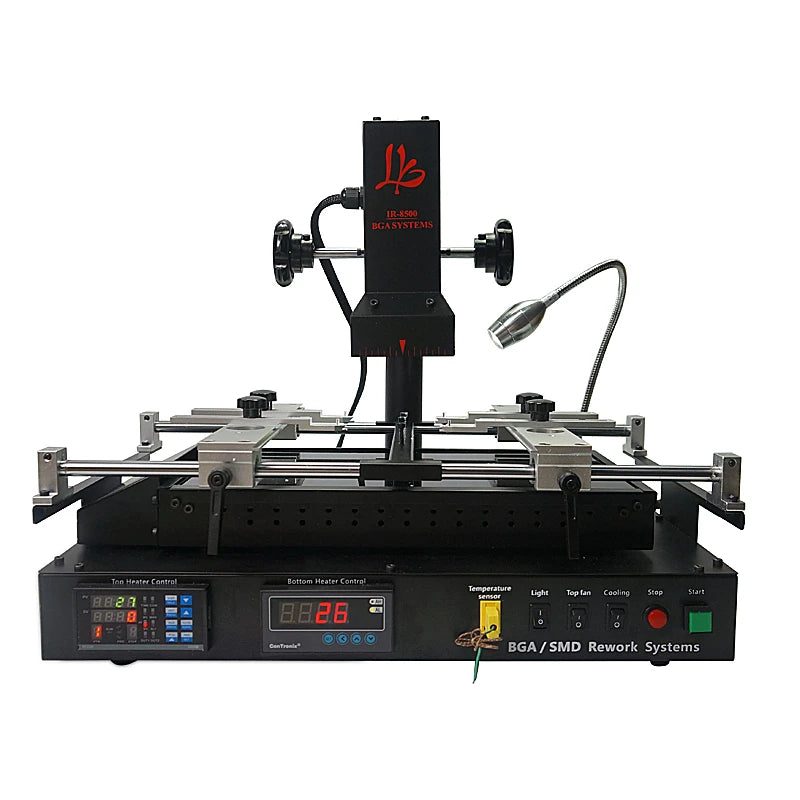

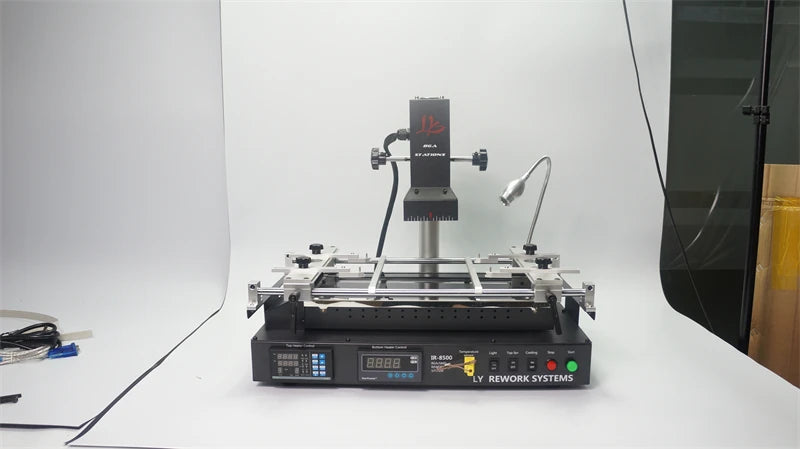

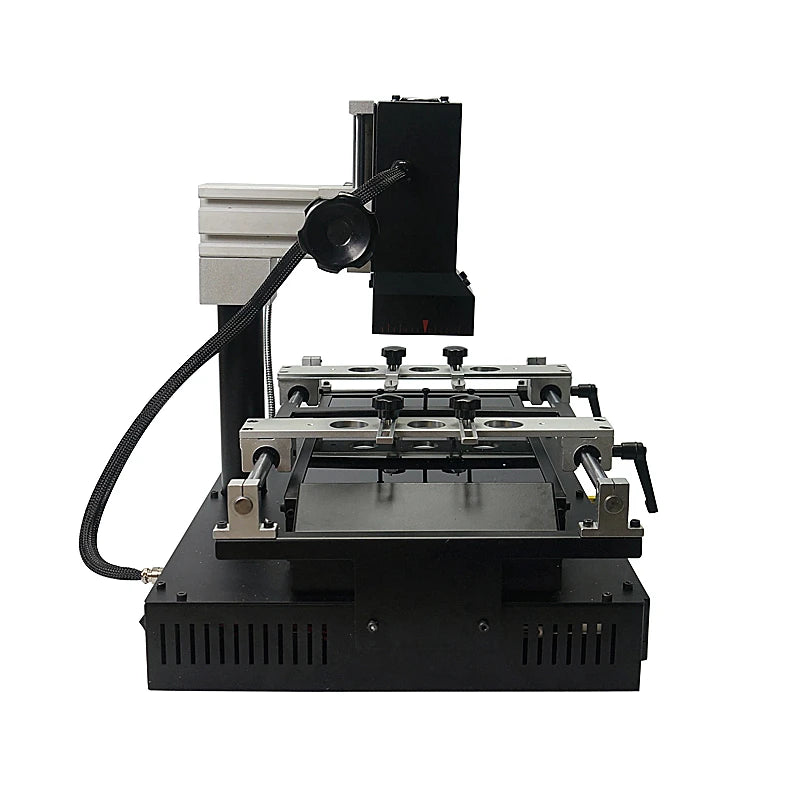

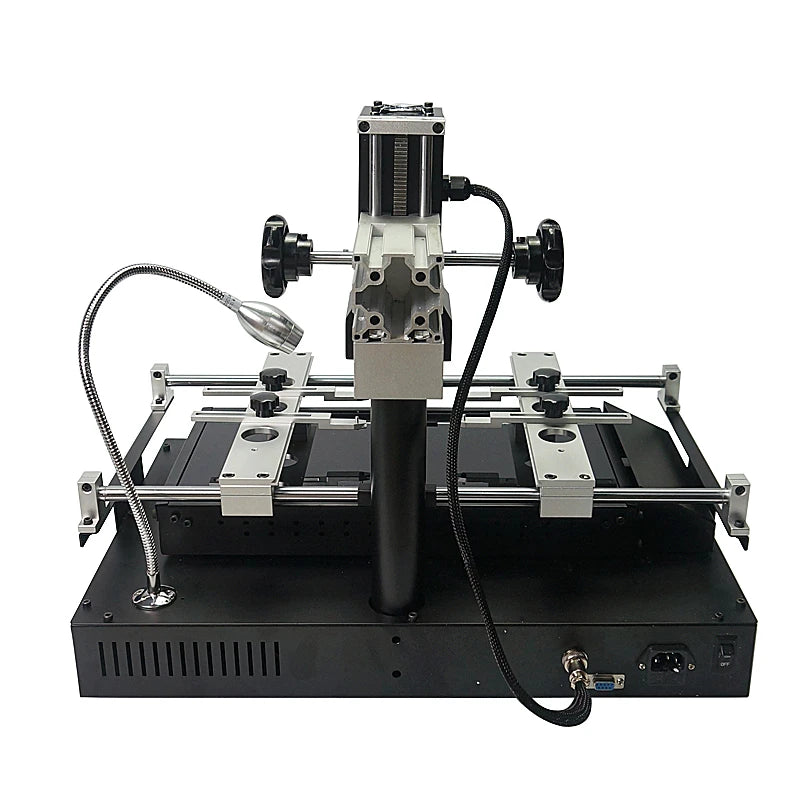

LY IR8500 BGA Rework Station 2 Zones Infrared 2050W Software Control IR Heating BGA Reballing Station 220V
LY IR8500
$818.40 USD
Passer aux informations sur le produit
LY IR8500 BGA Rework Station 2 Zones Infrared 2050W Software Control IR Heating BGA Reballing Station 220V
$818.40 USD
Expédition calculée lors du paiement.
SPECIFICATIONS
Consumption of Bottom heating: 1600W
Consumption of upper heating: 450W
General power: 2050W
Material: Stainless Steel

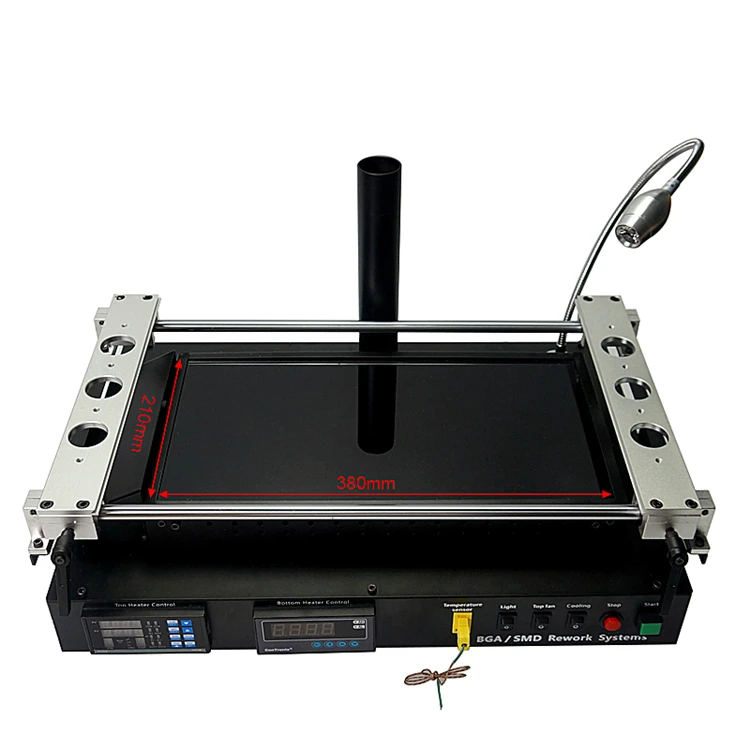

Size of Bottom heating: 400mm x200mm
Size of Upper heating: 80mm x 80mm
Size of applicable PCB: ≤400mm x305mm
Size of applicable chips: ≤70mm x70 mm
Type: Manual / Software
Welding Mode: IR
brand name: LY
condition: New
dimensions: 78*45*26 cm
machine type: BGA Rework Station
max.input power: 2050W
place of origin: Guangdong, China
rated capacity: 2050W
usage: BGA rework for electronic motherboards
voltage: 220V AC
warranty: 1 Year
weight (kg): 18
LY IR8500 BGA Rework Station 2 Zones Infrared 2050W Software Control IR Heating BGA Reballing Station 220V
Product Feature
CE Certification
can be connected to a computer
8 constant temperature segments
It can easily rework the variety of CPU's seat
Video:
https://www.youtube.com/watch?v=8wTTk9LEnf8&feature=youtu.be
This is economic BGA model,substitute of IR-PRO-SC,if do small motherboard,can choose IR6500,if do big board,can choose IR8500.
1.CE Certification
2.LY IR8500 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
3.LY IR8500 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of air flow. will lead an inaccurate of temperature control can easily deal with lead-free soldering rework.
4.It can set up 8 rising temperature segments and 8 constant temperature segments to control. It can save 10 groups of temperature curves at one time.
5.It sensitive temperature measurement sensor to obtain an accurate and instantaneous temperature reading and monitoring.
6.The BGA rework station the technology of closed-loop temperature control ensures accurate temperature process and even heat distribution.
7.Machine overall system integration Design, Rework station more integrated workbench area occupied by smaller, Didn't mixed and disorderly of cables.
Product Introduction
LY IR8500 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
LY IR8500 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of air flow. will lead an inaccurate of temperature control can easily deal with lead-free soldering rework.

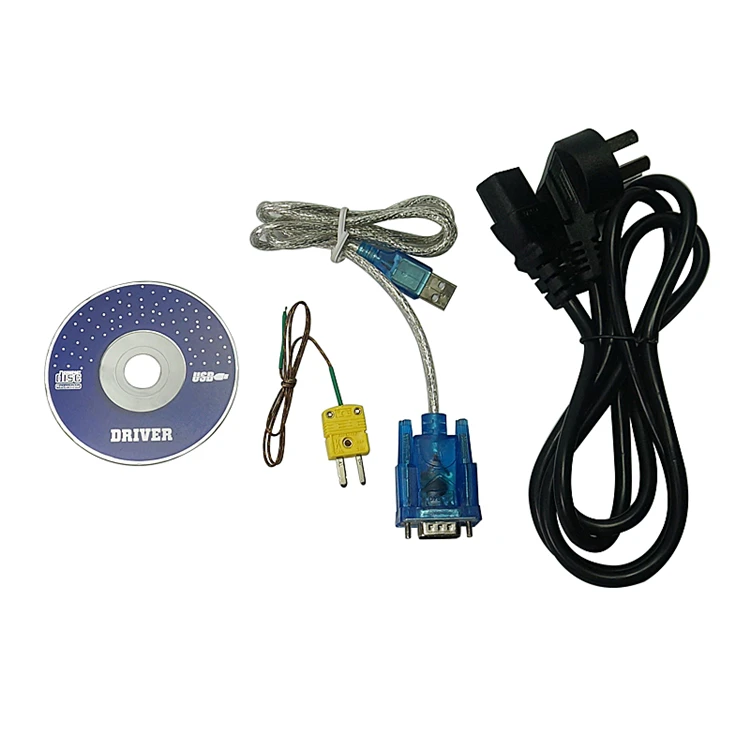

Packing list:
1× IR8500 BGA rework station

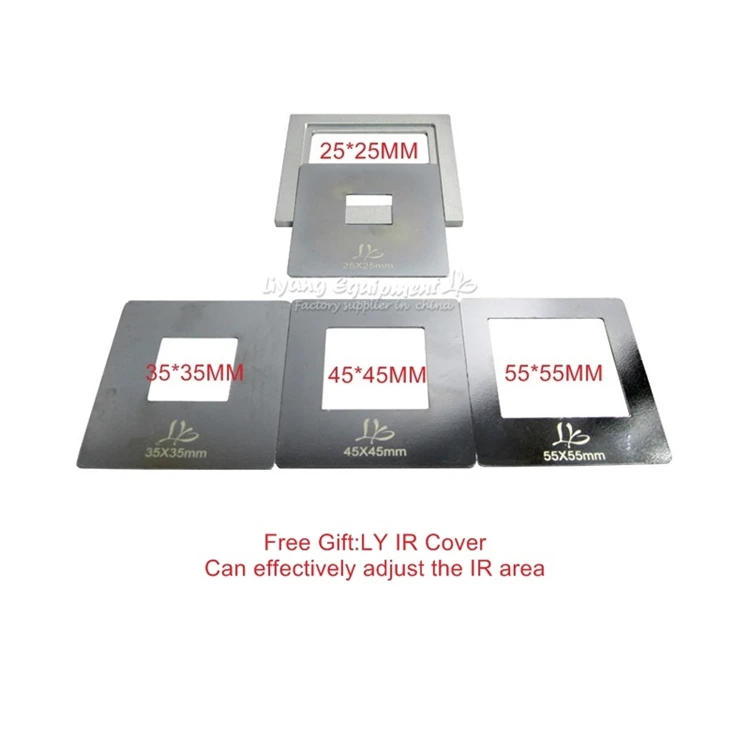

1x LY IR cover set
1× power cable
1× usb to rs232 port cable (with CD)
1× thermocouple
4x pcb jig with screw
1 x bottom support
1× CD of manual and software (if not get, may be lost in customs, please contact us)
Technical Parameters
|
Basic Parameters |
|
|
Zones |
2 |
|
Heating |
IR |
|
Operations |
|
|
Dimension |
L780mmx W450mmx H260mm |
|
Weight |
18kg |
|
Total weight |
About 21 kg, vary with the different need of the users |
|
Electrical Parameters |
|
|
Power |
|
|

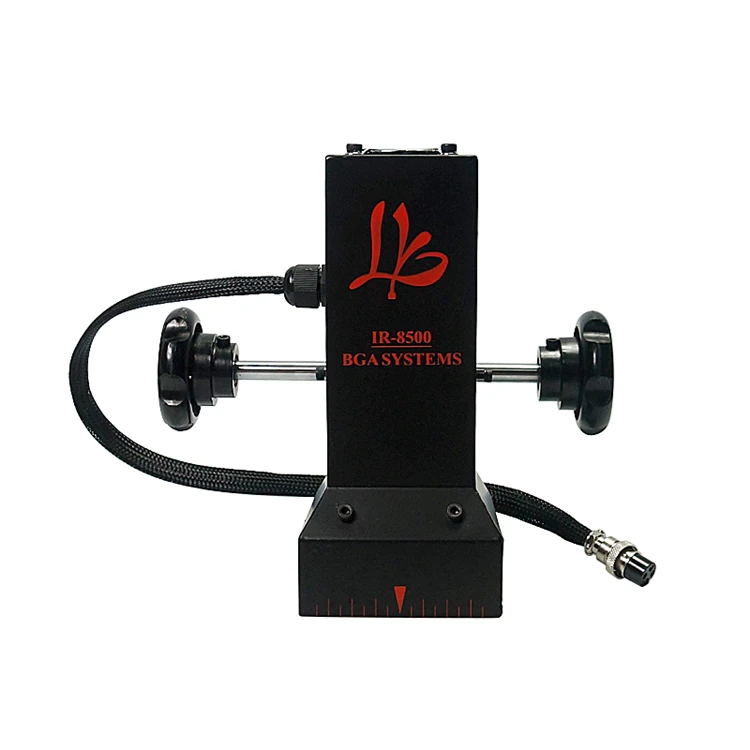

Upper Heating |
IR |
|

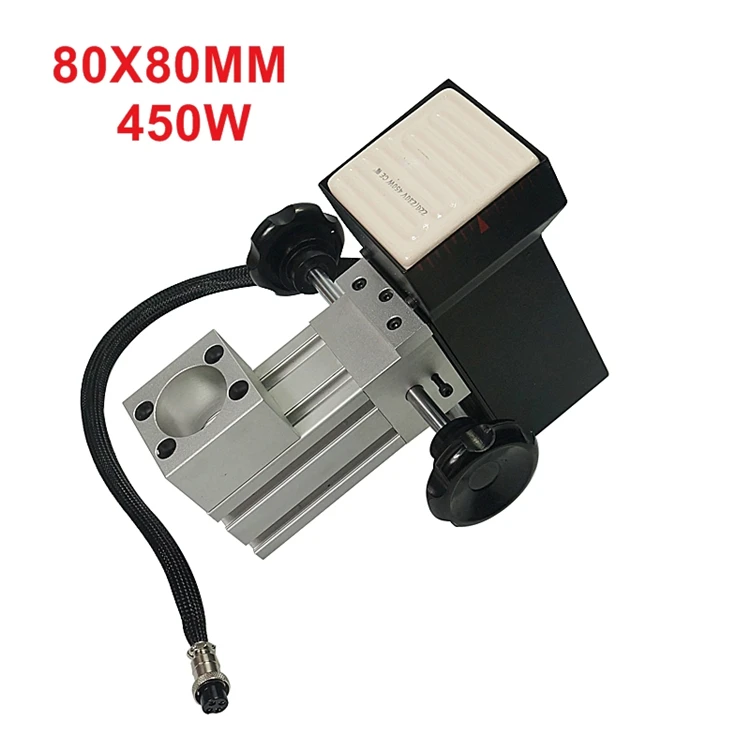

Size of Upper heating |
80mm x 80mm |
|
Consumption of upper heating |
450W |
|
Bottom Heating |
IR |
|
Size of Bottom heating |
400mm x200mm |
|
Consumption of Bottom heating |
1600W |
|
General power |
2050W |
|

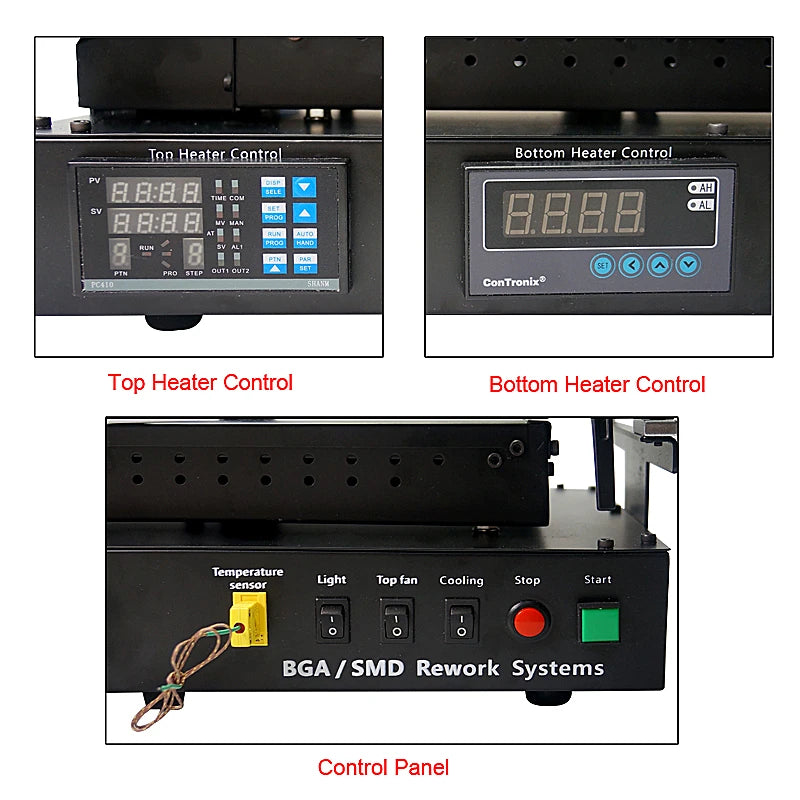

Temperature Control |
|
|
Control mode of Upper |
Independent temperature control, high-precision closed-loop |
|
control, precision ± 0.5%, Alarm |
|
|
Control mode of Bottom |
Independent temperature control, high-precision closed-loop |
|
control, precision ± 0.5%, NO Alarm |
|
|
Rework Function |
|
|
SMD |
Suit for welding, remove or repair packaged devices |
|
such as BGA,PBGA,CSP,multi-layer substrates, EMI |
|
|
metallic shield product and solder/lead free Rework welding |
|
|
Size of applicable chips |
≤70mm x70 mm |
|
Size of applicable PCB |
≤400mm x305mm |
How to use
Please refer to the CD of USER MANUAL and to see how to use
Please refer to the SETTING OF THE TEMPEATURE PARAMETERS MANUAL HERE and to see how to set temperature
