SPECIFICATIONS

Brand: KinCony

Operation System: ESP32

Product Type: Smart Switch Module

camera: No Camera

design: SLIDER

display type: OLED Displays

feature: Build in Flash

place of origin: Zhejiang, China

private mold: Yes

screen: < 2"

screen resolution: 128X128

use: Universal

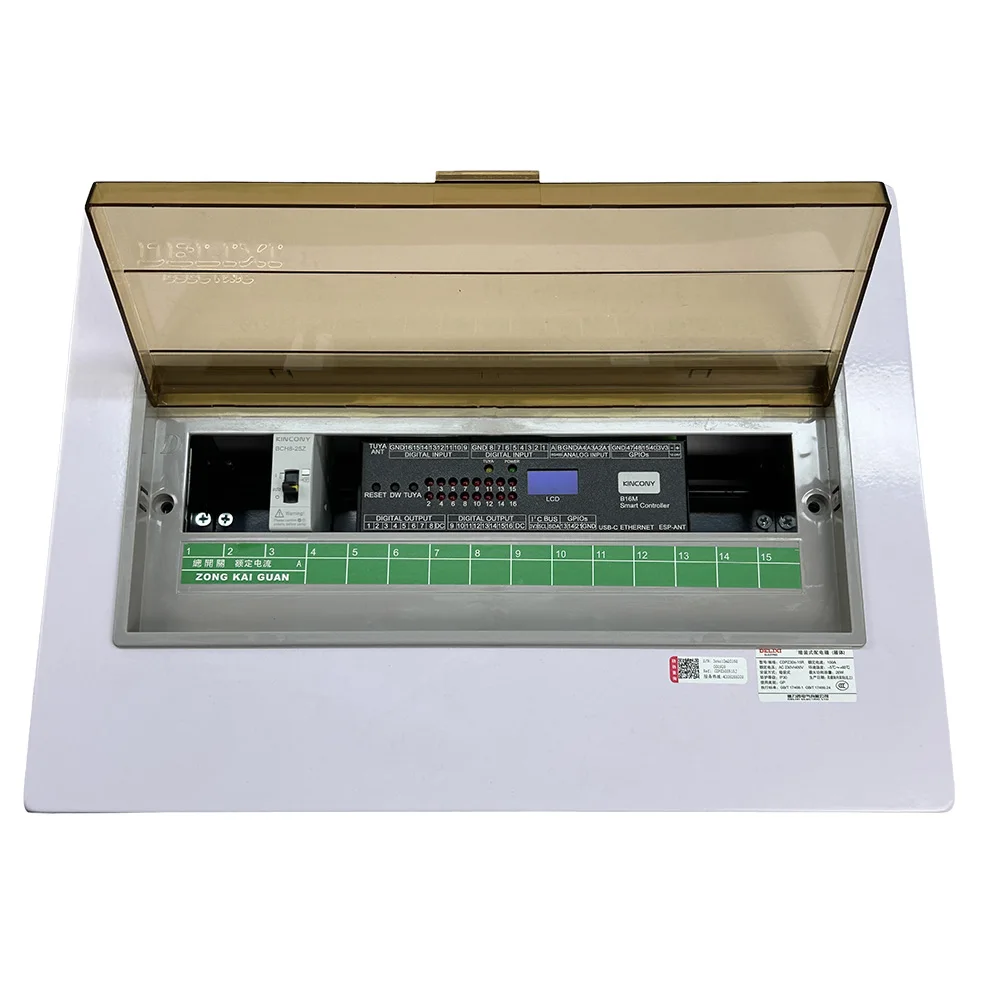

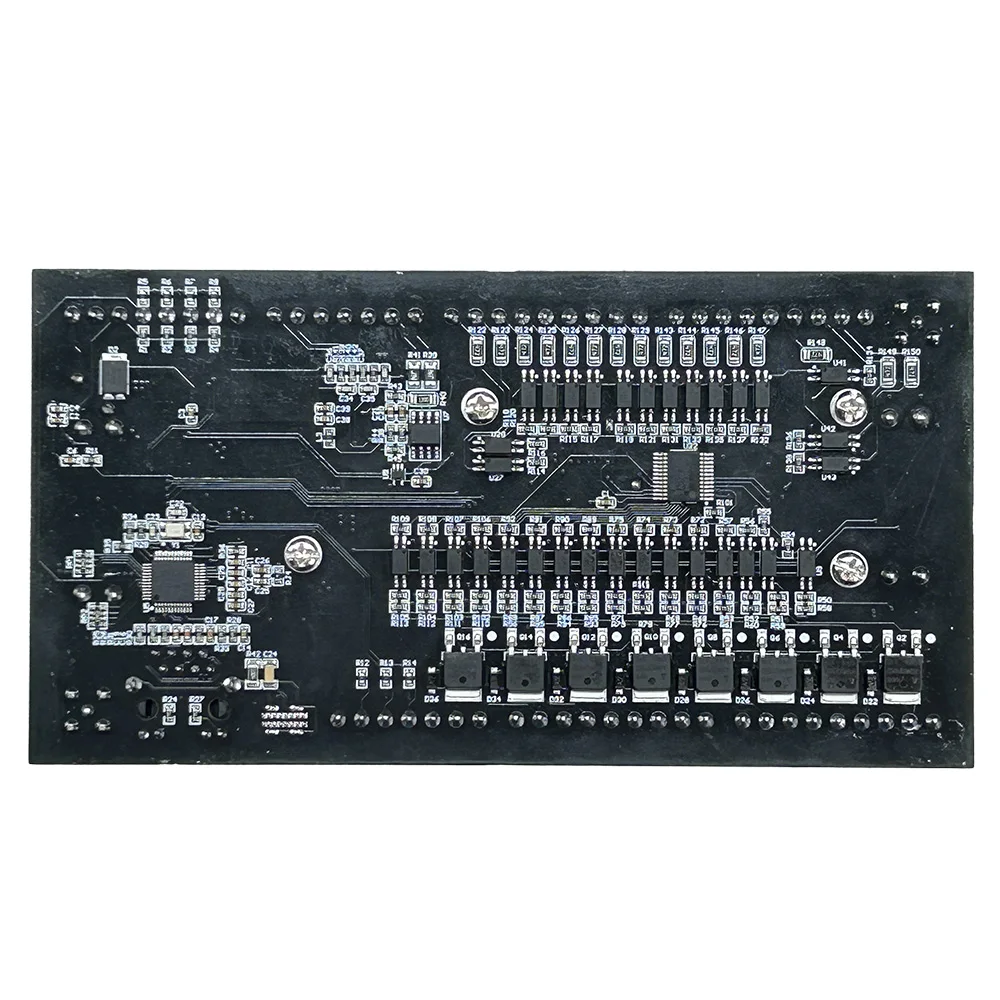

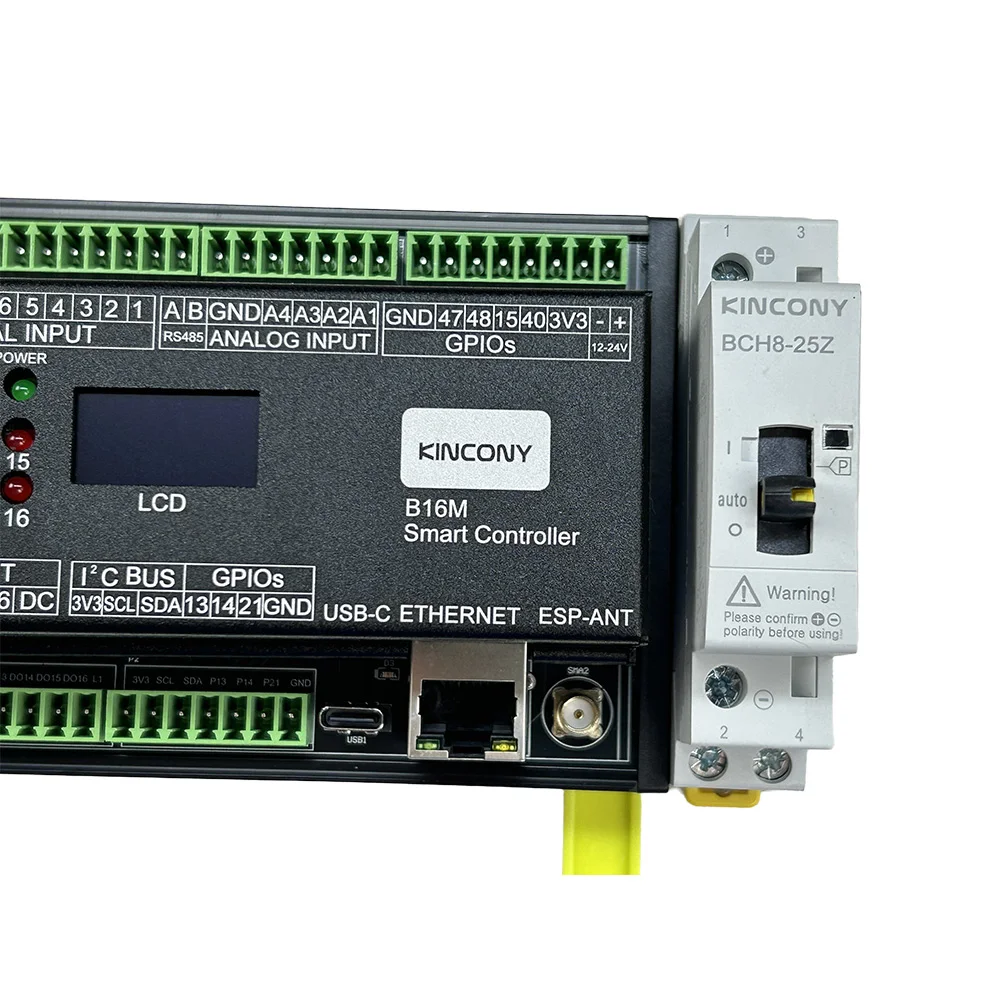

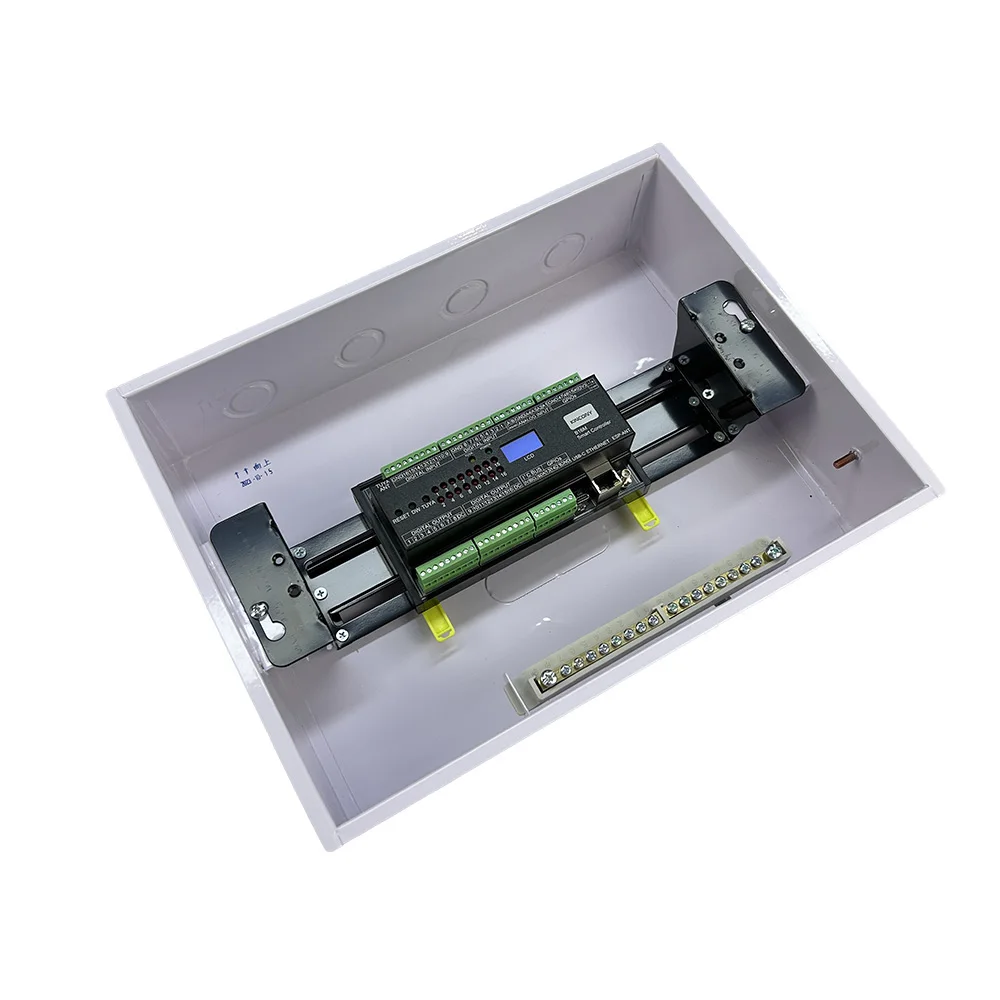

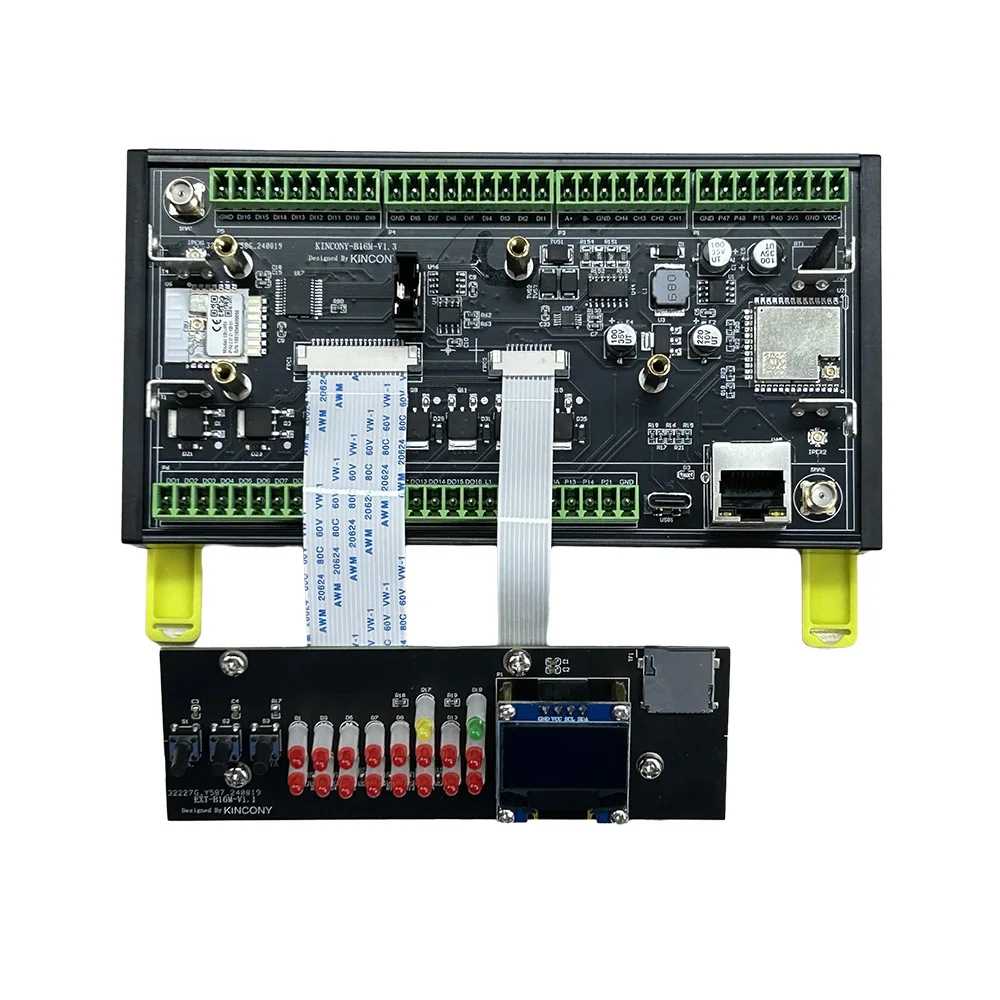

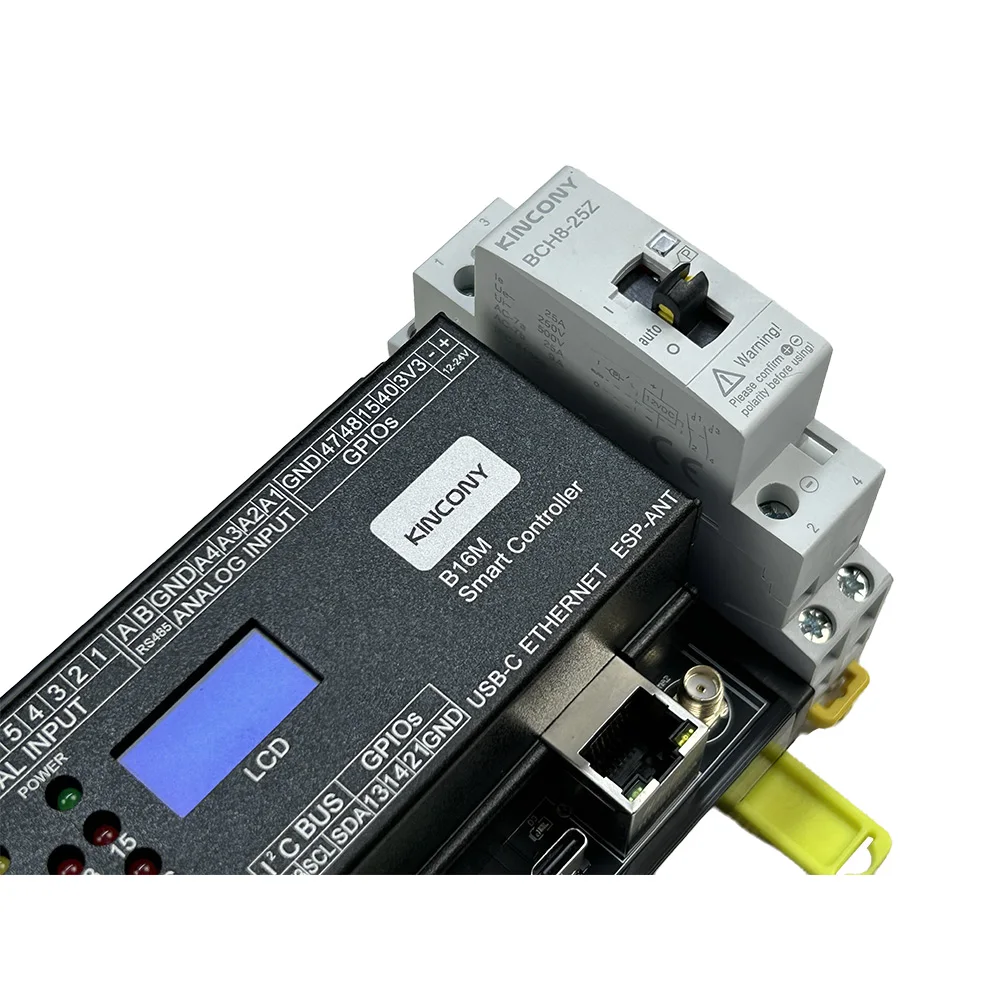

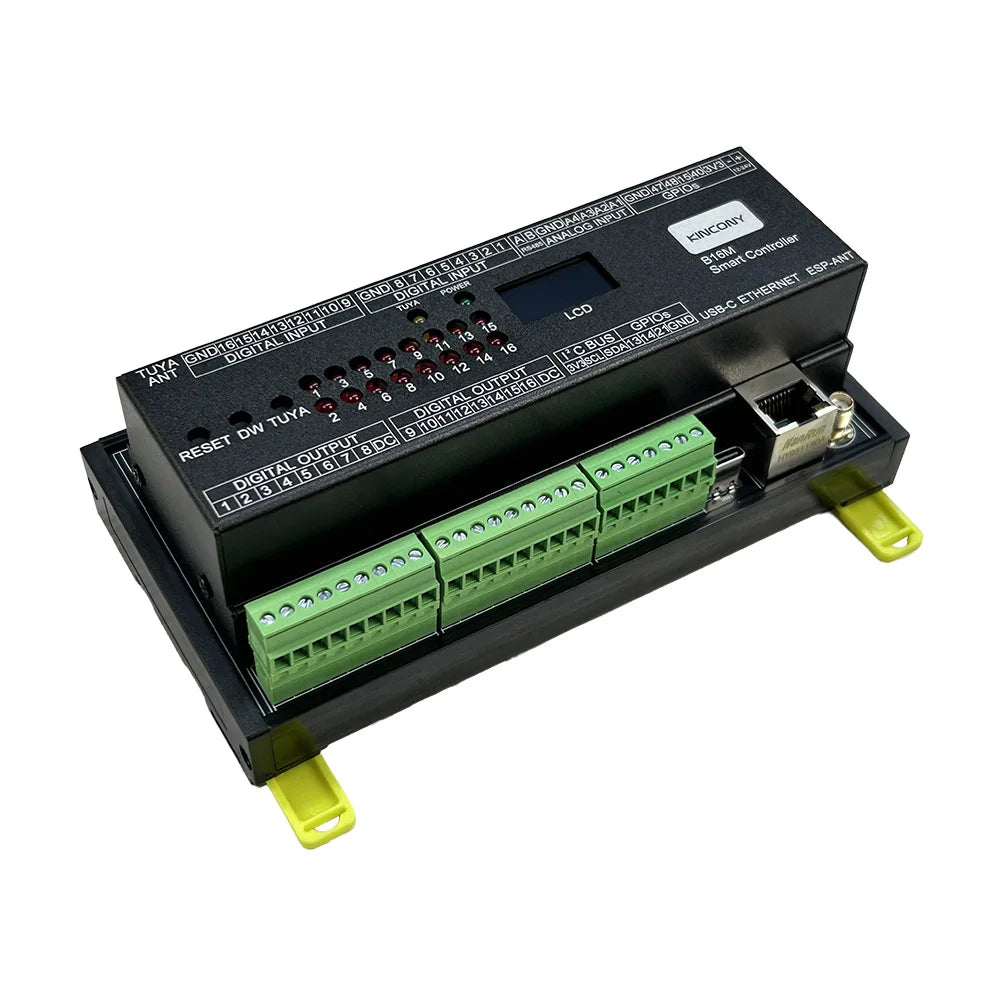

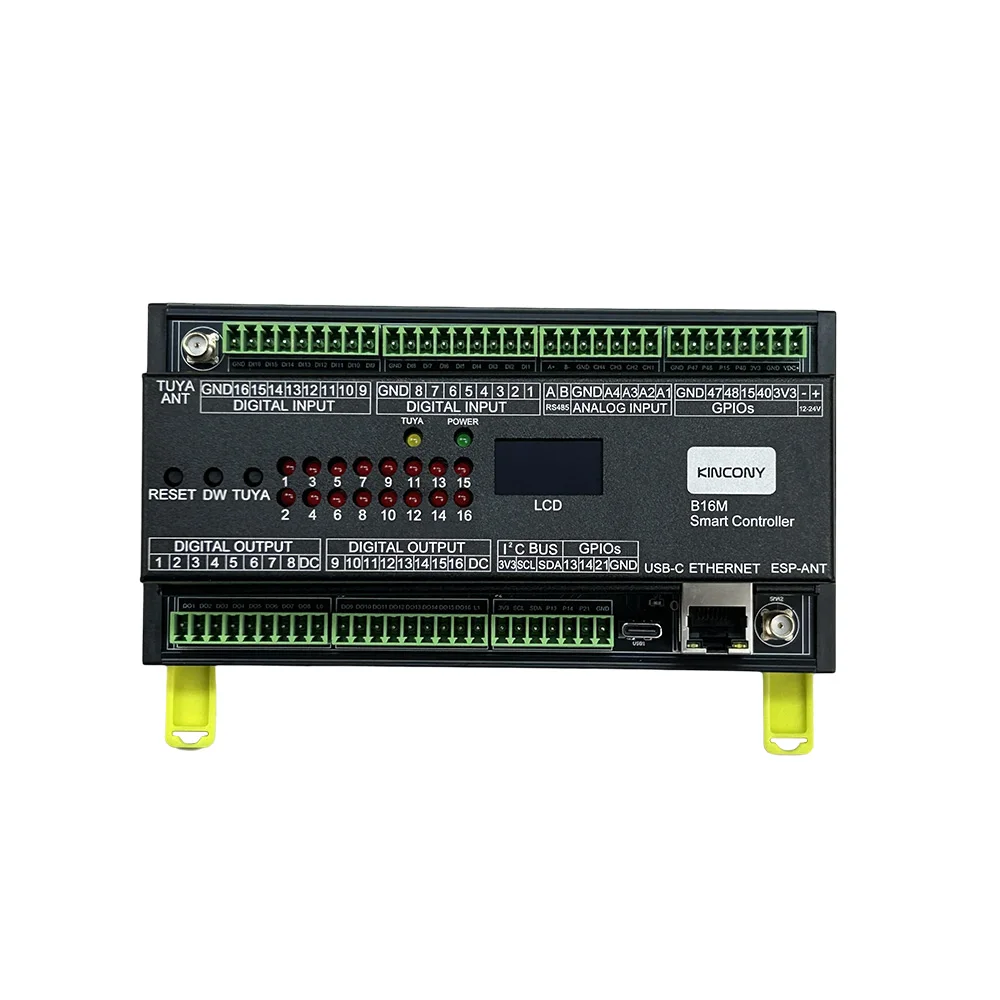

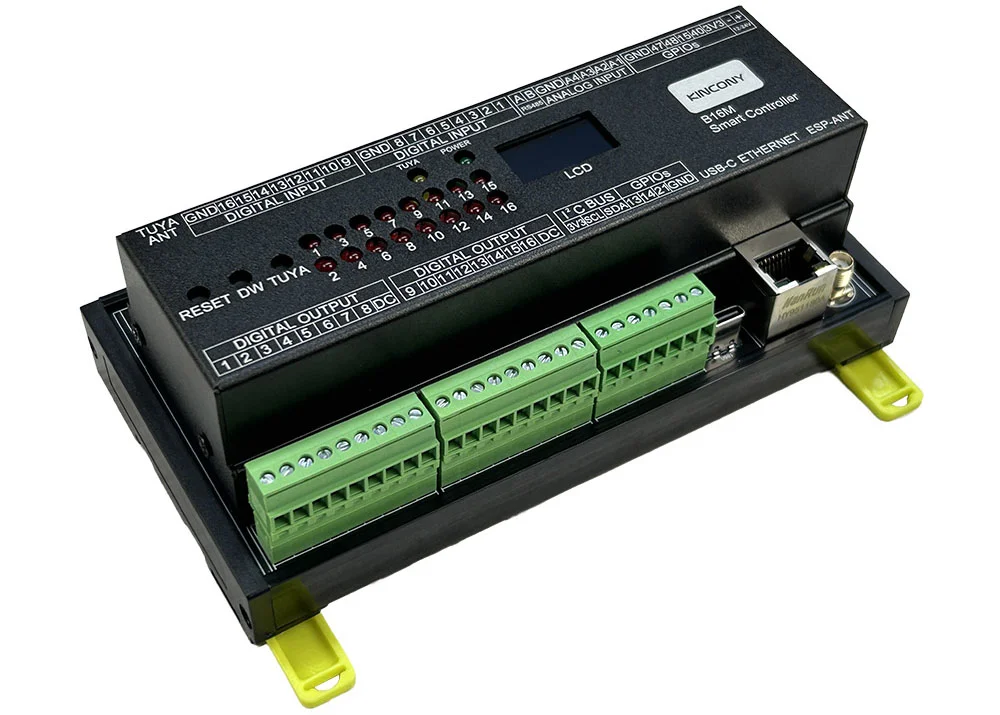

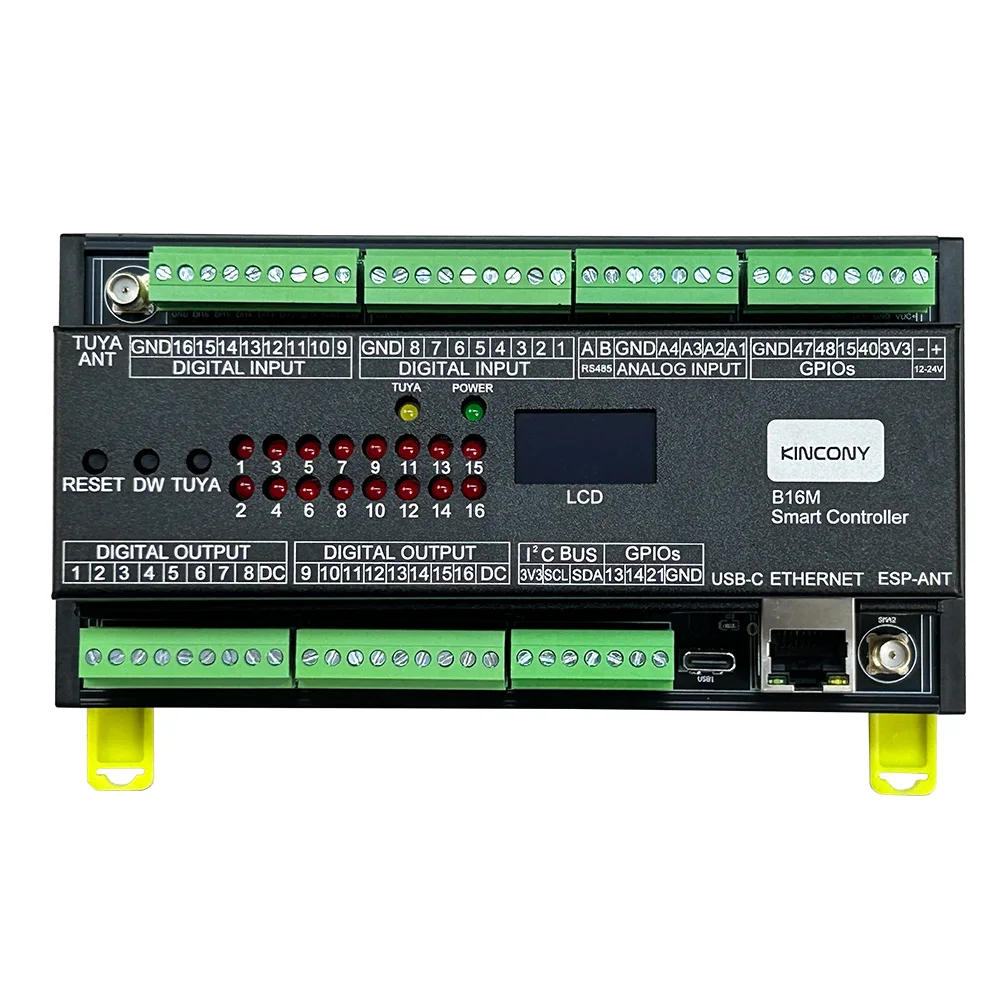

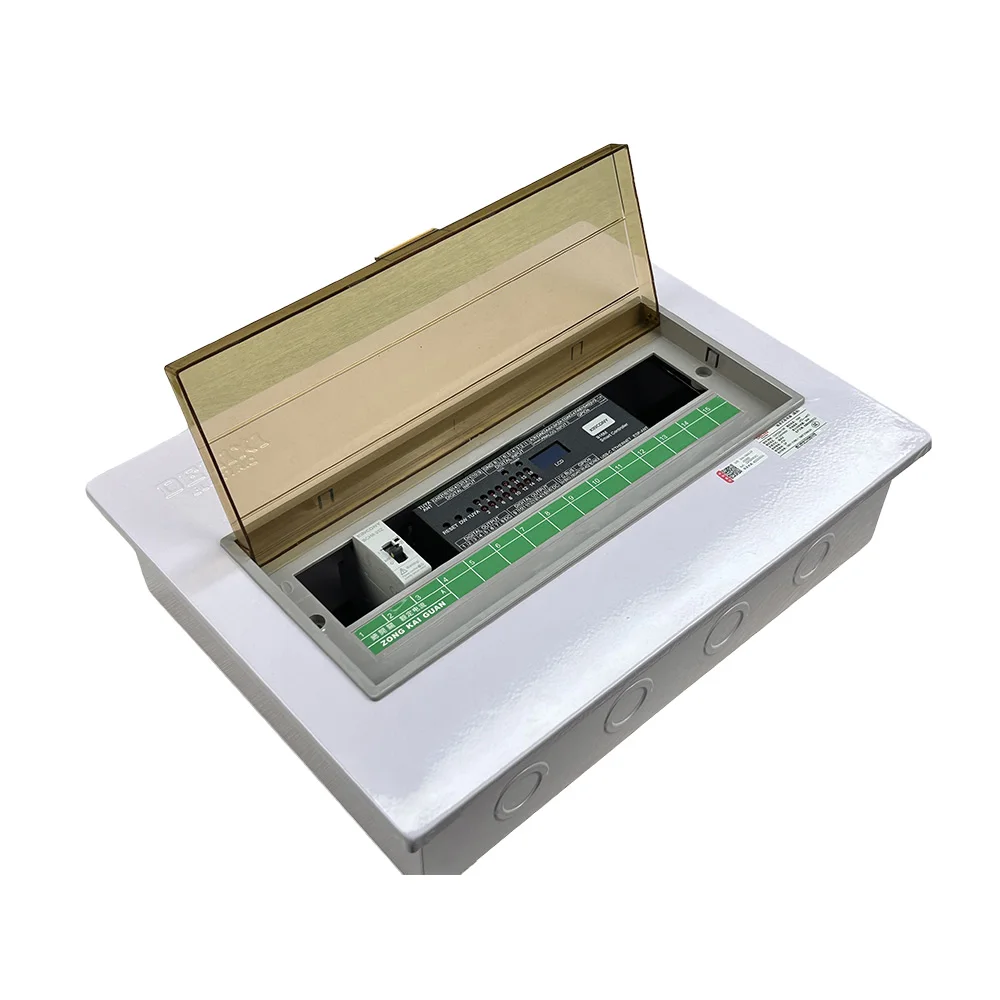

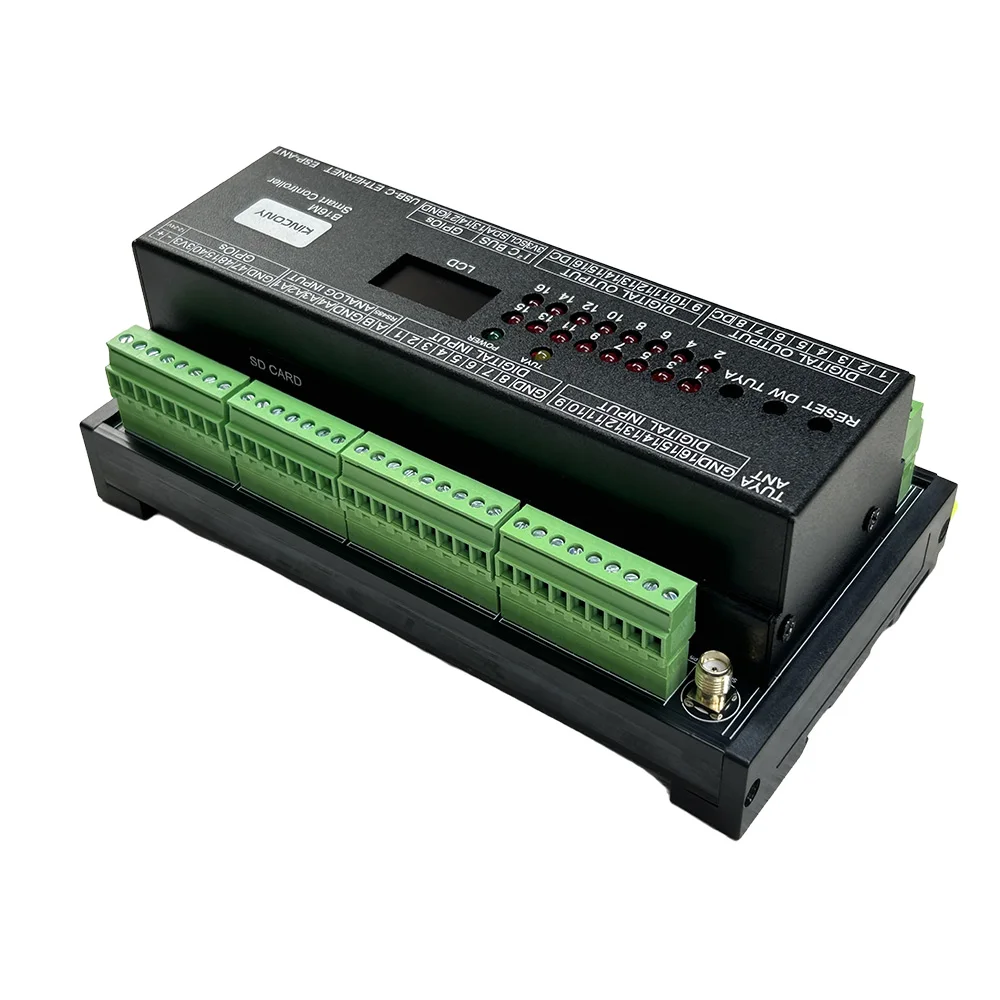

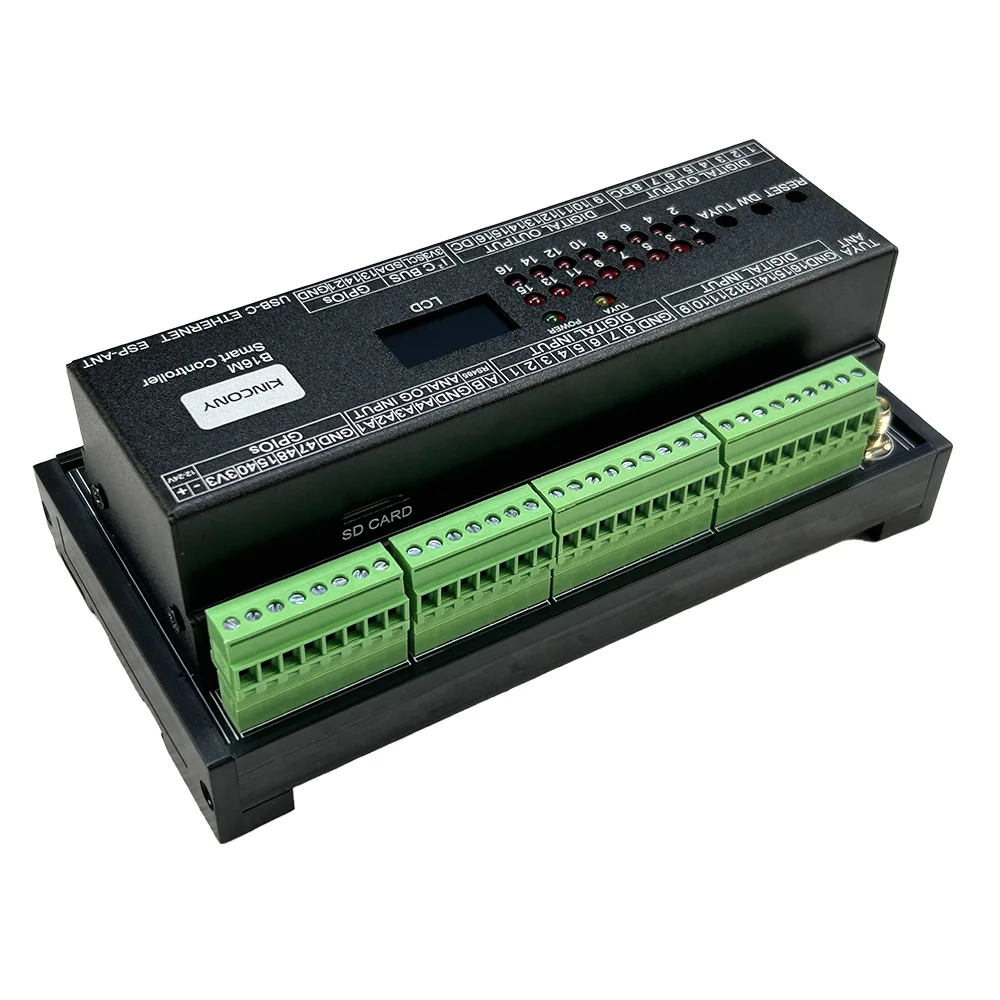

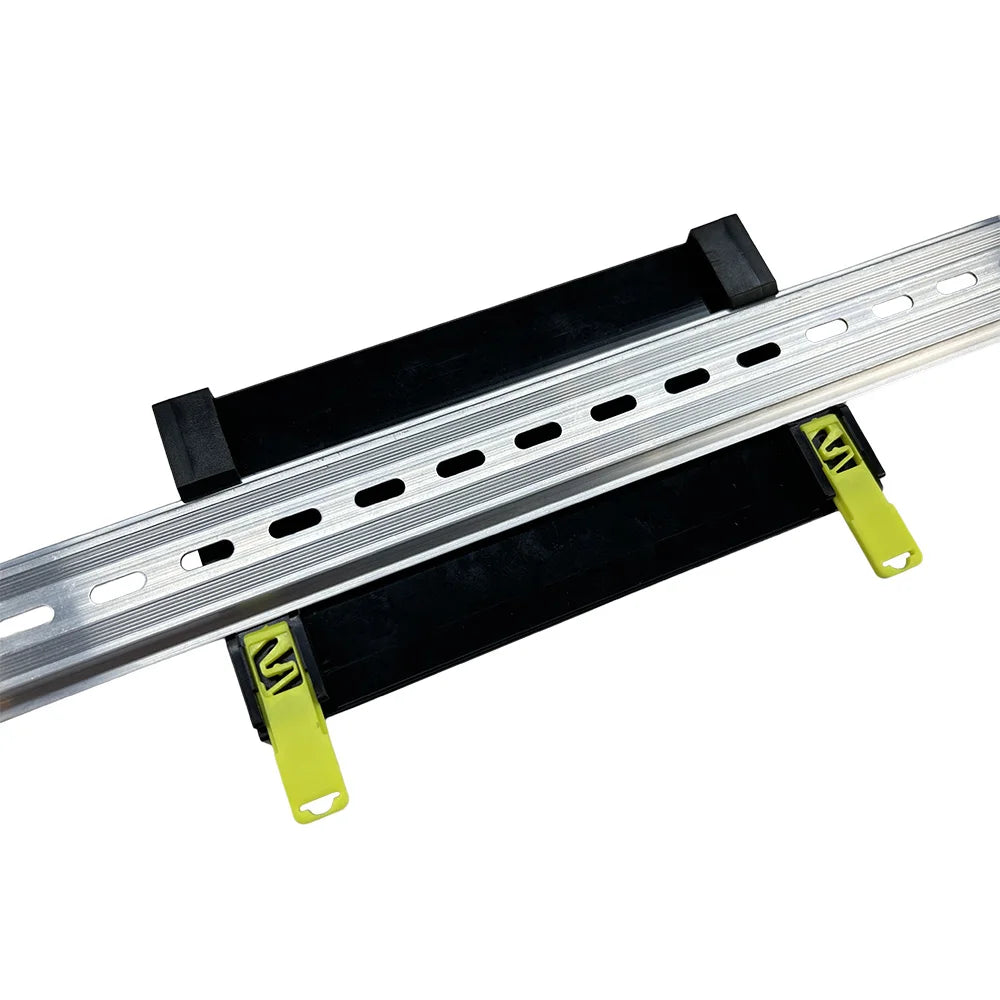

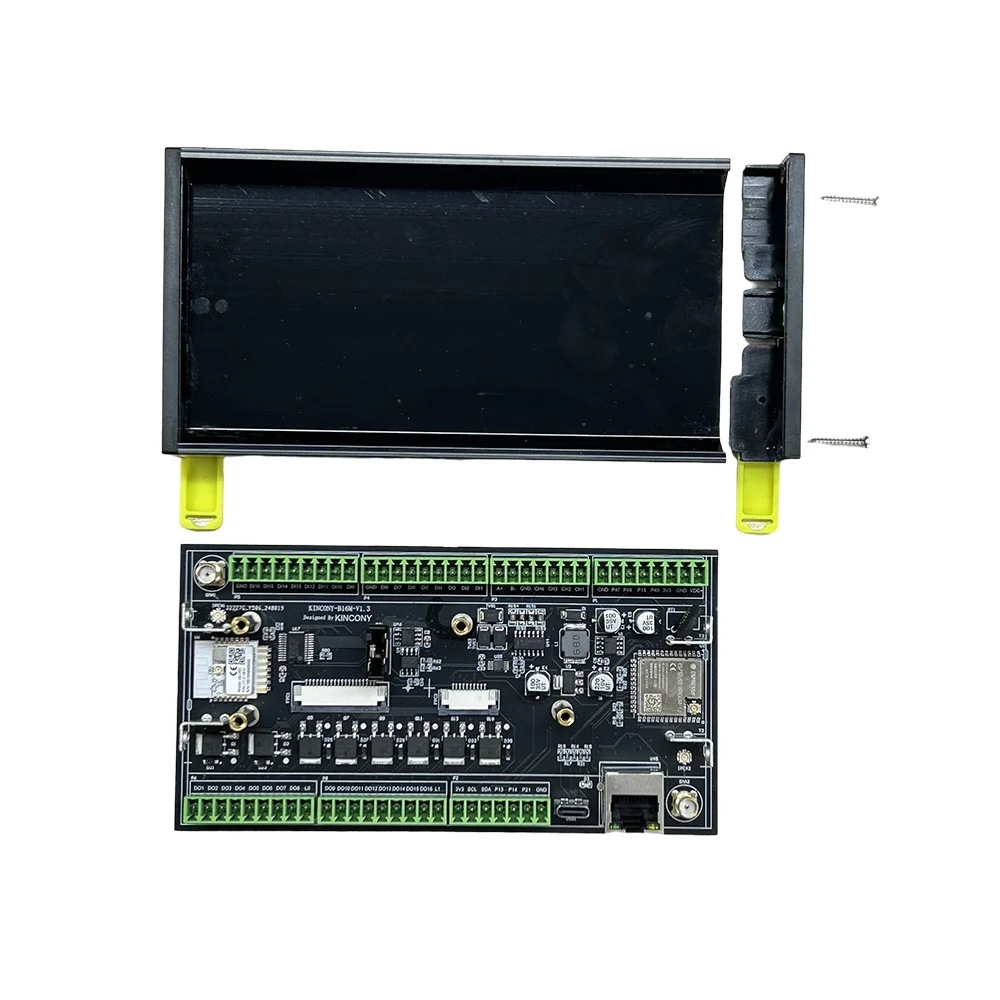

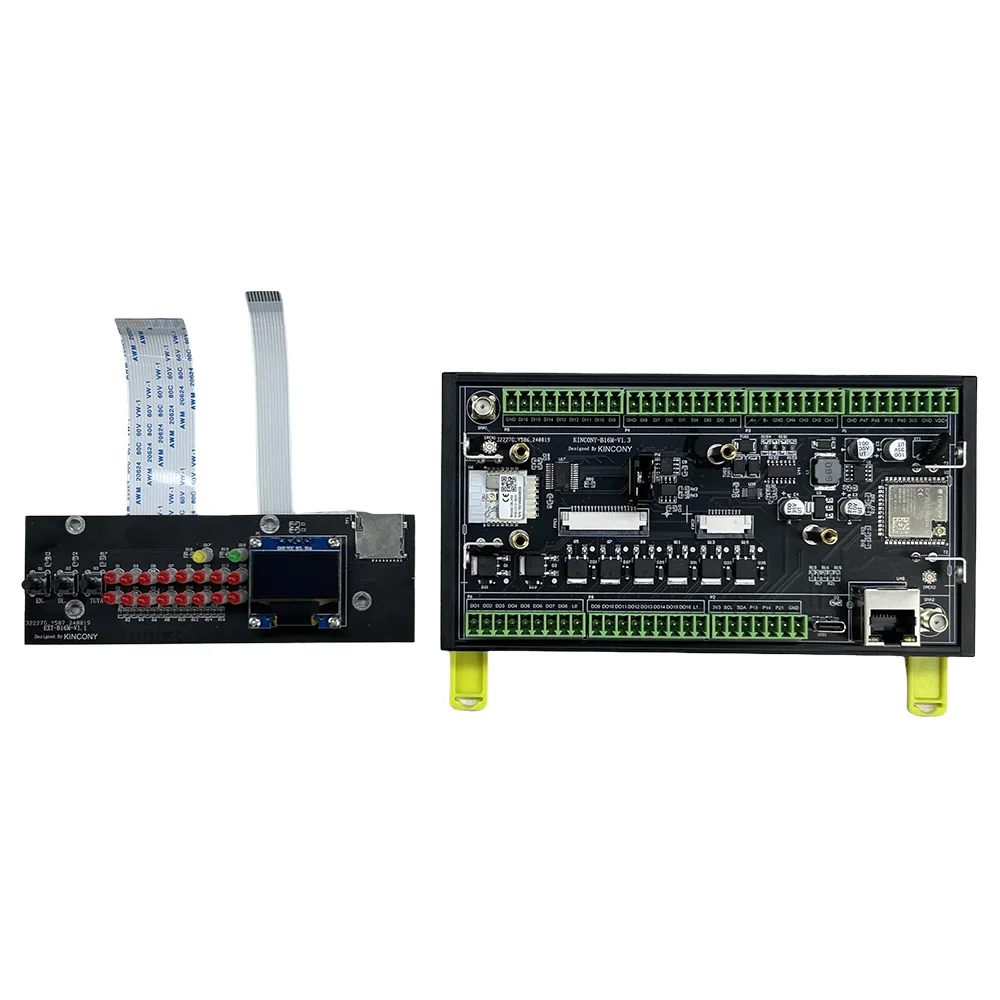

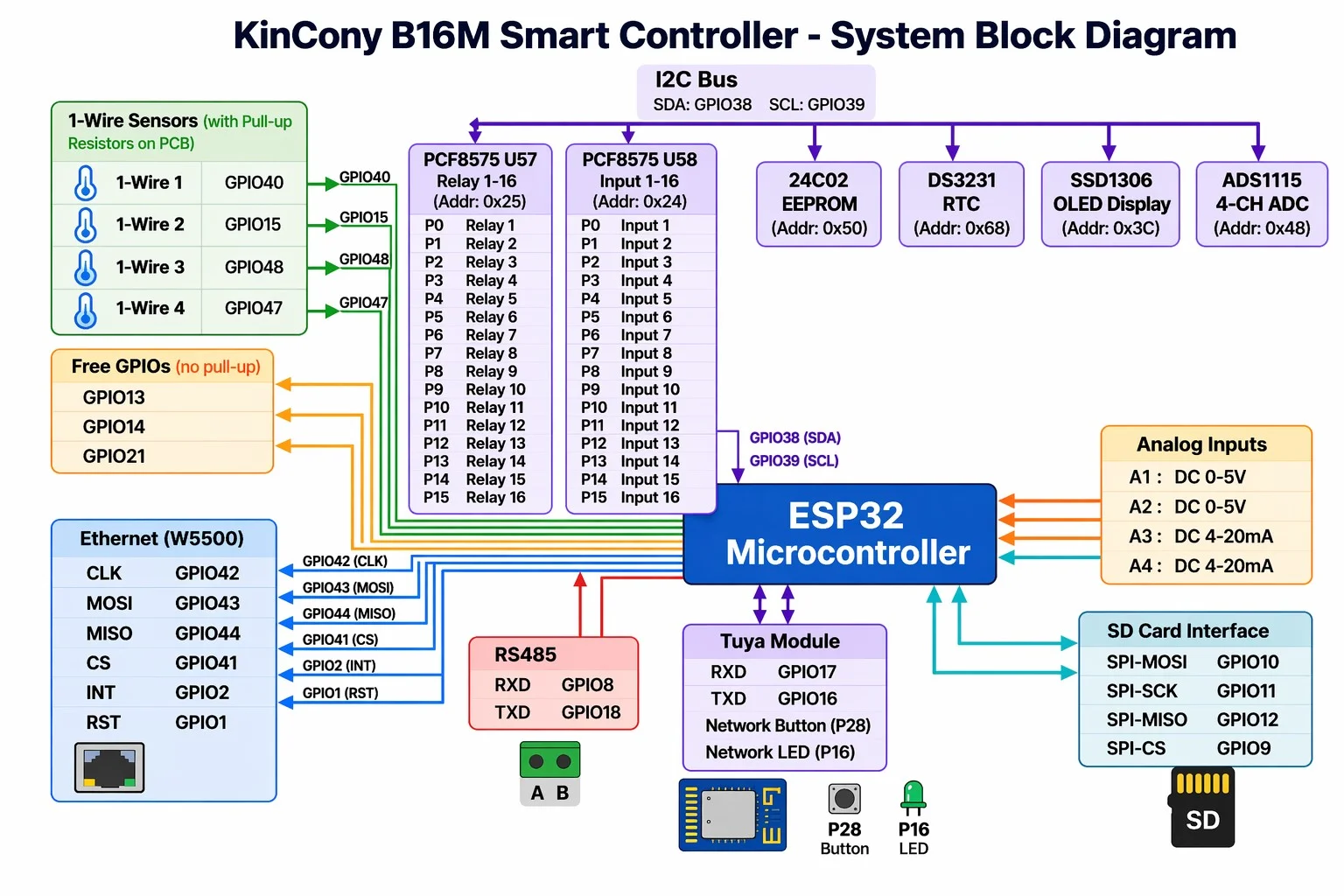

KinCony B16M ESP32 smart controller based on ESP32-S3-WROOM-1U (N16R8) wifi chip. Support 16 channel MOSFET output, 4 channel 1-wire GPIOs, 3 free GPIOs, 4 channel ADS1115 16bit analog input ports. One SD card using SPI bus. B16M include DS3231 high precision RTC clock chip. LCD display will show wifi and ethernet IP address and Tuya connection state. B16M have I2C bus extender and RS485 port.

You can write any code by Arduino IDE / MicroPython / ESP-IDF development tool to ESP32 module. We will supply Arduino / ESP-IDF demo code for different samples. Everyone can modify and change the code for your own smart home automation system project.

It support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY. B16M use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant. B16M support Apple HomeKit, easy to use directly. Support save state LOG to SD Card. It use by local RTC clock, use timer work without internet. B16M support to use KinCony cloud server service, so that you can remote control and monitor your device by internet using mobile phone or computer web browser. note: (buy from Alibaba KinCony Official Shop have KinCony cloud server 2 years free)

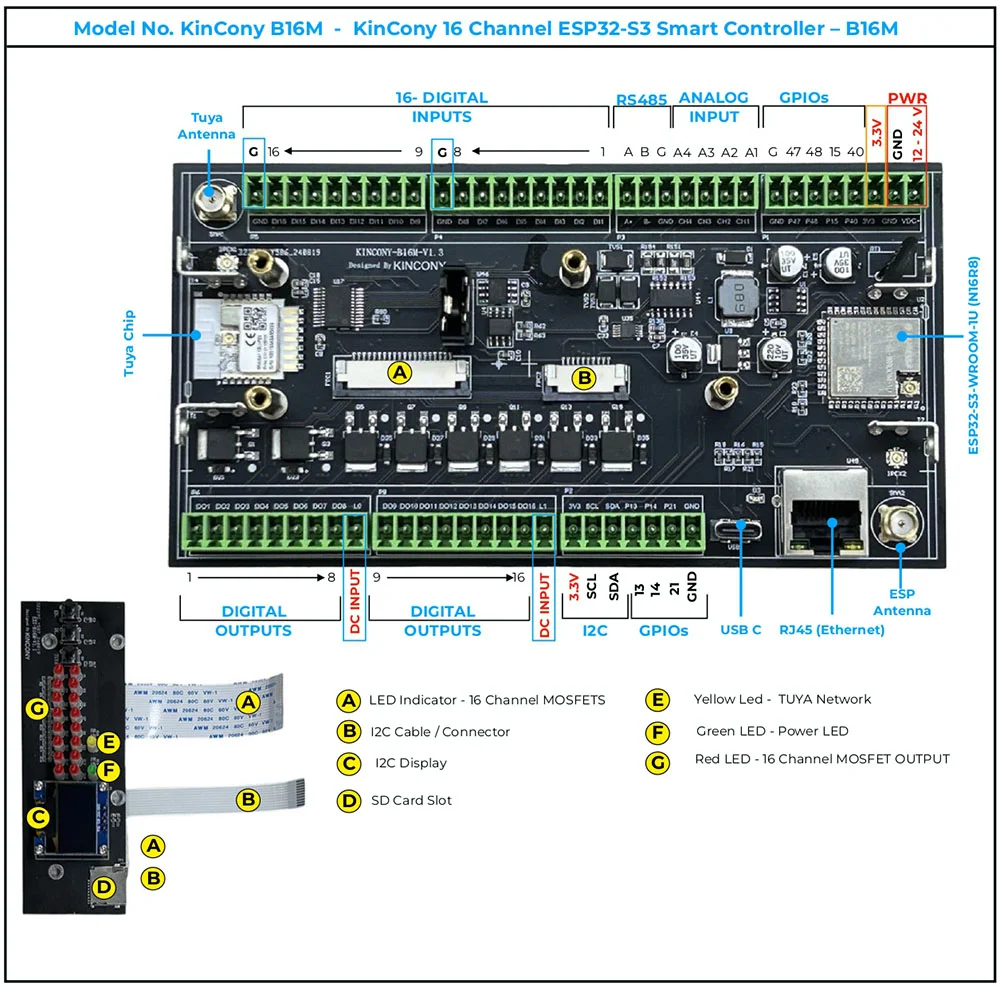

Model No. KinCony B16M

Outputs:
16CH MOSFET Outputs, every channel use MAX 10A driver IC

Inputs:
ADS1115 16bit ADC: 2CH analog input DC0-5V (A1,A2) 2CH analog input 4-20mA (A3,A4)
16CH dry contact inputs (optocoupler isolation, long distance circuit for MAX 500 meters cable)

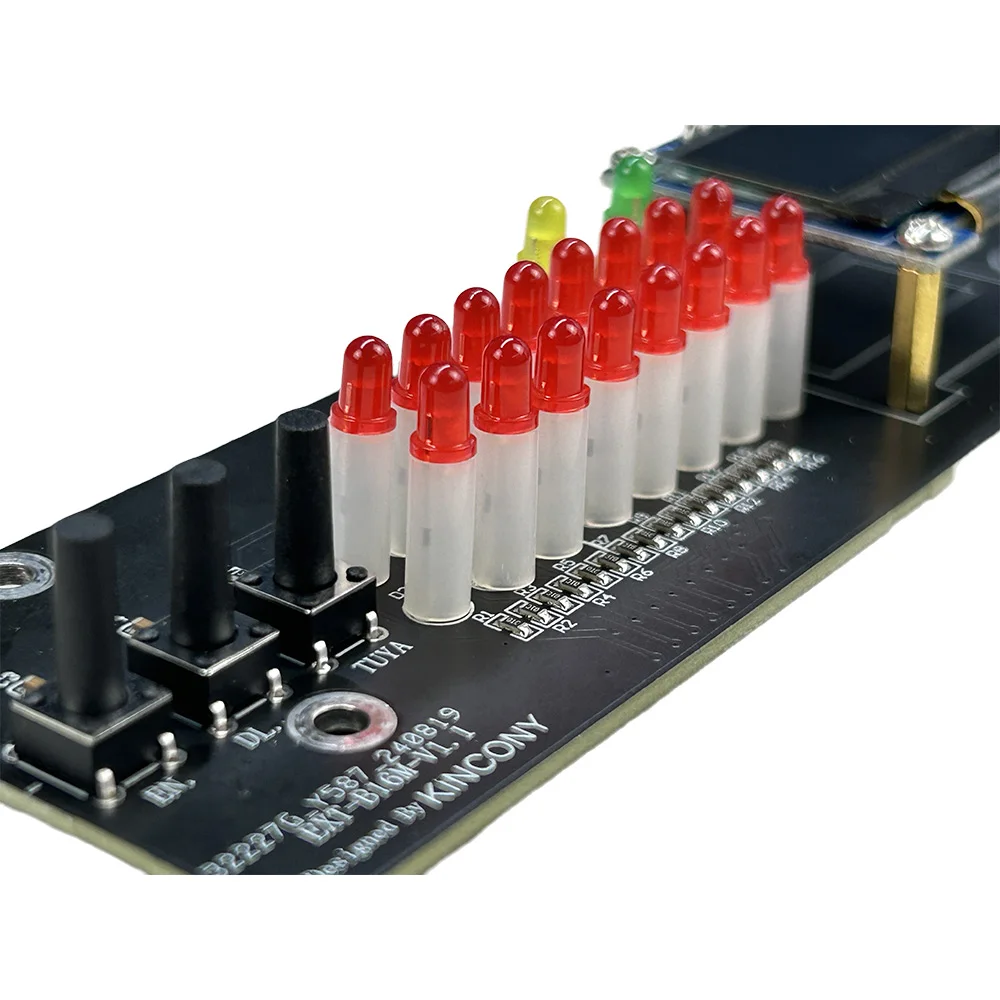

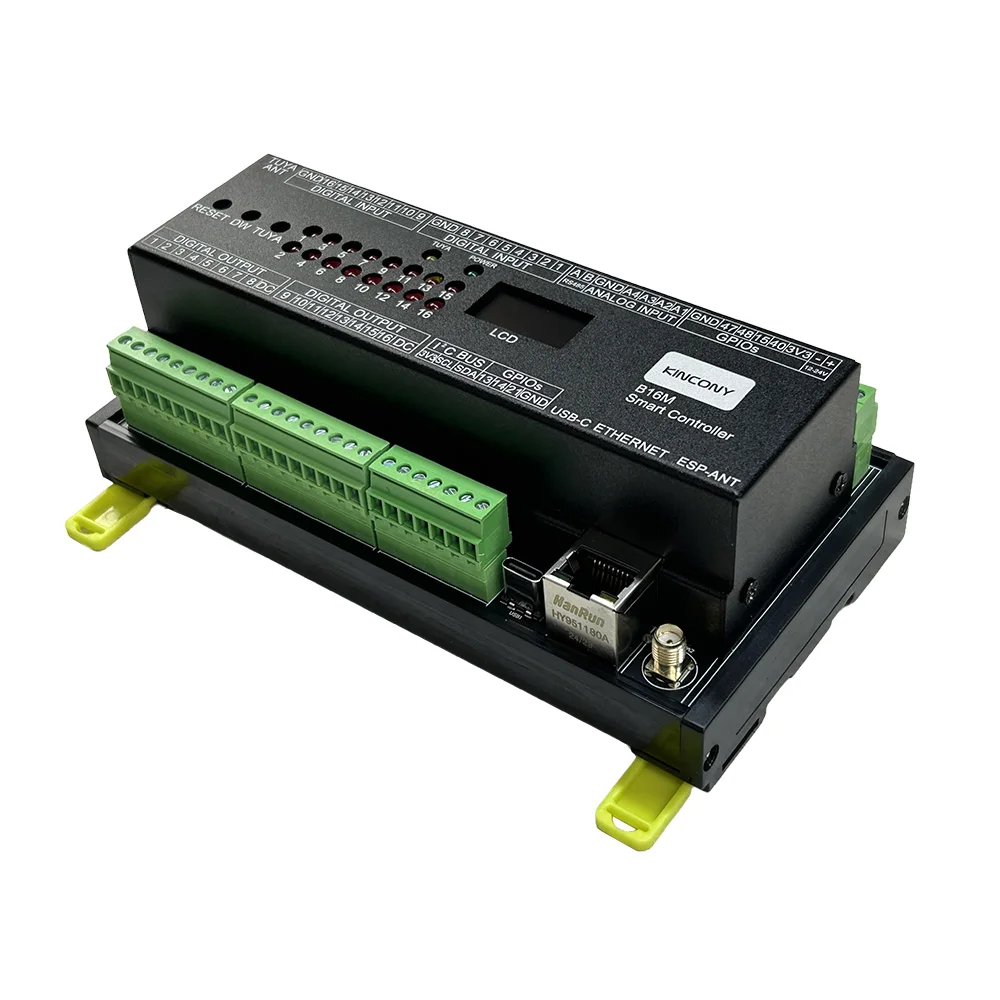

3 buttons: 1:ESP32 Reset 2:ESP32 Download 3:Tuya config
1-Wire GPIO: 4CH (with pull-up resistance on PCB)
free GPIO: 3CH (without pull-up resistance on PCB, connect with ESP32 pin directly)

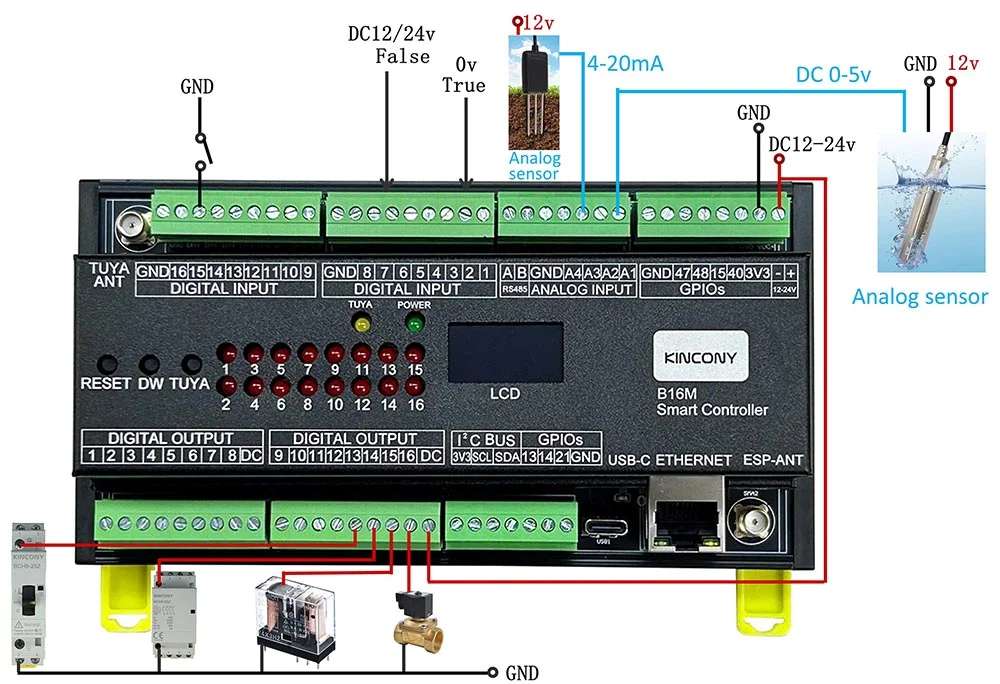

Wiring Examples:

software solution:

1. download firmware by ESPHome, integrate to home assistant or use by web service.

2. download tasmota firmware.

3. write your own Arduino code for your own requirements.

4. It is recommended to use home assistant and Tuya mobile phone app at the same time. So that remote control by internet using Tuya app, local control by LAN using home assistant app.

If you encounter any technical issues, you can contact Liluna.
