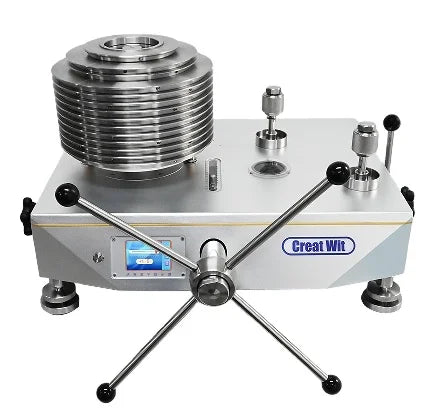

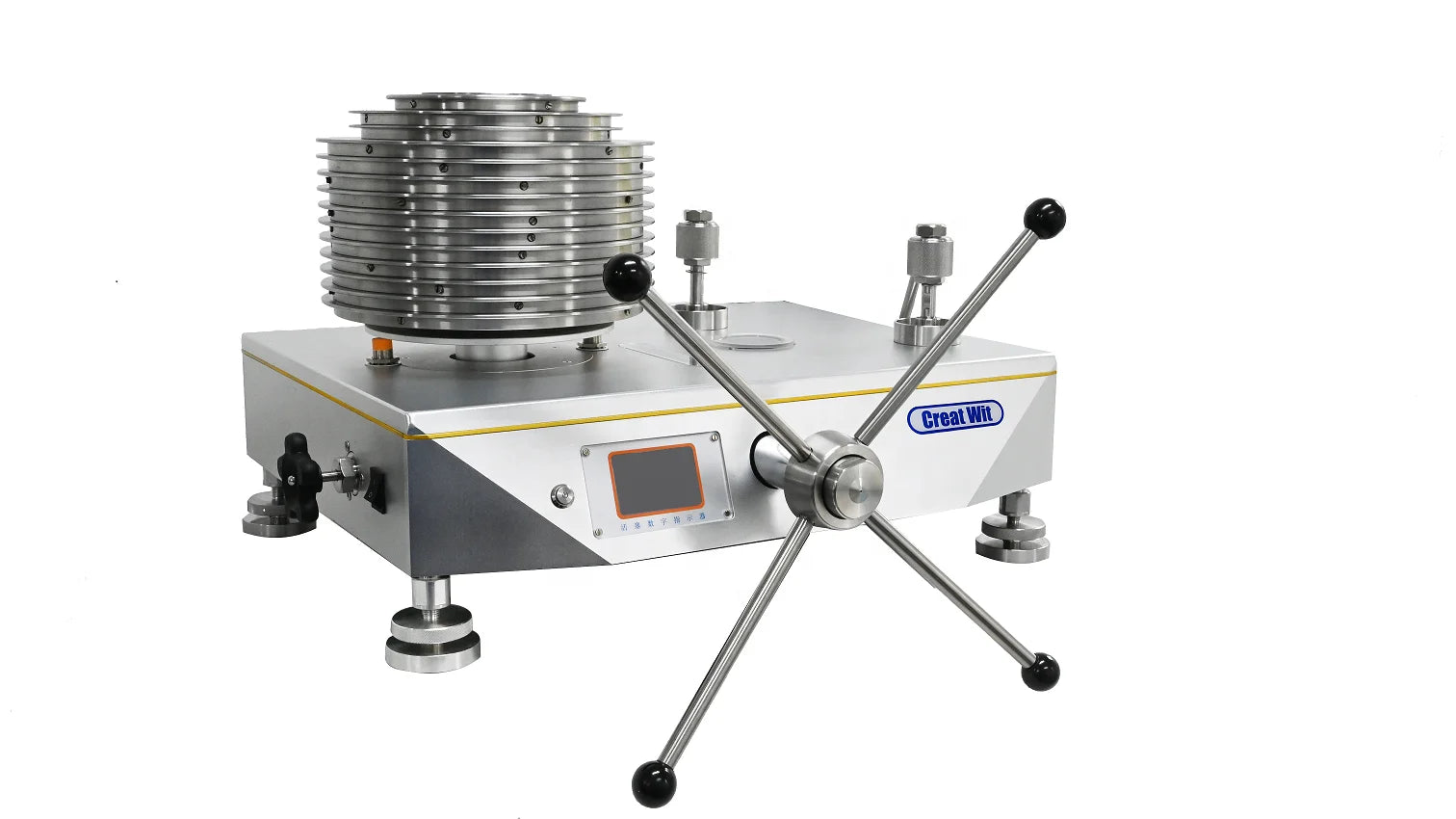

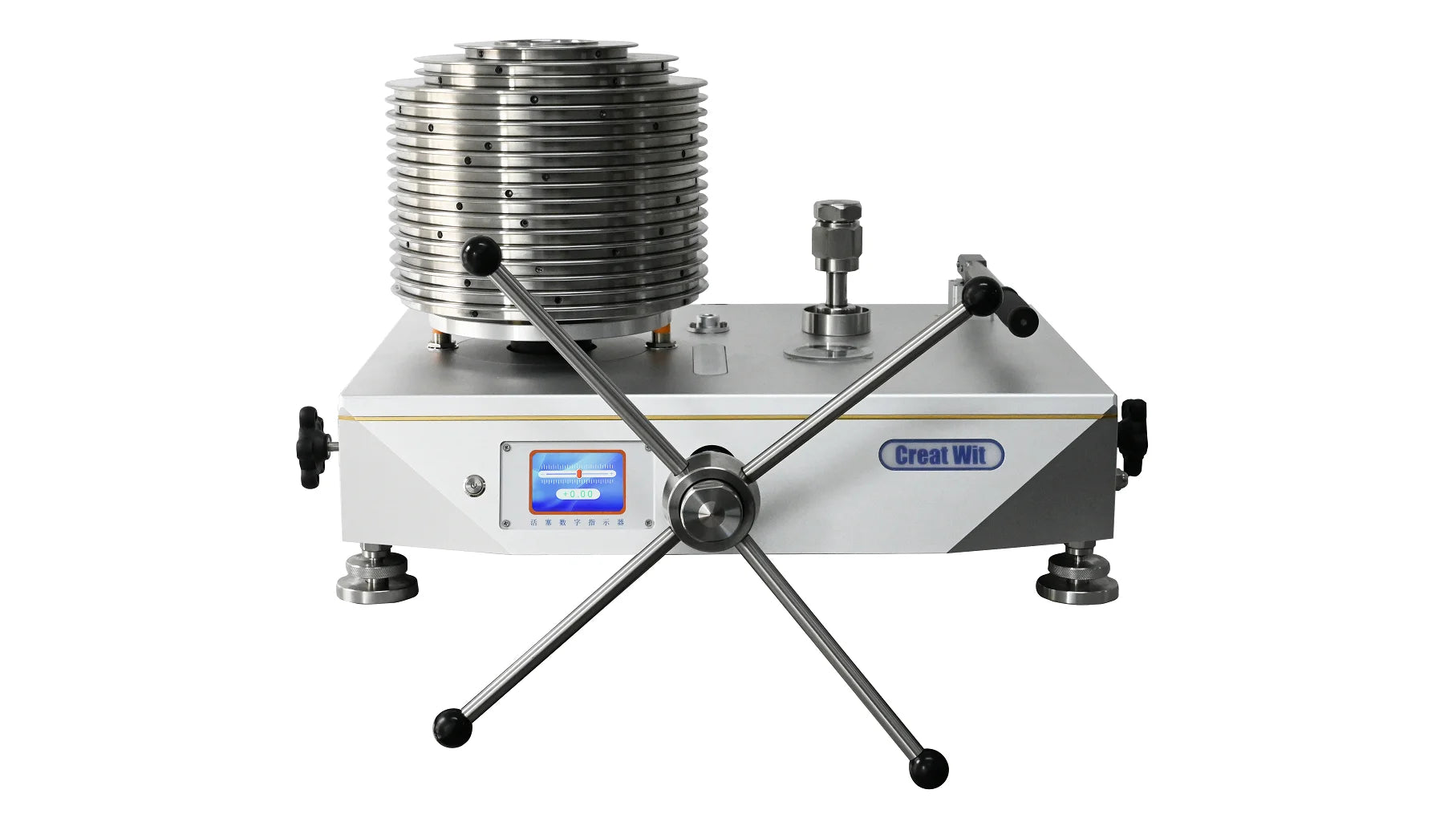

Ultra-high pressure Dead Weight Tester

APPLICATION

CW series dead-weight testers or primary standards are the most accurate reference instruments for pressure, which can be used to calibrate digital pressure gauges, high accuracy analog gauges, pressure transmitters and so on. They comply with JJG59-2022 "Liquid Piston Pressure Gauge" and JJG99-2022 "Weight" national meteorological verification regulations.

OVERVIEW

1,Principle

The functional principle of dead weight tester is based on the physical principle of pressure = force/area(F/A).

Mass pieces placed on the top of a piston-cylinder system are the source of a precisely defined force. By producing a certain (counter) pressure inside the pressure balance equilibrium is achieved: the mass pieces, including the free-running piston of the piston-cylinder system, are floating, which will lead to a very accurate pressure at the test port.

 1. Packed by customzied flight case to insure international transportation security.

 2. Shipping by sea or by air, express

 1. Make calibration solution for clients as their lab requirement, improve clients' lab capacity

 2. Repair old equipments if clients need if we can after discussion

 3. Training for clients about calibration in pressure

Shaanxi Creat Wit Technology Co., Ltd. (CW) is high-tech enterprise in Shaanxi province, in July, 2006. Engaged in developing, manufacturing and selling the calibration equipment, such as dead weight tester, pressure gauges, calibrators sensors and transmitters.
