Factory 100m Sound Meter Level Dip Sensor Water Depth Level Meter Water Level Dipper

Factory 100m Sound Meter Level Dip Sensor Water Depth Level Meter Water Level Dipper

$261.60 USD
Expédition calculée lors du paiement.
model numberWLM2

SPECIFICATIONS

Accuracy: 0.1mm

Grade: Industrial

Mode: No

Power supply: 9v Battery

Probe diameter: 14mm/16mm

Probe length: 220mm

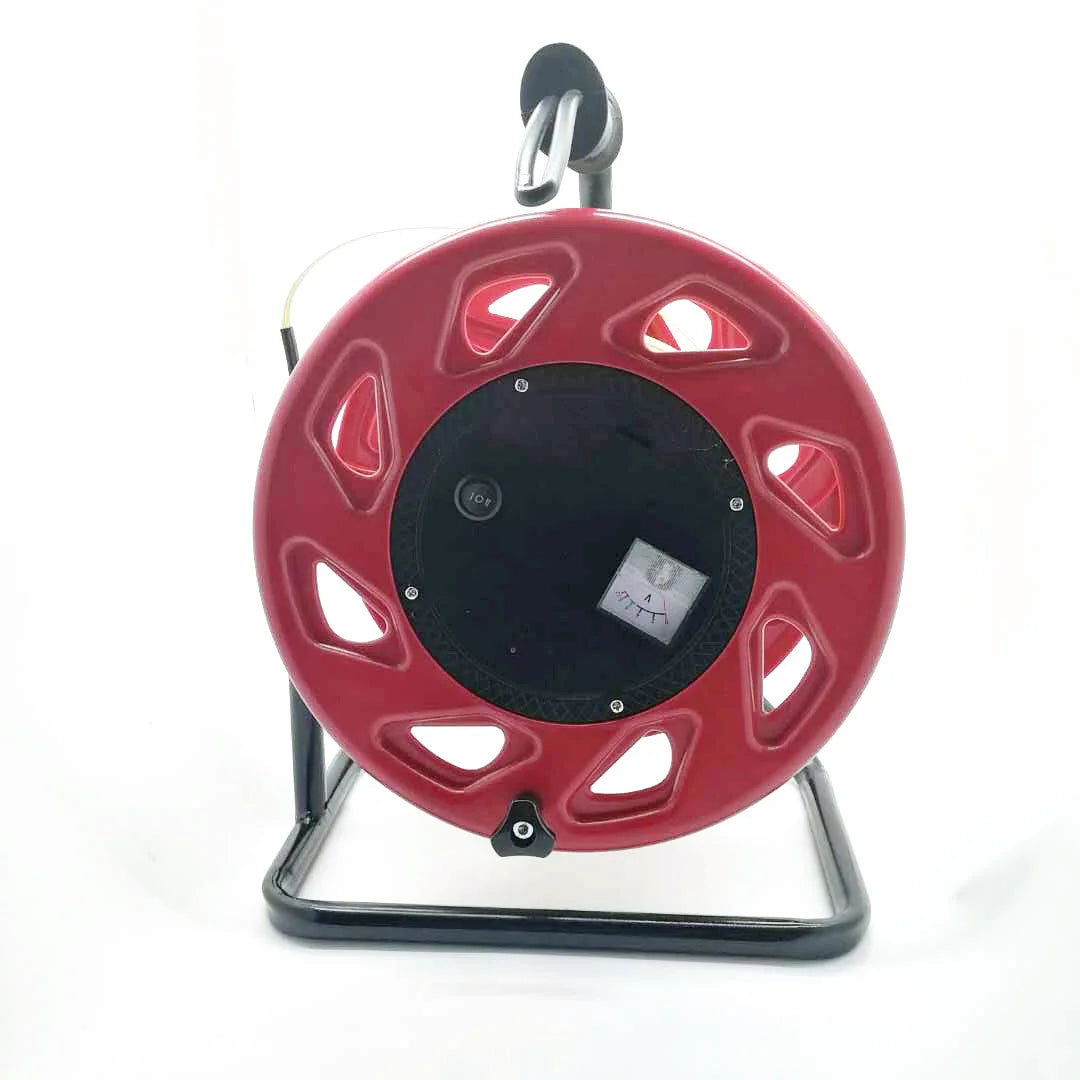

Reel color: Red

Ruler cable coating: PE/PU

Ruler tape length: 100m

Smart App: None

The material of reel: Plastic

The material of support: Metal

brand name: No

customized support: OEM,ODM

material: No

place of origin: Shanghai, China

warranty: 1 year without human damge

Product Description
Factory 100m Sound Meter Level Dip Sensor Water Depth Level Meter Water Level Dipper
Water level meter provide an accurate measurement method of level meter, usually used for the measurement of water level in the
drilling holes or water level pipe ,particularly suitable for hydropower engineering underground water level or artificially
inspection dam observation.
This instrument can be used in construction period, but also can be used as the long-term safety
monitoring project. comply with the dam safety monitoring technology standard(SL60-94).

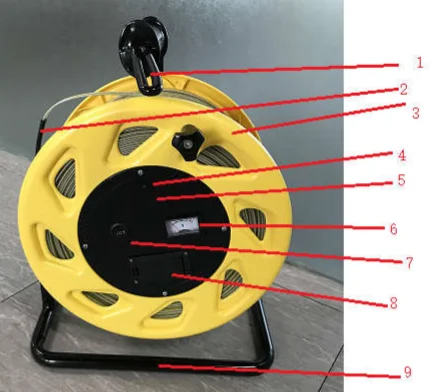

Product Features

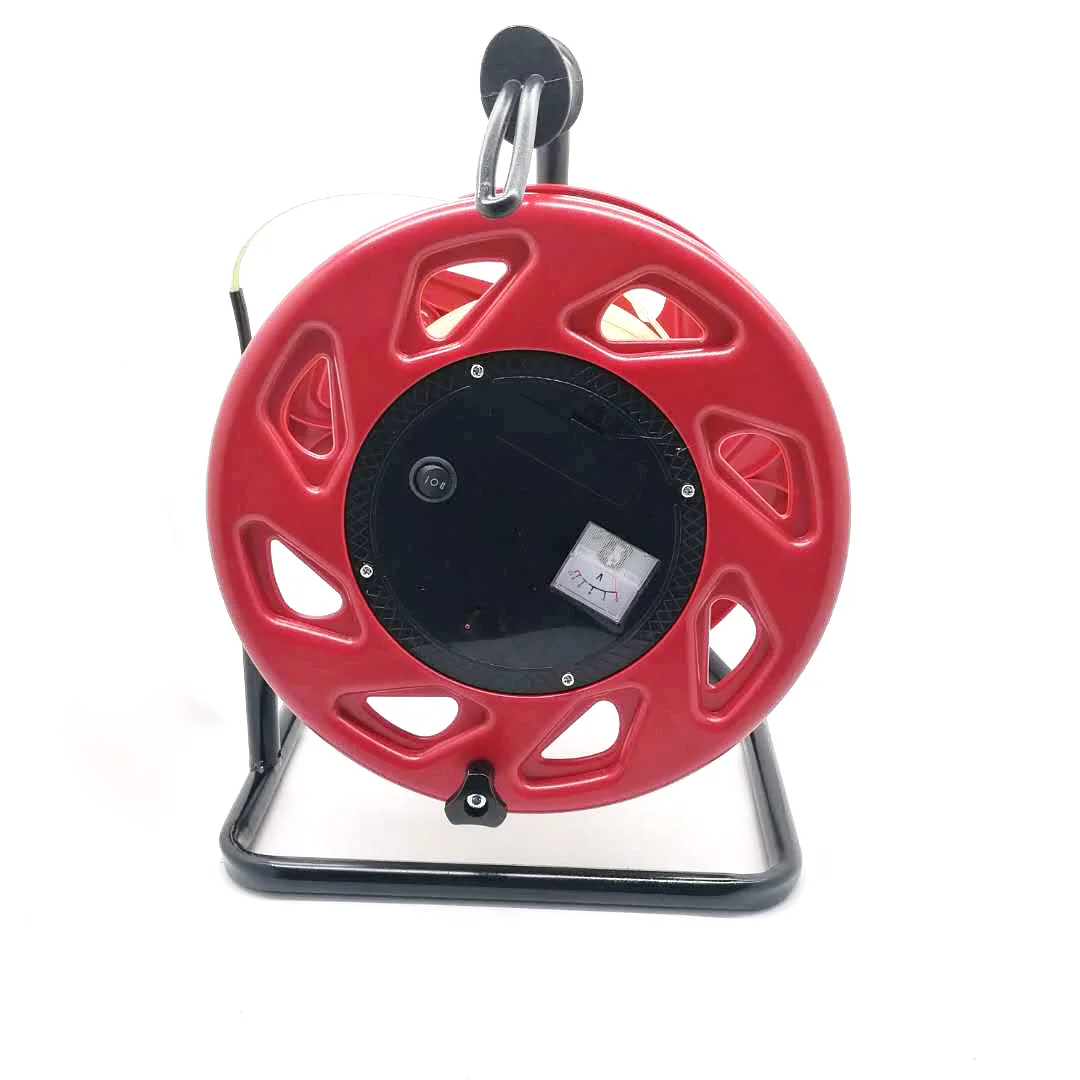

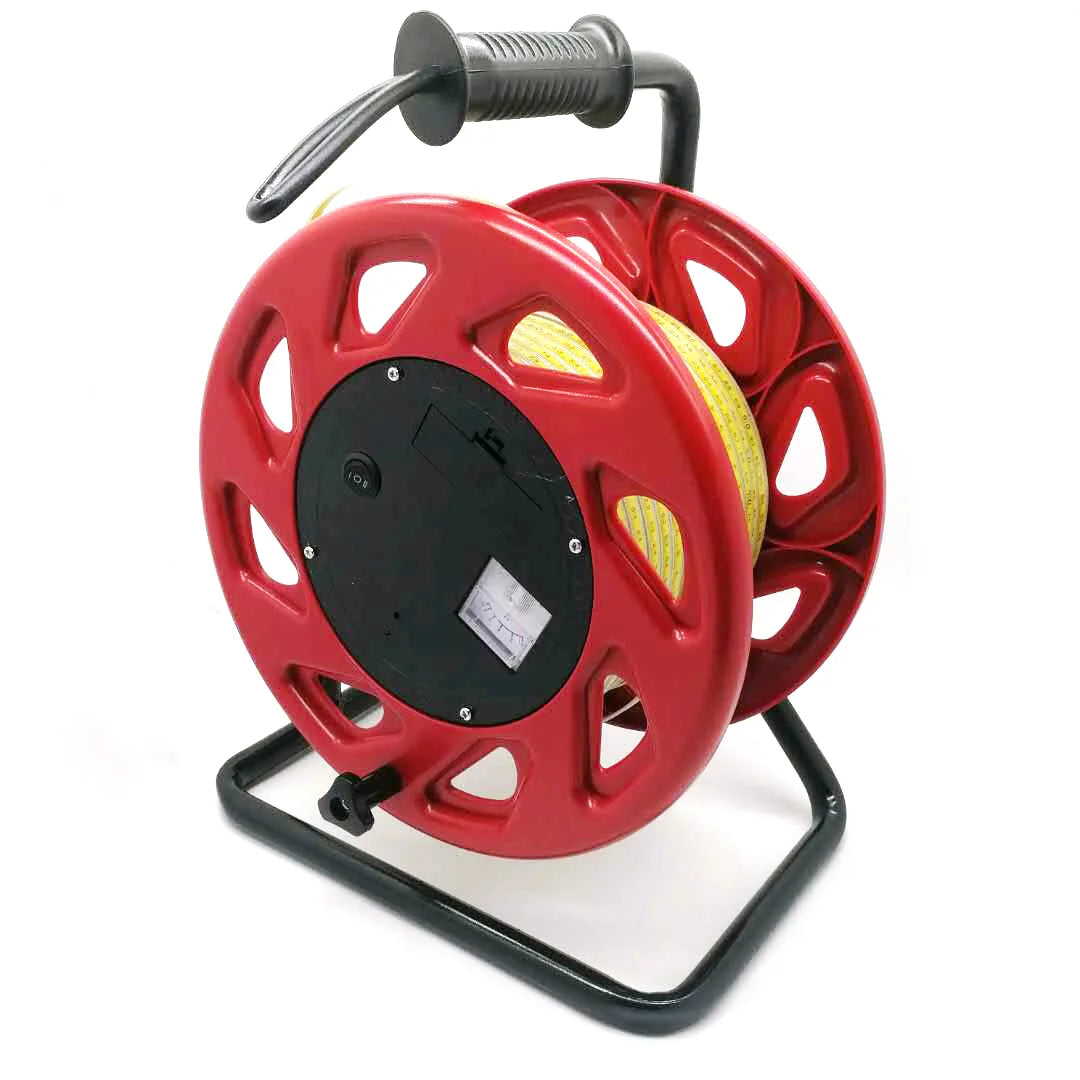

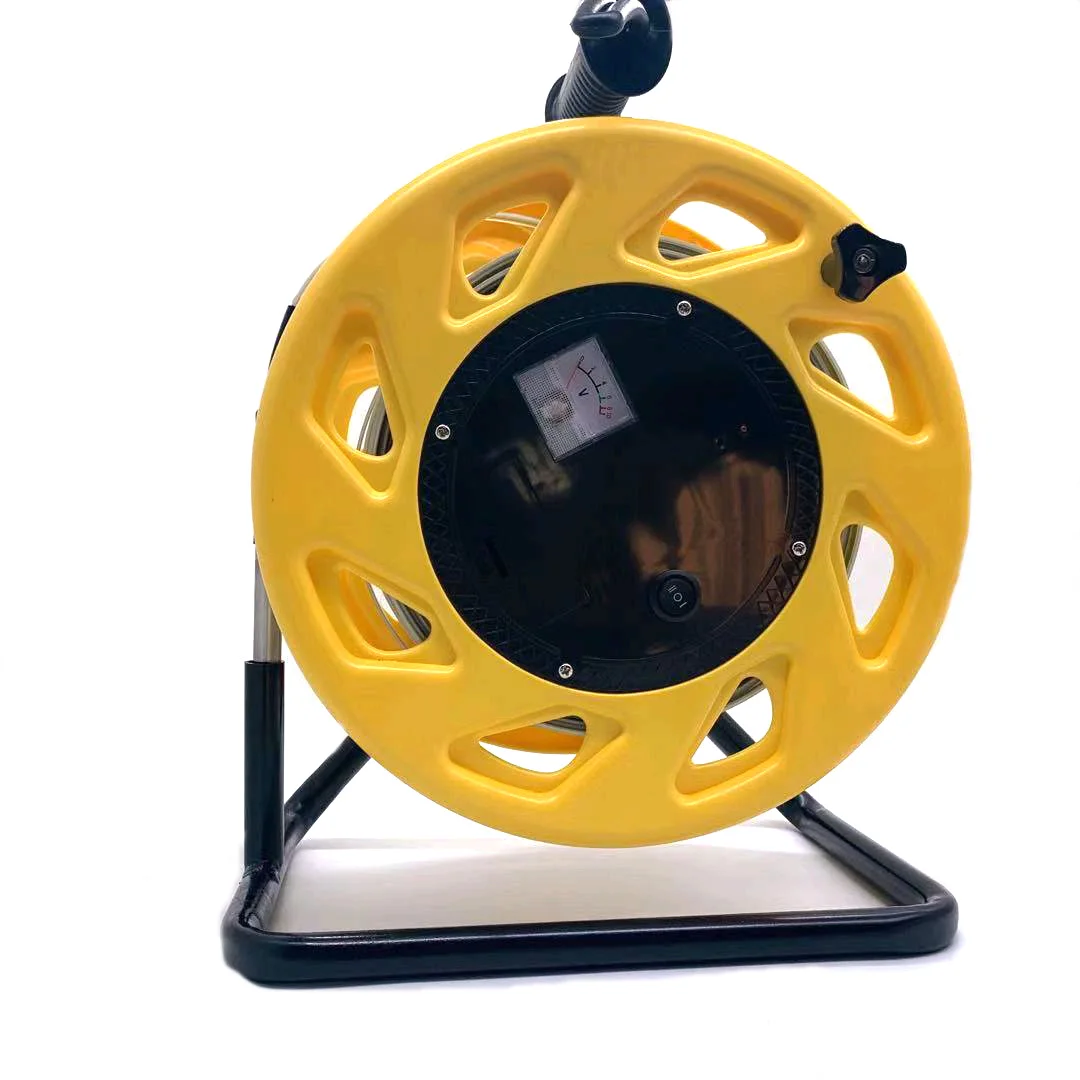

1. This is to fix the reel panel
2. Probe, probe diameter is 14mm, when it detect water, the led light on and buzzer buzzing.
3. Reel's material:plastic
4. Led light,when probe contact water,light on
5. Buzzer,when probe contact water,buzzing
6. Power voltage,this show the battery power
7. Button
8. Battery case,it is a 9V battery inside
9. Support,materi is metal
Technical Specification
Specification
WLM-30
WLM-50
WLM-100
WLM-150
WLM-200
WLM-300
WLM-400
WLM-500
Depth of the measurement(m)
0~30
0~50
0~100
0~150
0~200
0~300
0~400
0~500
Minimum indication（mm）
1.0
Repeat indication(mm)
±2.0
Weight(kg)
4.5
5.5
6.5
7.5
8.5
10
12
15
Power supply(v)
DC=9

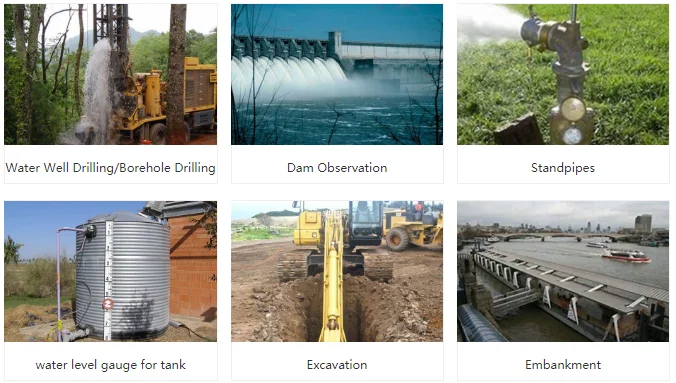

Application

Working principle
The measurement of the water level by the following two parts: 1. Underground material, it is composed by water level pipe and
bottom cover (not include in the system,it is need purchased separately) Ground receiver-ruler water level meter, it is composed
by detect head, ruler cable, receiver system and cable reel. Detect head: made by steel, inside is a water resistance contact
point. When the contact point contact water, the receiver system will open, and when the contact point leave the water,the
receiver system will close. Ruler cable: it made by ruler and cable, and use plastic technology keep them together, and avoid the
steel corrosion and simple the operation,make the read more convenient and accurate. Receiver system:it is composed by
sounder,indicate light. 2 the green button in the panel is test button, when push this button, light on and buzzing, that indicate
the circuit is in good condition. Or else, the circuit have problem or the battery has no power.

Instructions
In measuring, make the cable reel rotate and push the power button,put the detect head in the water pipe, put the ruler cable in
hand and make it drop slowly. When the detect head contact point contact water, the receiver system buzzer will sound. Then you
can read the data of the ruler cable and can know the water level.(if the surrounding voice is loudly, maybe you can hear
buzzer,so you can observe the indicate light and voltage meter)

Maintenance
Because the system use battery to supply power, so when you finish test,you should keep it power off.Power supply is 9V,when it
has no power,you should open the cover and change it. After measurement, please keep the detect head and cable clean, cable rolled
in cable reel. And put them in a good condition. Unauthorized disassembly of the product, it can not put in water horizontally,
the cable cannot bucking,especially the ends. The detect head should carry and put softly and avoid vibration.

Storage
Customer should open the box and check the product when you receive it.
Storage temperature-10~+40℃,humidity less than80%,no aggressive gas.
Product warranty:1year.

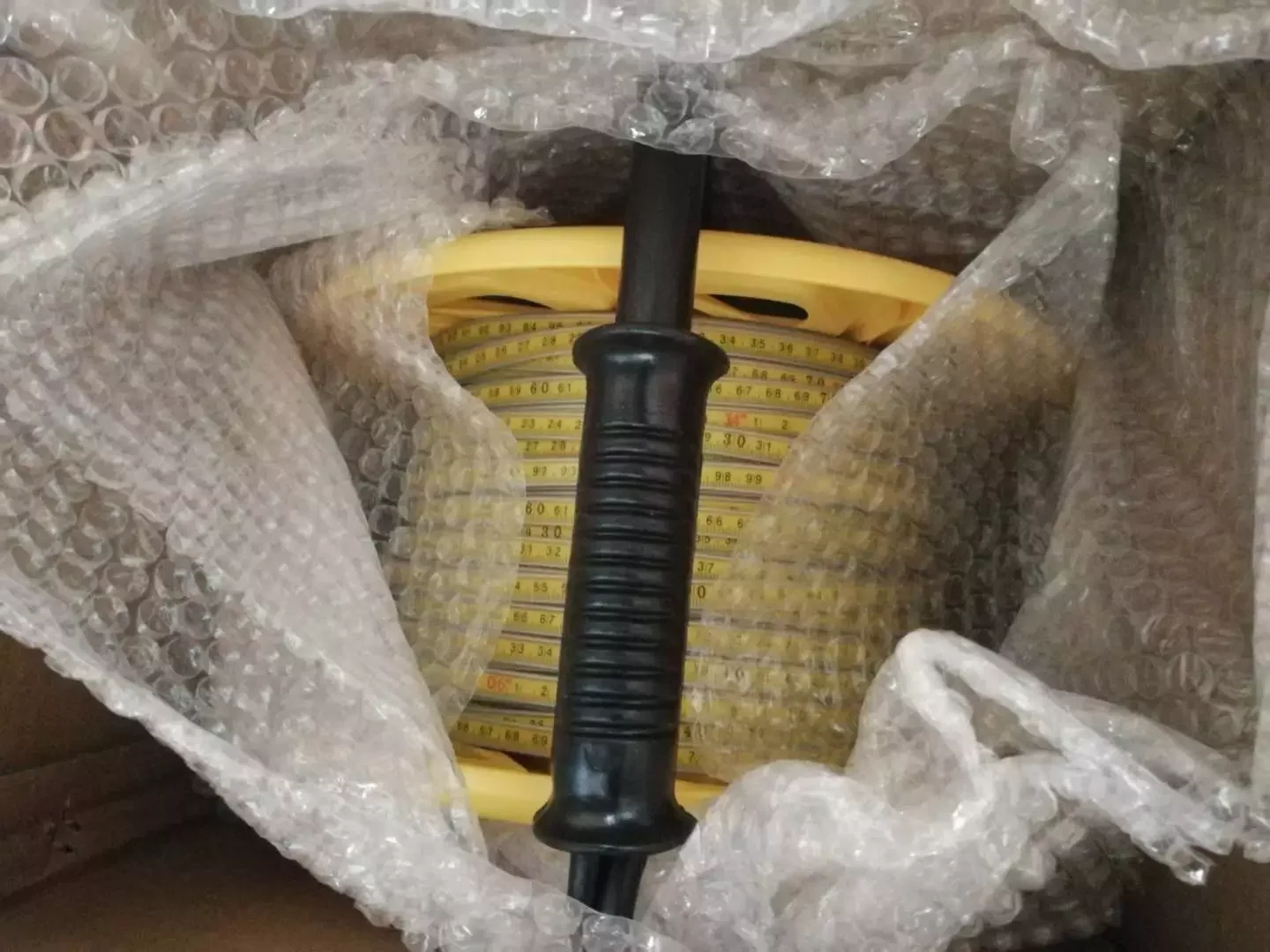

Packing & Delivery
FAQ

Q 1: I didn't find my needed model in this page.
Answer: Dear Friends, e-catalog will emailed to you asap when you contact with us. Also, we supply customization service. So,contact us !

Q 2: What's your Minimum Order Quantity?
Answer: Normally, 300m, but we also accept 100m order.

Q 3: When can I get the price and what's the validity?
Answer: usually within one day.Validity is 30 days

Q 4: What's your payment terms?
Answer: By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account.

Q 5: What's your delivery time?
Answer: It depends on whether we just have the stock for your type. Or, it takes about 10 - 30 days for normal orders.

Q 6: What's your package method ?
Answer: Usually, cartons, and for big cable, we use wooden drum.
Any other questions please contact with us freely:)
