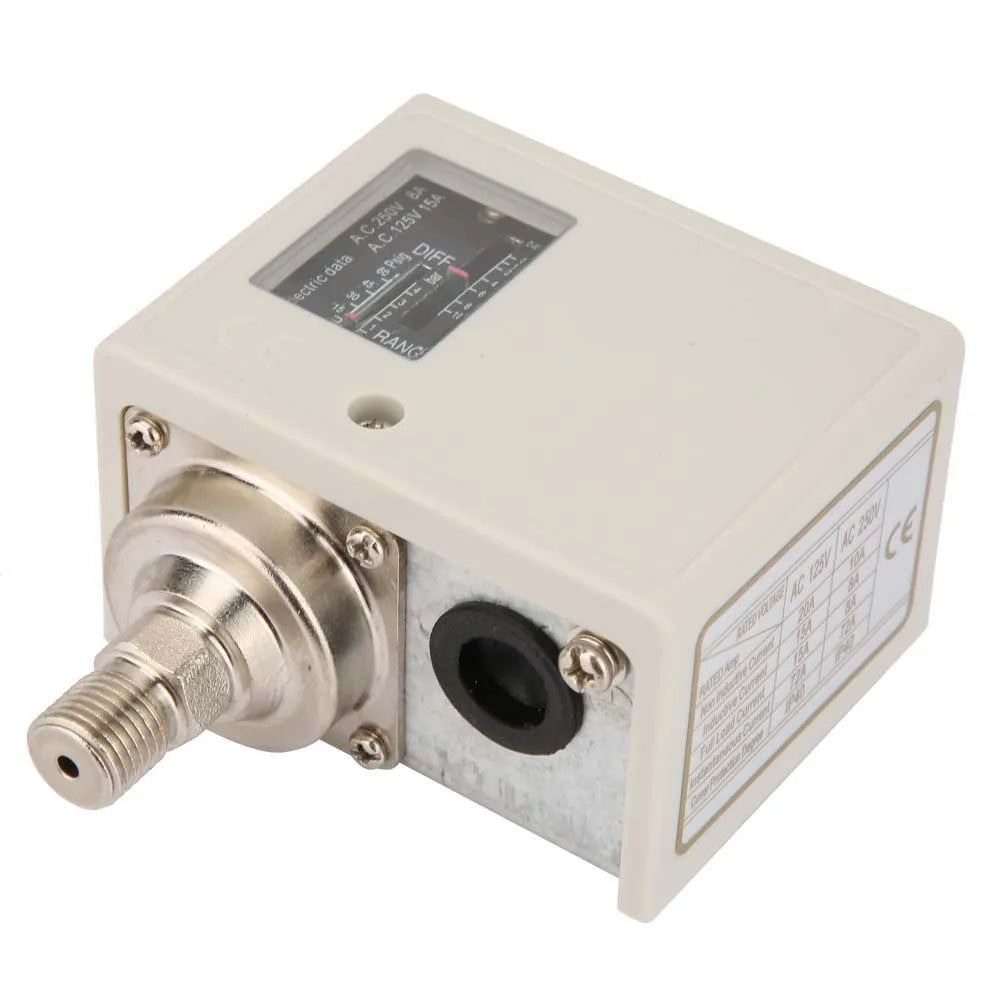

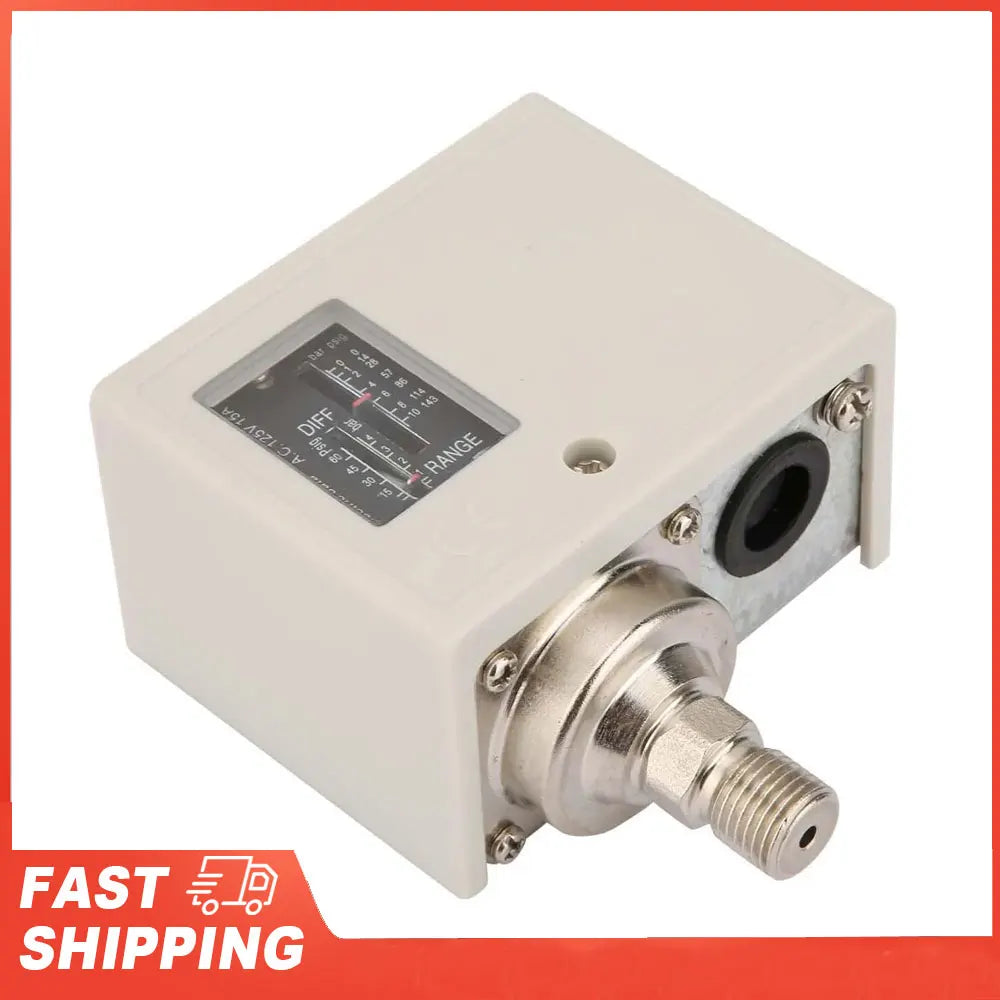

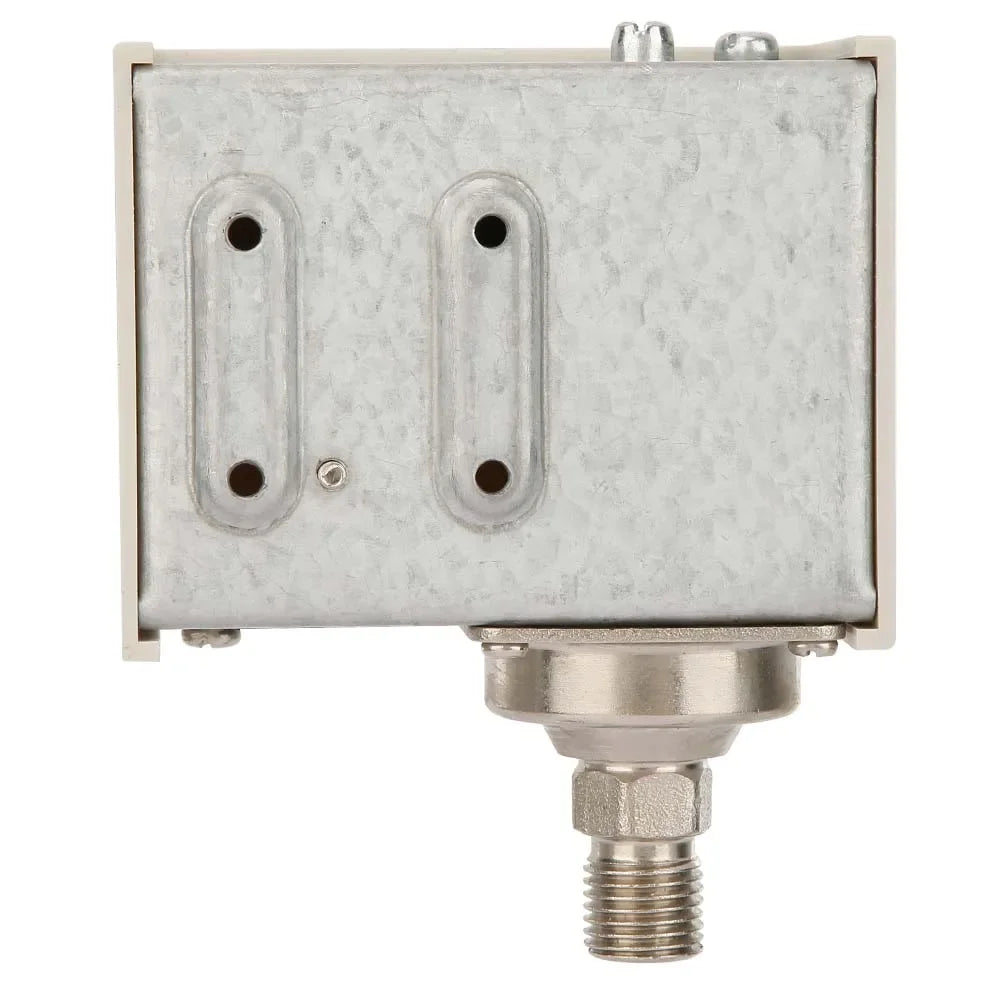

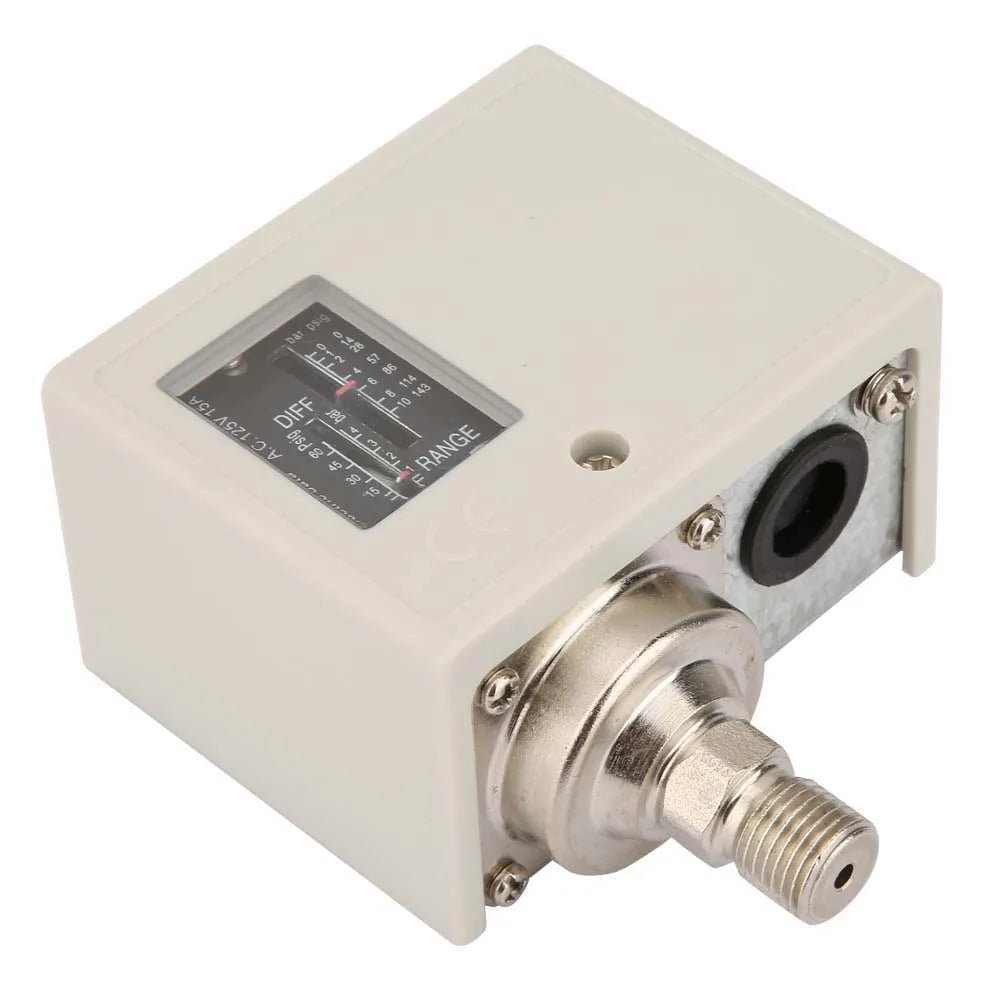

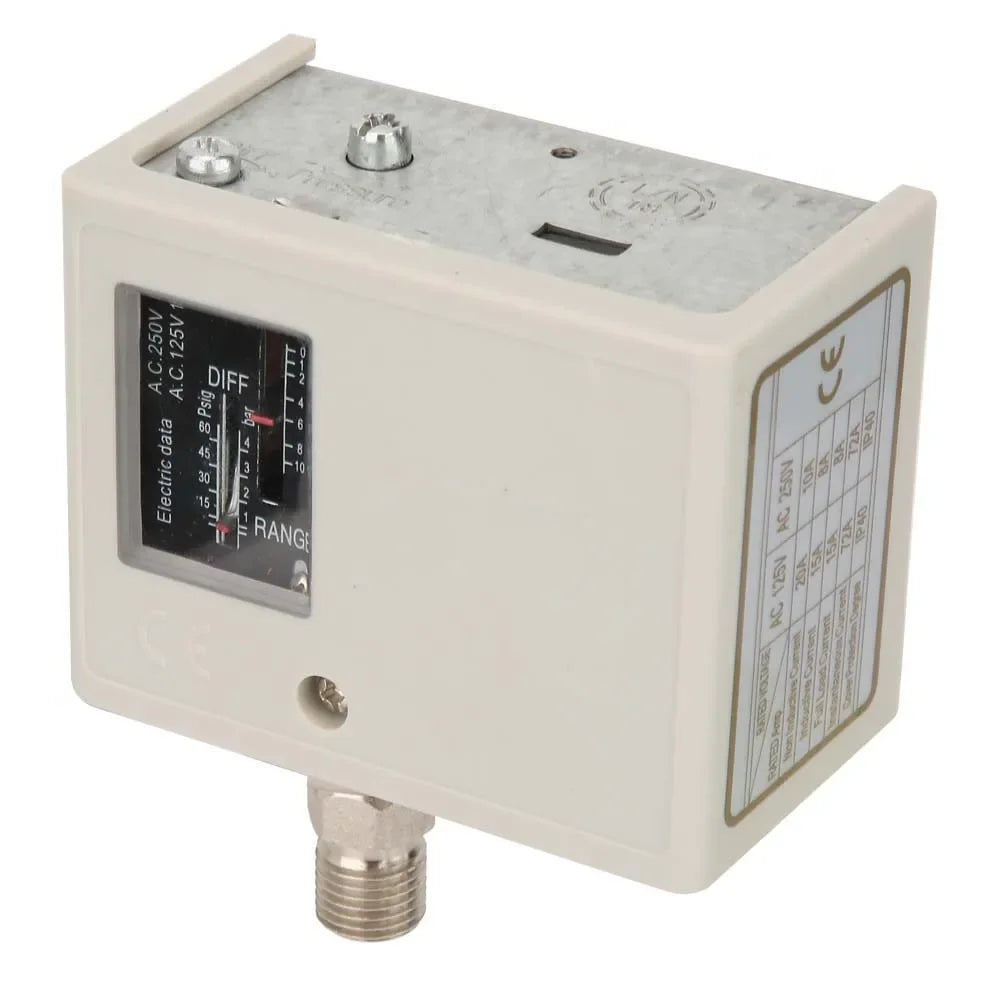

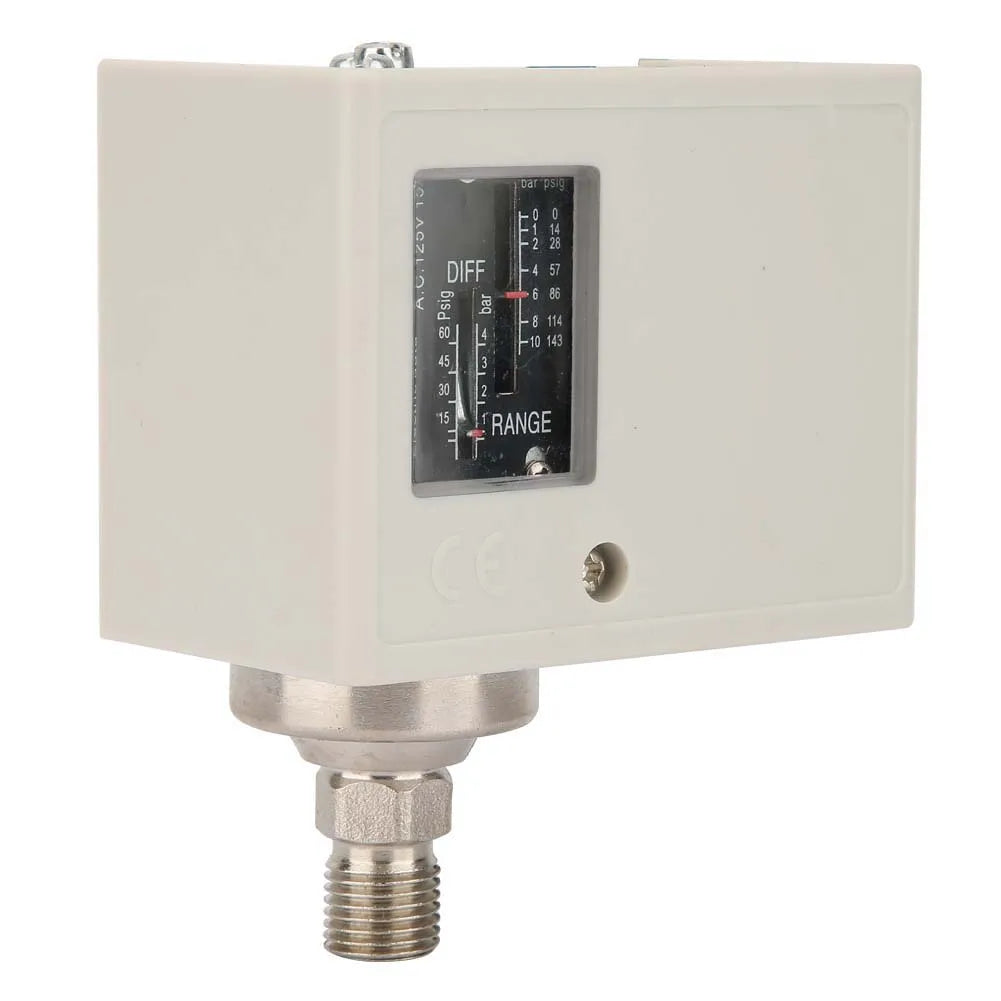

Electronic G1/4 Pressure Control Switch Air Water Pump Compressor Pressure Controller
SPC-110
$14.22 USD
Passer aux informations sur le produit
Electronic G1/4 Pressure Control Switch Air Water Pump Compressor Pressure Controller
$14.22 USD
Expédition calculée lors du paiement.
SPECIFICATIONS
Brand Name: KKMOON
Choice: yes
High-concerned chemical: None
Model Number: Pressure Control Switch
Origin: Mainland China
Semi-finishedproduct: No
Electronic G1/4” Pressure Control Switch Air Water Pump Compressor Pressure Controller
Features:
Made of high quality material, anti-corrosion, durable in use.

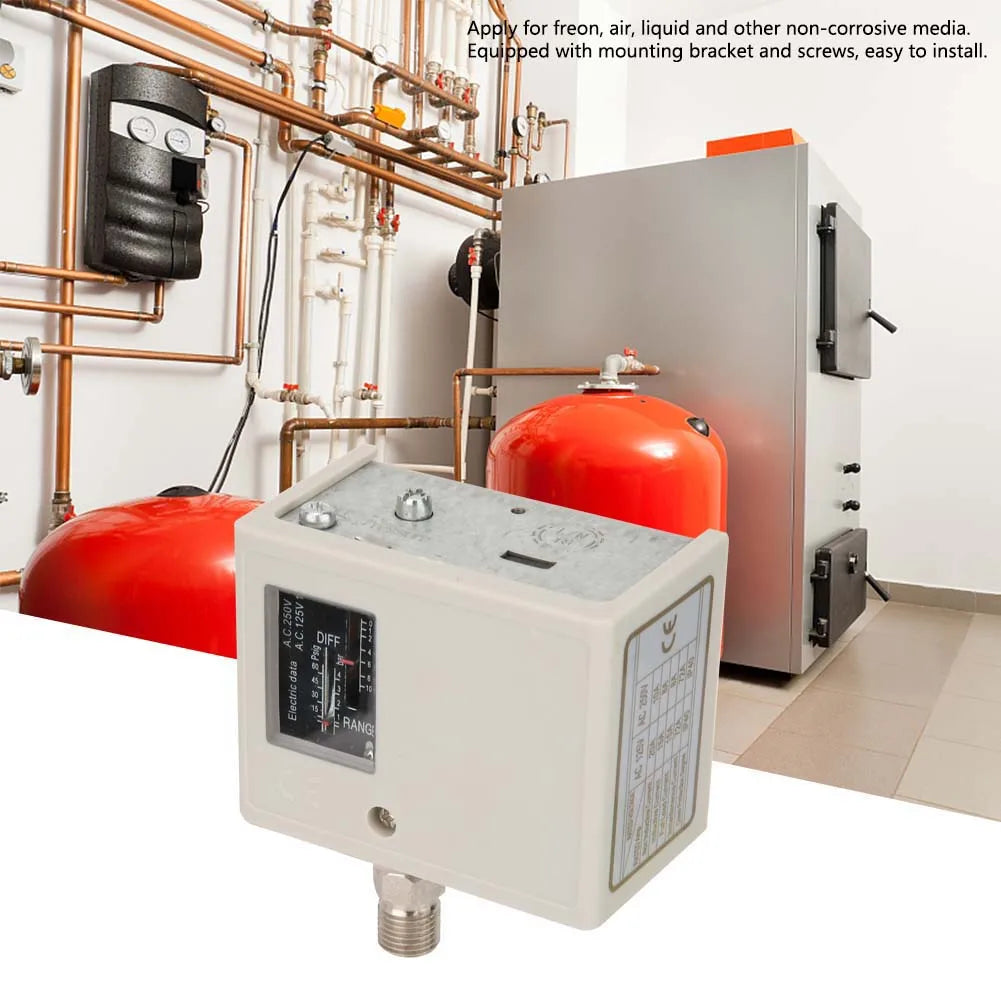

Apply for freon, air, liquid and other non-corrosive media.

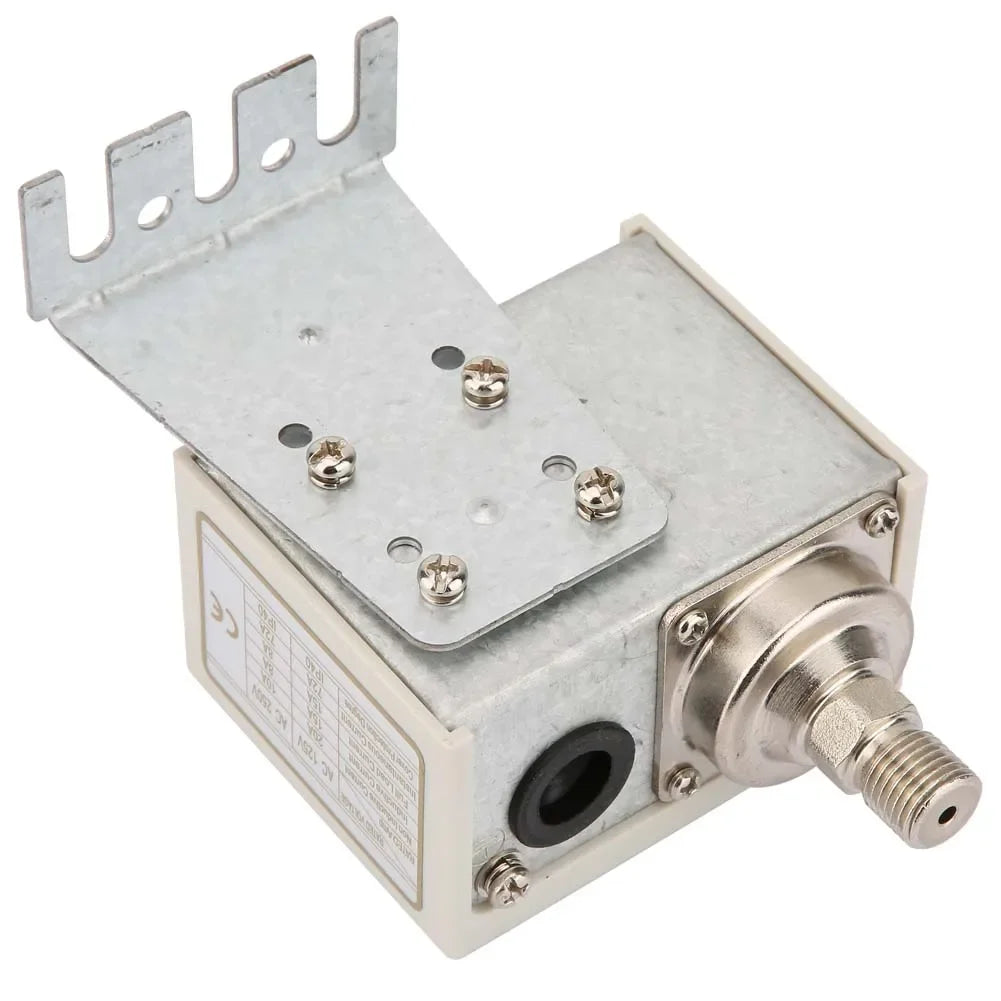

Equipped with mounting bracket and screws, easy to install.
The SPDT switch ensures reliable contact switching.
Mainly used for high and low voltage limit control of refrigeration equipment or automatic system air conditioning equipment.
Made of high quality material, anti-corrosion, durable in use.
Apply for freon, air, liquid and other non-corrosive media.
Equipped with mounting bracket and screws, easy to install.
The SPDT switch ensures reliable contact switching.
Mainly used for high and low voltage limit control of refrigeration equipment or automatic system air conditioning equipment.
Specification:
Material: Stainless steel, iron plated nickel, plastic
Weight: 408g/14.4oz
Thread: G thread

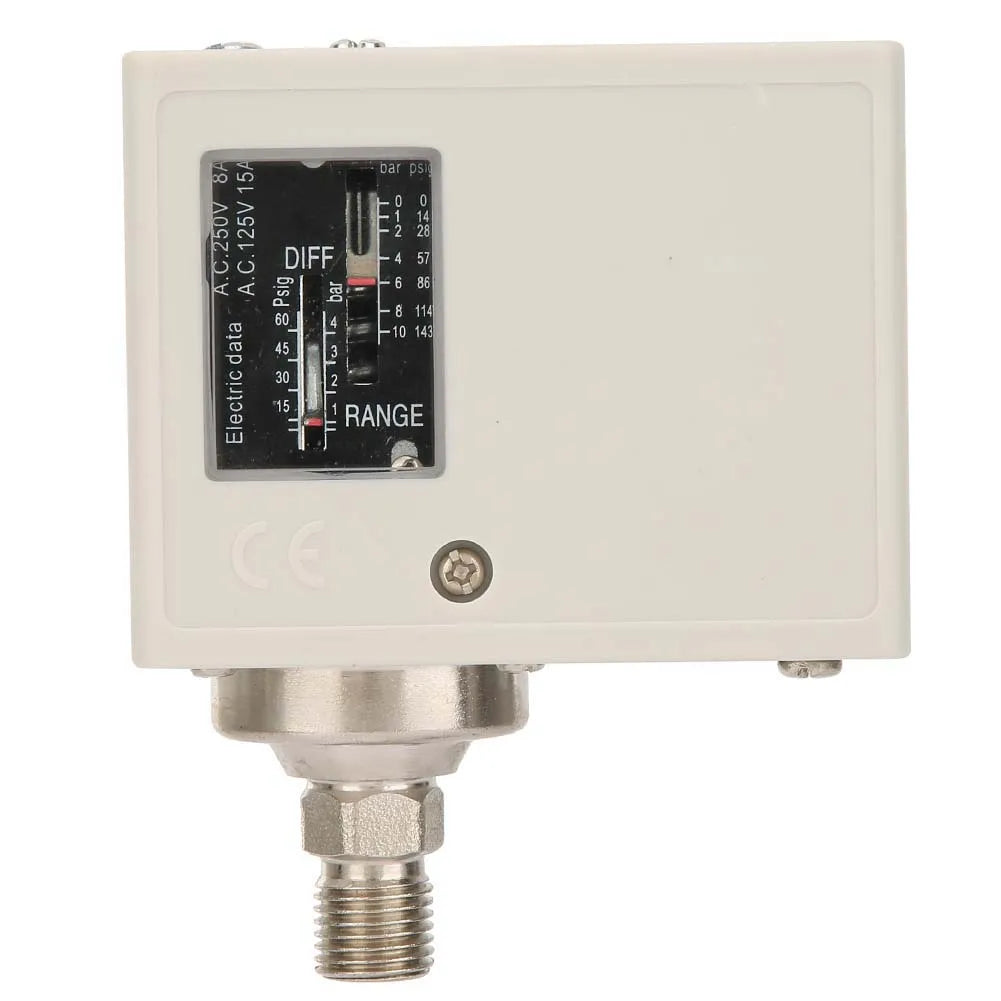

Pressure regulating range (bar): 1 (Min) ~ 10 (Max)
Differential pressure adjustment range (bar): 1(Min) ~ 3 (Max)
Factory setting (bar): 5 (OFF/ON) ~ 6 (ON/OFF)
Maximum air tightness test (bar): 16.5
Power supply voltage: 24V~380V
Micro switch life: 100,000 times
Material: Stainless steel, iron plated nickel, plastic
Weight: 408g/14.4oz
Thread: G thread
Pressure regulating range (bar): 1 (Min) ~ 10 (Max)
Differential pressure adjustment range (bar): 1(Min) ~ 3 (Max)
Factory setting (bar): 5 (OFF/ON) ~ 6 (ON/OFF)
Maximum air tightness test (bar): 16.5
Power supply voltage: 24V~380V
Micro switch life: 100,000 times

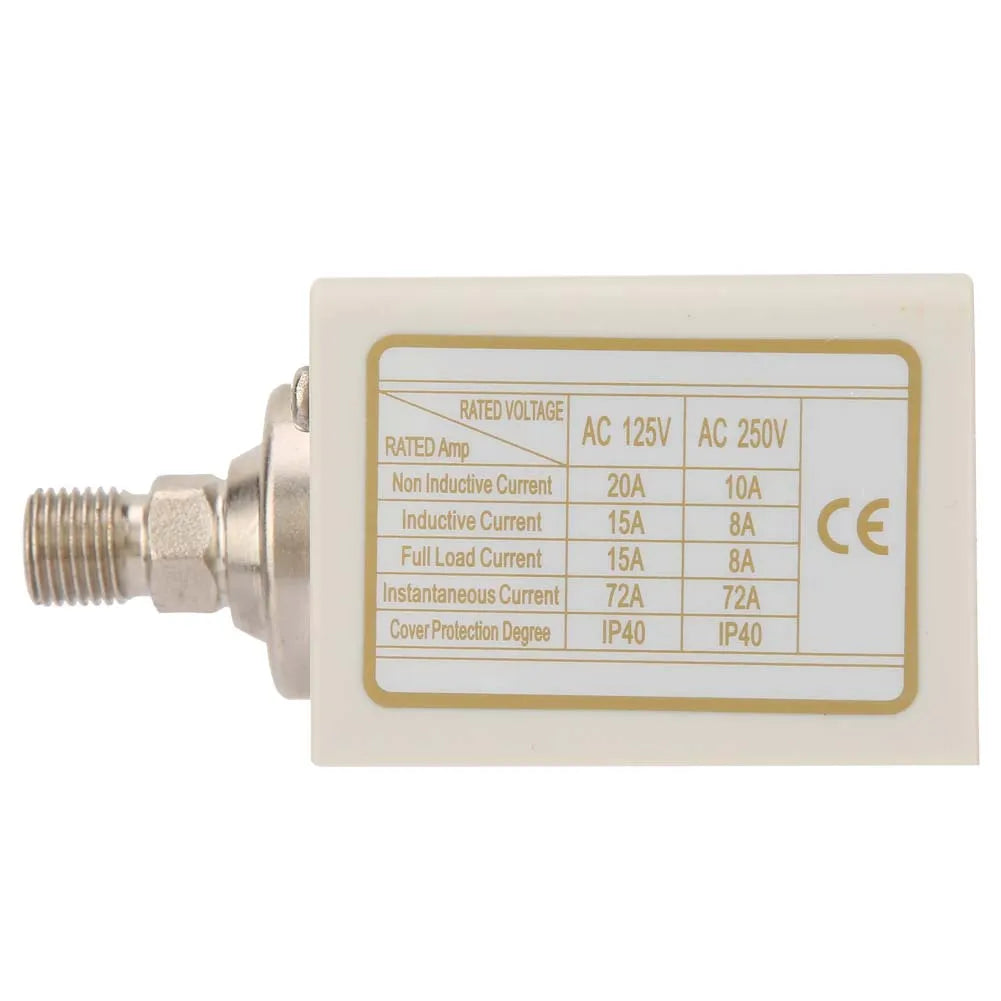

Electrical parameters:
When the voltage is 125VAC, the non-inductive current is 20A, the full load current is 15A, and the instantaneous current is 72A.
When the voltage is 250VAC, the non-inductive current is 10A, the full load current is 8A, and the instantaneous current is 72A.
When the voltage is 125VAC, the non-inductive current is 20A, the full load current is 15A, and the instantaneous current is 72A.
When the voltage is 250VAC, the non-inductive current is 10A, the full load current is 8A, and the instantaneous current is 72A.

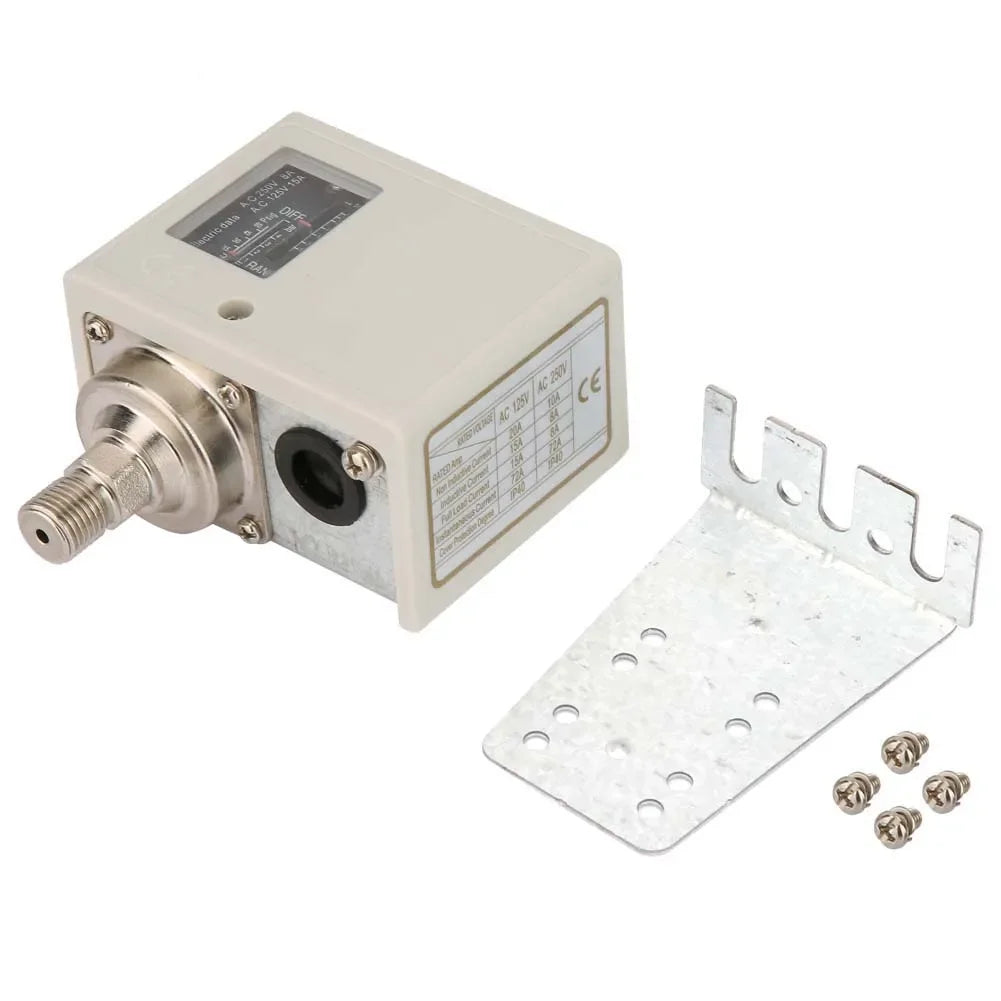

Package List:
1* Pressure Control Switch
1* Mounting bracket
4* Screw
1* Instructions
1* Pressure Control Switch
1* Mounting bracket
4* Screw
1* Instructions
