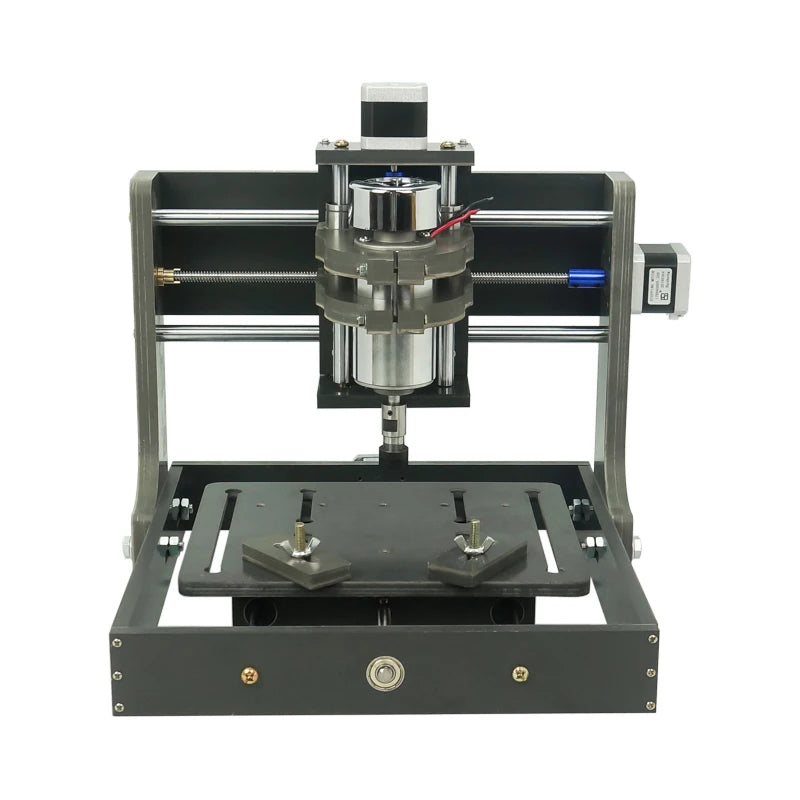

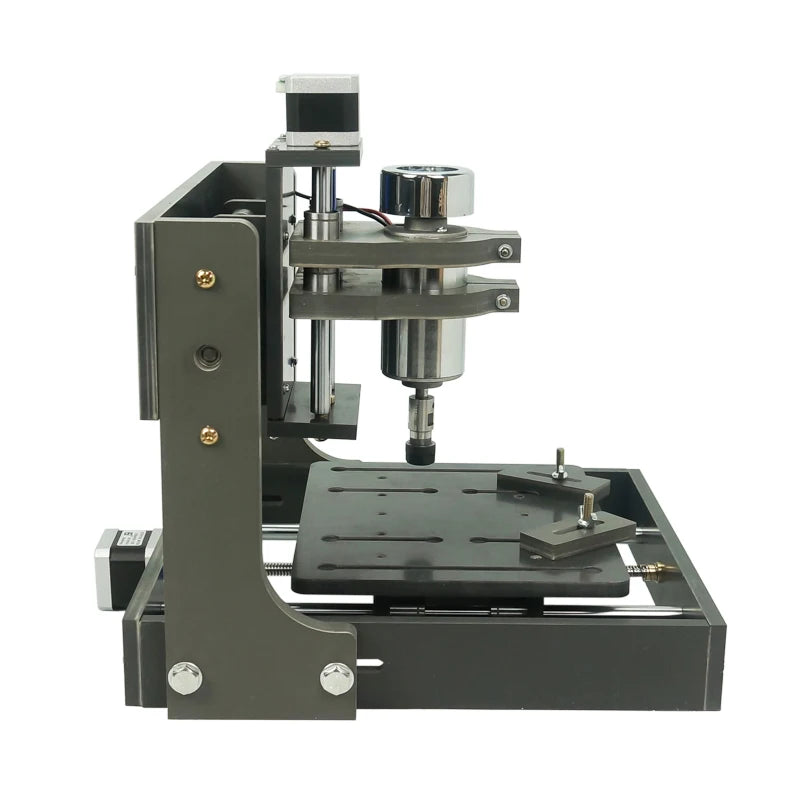

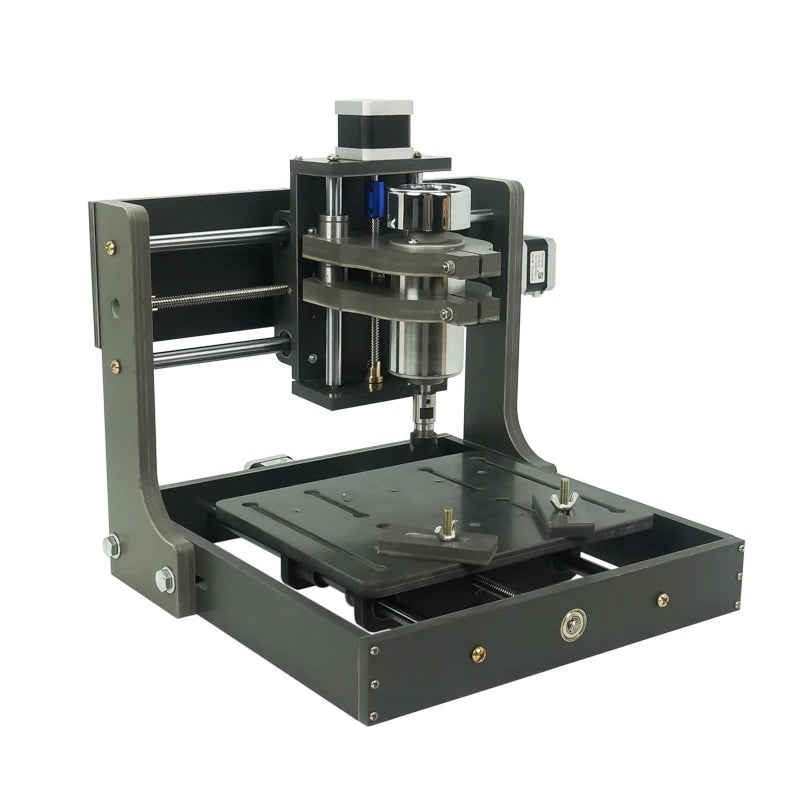

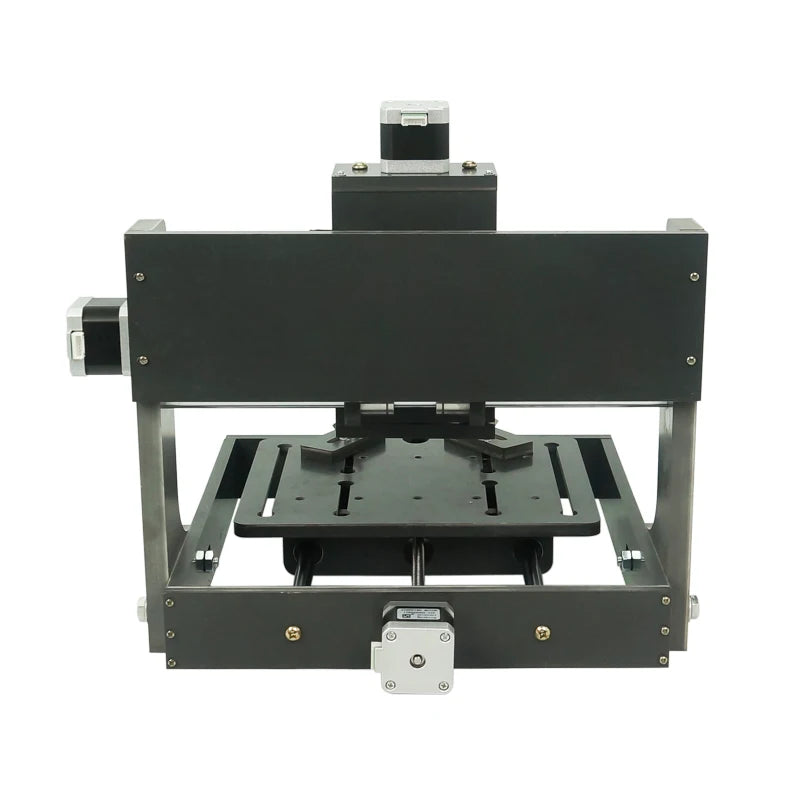

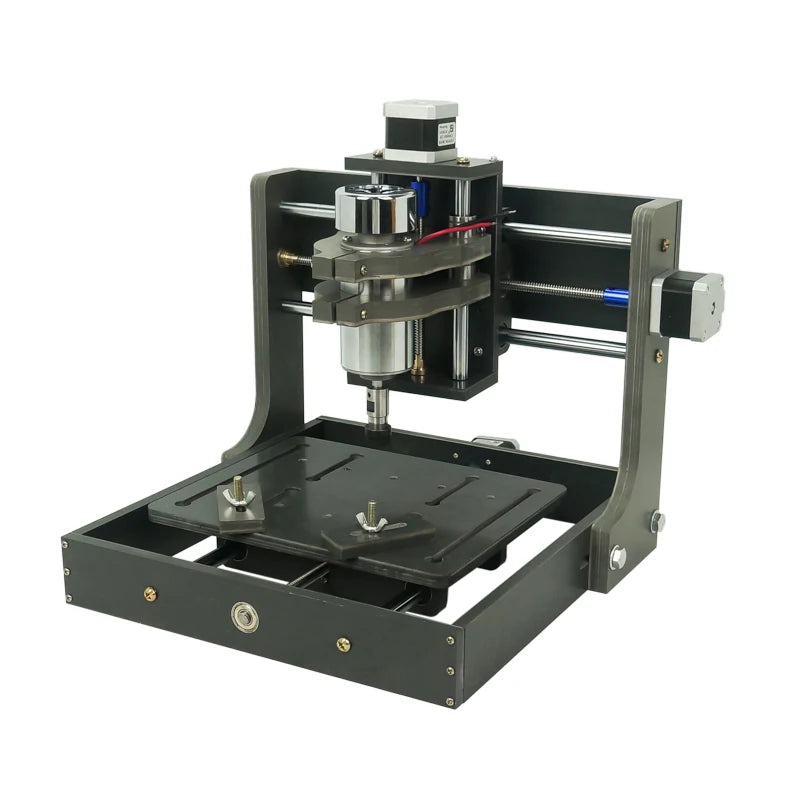

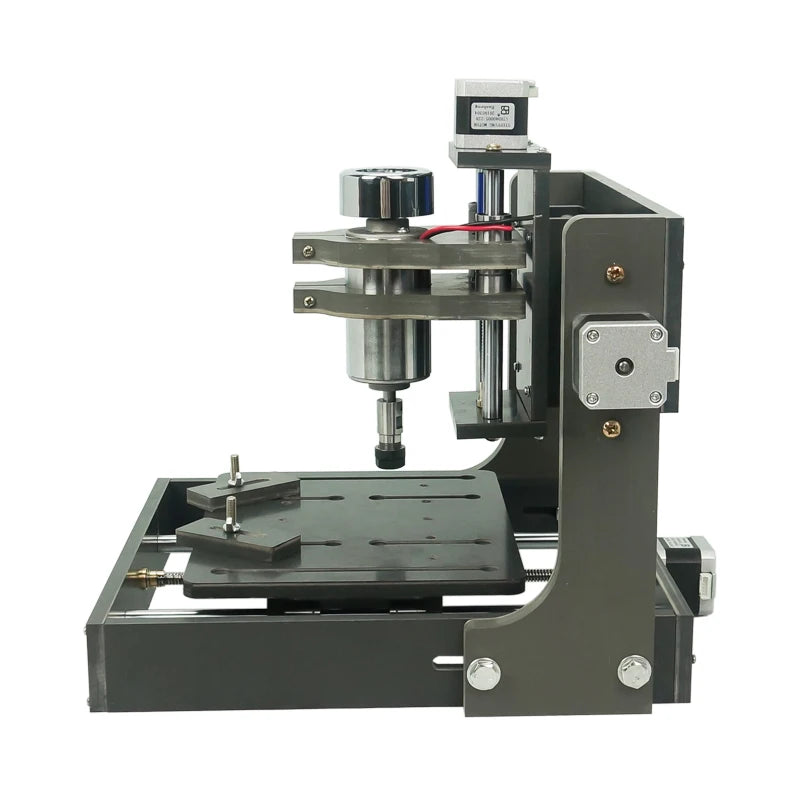

DIY 2020 CNC Frame Engraving Drilling and Milling Machine Frame CNC Wood Router Machine Machinery With 300W Motor
Frame without motor
$93.60 USD
Passer aux informations sur le produit
DIY 2020 CNC Frame Engraving Drilling and Milling Machine Frame CNC Wood Router Machine Machinery With 300W Motor
$93.60 USD
Expédition calculée lors du paiement.
SPECIFICATIONS
Command code: G code/.nc/.ncc/.tab/.txt
Current of Driver: 1.68A
Engraving area: 200X200X70mm
Lead screw: M8 threaded stainless steel Lead screw triangle
MAX. moving speed: 4000 mm/min
No. of Spindles: Single
Power (kW): 0.3
Resolution ratio: 0.02mm
Software Compatability: Mach3/Emc2/Kcam
Spindle Motor Power (kw): 0.3
Spindle motor: 300W high-speed
Stepper motor and drive: NEMA17 Stepper motor
Table structure: 10mm PCB
Working Table Size(mm): 200x200
brand name: LY
cnc or not: CNC
core components: Motor,Other
dimension(l*w*h): 600X700X500mm
key selling points: Easy To Operate
machine type: CNC Router
machinery test report: Provided
number of axes: 3/4
place of origin: Guangdong, China
positioning accuracy (mm): 0.02 mm
range of spindle speed(r.p.m): 0 - 10000 rpm
repeatability (x/y/z) (mm): 0.02 mm
travel (x axis)(mm): 200 mm
travel (y axis)(mm): 200 mm
video outgoing-inspection: Provided
voltage: 110/220V
warranty: 1 Year
weight (kg): 13
DIY 2020 CNC Frame Engraving Drilling And Milling Machine Frame CNC Wood Router Machine Machinery With 300W Motor
Product Description
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty
Feature
1. Support MACH3 System.
2. Suitable for engraving PVC PCB wood materials.
3. Working table size 200 * 200 * 70mm
4. Equipped with a 300W high-speed spindle
5. With English installation manual, simply operation
Model and Technical Parameters
|
MODEL |
DIY 2020 |
|||
|
Attribute |
Frame without motor |
Frame |
Machine |
Machine |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Interface |
No |
No |
LPT port |
LPT+USB port |
|
Spindle Motor: |
No |
No |
300W |
300W |
|
Weigh |
7.5 |
9.5 |
11.8 |
12 |
|
Machine Dimensions |
600X700X500mm |
|||
|
Table structure |
10mm PCB |
|||
|
Lead screw |
M8 threaded stainless steel Lead screw triangle |
|||
|
Engraving area |
200X200X70mm |
|||
|
Spindle motor |
300W high-speed (10,000 rpm) |
|||
|
Collet type |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive |
NEMA17 Stepper motor |
|||
|
Current of Driver |
1.68A |
|||
|
Resolution ratio |
0.02mm |
|||
|
MAX. moving speed |
4000 mm/min |
|||
|
Software Compatability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
product picture
Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Our Services
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Company Information
LY CNC business group is located in Shenzhen, China.
CNC machines and CNC Laser like cnc 3020/4030/6040/9060/1309 …series products are hot sale in the world, especially in these countries from North and South American,European and Asian.
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
