SPECIFICATIONS

Axis options: 3/4 Axis

Certification: CE

Display / Screen: 5" TFT screen, resolution ratio: 480x272 px,

Functions: Try cutting; Single-stage processing mode; 3 kinds Probing Modes;

Limited switch: only support NPN type limited switch

Max. Output Frequency: 500KHz per axis

Memory: 1 GB

No. of Inputs Ports: 16

No. of Outputs Ports: 3

Power Supply: 24VDC

Spindle Control: Analog Voltage Output 0-10V

Weight (kg): 1.12

application: Milling Machine

brand name: Digital Dream

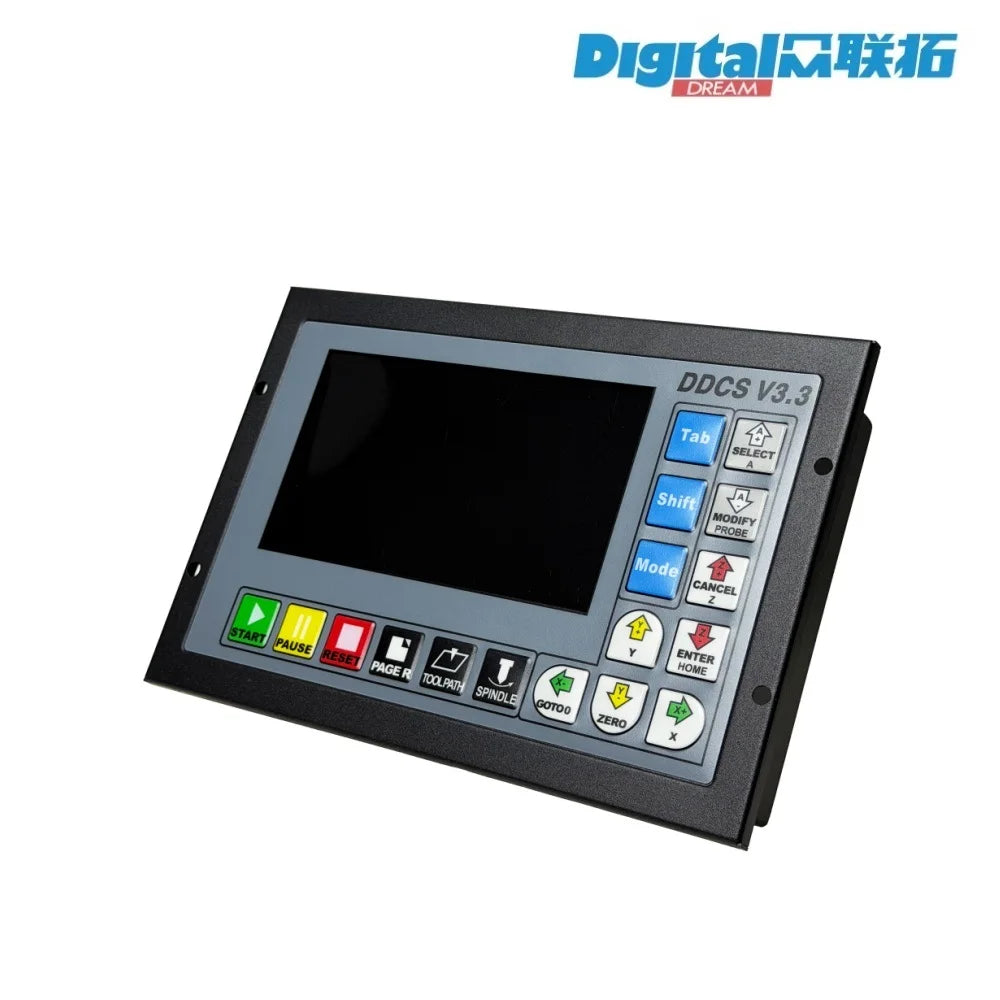

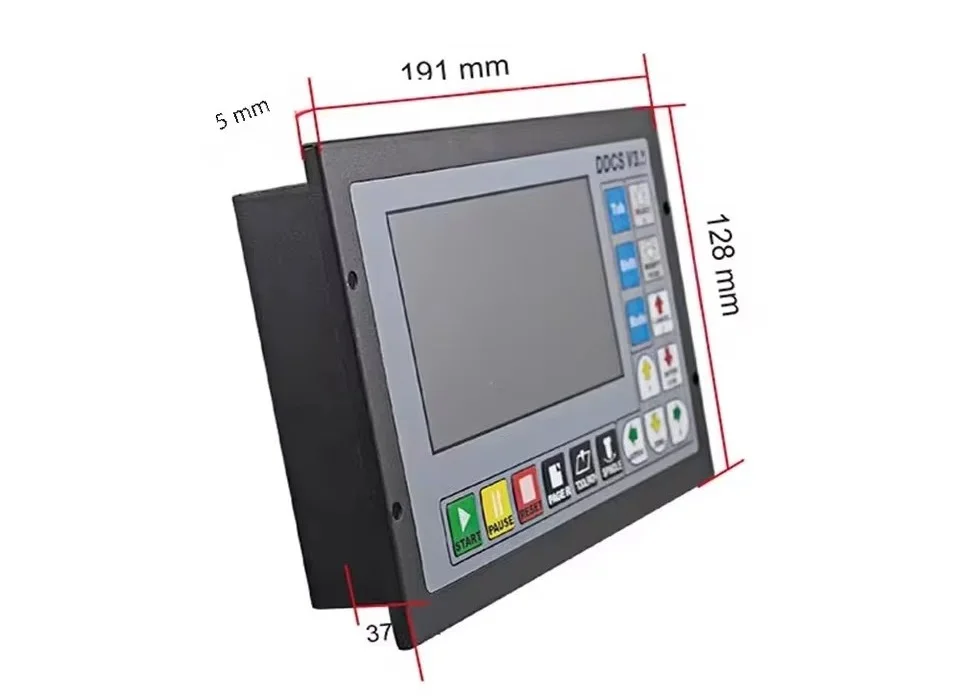

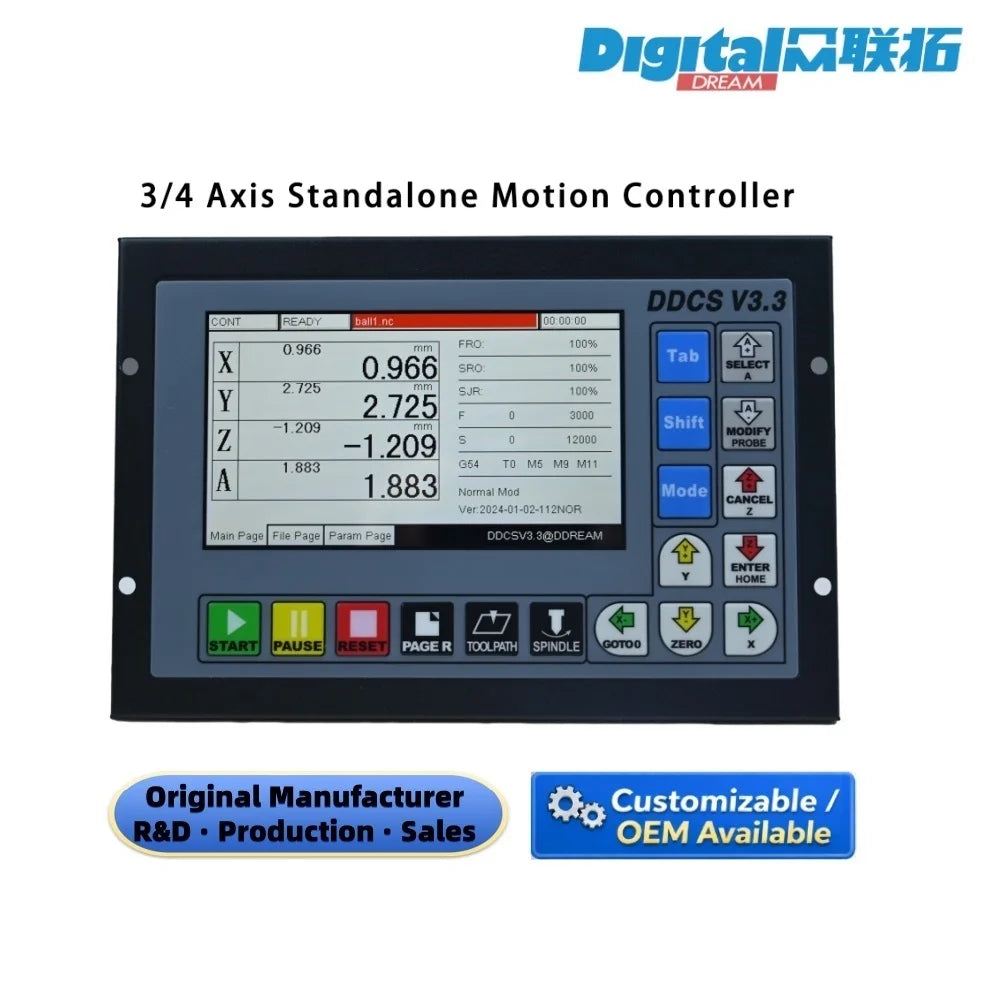

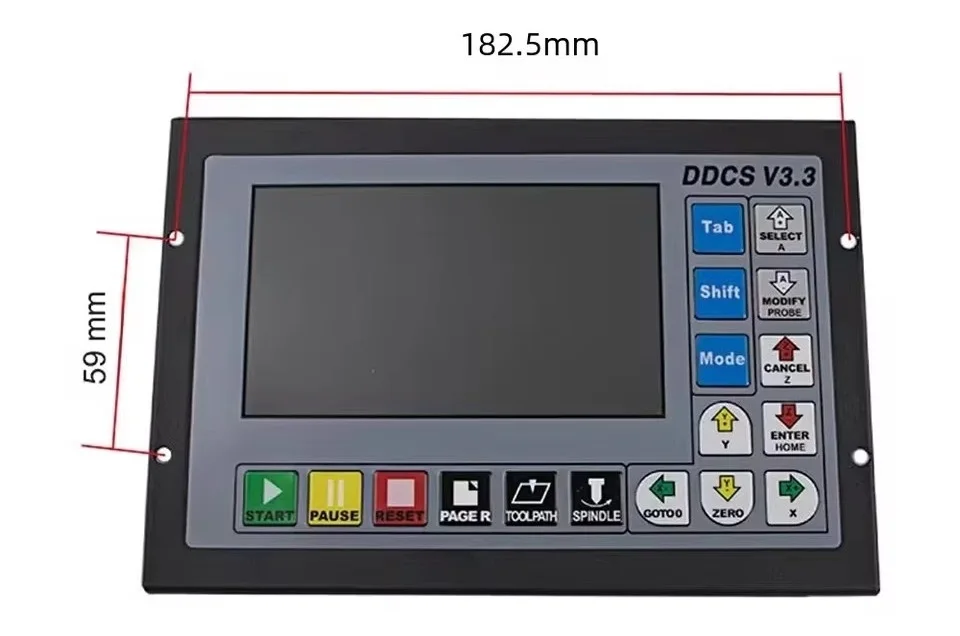

dimension(l*w*h): 191.4*128.5*34.9(mm)

machinery test report: Provided

place of origin: Guangdong, China

video outgoing-inspection: Provided

warranty: 1 Year

Products Description

Brand:

Digital Dream

Model

DDCS V3.3

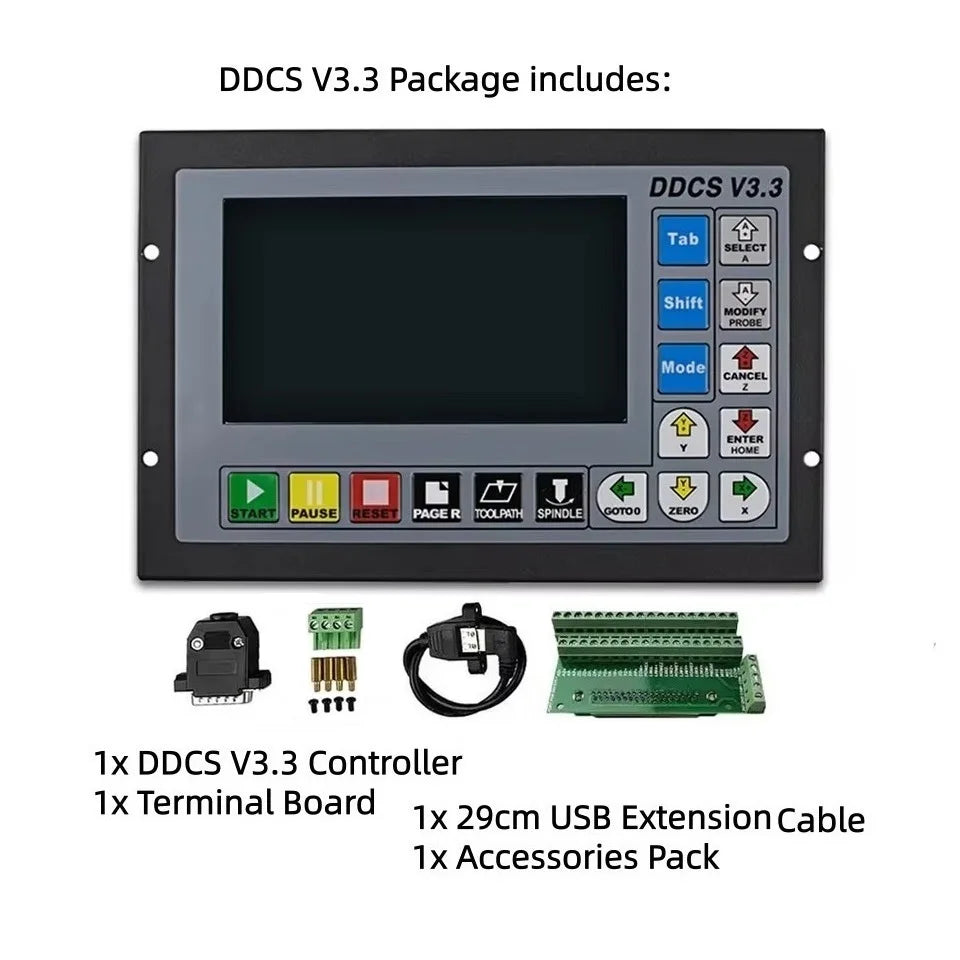

Package Includes:

** 1 x DDCS V3.3 Controller (available in 3-axis or 4-axis versions)

** 1 x 3-layer Main port Terminal Board

** 1 x 29cm USB Extension cable

** 1 x Accessories Pack

(Notice:Please contact us for the User Manual. Our sales will also reach out to you online to send the documents. Alternatively, you can download them from our official website: www.ddcnc.com)

The DDCS V3.3 is a standalone (offline) motion controller available in 3-axis or 4-axis configurations, designed for stepper and servo motor systems. It delivers high-precision motion control with a powerful ARM+FPGA framework. The panel layout structure of the DDCS V3.3 is very rational to save space. All operations are controlled by only 17 keys and a comprehensive G code set is supported.

THE DDCS V3.3 designed for milling systems and is suitable for various CNC machines, including engraving machines,
milling machines, and CNC routers.

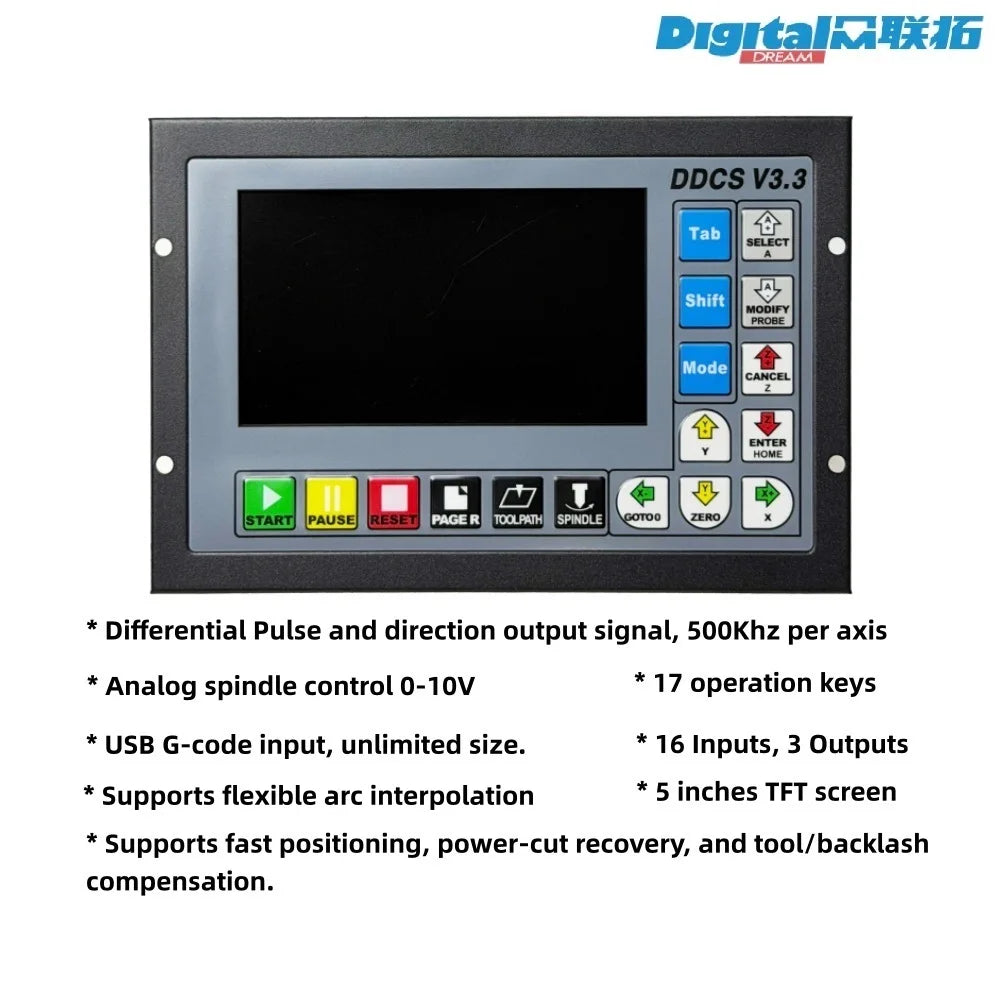

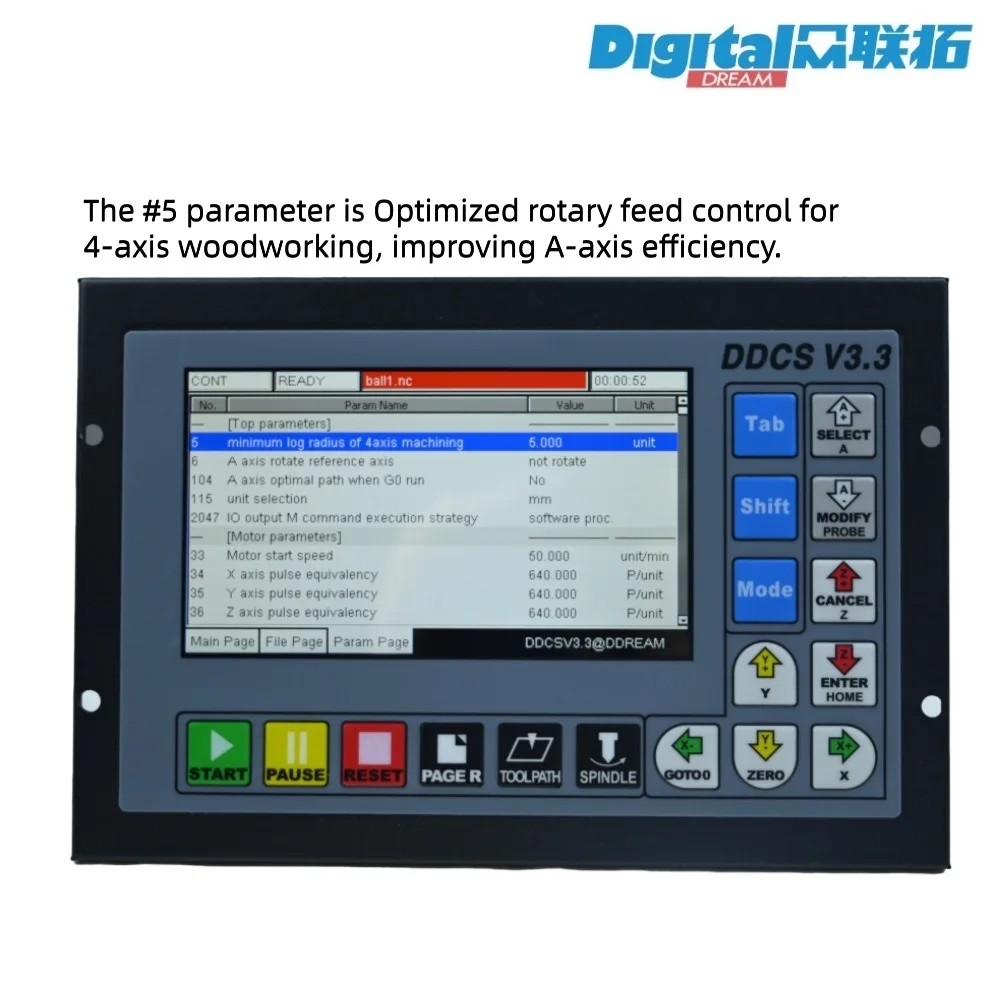

1, ARM9 main control chip, FPGA core algorithm chip. With Jog function for each axis (continuous, step, defined distance). Customer can define the distance. 2, Features a differential pulse and direction output signal, Max. 500Khz/axis. 3, The controller only support NPN type limited switch. 4, 16 photoelectric isolated digital inputs and 3 photoelectric isolated digital outputs. 5, Analog spindle control with 0-10V spindle control. 6, 5-inch TFT Display with a resolution of 480x272 px and 17 operation keys. 7, Supports FANUC G code set with 1GB internal memory, allowing for unlimited G-code file size. 8, Language options: Chinese, English, and Russian. 9, Support standard MPG and Keyboard, the MPG and extended Keyboard can also control and edit the controller system. 10, Supports functions of Try cutting (hand-wheel guiding) and Single-stage processing mode. 11, Supports quick specification of the running position. 12, Supports "Power Cut" recovery with automatic data saving. 13, Backlash compensation, Tool compensation. 14, Offers 3 Probing Modes: Fixed Position of tool sensor, Floating Position of the tool sensor, Rectangular block Sensor. 15, Compatible with Metric Units and Imperial Units. 16, Power supply for the controller is 24VDC with a minimum current of 0.5A. 17, The Power Supply for IO Port is 24VDC,minimum current is 0.5A. By the IO power supply, the system already supply the power for IO ports. So, no need for external power supply for IO port anymore.

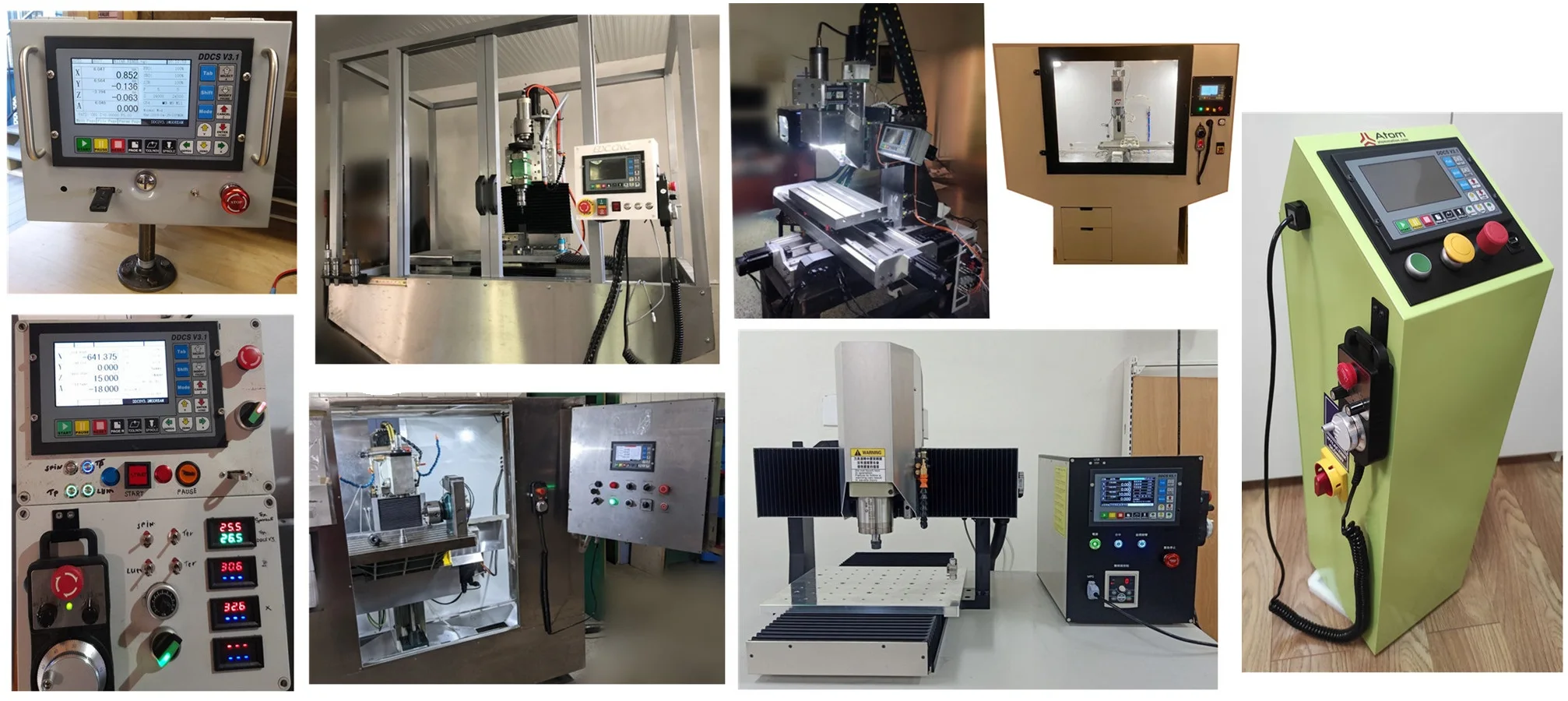

Pictures of the Panel box and machines shared by our customers

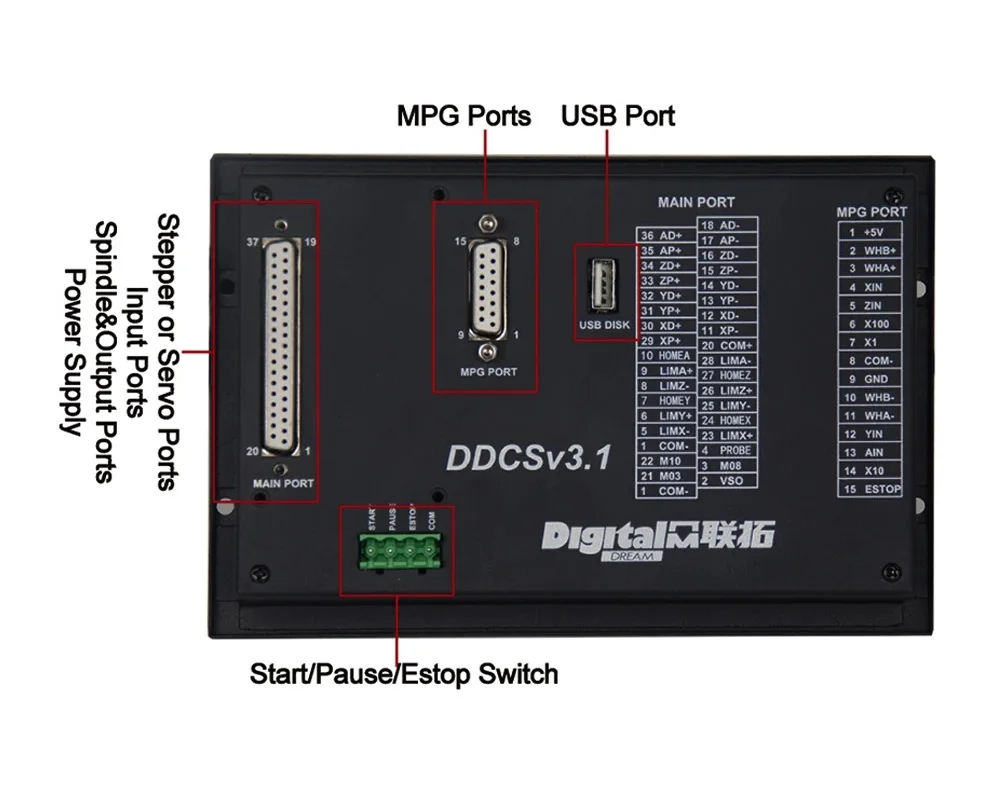

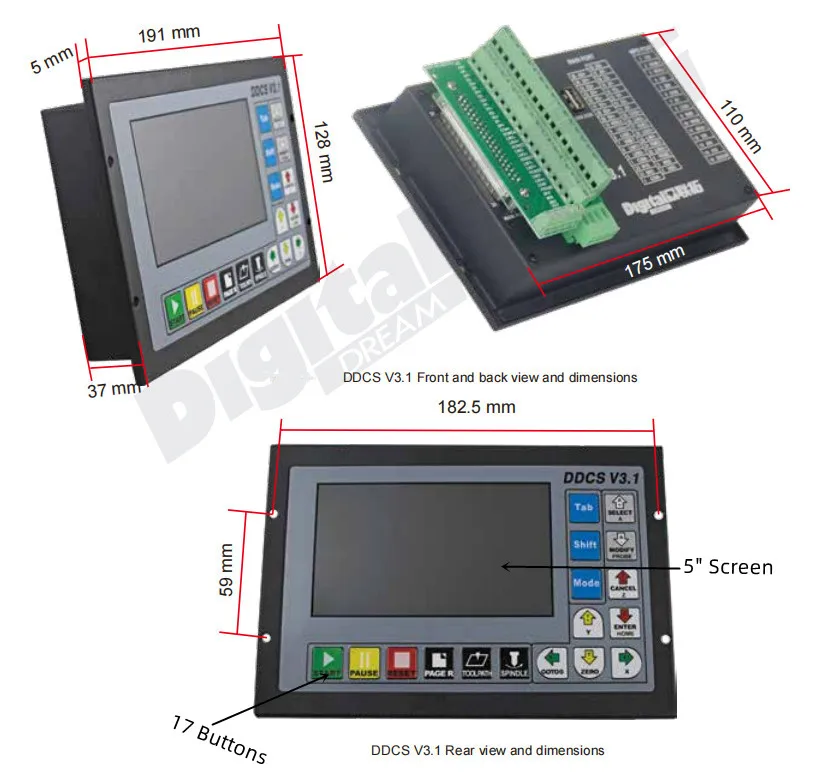

DDCS V3.1 Wiring board define, the connection method please check on the manual.

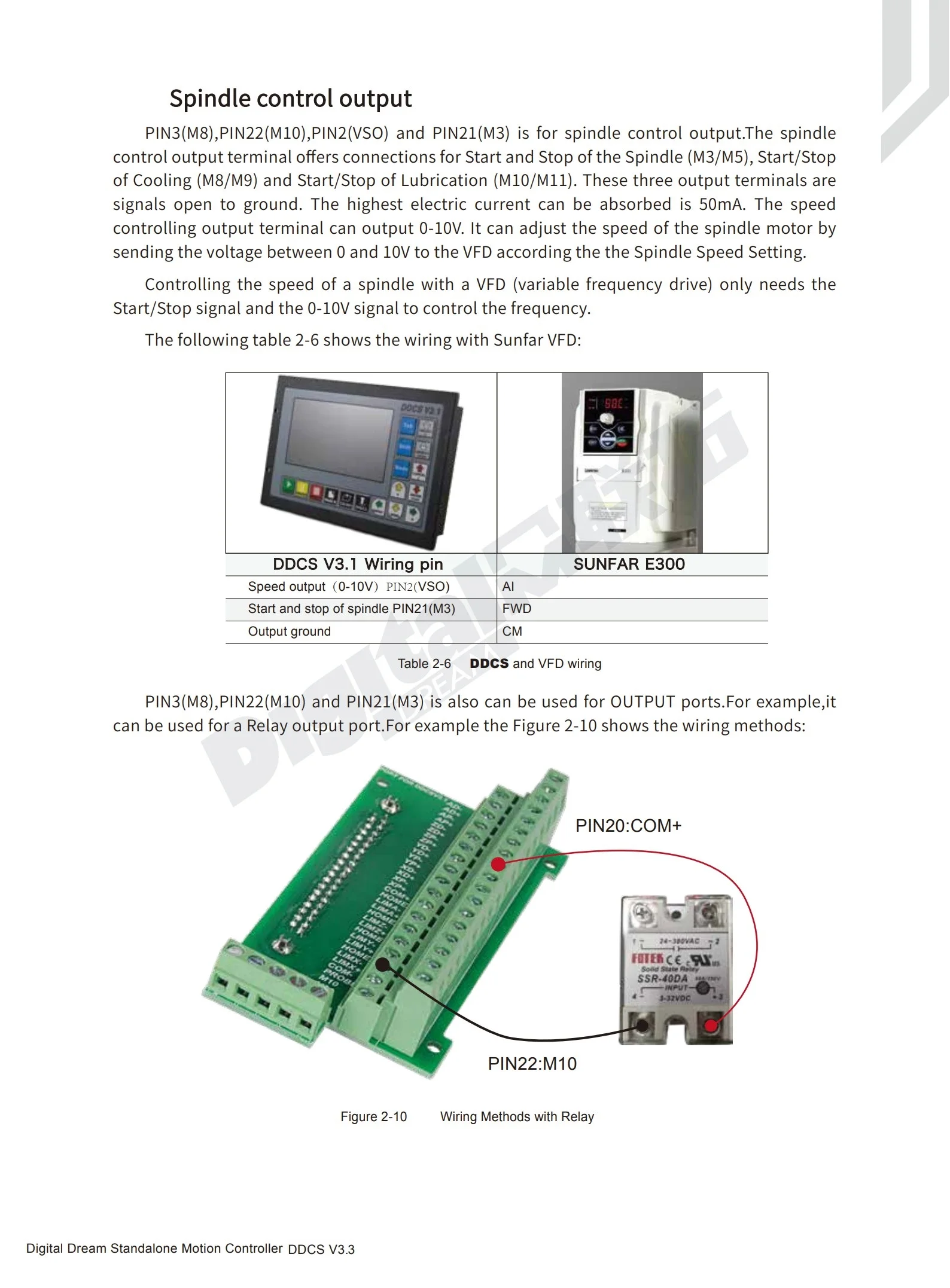

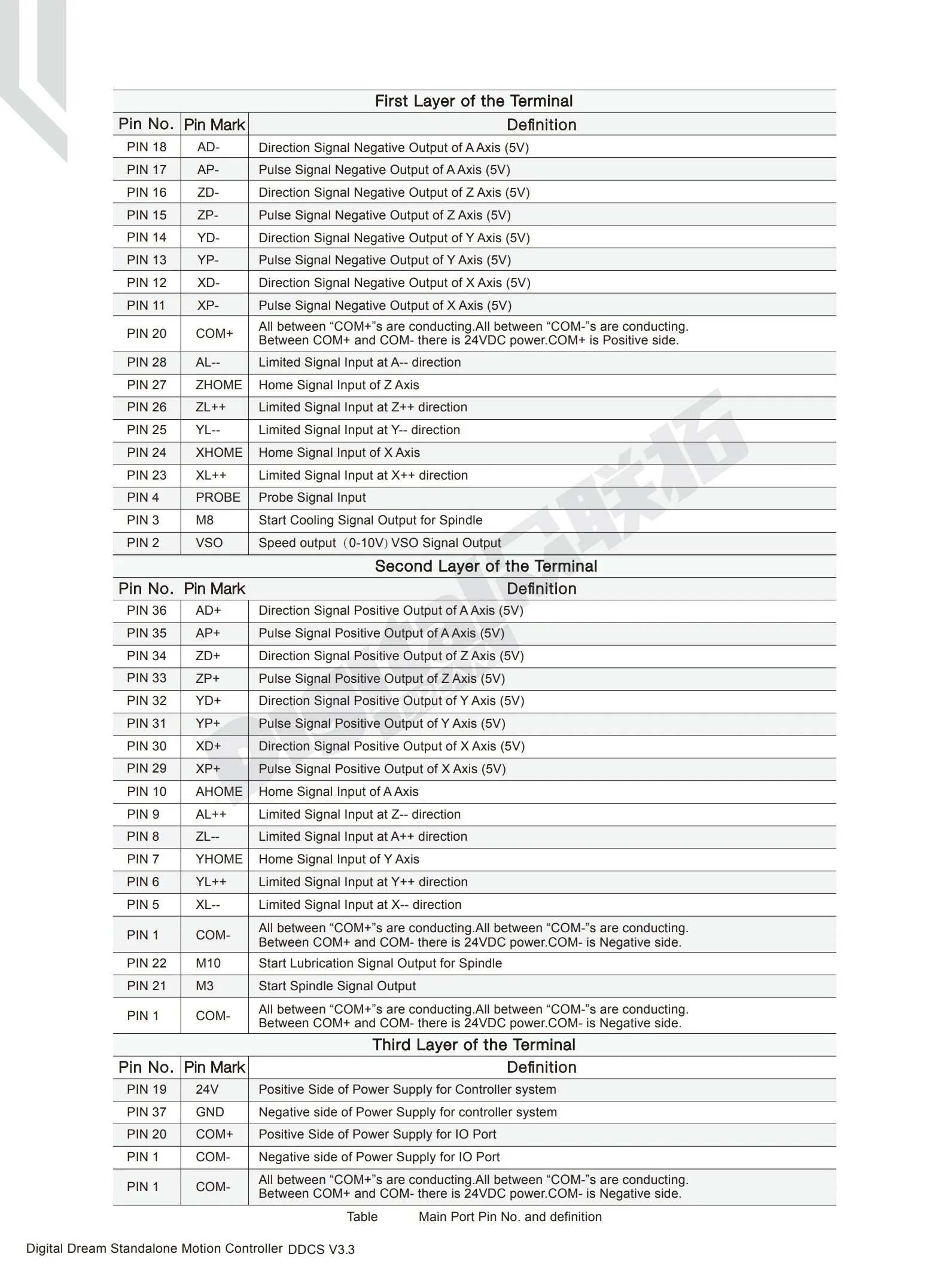

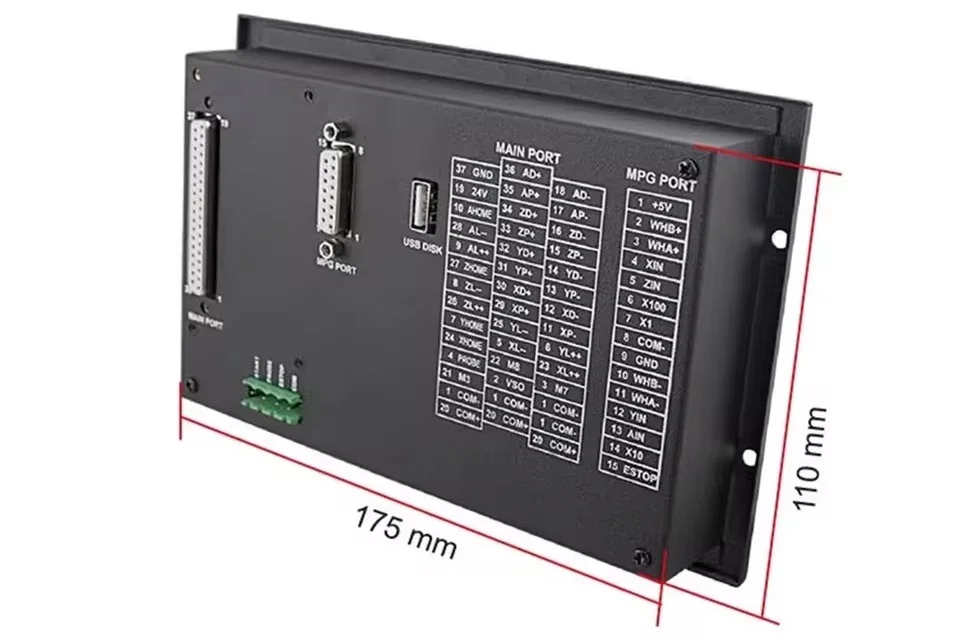

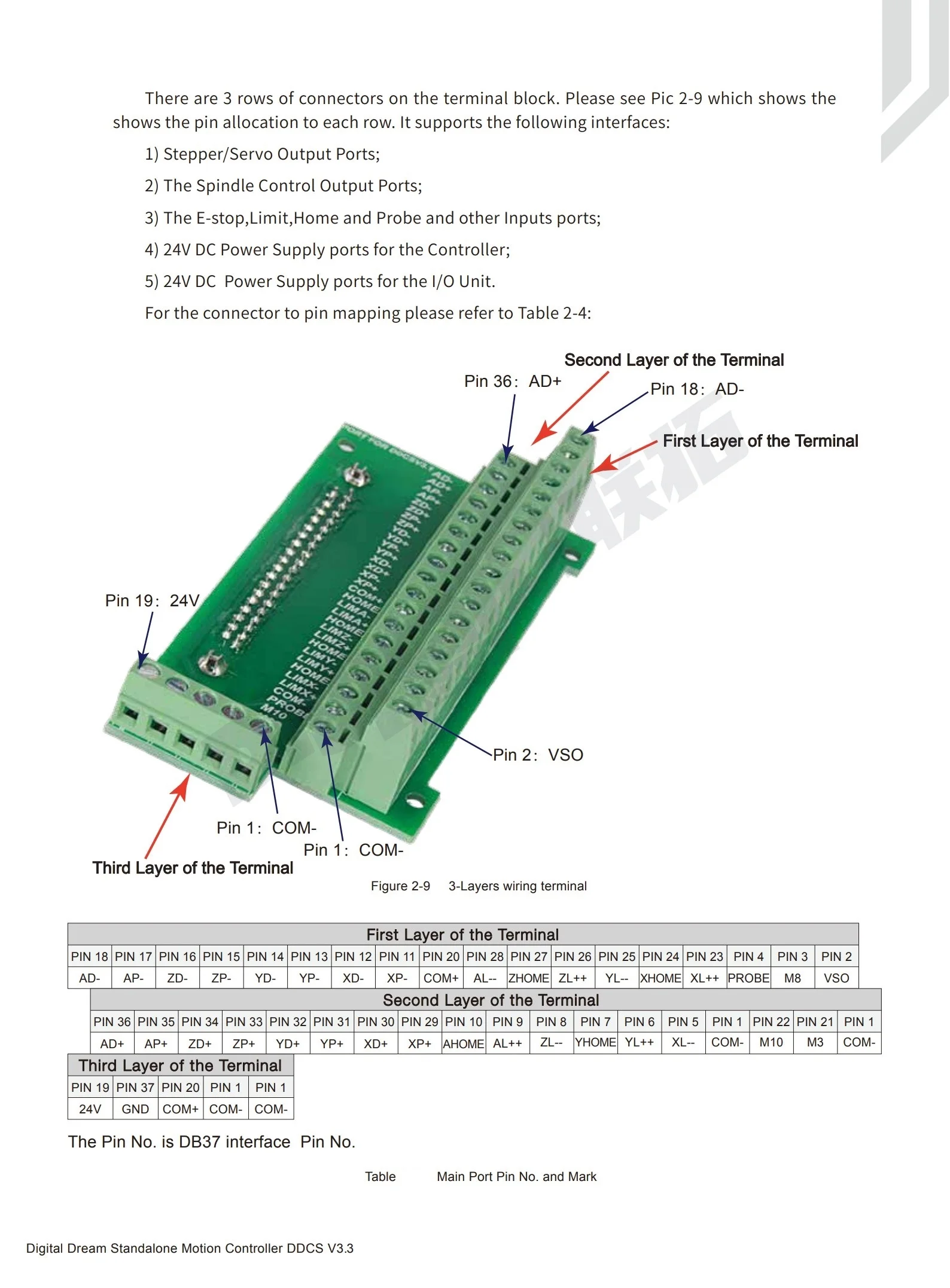

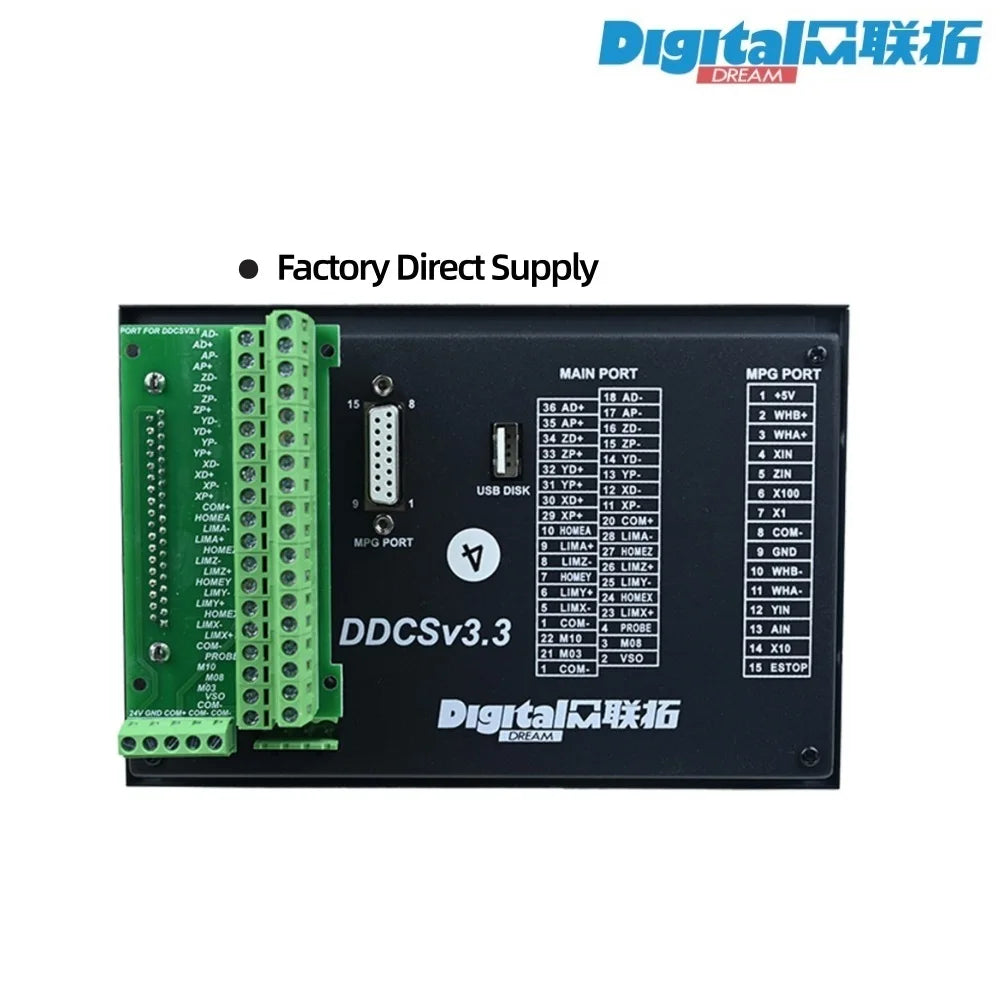

Includes: Input Ports, Spindle&Output Ports, stepper/Servo control step and direction output, MPG Port, USB Port and power supply Port as below image.
