SPECIFICATIONS

Interface: AV

Item No.: 760A-3

Material: Metal

Model: V760A-3

Product size: 8*4

Product weight: 150

Screen resolution: 800*600

Source category: Spot

Time to Market: 2020

Wearing style: Head Wear

brand name: oem

place of origin: Guangdong, China

Product application :
The display module is mainly designed for video glasses and head-mounted video displays. ( Eye-mounted,  helmet-mounted observation system ) , game helmet, electronic viewfinder device, computer video and other product applications;
Industrial medical video display: human and machine video engineering research, aviation navigation, machine vision imaging, various inspection and testing equipment, dental medical equipment use, medical equipment X Light ray fluoroscopic imaging, tunnel geology and marine exploration, scientific research institutions and colleges and universities;
use: equipment and instruments, video ( Sight ) , Laser sight imaging, multifunctional individual helmet system ( combat command system ) , individual night vision system, life detection video device, handheld detector, infrared night vision device, infrared thermal imager, infrared video surveillance, security surveillance and other devices ( High-definition full-color remote viewer that can be connected to various monitoring or thermal camera systems )

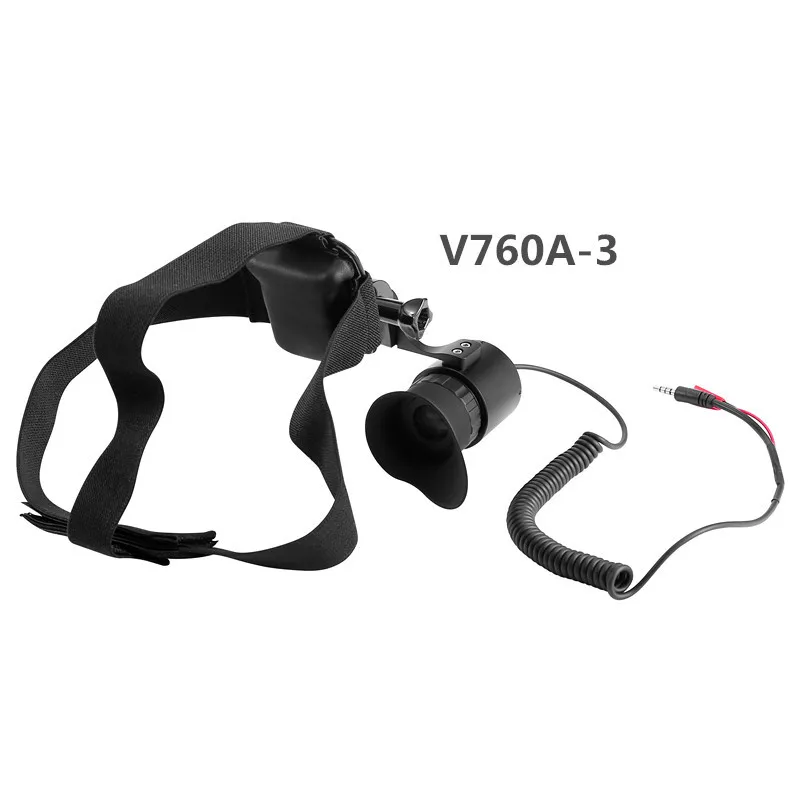

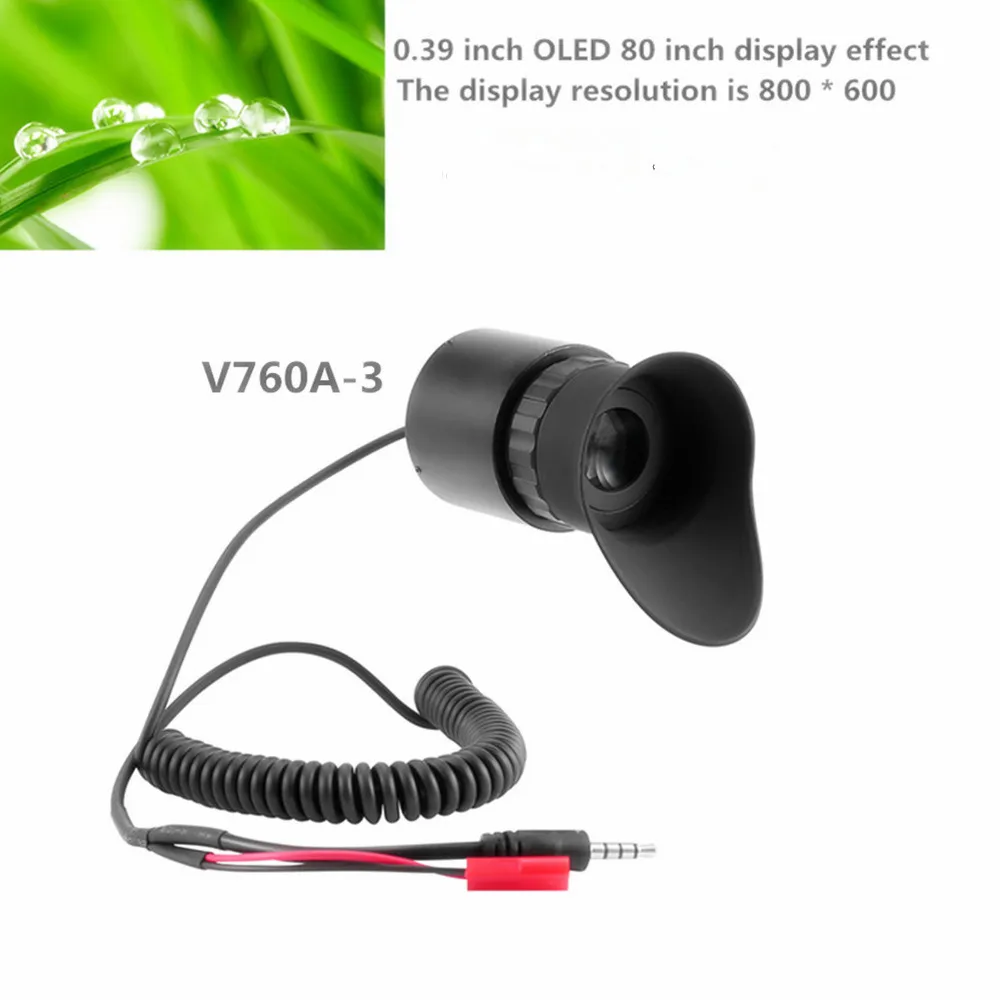

V760A-3 Portable large screen HD display, display 80 inches, 800*600 Active matrix color, 0.39 Inches OLED The panel module uses monocrystalline silicon transistors. The panel adopts panel drive and logic drive, which is small in size, light in weight and high in definition.

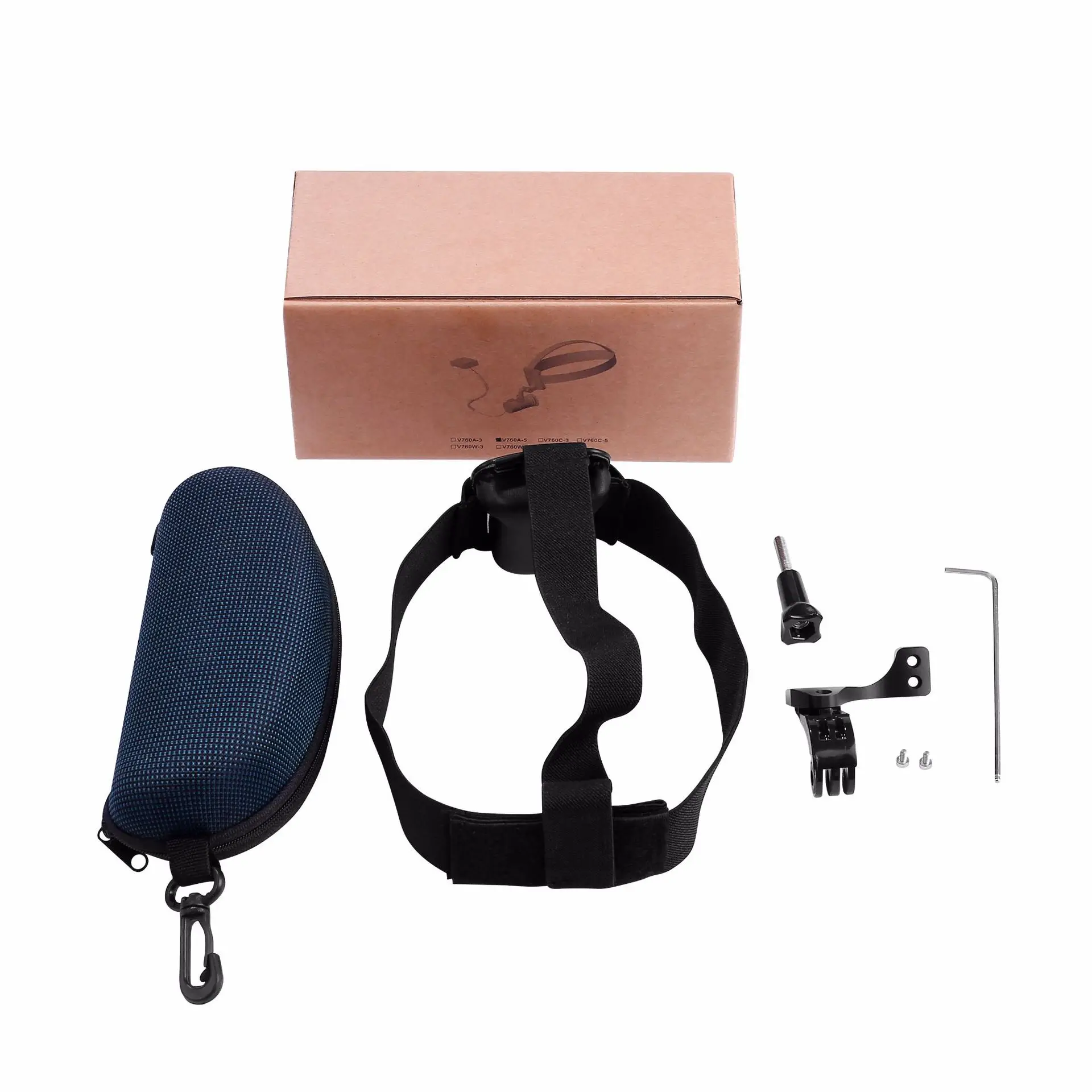

Equipped 18MM Eyepiece, custom strap;

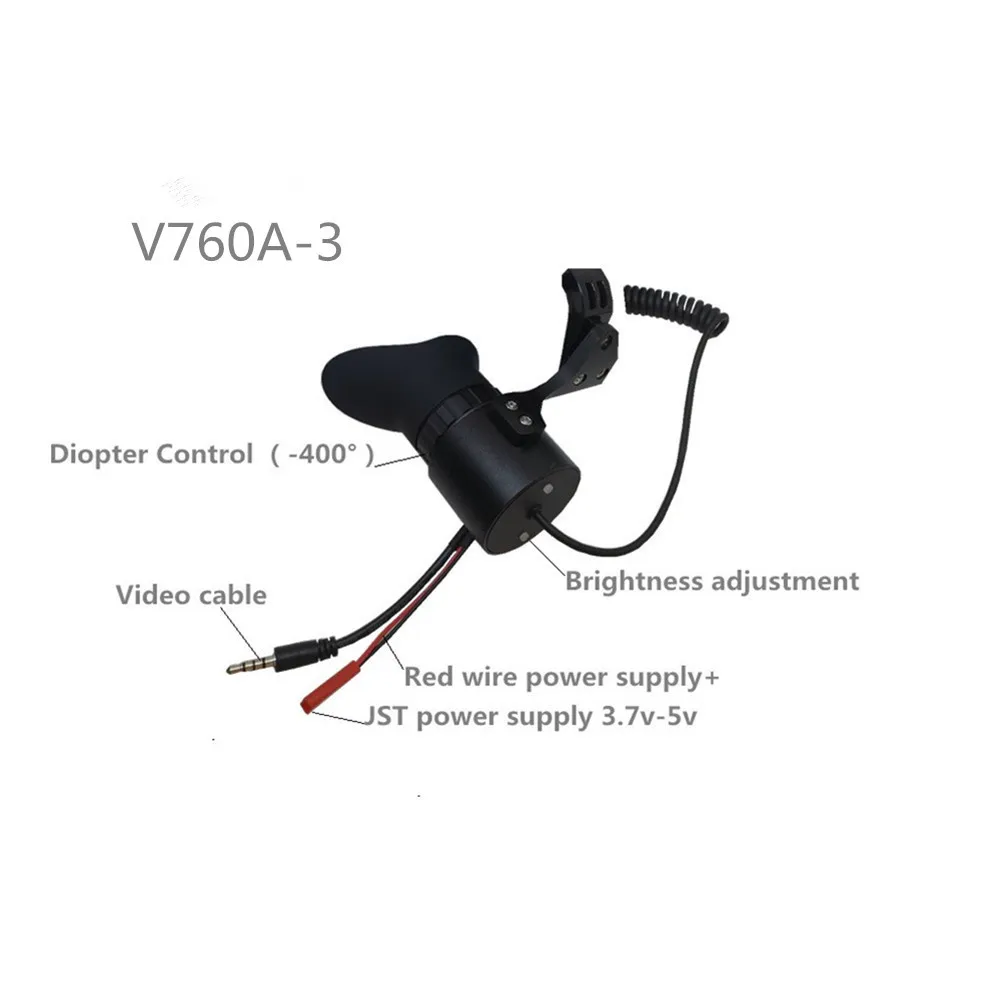

Adjustable diopter, supporting brightness adjustment

External JST Receptacle 3.7V-5V Battery, convenient and fast.

AV Signal input, support P/N Video format

Metal shell with internal fixing bracket, waterproof, dustproof and shockproof

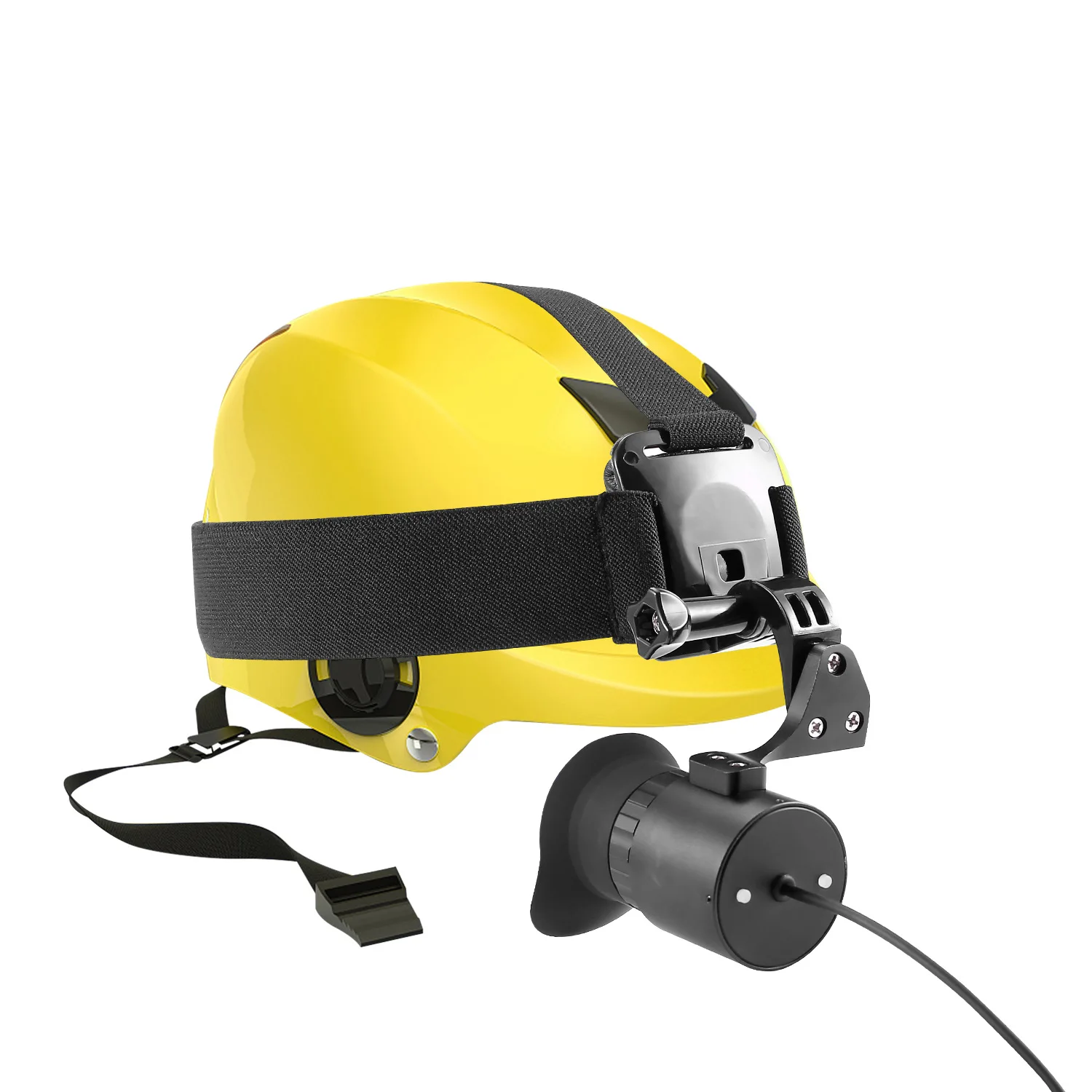

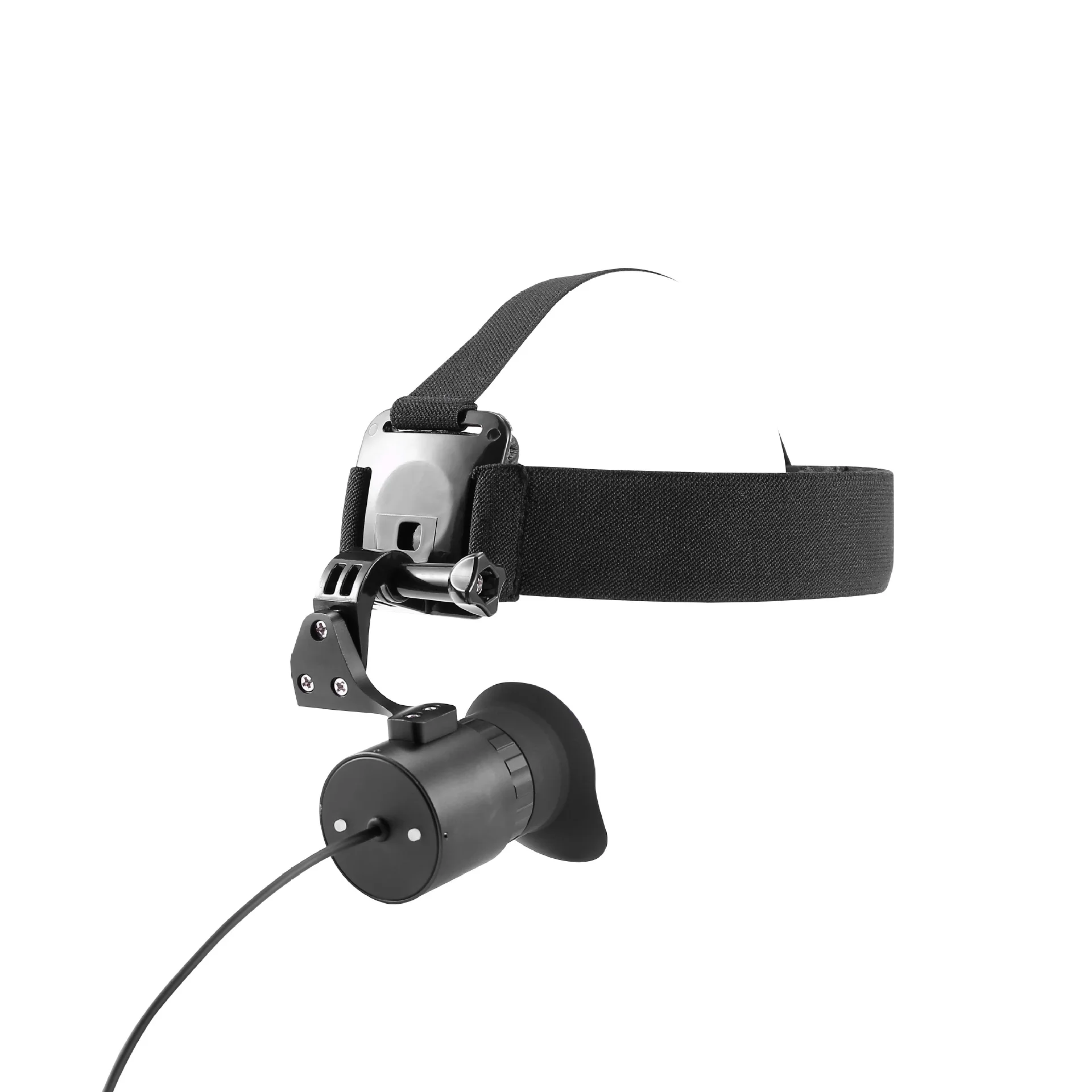

Humanized head wear is comfortable and convenient, while supporting up and down adjustment

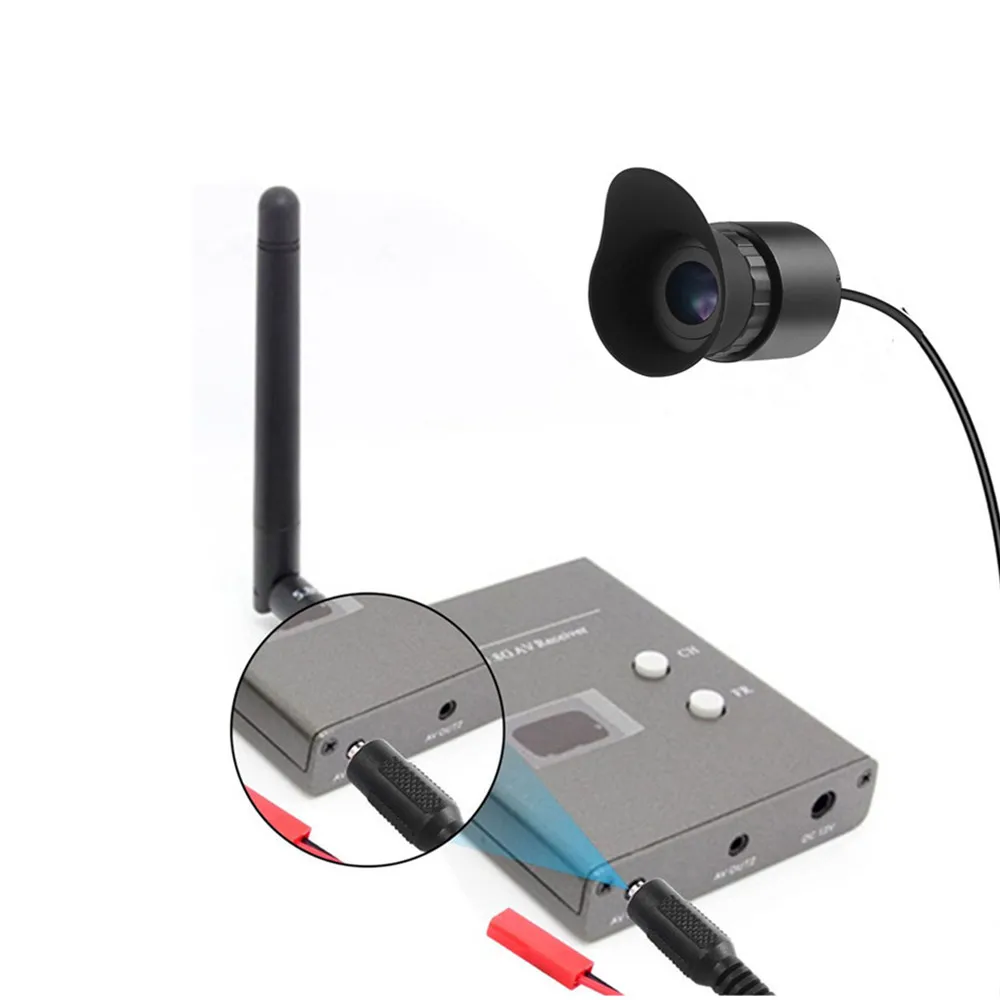

FPV 5.8G and 2.4G Receiving display

5.8G and 2.4G The wireless receiving handheld display is invisible in the sun, so it is not suitable for rainy days. . The head-mounted display adopts a general waterproof cover design, which has no effect on strong light and rainy days.

V760A-5 It is an external video source and battery to facilitate the matching of terminal equipment. , 5.8G for FPV There are more air model competitions. Now some countries in Europe and the United States are popular to play drone competitions, the domestic market is also gradually evolving; air traffic monitoring, outdoor shooting, etc. need to observe the outdoor dynamics in a timely manner, popular 7 Inch screens and connected mobile phones are used as displays. When looking at a mobile phone in the sun, everyone will encounter the problem of how to damage the glasses. The viewing effect is also very blurry, so the use of the helmet display can effectively avoid glare and dazzling

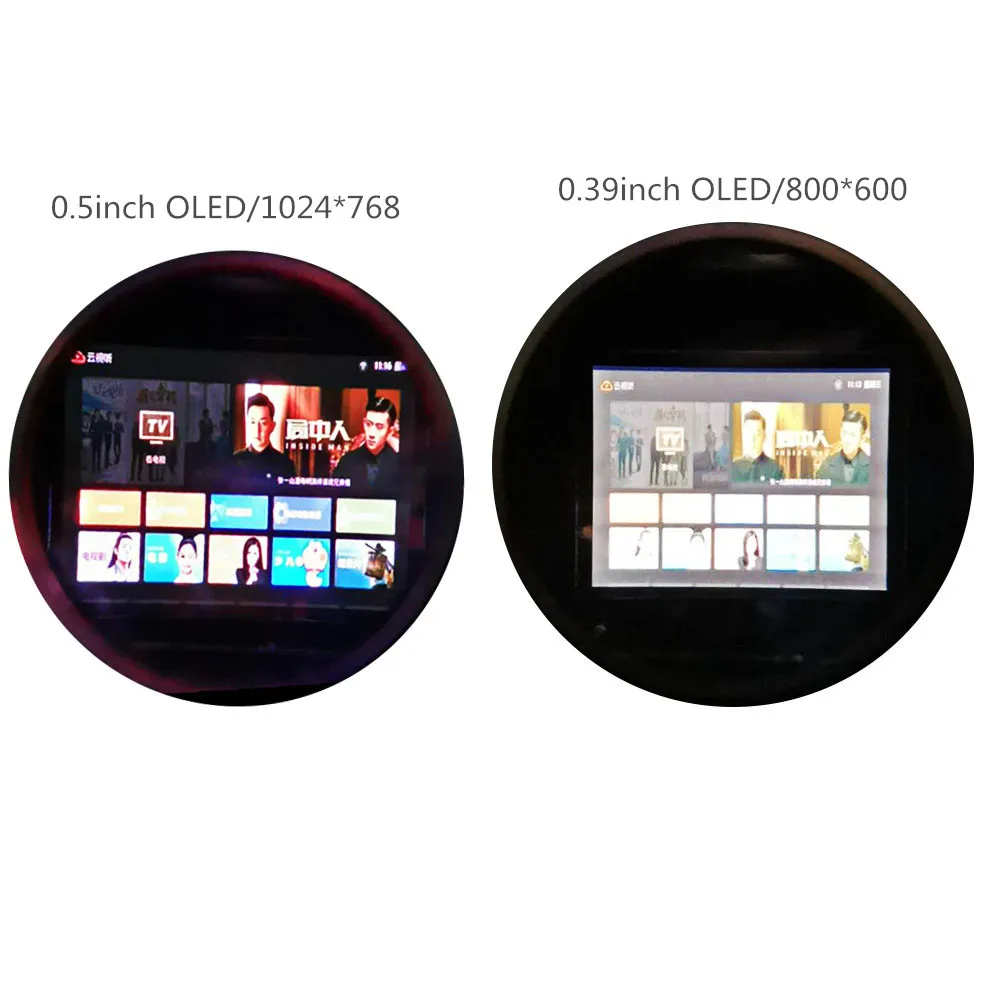

V760A-5 with V760A-3 Real comparison of image display:
The following video picture input is 2K Video, because 0.39 Supported video formats 800*600 It is relatively low, so there is a drag.

Introduction to simple operation:
