3D Laser Engraving Machine Photo Keychain Printing Machine
500 W / HSGP-4KB
$15,360.00 USD
Passer aux informations sur le produit
3D Laser Engraving Machine Photo Keychain Printing Machine
$15,360.00 USD
Expédition calculée lors du paiement.
SPECIFICATIONS
After Warranty Service: Video technical support
Applicable Industries: hotels
Application: Laser Engraving
Core Components: Pressure vessel
Engraving Speed: 220,000dots/min
Laser Type: SEMICONDUCTOR
Machinery Test Report: Provided
Q-mode: acousto-optic-Q
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Weight: 200 KG
applicable material: Acrylic,Crytal,Glass,Metal
application materials: crystal /glass etc
beam quality: M2<1.5
brand name: HOLY LASER
cnc or not: No
condition: New
configuration: Gantry Type
control system brand: Weihong
cooling mode: AIR COOLING
dimension(l*w*h): 65*78*50mm
engraving area: 300*400*130mm
feature: 3 d
focal length: 100mm
focus diameter/resolution: 0.02mm/800DPI-1200DPI
graphic format supported: AI,BMP,Dwg,DXF,PLT
guiderail brand: NSK
key selling points: Easy To Operate
laser head brand: Precitec
laser power: 3w
laser pumping: semiconductor diode
laser source brand: Coherent
laser type: Diode
mode of operation: Continuous Wave
optical lens brand: Wavelength
place of origin: Zhejiang, China
servo motor brand: Mitsubishi
warranty: 1 Year
wavelength: 532nm
3D Sub surface Laser Engraving Machine Photo Keychain Printing Machine
Product Description
Product Description:
3d crystal photo laser engraving machine mainly in engrave 2D or 3D photos inside crystal or glass.
Inside the transparent material such as crystal glass carving plane or three-dimensional design,
Can be carved 2 d / 3 d portrait,Name hand footprints,trophy personalized gifts souvenirs, etc
Also can be mass production of 2 d / 3 d animal plant construction products such as car boat plane model and 3 d scene.

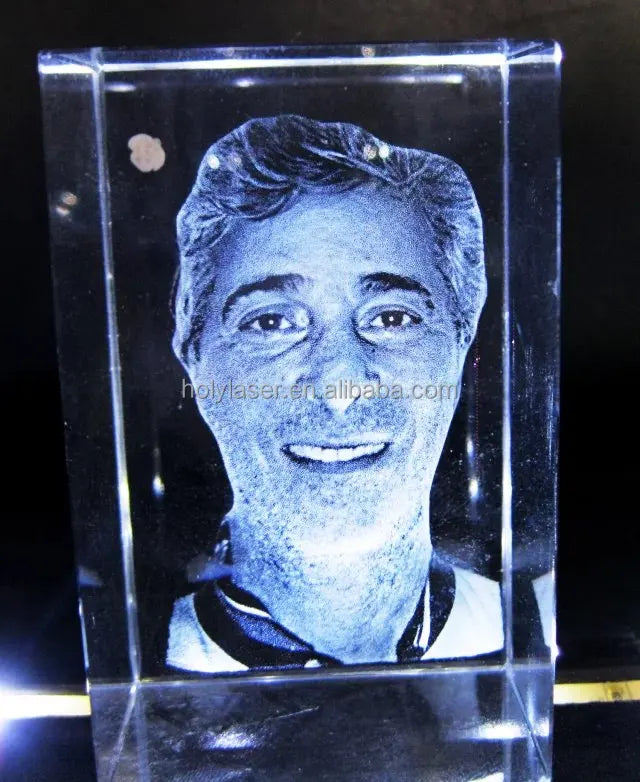

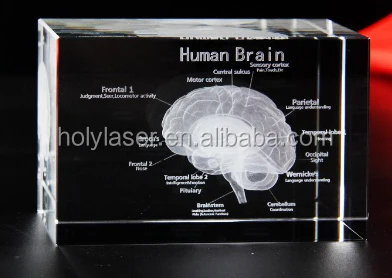

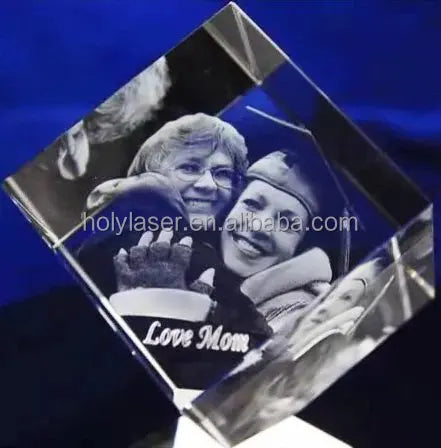

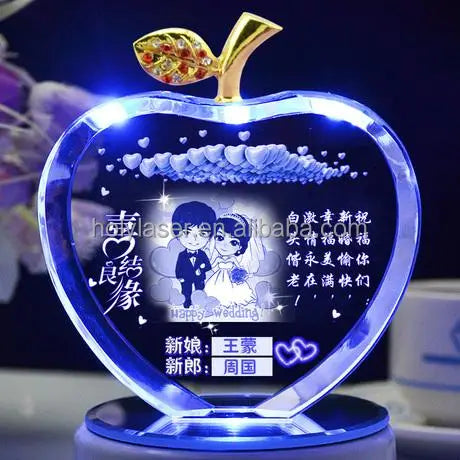

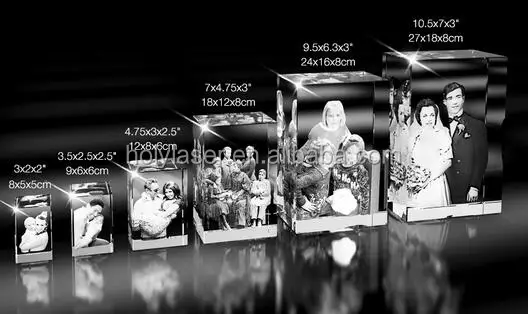

Samples:
Applicable:
The crystal engraving laser machine, is a high resolution laser engravingmachine, is really a fine processing machine with advantages of high fidelity and strong stablity, with the advantage of small size;easy for operation;convenient for personality products processing. which is definitely suitable for fine model engraving processing centers, gift shops, craft shops, photo printing shops, wedding photography, souvenirs, personalized gifts shops, etc .
Technology
Technical feature:
1. High engraving speed makes production and on-spot customization more efficient, helping customers to improve their production capacity, and expand the volume of business.
2. High resolution ( different machine type has different resolution) to ensure the effect of delicate carving, realistic, exquisite which can be compared with original photos or real objects.
3. High Stability. We adopt the advanced End-pump laser technology in the world in order to make the machine more stable, longer life time and lower cost.
4. Intelligent Software. Friendly software interface with multi functions, can read 3D / 2D graphic data processed by point cloud software directly, no need to use a third-party software to convert format, easy to use.

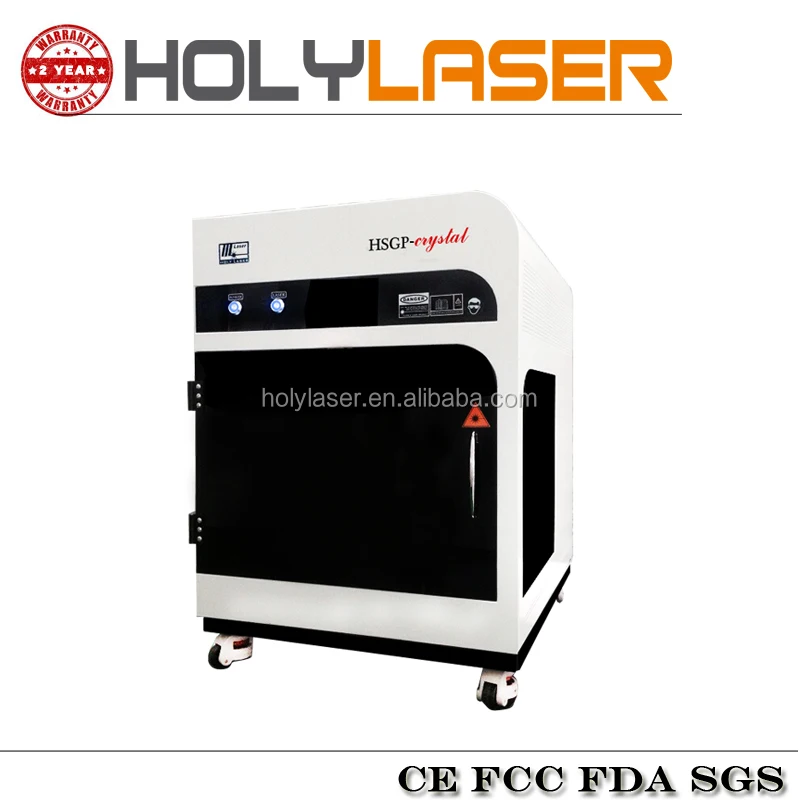

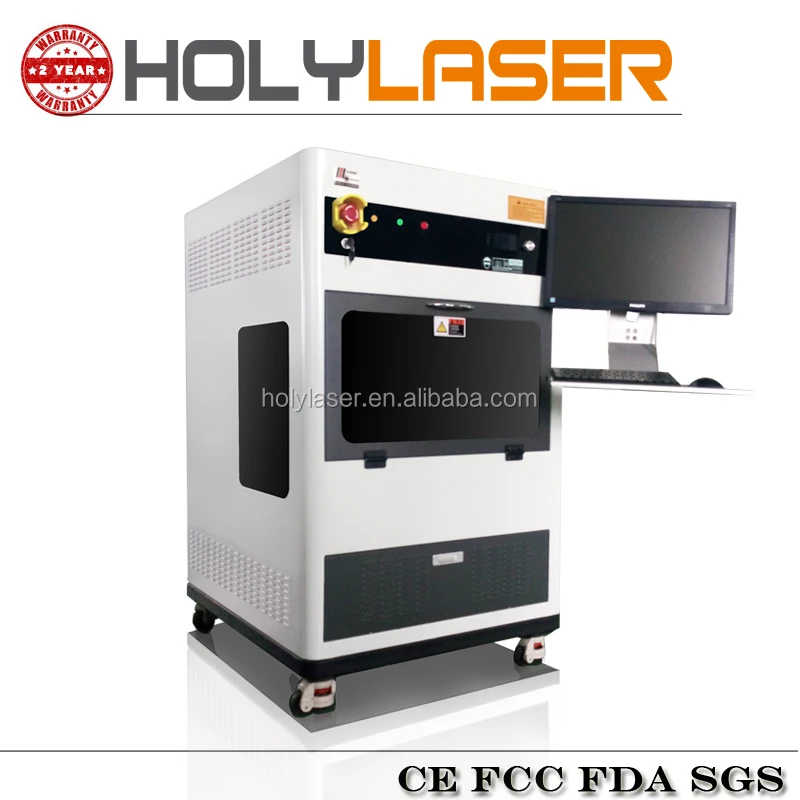

Technical Parameter:
|
Model NO. |
HSGP-5KB |
HSGP-4KB |
HSGP-4KB |
HSGP-3KC |
|
Main photo |
|
|
|
|
|
Max Engraving speed (dots/min) |
300000dots/min |
240000dots/min |
240000dots/min |
180000dots/min |
|
Max.engraving area(L*W*H) mm |
300x400x130 |
300x400x130 |
300x400x130 |
300x400x130 |
|
Life span |
25000hours |
|||
|
Point size in glass/crystal |
40-80μm |
|||
|
Power supply |
100-240VA,5A,50/60HZ |
|||
|
Laser wavelength |
532nm |
|||
|
Operating system |
Windows 2000/XP/7 |
|||
|
Engraving materials |
Crystal,Glass,acrylic |
|||
|
Dimension(L*W*H) |
700*800*980mm/700*900*102mm |
|||
|
Package dimension (L*W*H) |
82*102*121mm |
|||
|
weight |
300kg |
|||
|
Warranty |
24 months warranty |
|||
Certifications
Certificate and Exhibition:
Advantage:
1. CE,FCC, approved.
2.This machine can engraving both 2D and 3D, (depends on your design).
3. Our machine good for quantity production
4. With newest laser, high speed.
5.2 years warranty for free.
Company Information
Factory features:
Supported by the Yiwu City Government
Cooperate with the Zhejiang University, update for technology
We are the manufacturer, our price are more competitive.
With 13 years history on reseaching and producing all kind of laser machine
Our company welcomes AGENTS all over the world
FAQ
1) What is a 3d crystal laser engraving machine used for?
The 3D crystal laser engraving machine is used for engraving 2d & 3d photos inside crystal and glass,
suitable for customized crystal engraving business. Our 3d laser engraving machine is widely applied
in personalized gifts business, crystal trophies and awards production, crystal crafts and decorations
industry.
2) How long will it take to engrave a photo into a small crystal cube?
The max engraving speed is 4000 points/second; typical speed is approx. 3500 points/second.
The processing time depends on the size of the crystal. For examples:
Crystal block (50*50*80mm & 300,000 dots): <2mins
Crystal key chain (30*20*15mm & 50,000 dots): <20seconds
3) What’s the working environment of your 3d laser engraving machine?
Our machine use own designed advanced air cooling system, can make sure our machine works at the
environment with 5℃~35℃,humidity <70% no condensation, but other machines in China market are
around 10-28 degrees or 15-30 degrees.
4) Could your machine engrave on several kinds of materials, or only on one kind of crystal material? What material is the most suitable for the machine?
Our machine can engrave on crystals, common glasses, acrylics and similar kind of transparent materials,
but the engraving result is the best on K9 crystals. If you need, we can also supply the best K9 crystals for
you.
