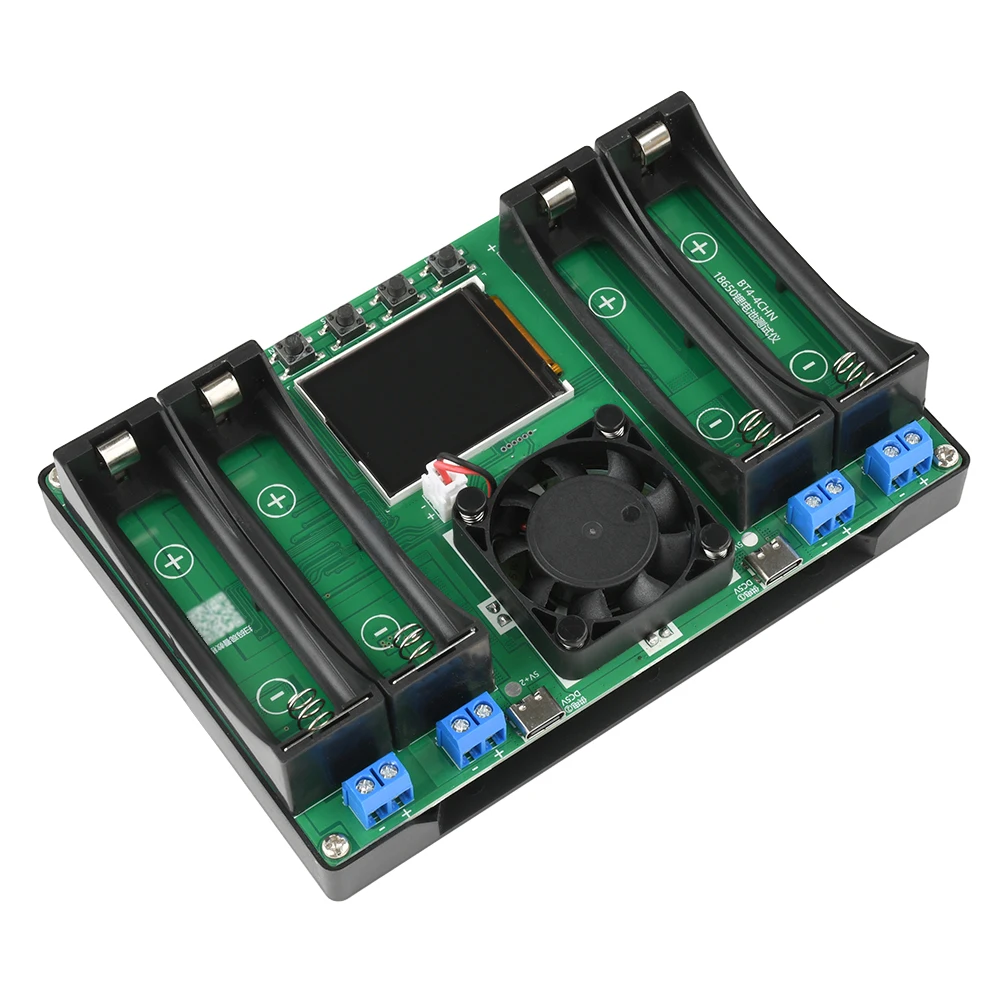

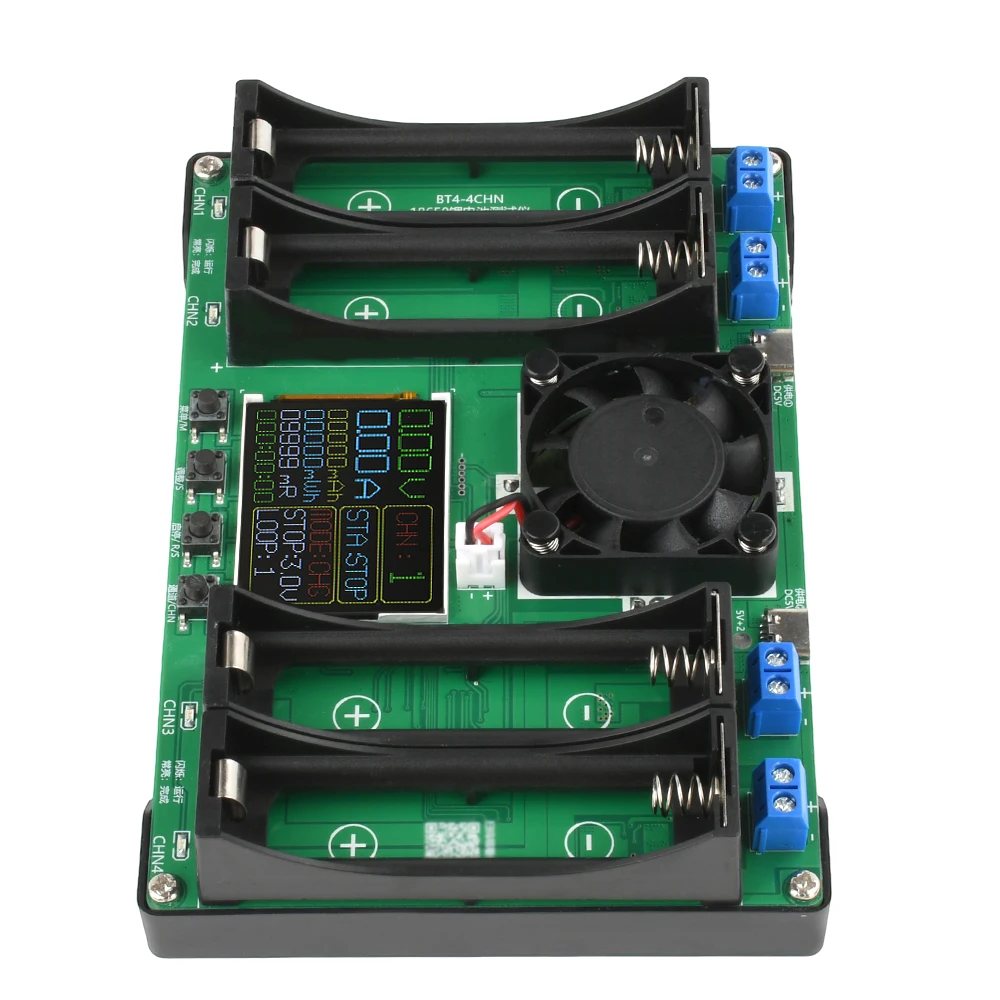

18650 Lithium Battery Capacity Tester MAh MWh Internal Resistance Tester Auto Charging and Discharging Module Power Detector

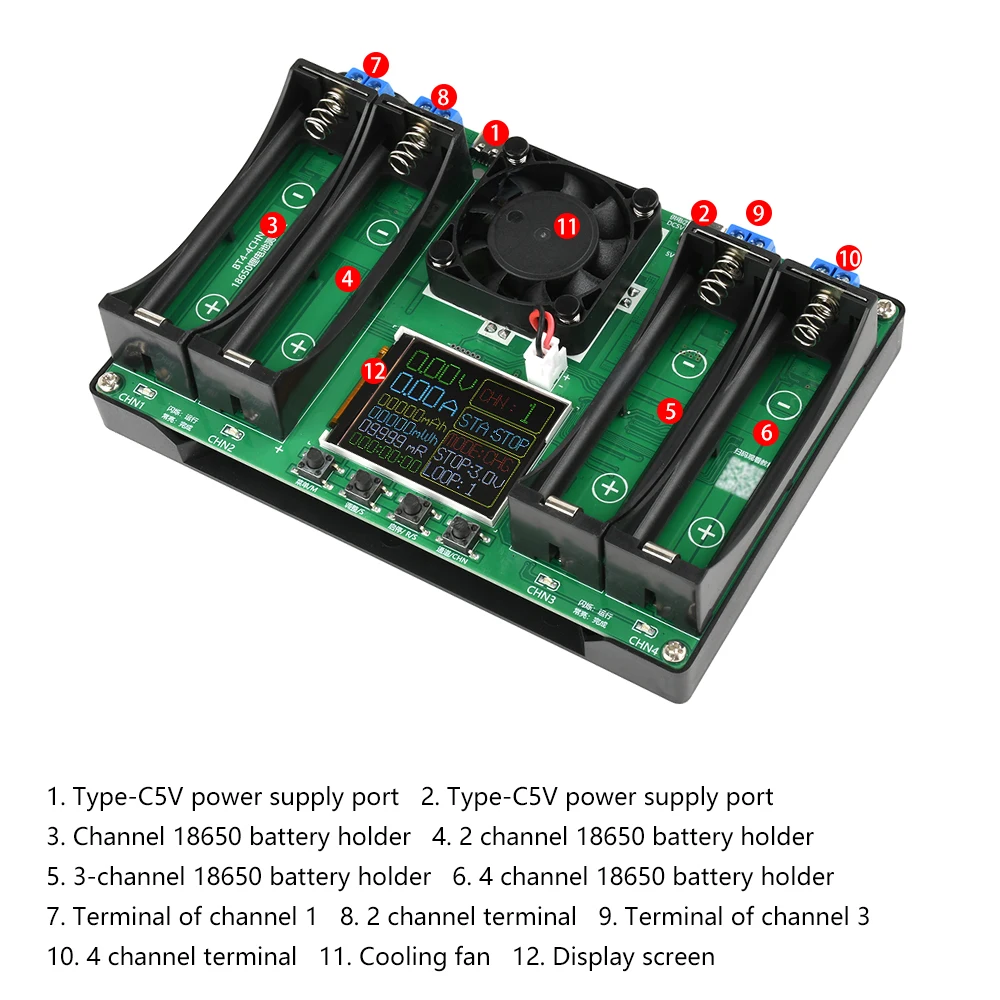

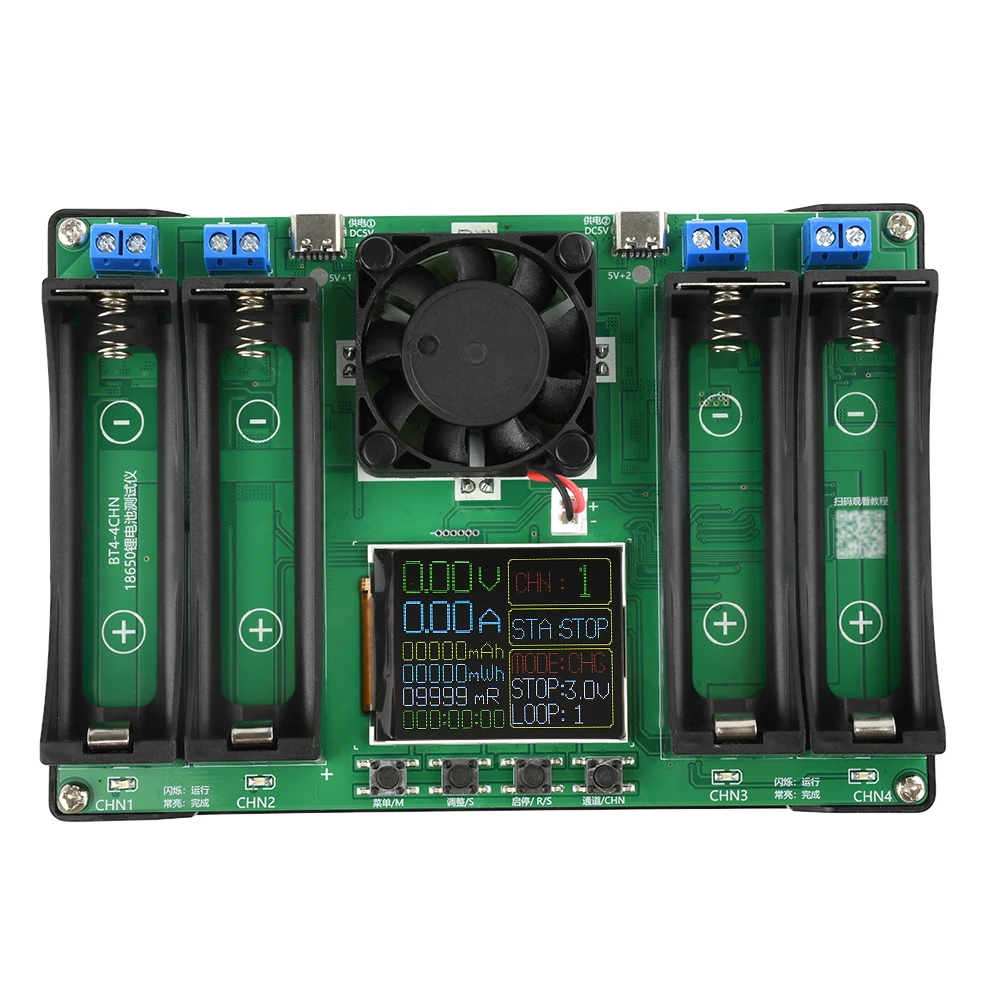

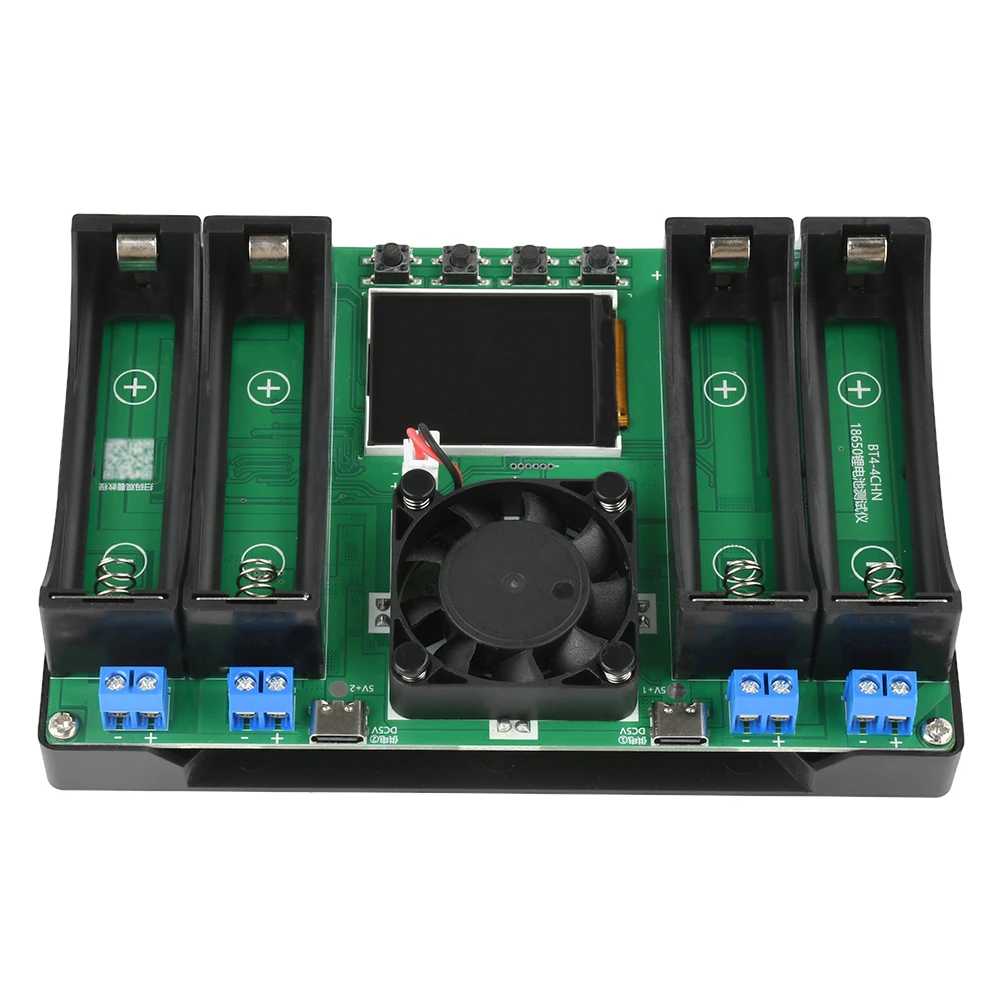

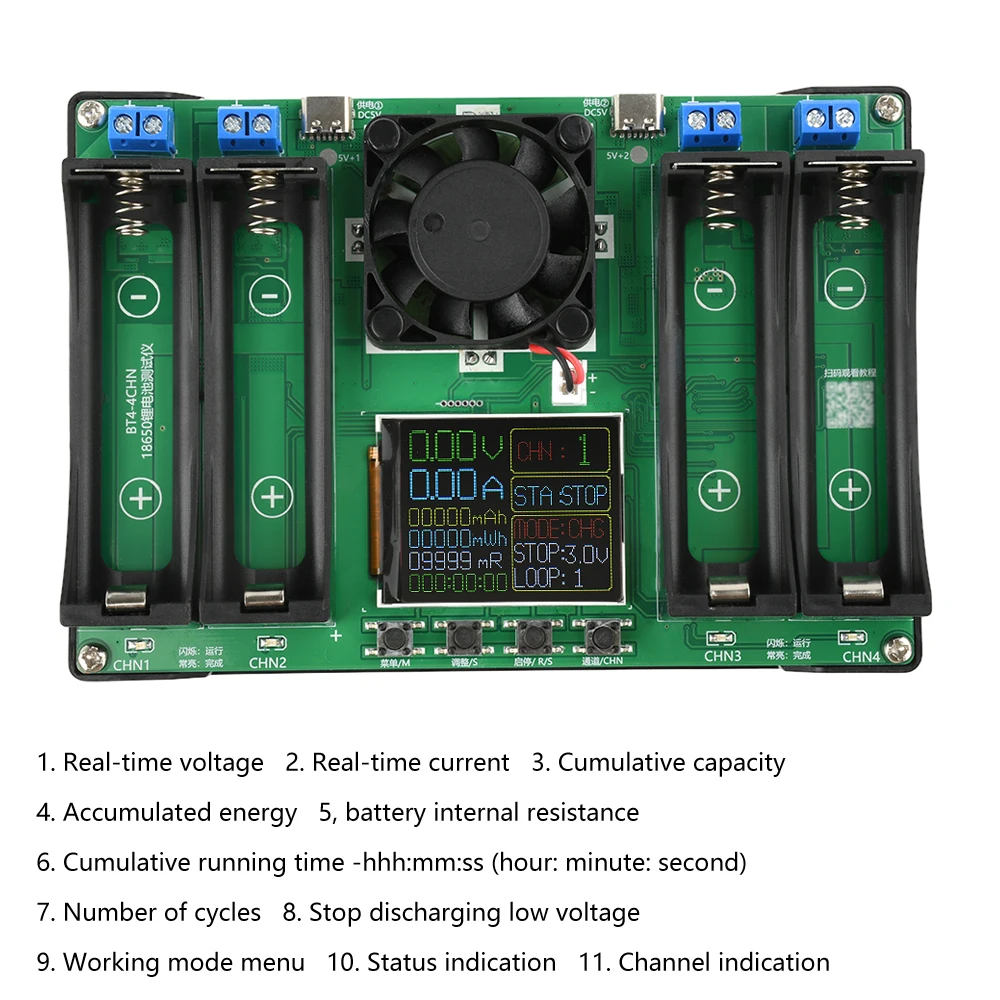

4 channel

Features:

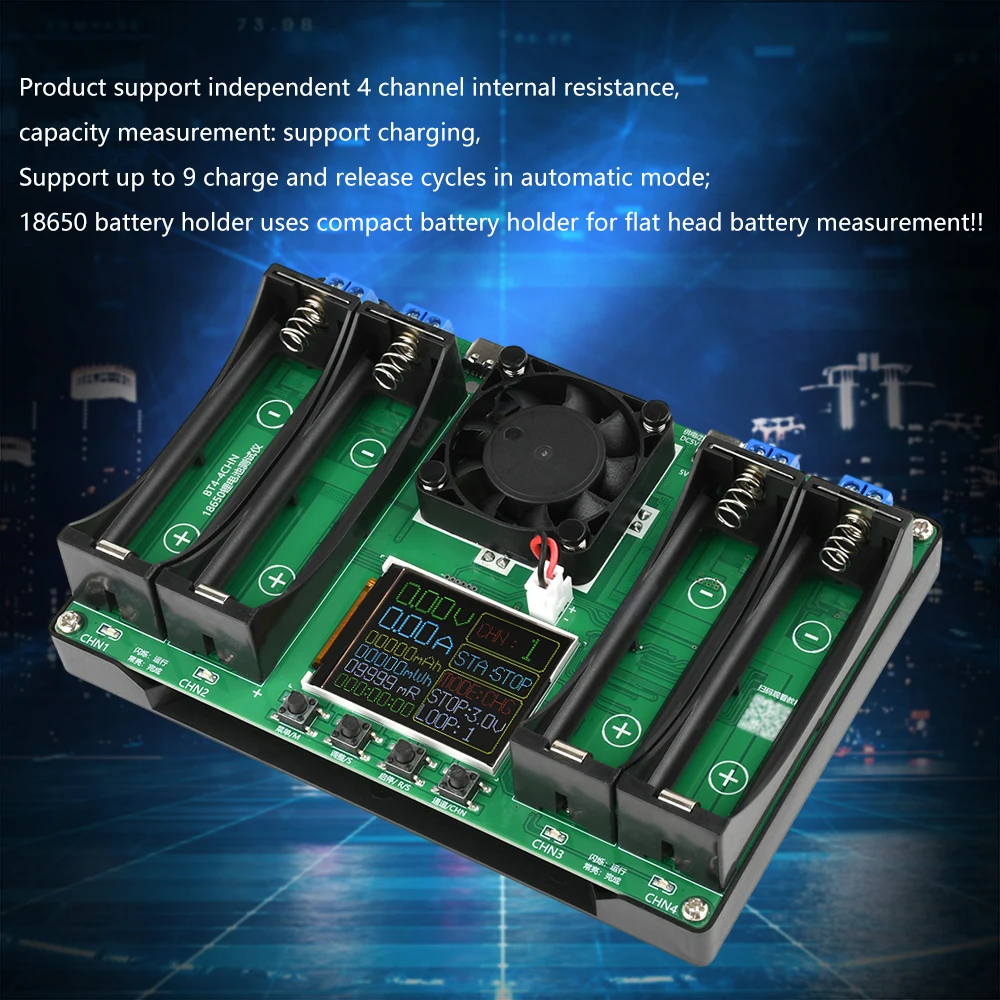

1.The product supports four-channel capacity and internal resistance measurement
2.Support separate charging and discharging, and support up to 9 charging and discharging cycles in automatic mode
3.Each channel is independent of each other, set separately, operates independently, and does not interfere with each other
4.18650 battery holder uses compact battery holder, suitable for flat-head battery measurement
5.Active cooling of fan supports overheating protection
6.Using DC two-wire method to measure internal resistance
Note: lithium iron phosphate battery charging is not supported

Parameters:
Working voltage: DC5V
Applicable battery: suitable for all batteries that meet the requirements of stopping discharge voltage of 2.5~3.5V and starting from 2.8V to 4.2V
Power supply interface: Dual Type-C power supply interface (power supply and power cord are not included)
System language: English/Chinese can be switched
Test quantity: 4-way charging and discharging measurement
Internal resistance measurement: support, use DC two-wire method to test internal resistance
Charging function: support, automatic cut-off charging when fully charged (lithium iron phosphate battery charging is not supported)
Discharge function: support, automatically stop when conditions are met, and the discharge current is not adjustable
Automatic charging and discharging: supported. The battery is fully charged at the end of automatic mode
Cyclic charging and discharging: supported, 1~9 cycles adjustable (only supported in automatic mode)
Status prompt: Supported
Cooling mode: fan active cooling
Overheat protection: support
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 adjustable gears
Discharge current: the maximum current is about 1A, which is not adjustable, and does not support independent transformation
Charging voltage: controlled by a special battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2V
Power-off saving: only save the set parameters, not the measurement data

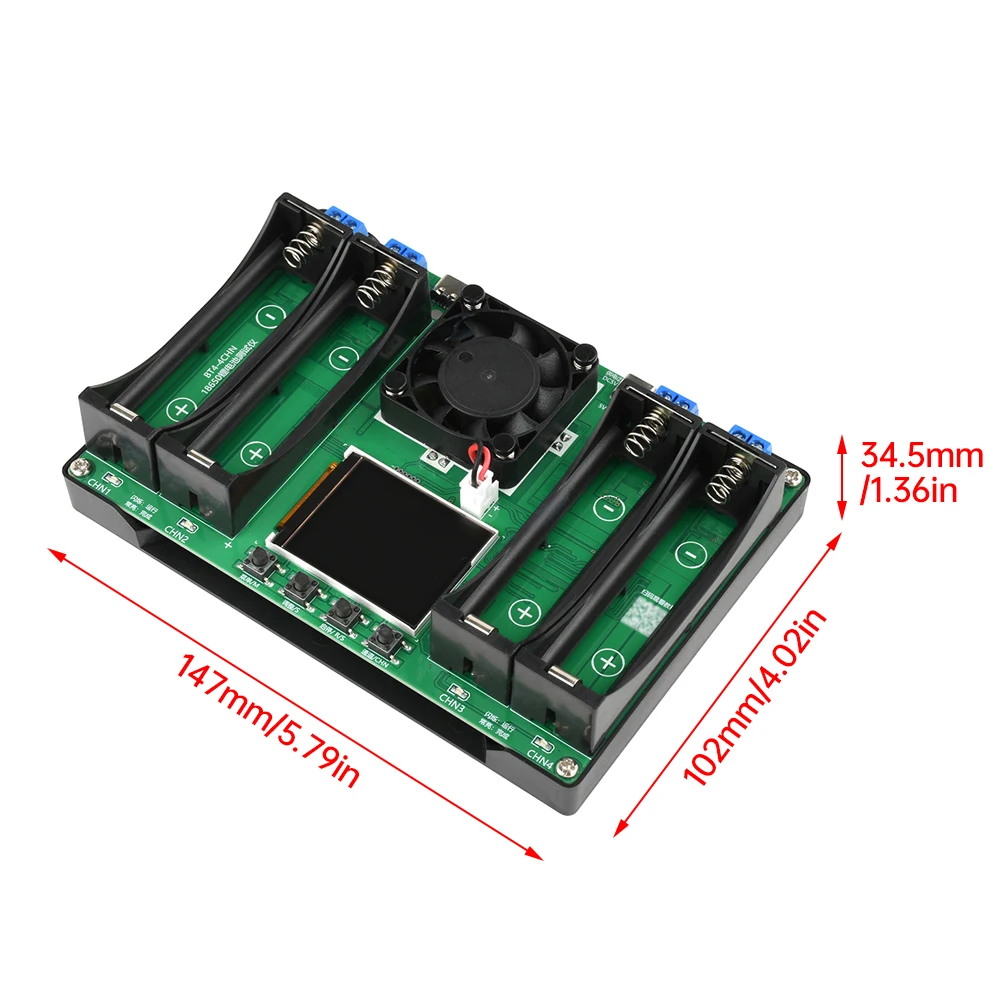

Product size: 150 * one hundred and three * 36mm
Package size: 182 * one hundred and twelve * 50mm
Data link: https://www.banber.com/gather/6374be9b2ee0e200077ec155

Package include:
4 channel
18650 battery capacity internal resistance tester X1
Crowbar X1

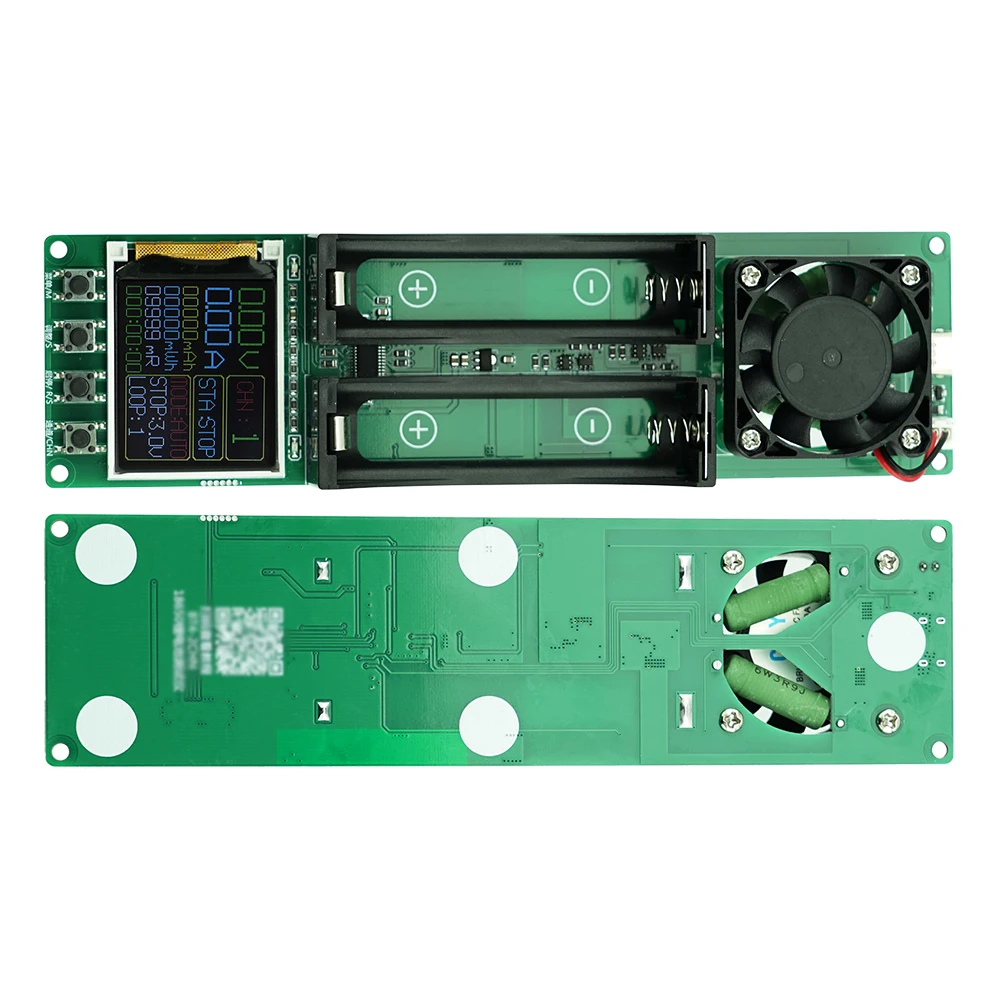

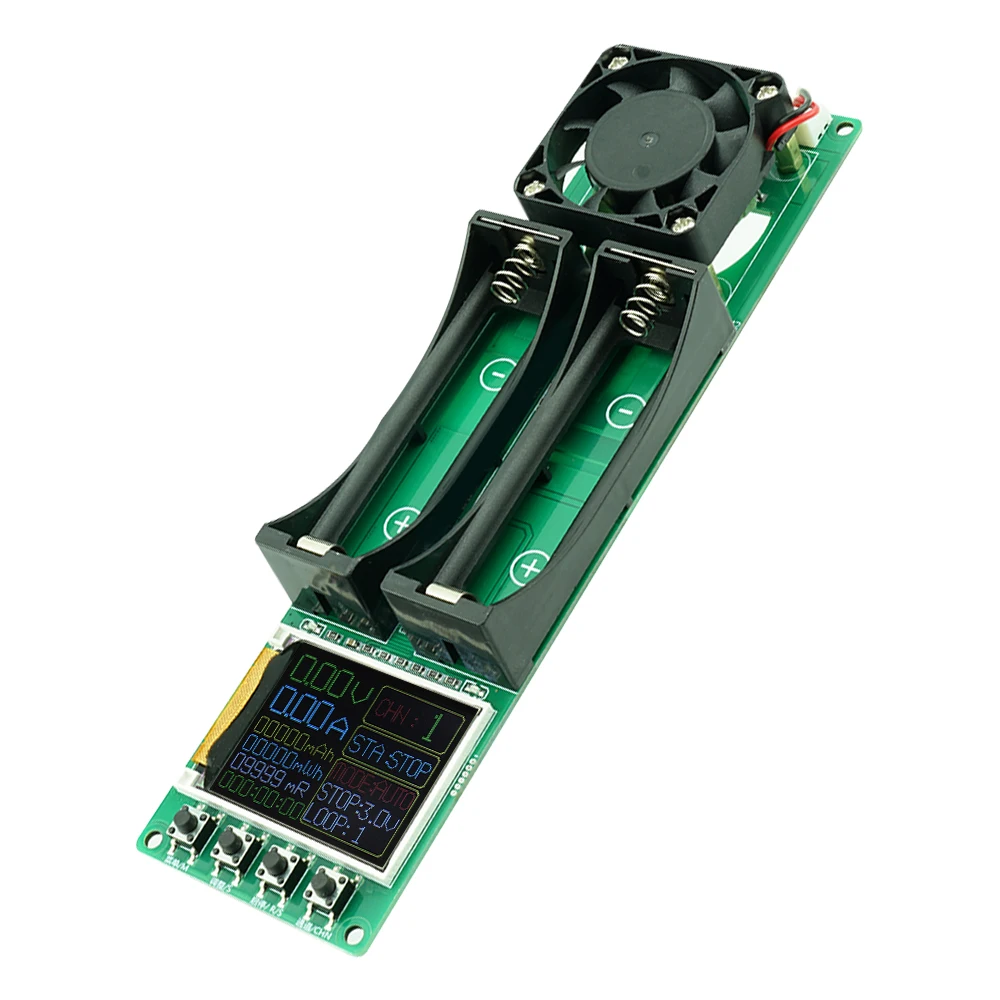

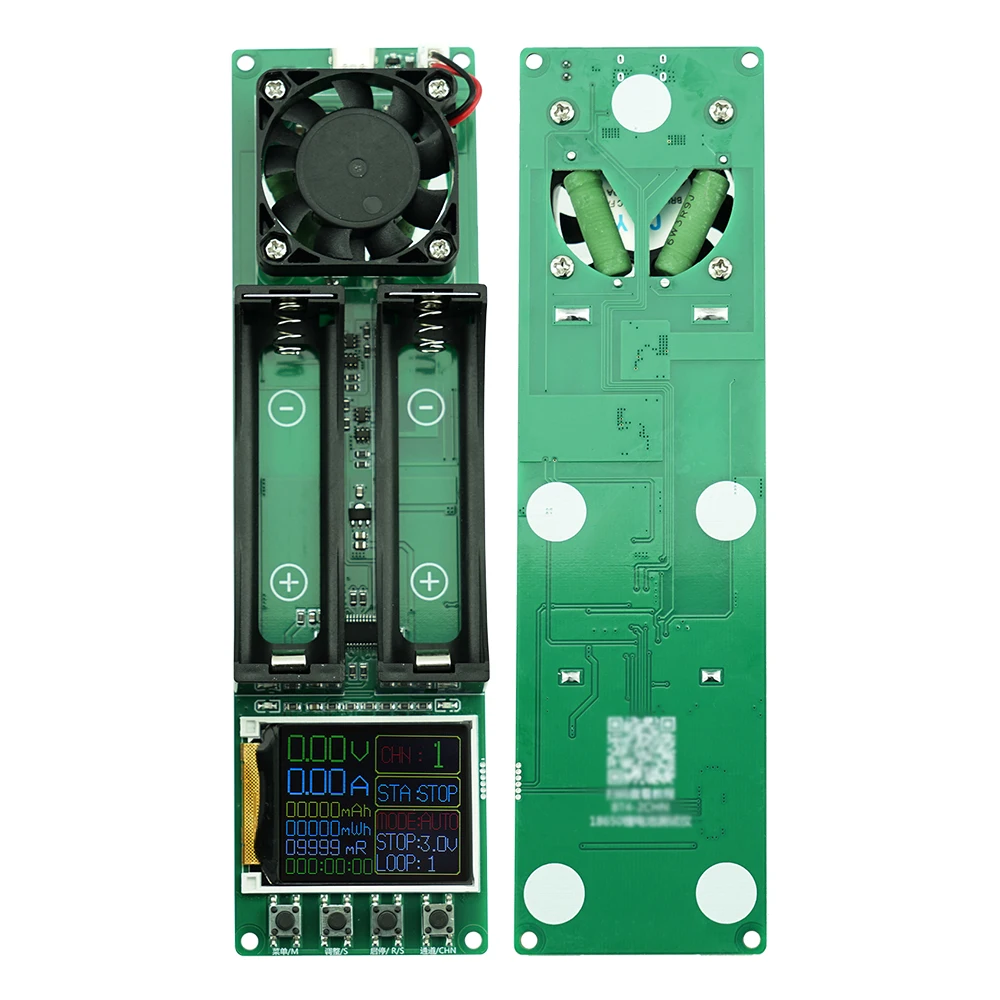

2 channel

Product features:
1.The product supports 2-channel capacity and internal resistance measurement
2.Supports separate charging and discharging, with up to 9 charging and discharging cycles in automatic mode
3.Each channel is independent of each other, can be set separately, operates independently, and does not interfere with each other
4.The battery clip is firm, and the 18650 battery holder uses a compact battery holder, suitable for measuring flat headed batteries
5.Special battery charging chip control, maximum charge of about 1A, full charge voltage of 4.2V, stop charging when charging current is less than 0.1A

Product parameters:
Working voltage: DC5V
Applicable batteries: Suitable for batteries that meet the stop discharge voltage of 2.5-3.5V, and batteries that start from 2.8V to 4.2V and are fully charged
Power supply interface: Type-C power supply interface (power supply and power cord provided)
System languages: Chinese, English
Test quantity: 2 charging and discharging measurements
Internal resistance measurement: supported, using DC two wire method to test internal resistance
Charging function: supported, automatically cut off charging when fully charged (not supported for lithium iron phosphate battery charging)
Discharge function: supported, automatically stops when conditions are met, and the discharge current is not adjustable
Automatic charging and discharging: supported, the battery is fully charged when the automatic mode ends
Cyclic charging and discharging: supported, adjustable for 1-9 cycles (only supported in automatic mode)
Status prompt: Supported
Heat dissipation method: active fan cooling
Overheat protection: supported
Stop discharge voltage: 11 adjustable levels, including 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, and 3.5V
Discharge current: maximum of about 1A non constant current, not adjustable, does not support independent modification
Charging voltage: controlled by a dedicated battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2V. Stop charging when the charging current is less than 0.1A.
Power off save: only save the set parameters, not the measurement data

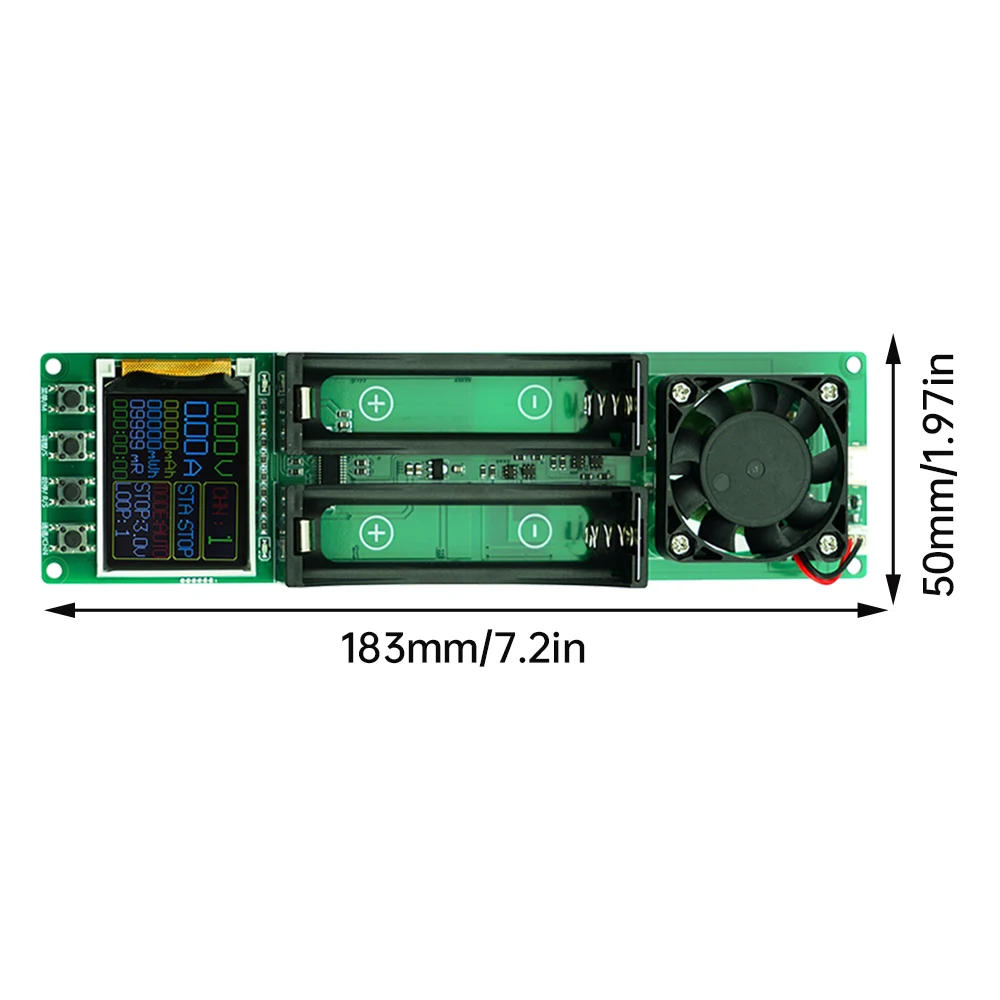

Product size: 188 x 50 x 36mm

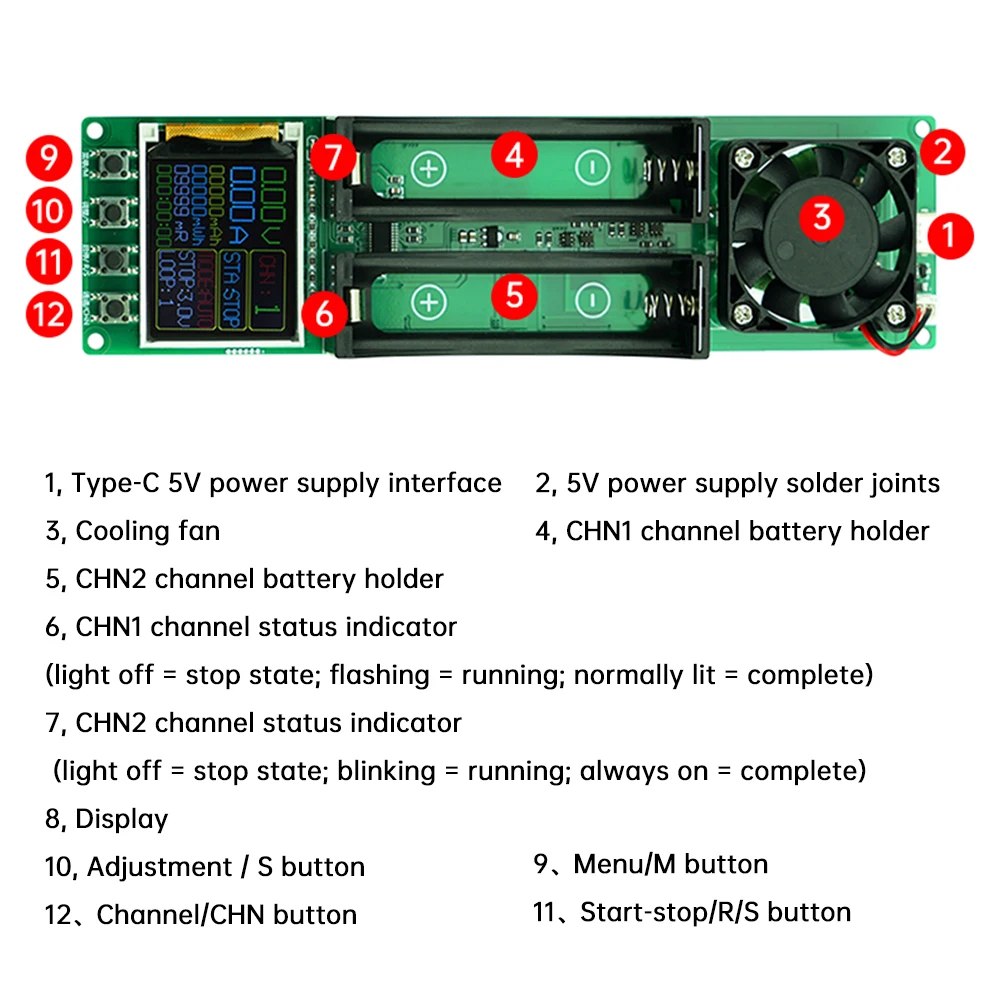

instructions:
1. Product on/off:
The product has no power button, automatically starts when powered on, and shuts down when powered off
2. Language switching:
Press and hold the "Menu/M" button before powering on. After the main interface is displayed on the screen, release the "Menu/M" button and wait for 10 seconds before shutting down and restarting

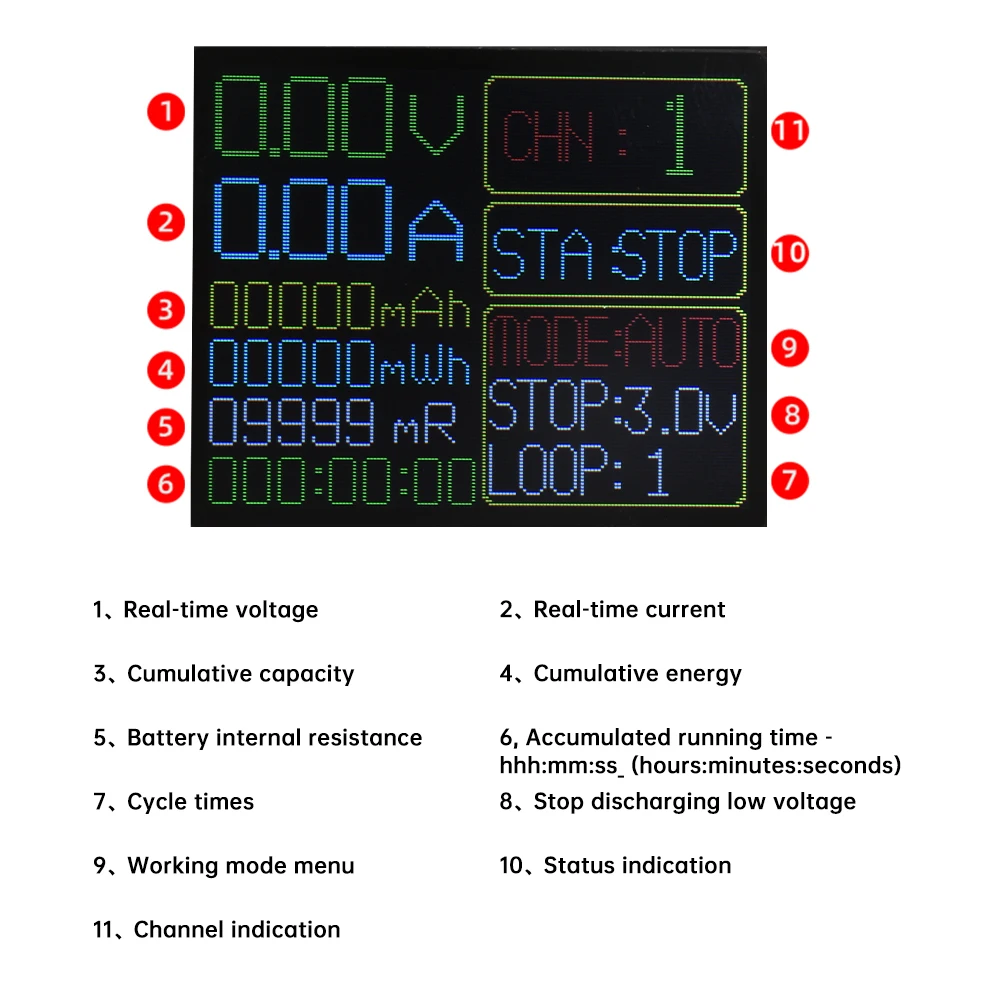

3. Switch channel display:
Each channel is independent of each other and does not interfere with each other. Click the "Channel/CHN" button to switch display channels and view the parameters of each channel, and set the parameters of each channel
4. Test internal resistance:
Install the battery, turn it on, wait for 10 seconds, and display the battery voltage and internal resistance test results. This product uses the DC two wire method to test the internal resistance. Due to the limitations of the testing principle, there may be situations where the battery cannot be recognized and the internal resistance always shows 9999
When the battery is not installed, the test circuit is open circuit, which is equivalent to an infinite resistance value, and the internal resistance shows 9999 milliohms
5. Charging function (not suitable for charging lithium iron phosphate batteries):
Install the battery in the battery holder, adjust the mode to "charging" mode, and click "start stop/R/S" to run the program. After charging is completed, the status indicator is complete. Record the capacity, energy, and charging time during the charging process. The charging capacity is for reference only, please refer to the discharge capacity for accuracy.
6. Test capacity:
Capacity testing requires discharge and waiting time. Capacity testing is conducted through resistance discharge, which generates high temperature due to the heating of the resistance during discharge. Do not touch directly with your hands to avoid scalding the outside. The capacity test result is only the capacity measured during the testing phase from the start of battery discharge to the triggering stop period
7. Battery capacity division and cycling:
The split capacity running cycle is a process of charging, discharging, and recharging. When using it, the stop voltage should not be lower than 2.8V, otherwise it cannot be charged and the program cannot run normally
8. Data zeroing:
Shut down, switch modes, and automatically reset capacity, energy, and time data to zero

Shipping list:
2 channel
18650 Battery Capacity Internal Resistance Tester X1
